Factory Original End UVC Flowing Water Sterilization Module for Water Disinfection
- Category: >>>
- Supplier: Ningbo Ann Semiconductor Co. Ltd.
Share on (1600423779589):
Product Overview
Description
Product Description

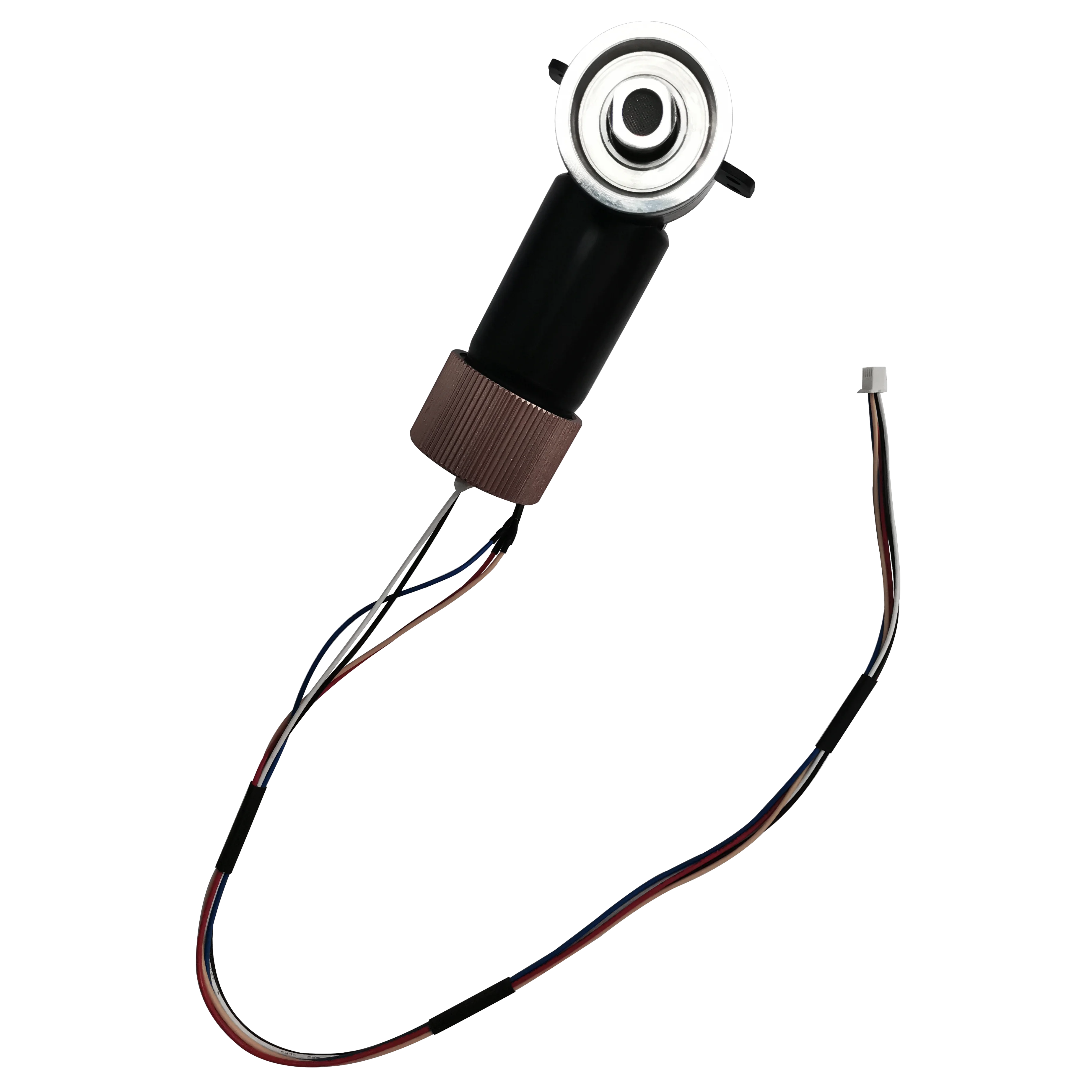

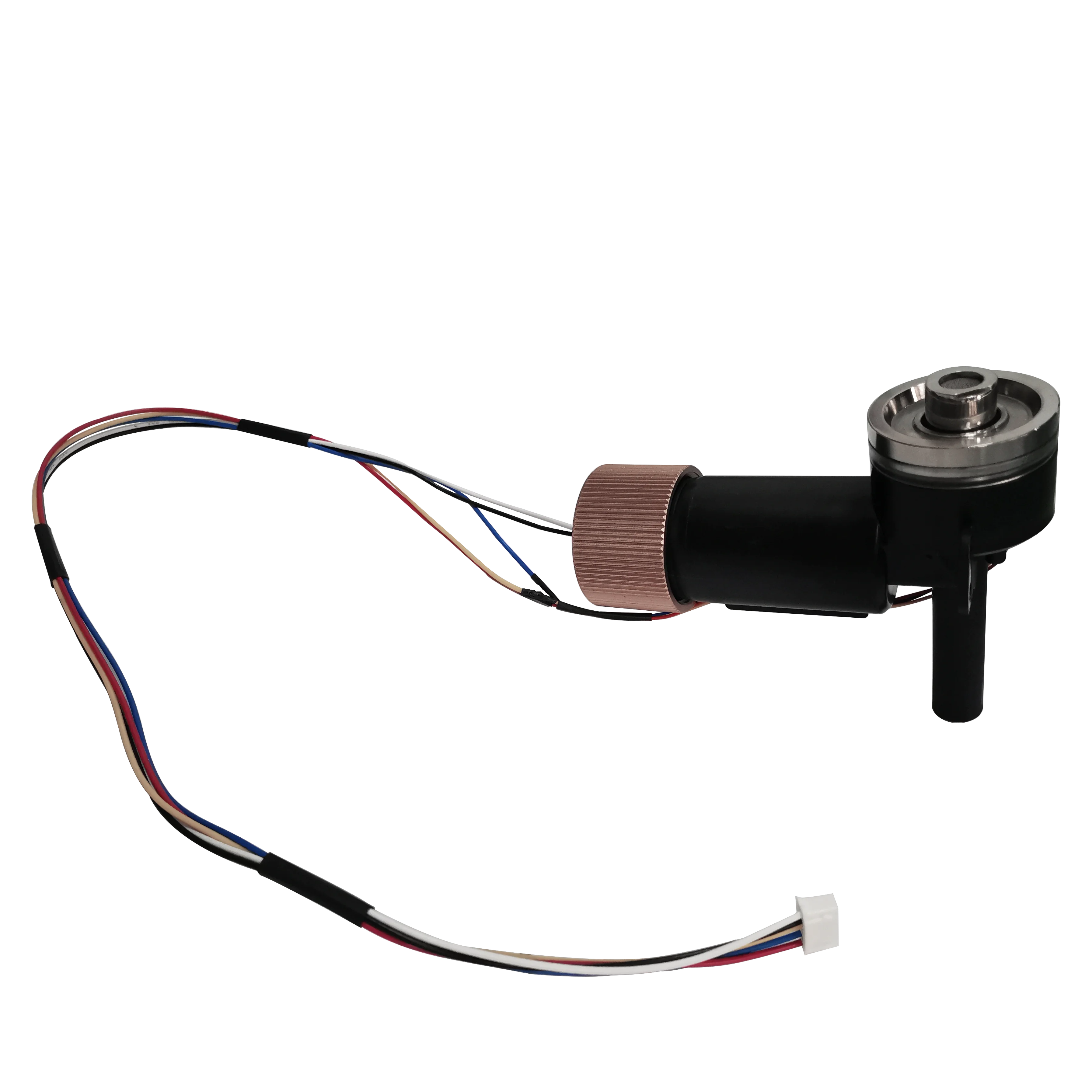

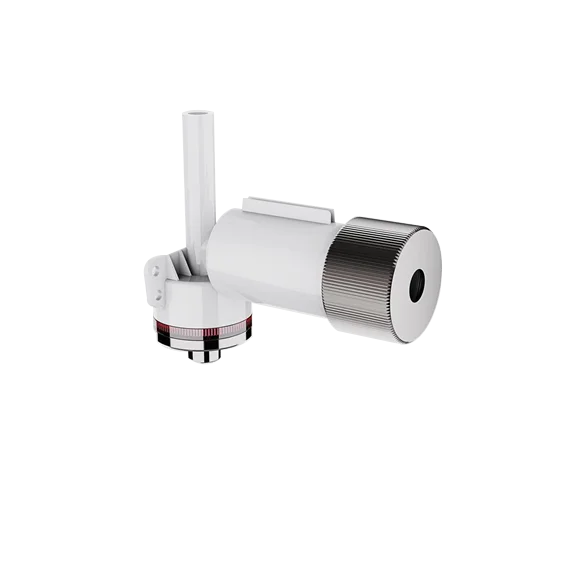

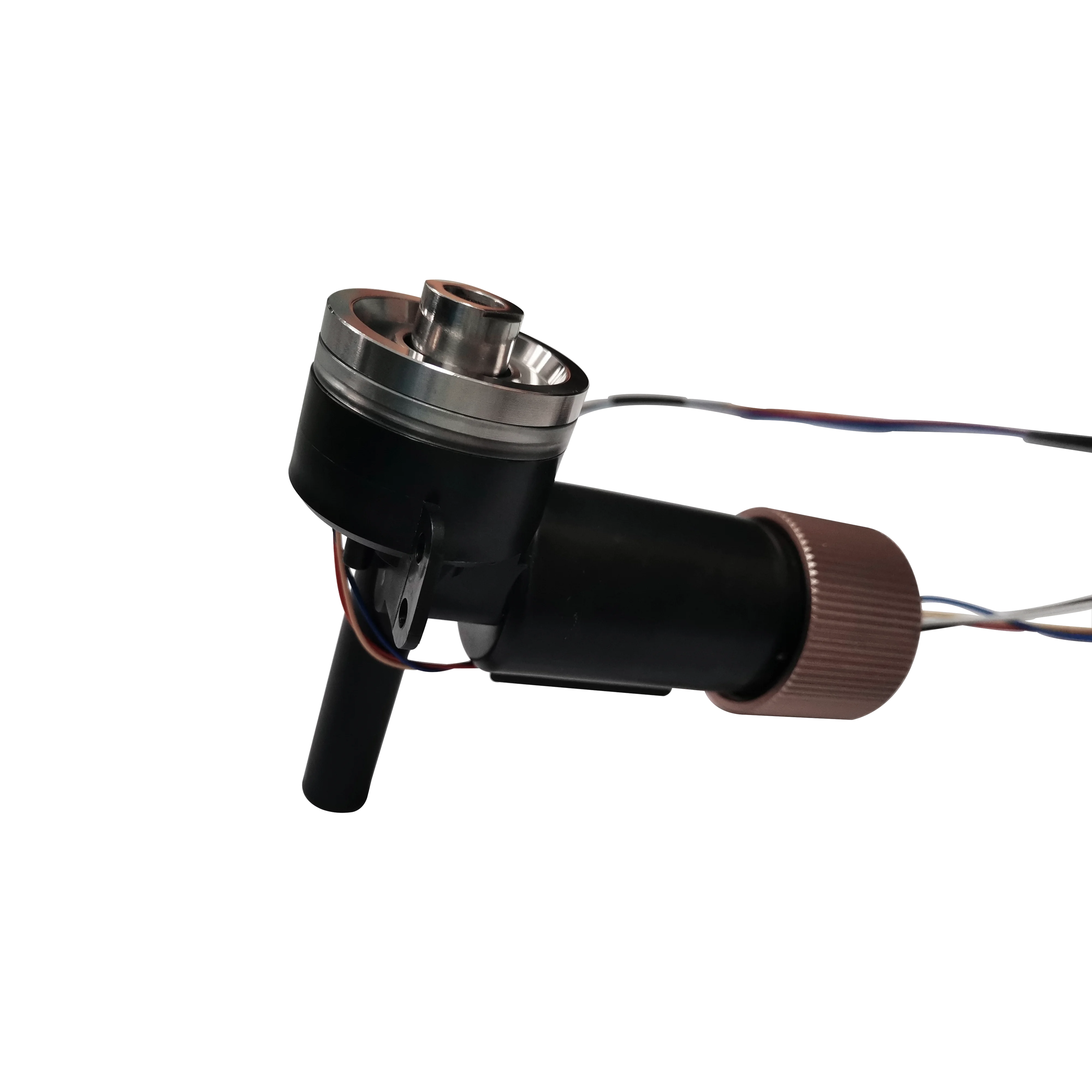

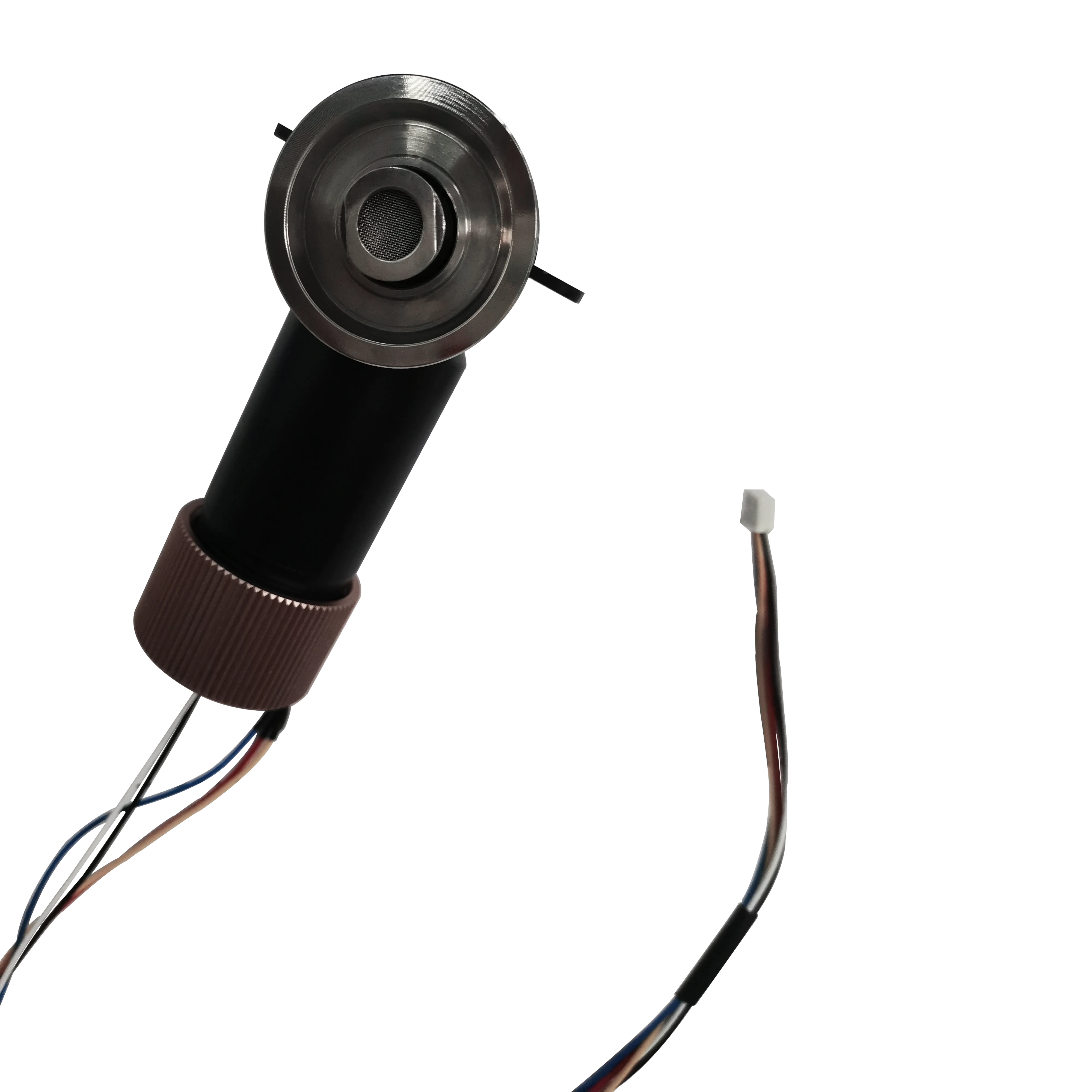

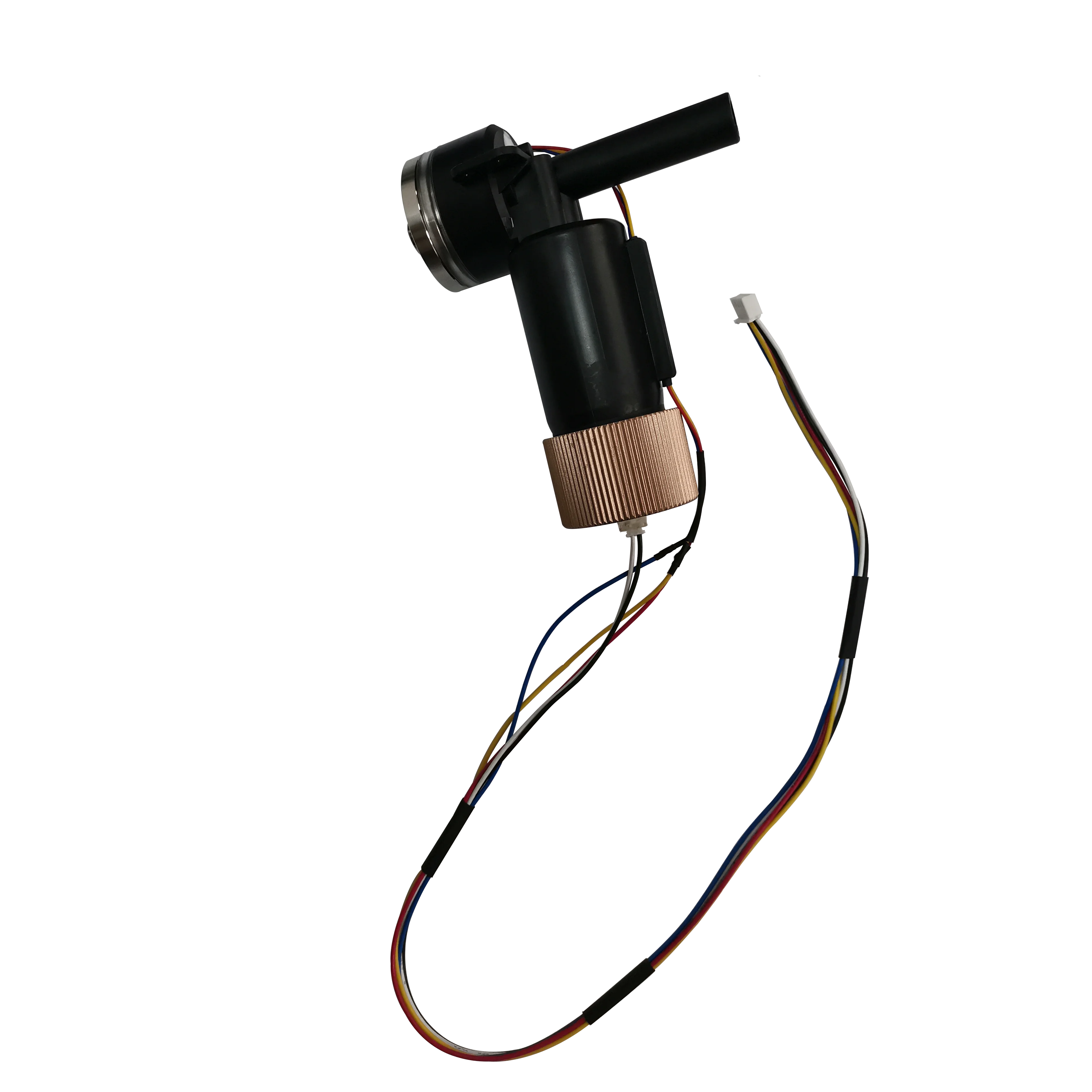

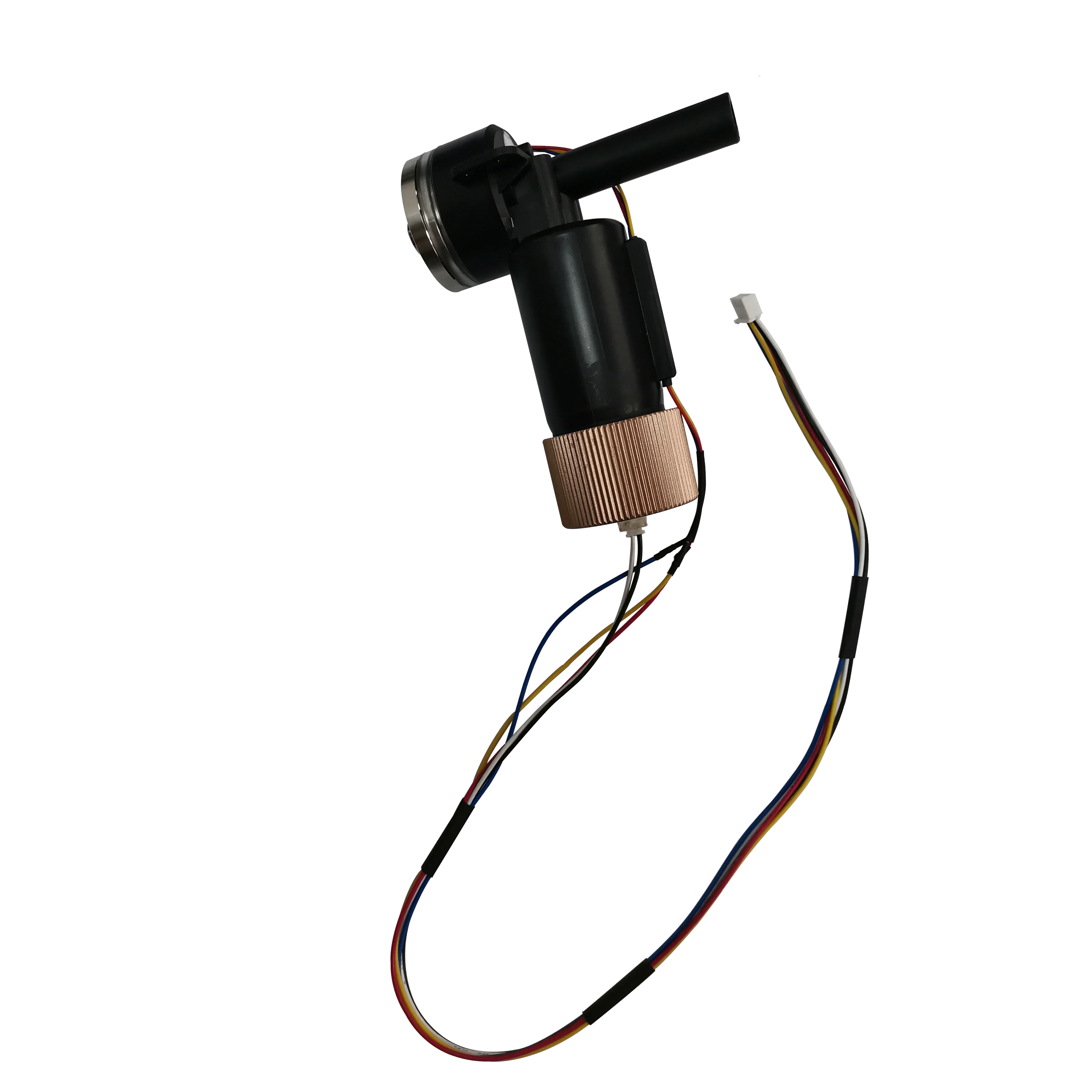

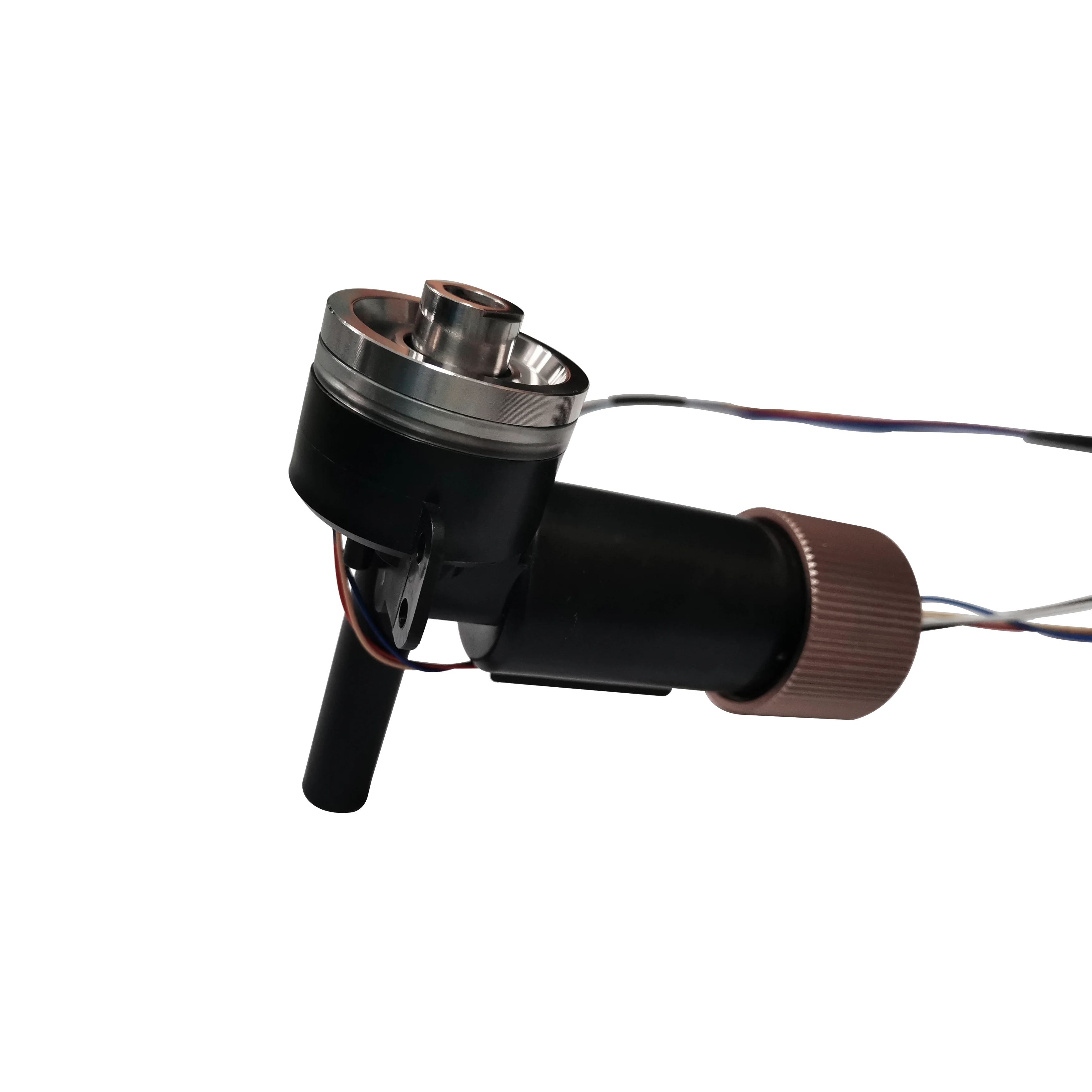

Factory Original End UVC Flowing Water Sterilization Module for Water Disinfection
EW-G9 module is a UVC LED sterilization module with high conversion rate and high output optical power, which canbe used in direct drinking system with strictly demand, such as Water purifier, water dispenser, etc. The 270-280nm short wave ultraviolet light emitted by UVC LED produced by Ann Semic can effectively kill bacteria and viruses, and provide safe and clean water for daily life.
Features
1. High sterilization rate of 99.99%;
2. UVC-LED input voltage 24V DC;
3. With unique patented technology of super heat dissipation technology, LED has low working temperature and long service life, L70 can reach more than 10000 hours; L80 can reach more than 3000 hours;
4. All water related materials meet the national and international standards;
5. High reliability. FW-G9 has passed Water hammer test, Blasting test and Static pressure test. It meets the standard of QB / T 4144-2019 for household and similar purified water treatment;
◇ Water hammer test: 11kg, 100K times, above standard
◇ Blasting test: >36kg, above standard
◇ Static pressure test: 21.7kg, 30min
3. With unique patented technology of super heat dissipation technology, LED has low working temperature and long service life, L70 can reach more than 10000 hours; L80 can reach more than 3000 hours;
4. All water related materials meet the national and international standards;
5. High reliability. FW-G9 has passed Water hammer test, Blasting test and Static pressure test. It meets the standard of QB / T 4144-2019 for household and similar purified water treatment;
◇ Water hammer test: 11kg, 100K times, above standard
◇ Blasting test: >36kg, above standard
◇ Static pressure test: 21.7kg, 30min
Specifications:
Module | Parts | Escherichia coli decay rate | Wavelength (nm) | Operating Voltage (V) | Power (W) | ||
2 lpm | 6 lpm | ||||||
ANN-EW-G9 | UVC | 4 | - | 270-280 | 24V DC | 6W±10% | |
R&B Light | / | / | / | 9V DC | 0.3W±10% | ||
1. High sterilization rate of 99.99%;2. UVC-LED input voltage 24V DC;
3. With unique patented technology of super heat dissipation technology, LED has low working temperature and long service life,
L70 can reach more than 10000 hours; L80 can reach more than 3000 hours;
4. All water related materials meet the national and international standards;
5. High reliability. FW-G9 has passed Water hammer test, Blasting test and Static pressure test. It meets the standard of QB / T
4144-2019 for household and similar purified water treatment;
3. With unique patented technology of super heat dissipation technology, LED has low working temperature and long service life,
L70 can reach more than 10000 hours; L80 can reach more than 3000 hours;
4. All water related materials meet the national and international standards;
5. High reliability. FW-G9 has passed Water hammer test, Blasting test and Static pressure test. It meets the standard of QB / T
4144-2019 for household and similar purified water treatment;
Details Images

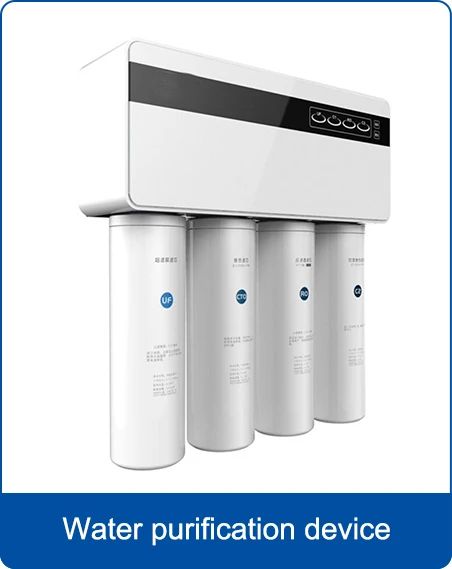

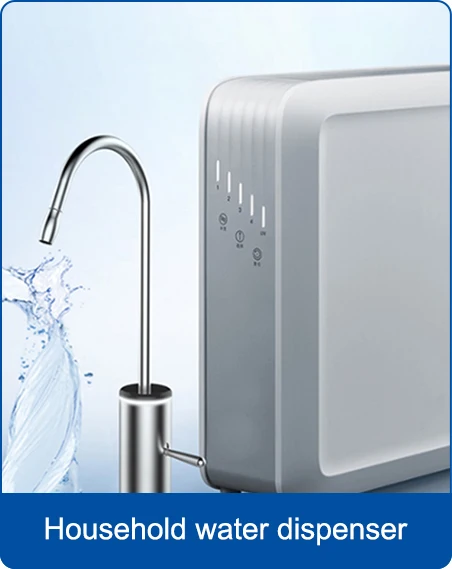

Industry Application
Company Profile
Ningbo Ann Semiconductor Co., Ltd. integrates the development, production, marketing and service together. The team of our company has more than 10 years of experience in LED industry production, technology, quality and management. We supply a variety of UVC products, including UVC led epitaxy, UVC chips, UVC package, UVC disinfection modules, and more than 100 types of UVC sterilizers for water, air and surface disinfection.

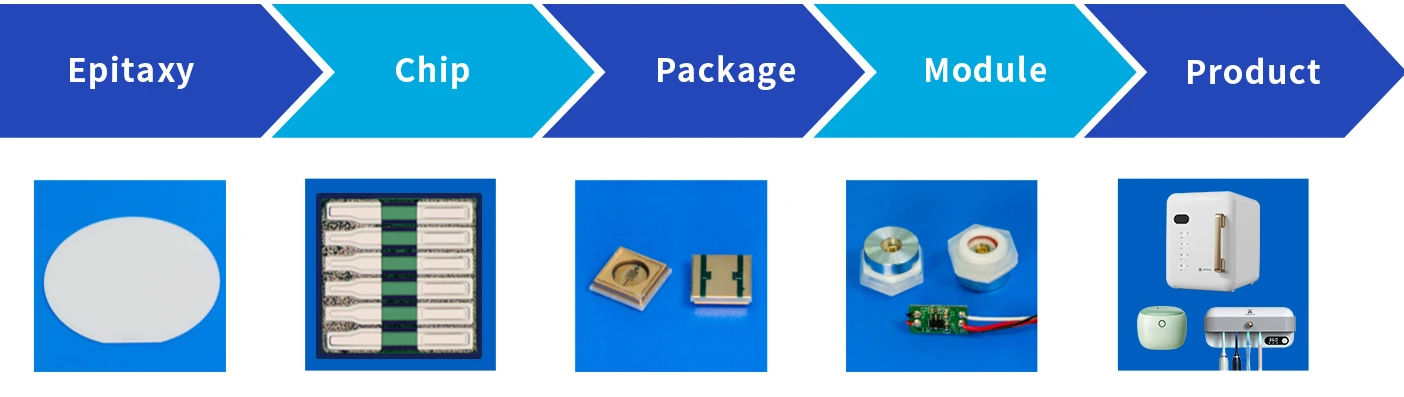

Complete UVC Product Lines
The products are widely applied in industrial, medical, food & drink, home, mother & baby, makeup, business, travel, and car area. Our UVC technology is in the leading position in the world. We also provide the complete solution for your new disinfection project. Please feel free to contact us for further information.
Factory Strength
A. The registered capital of ¥150 million CNY and the total investment of ¥660 million CNY.
B. Covering an area of 16.47 acres with a total construction area of 40,500 square meters.
C. Plant to bulid More than 25 product lines: 10 production line for UVC epitaxy & chips, and 15 package line.
D. Planned to be an annual output of 100 million 2-inch UVC chips and 180 million packages.
E. Our uvc led technology team from Peking University offer the utmost support.
A. The registered capital of ¥150 million CNY and the total investment of ¥660 million CNY.
B. Covering an area of 16.47 acres with a total construction area of 40,500 square meters.
C. Plant to bulid More than 25 product lines: 10 production line for UVC epitaxy & chips, and 15 package line.
D. Planned to be an annual output of 100 million 2-inch UVC chips and 180 million packages.
E. Our uvc led technology team from Peking University offer the utmost support.
Complete UVC Product Lines
Trade Shows
Our Partners
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 working days, mass production needs 2-4 weeks if order quantity more than 10,000 pcs.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.Airline and sea shipping also optional.
Q4. Do you have any MOQ limit for order? What's the Payment method?
A: MOQ is 1pcs for each model. We accept Alibaba Trade Assurance(Credit card or T/T),Paypal, and Western Union payment.
Q5. How to proceed an order for the led?
A: For some products, you can buy on our web directly; otherwise, please contact our sales:
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
