Powder mixer 100kg dry powder mixer blender

Product Overview

Description

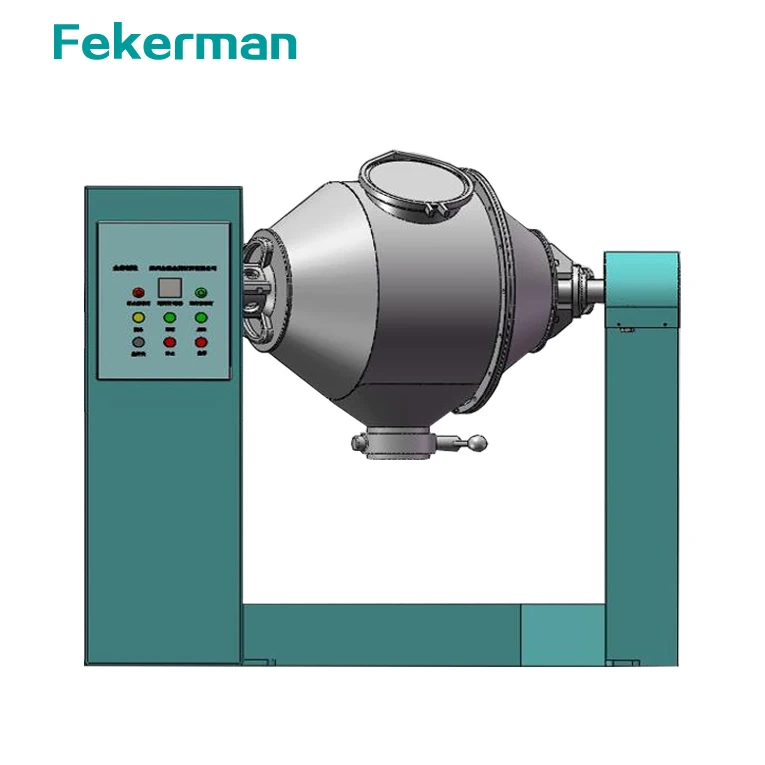

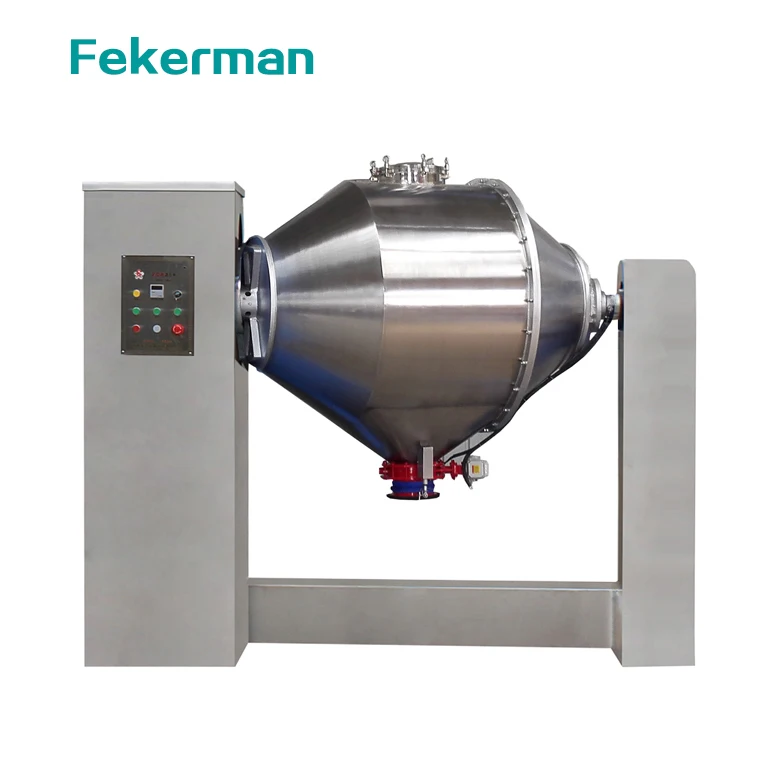

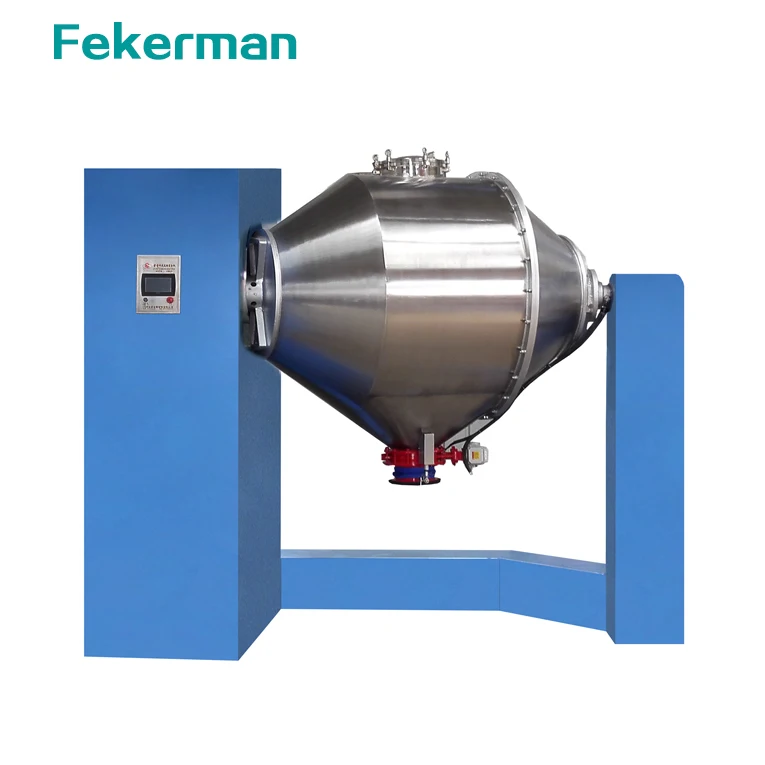

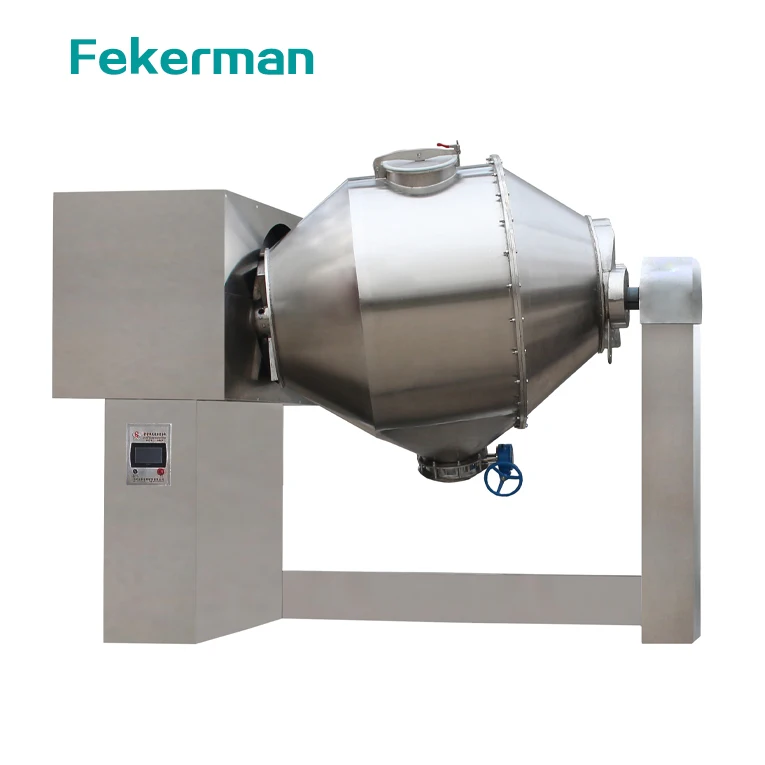

Product:  Industrial powder mixer

Model:  FX-100

Applicable area:  Pharmaceutical, Food, Chemical, cosmetics, etc.

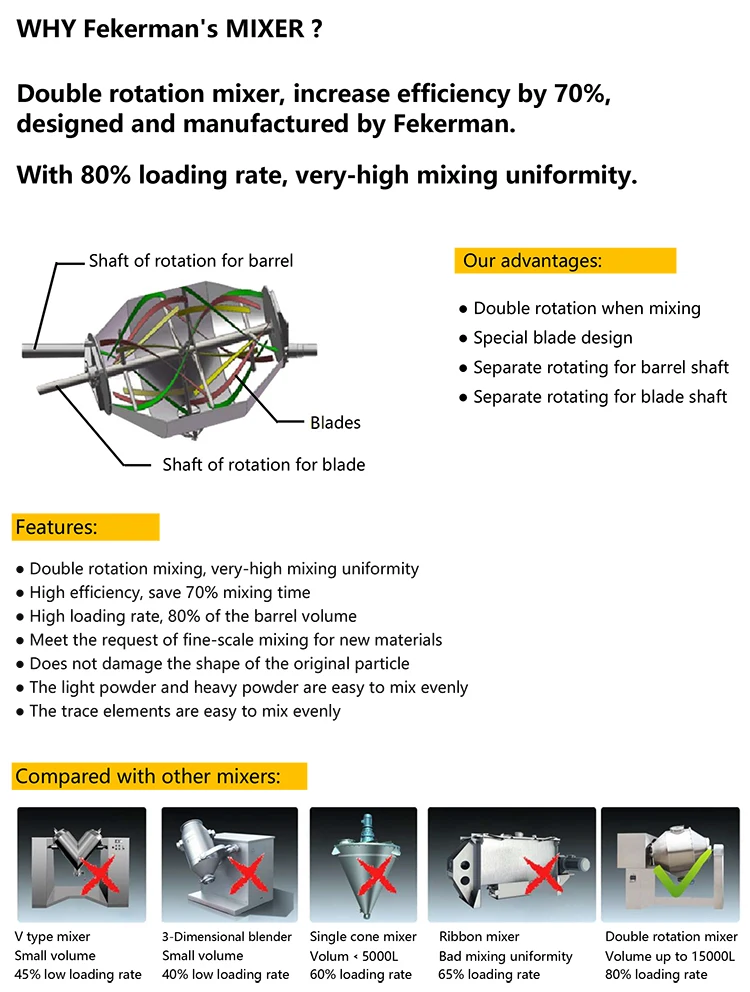

WHY Fekerman's MIXER ?

Double rotation mixer, increase efficiency by 70%, designed and manufactureed by Fekerman.

With 80% loading rate, very-high mixing uniformity.

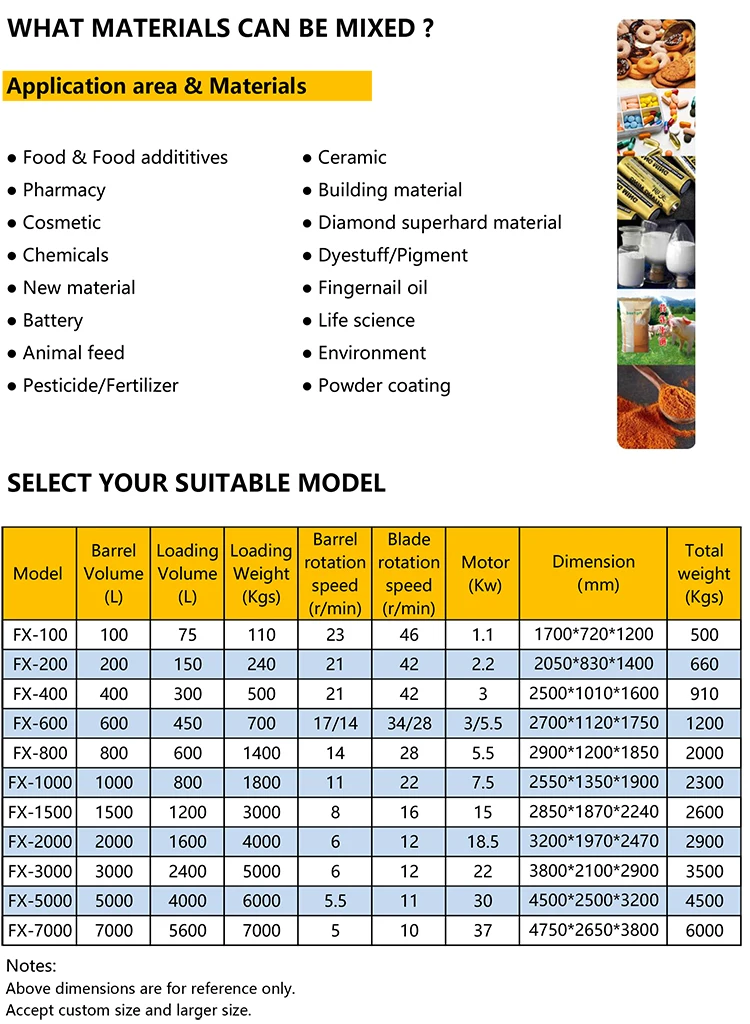

More models can be choosed:



Model	Barrel Volume (L)	Loading Volume (L)	Loading Weight(Kgs)	Barrel rotation speed (r/min)	Blade rotation speed (r/min)	Motor (Kw)	Dimension(mm)	Total weight(kgs)
FX-100	100	75	110	23	45	1.1	1700*720*1200	500
FX-200	200	150	240	21	42	2.2	2050*830*1400	660
FX-400	400	300	500	21	42	3	2500*1010*1600	910
FX-600	600	450	700	17/14	34/28	3/5.5	2700*1120*1750	1200
FX-800	800	600	1400	14	28	5.5	2900*1200*1850	2000
FX-1000	1000	800	1800	11	22	7.5	2550*1350*1900	2300
FX-1500	1500	1200	3000	8	16	15	2850*1870*2240	2600
FX-2000	2000	1600	4000	6	12	18.5	3200*1970*2470	2900
FX-3000	3000	2400	5000	6	12	22	3800*2100*2900	3500



Above dimensions are for reference only.

Accept custom size and large size above 3000L.















Fekerman make different series powder mixing equipment for different industries, such as Food & Food addititivesm Pharmaceutical, Cosmetic, Chemicals, New material, Battery, Animal feed, Pesticide, Fertilizer, Ceramic, Building material, Diamond superhard material, Dyestuff, Pigment, Fingernail oil, Life science, Environment, Powder coating, Etc.

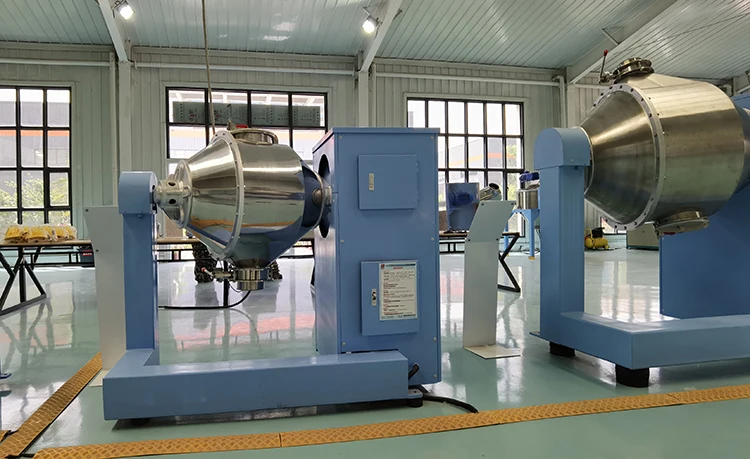

Exhibition Hall:

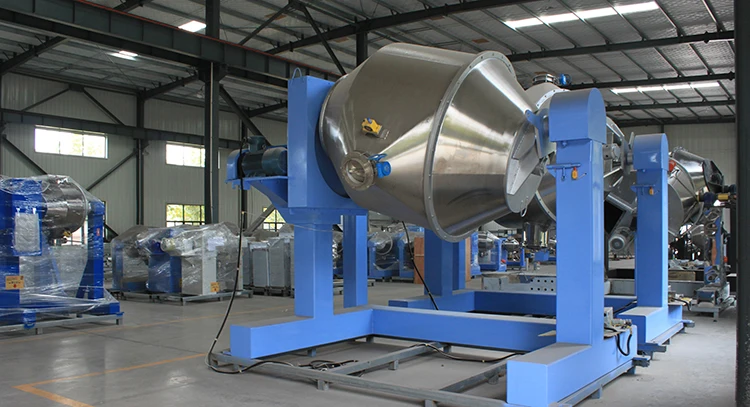

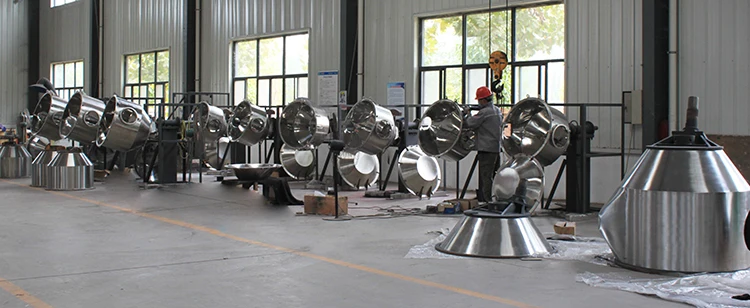

Workshop as follows:

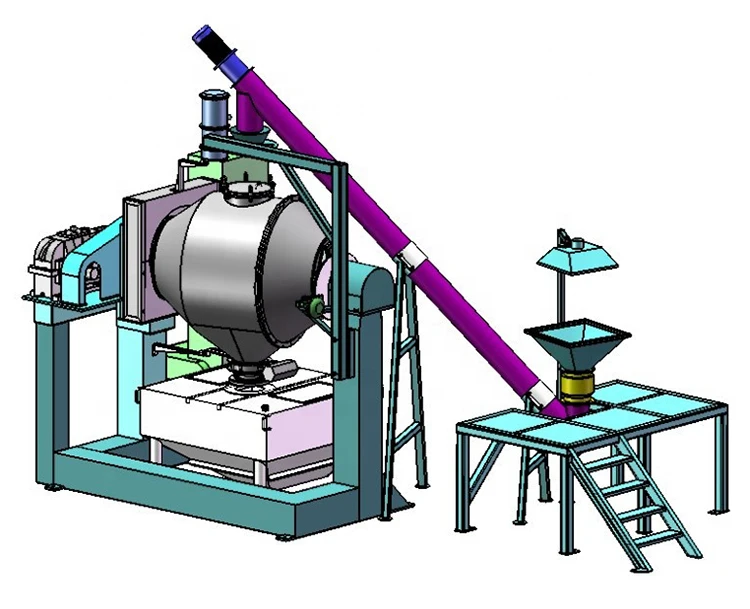

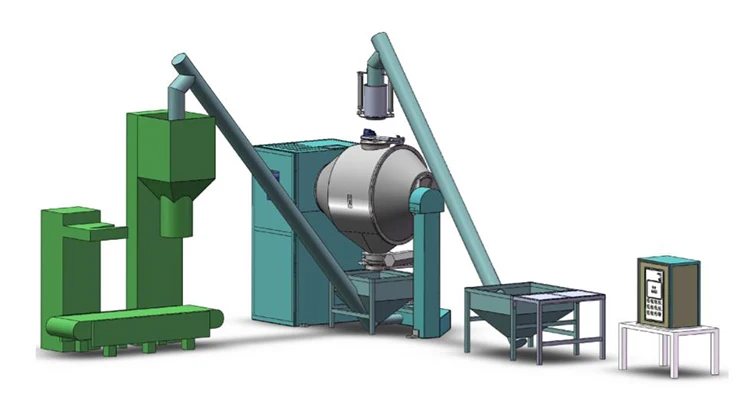

Fekerman design & manufacture the powder mixing production line for different industries.





For more information, pls contact our team any time. We will support you as per your request.





Please read the following information before you select the mixer model.

Question 1:

Do you have a very small or very big capacity mixer ?

Yes, very small capacity in 3 liters, very big capacity in 48000 liters.

Question 2:

Is it easy to clean the mixer barrel when mixing different powders ?

Our lab series mixer's inside blades and barrel are all dismountable. You can clean it thoroughly by yourself.

Question 3:

If I want to mix different powders particle size in 200 mesh(74um), how long it would be ok ?
Only 10 minutes or less upon the fluxility of the powder

Question 4:

If I want to mix powder size smaller than 800 mesh(19um), would it be ok ?
Yes, no problem.

Question 5:

If I want to mix light powder and heavy powder together, like Mgnesita powder and Cromo powder, the light powder is easily floating on the surface of heavy powder, then the light powder can not well- dispersed. Does your mixer can slove this problem ?
Yes, absolutely. Our double rotation series mixers have unique structure over the world. The barrel rotating while the inside 8 full size helical blades rotating also. The barrel rotating like a 3D mixer. The inside helical blades can do cutting, dividing, pressing job. If our machine used to mix normal powders like milk powder, detergent powder, protein powder, etc.....it will need less time than other mixer.

Question 6:

We are in the food industrial, which kind of mixer is best for us ?

Fully stainless steel mixer, models like FX series and FY series.



Question 7:

We are in the diamond superhard material industrial, which kind of mixer is best for us ?

Models FX series high efficiency double rotation mixer.



Question 8:

Our national power supply is 110V or 380, does your machine match it ?

For Fekerman's mixer, 3 voltages can be choosed: 110V, 220V, 380V.
