Product Overview

Description



Product Description

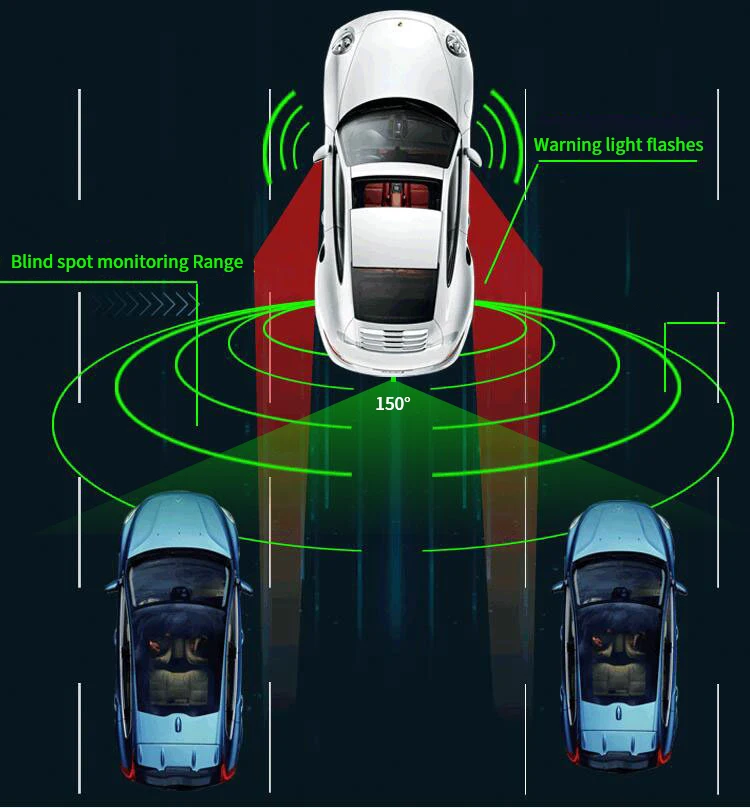

Blind Spot Monitoring Function-BSD
1.System Starting Speed:V≥15 Km/h
2.Horizontal Range of early warning:1.5m≤X≤4.4m,-4.4m≤X≤-1.6m.
3.Longitudinal range of early warning:0 m ≤Y≤6.5m.
4.Early warning strategy: alarm for moving targets in the alarm area.
5.Including active overtaking or passive overtaking,the relative overtaking speed is not more than 20 Km/h.
BSD early warning mode:
A. When the moving object enters the blind area monitoring area (the vehicle does not turn on the turn signal),it will give a first-class warning until the target object leaves the monitoring area and cancel the warning;
B.When the moving object enters the blind area monitoring area(the vehicle turns on the turn signal), a second-level warning will be generated until the target object leaves the monitoring area, and the warning will be cancelled.

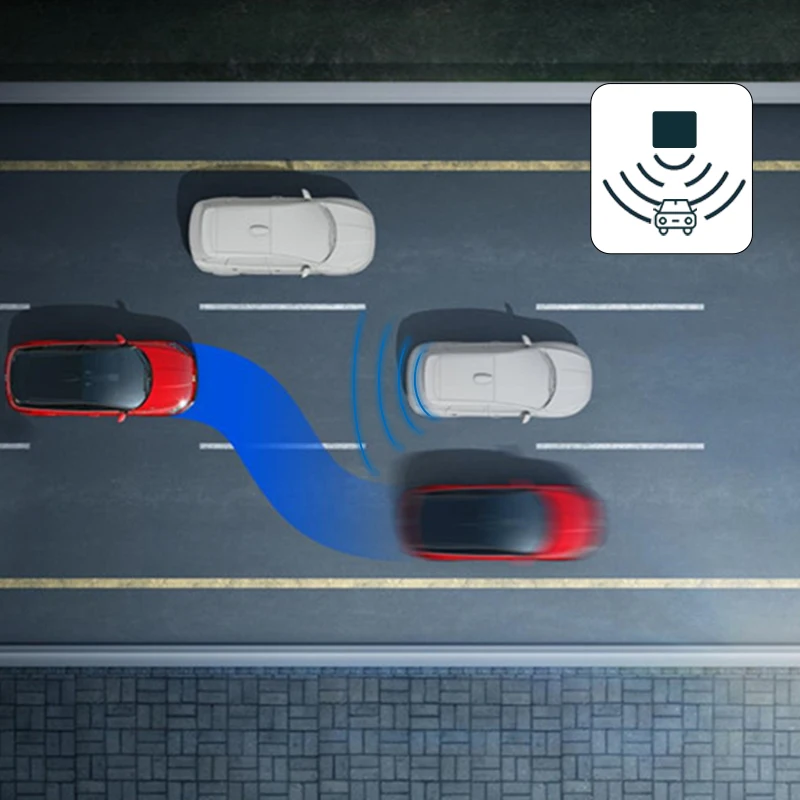

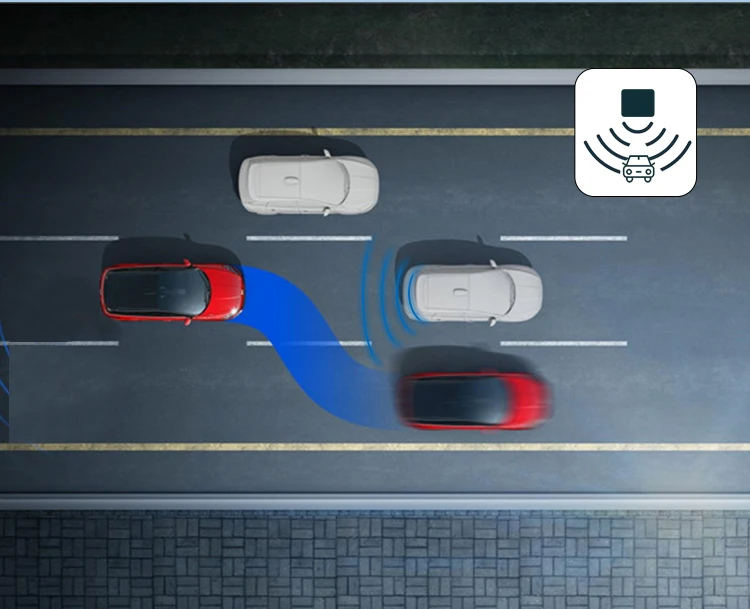

Parallel auxiliary approach early warning function-LCA
1.System Starting Speed:V≥15 Km/h
2.Horizontal Range of early warning:1.5m≤X≤4.4m,-4.4m≤X≤-1.6m.
3.Longitudinal range of early warning:0 m ≤Y≤50m.
4.Early warning strategy: approach time≤4.0s.
5.Including active overtaking or passive overtaking,the relative overtaking speed is not more than 20 Km/h.
LCA vehicle approach early warning mode:
A. When the target enters the alarm range (the vehicle does not turn on the turn signal),a first-class warning is generated,until the target leaves the alarm are,cancel the warning;
B.When the terget enters the alarm rang (the vehicle turns on the turn signal), a second-level warning will
be generated until the target leaves the alarm area, and the warning will be cancelled.












Specification


item
value
Operating Voltage
9V-32V
Operating frequency band
77-79Ghz
Power consumption
＜3W
Working Temperature
-25°C~+75°C

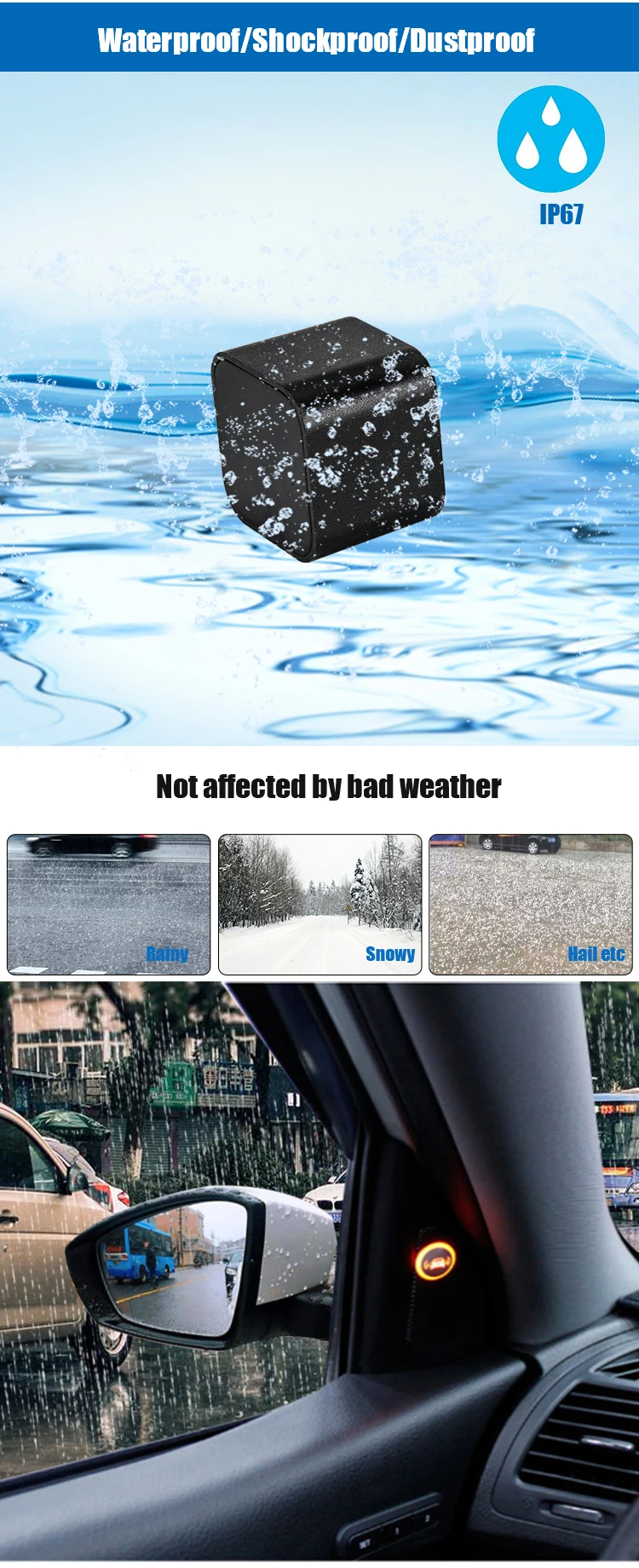

Waterproof Level
IP67
Distance Range
0-50M
Velocity Measurement Accuracy
0.1m/s
