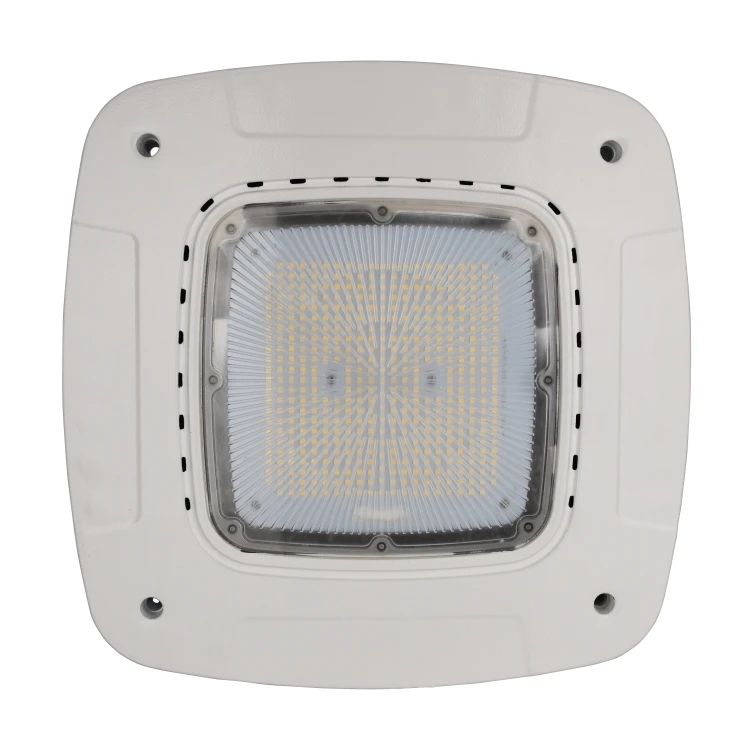

led canopy light for gas station 30w 80w 100w High light efficiency 155lm/w warehouse etl ce manufacturers cheap price
- Category: >>>
- Supplier: Shenzhen Yaorong Technology Co. Ltd.
Share on (1600423853985):
Product Overview
Description
Yaorong 200w led canopy light Advantages
—————
1.High earthquake resistance: The LED canopy light mask uses high-strength shatter-resistant glass, which is impact-resistant, abrasion-resistant, and has strong seismic resistance, reducing failures and problems, and saving costs.
2.Anti-glare: Yaorong LED canopy light is designed with the best horizontal illuminance and vertical illuminance, with comfortable color temperature and good color rendering. No glare, making users more comfortable and safer. Professional light distribution can reduce the number of lamps required.
3.Constant current drive: Yaorong LED canopy light adopts constant current drive, stable luminescence, no visible flicker, uniform brightness, constant current makes IC consume less energy, less self-heating, and prolong service life.
4.High luminous efficiency: The luminous efficiency of Yaorong LED canopy light exceeds 100 lm/W, and the spectrum is almost entirely concentrated in the visible light frequency band, and the luminous efficiency is far greater than that of traditional lighting fixtures.
5.Ultra-wide beam angle: Yaorong LED canopy light has an ultra-wide beam angle of up to 160°, with a wider lighting range, uniform and clear light, and no black spots.
6.Low light decay: Yaorong LED canopy light's luminous decay is still less than 10% after 36,000 hours of operation. When traditional lamps work for 10,000 to 15,000 hours, the light decay is usually as high as 30%. The light decay is low and the lighting effect is better.
Yaorong 200w led canopy light Certification
—————
Yaorong 200w led canopy light Parameters
—————
| Gas Station LED Canopy Light | |||
| Model | CRI | Effect | Power |
| YR-PG230-W030 | ≥80 | 125LM/S | 100W |
| YR-PG230-W050 | ≥80 | 125LM/S | 120W |
| YR-PG230-W060 | ≥80 | 125LM/S | 150W |
| CCT | 30K/40K/50K/57K | ||
| Warranty | 5 years | ||
| Temperature | -25°~40° | ||
| Power Efficiency | ≥0.9 | ||
| Protection level | IP65 | ||
| Beam angle | 150° | ||
| Shell Color | White/Customized Color | ||
| Certification | UL/DLC/CE/ROHS | ||
Yaorong 200w led canopy light Features
—————
Anti-glare,reducing the light pollution and be friend to human eyes
6030 aluminum die casting, fine heat dissipation

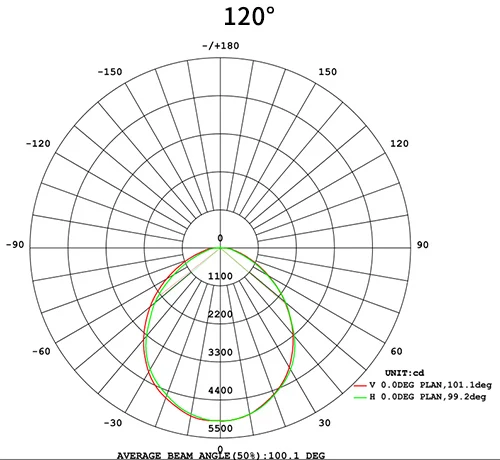

Yaorong 200w led canopy light Distribution Curve
—————
Yaorong 200w led canopy light Distribution Curve
Yaorong LORA-IOT Single controller Parameters
—————
| LORA-IOT Single controller | |||
| Name | YR-LR73-12 single controller | Temperature | -40°~85° |
| Power | DC12V | Sensitivity | -135dBm |
| Communication | LR-IOT wireless network communication interface Custom Lora Narrowband Communication Standard | Interface | Support telecommunications, mobile China Unicom Internet of Things cards |
| Switch output | 1 way, contact 12V/16A | Frequency | LTE NB-IOT B3/B5/B8/B26 Support the use of all channels by the three major domestic operators |
| Dimming output | 1 way, 0-10V/PWM | Transmit power | 23dBm |
| Elec Parameter | Voltage, current, power, factor, electric energy | Protection level | IP65 |
| Dimensions | 84*84*97mm | Antenna type | Built-in |
| Advantages | 1. Grouping, time control, light control, induction, latitude and longitude switch lights; 2. Dimmable from 0 to 100%; 3. With system monitoring function and positioning alarm function; 4. The self-built base station is convenient and safe and reliable. | ||

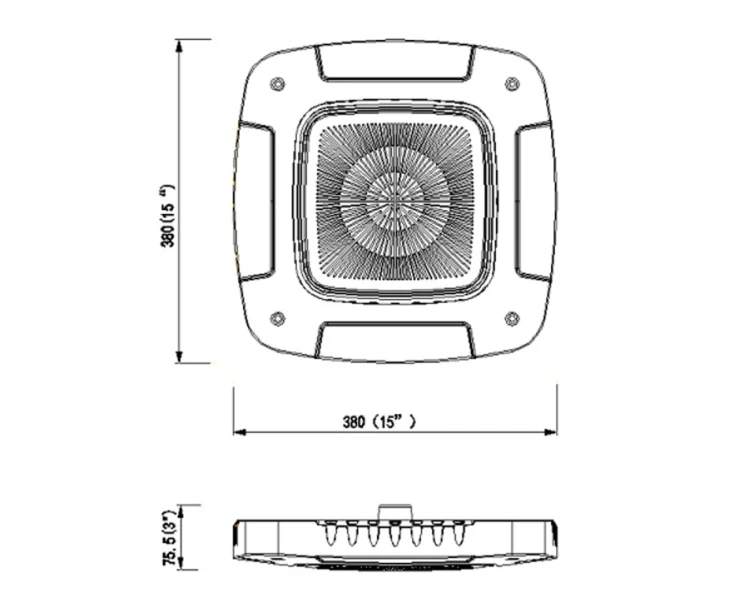

200w led canopy light Size Atlas
—————

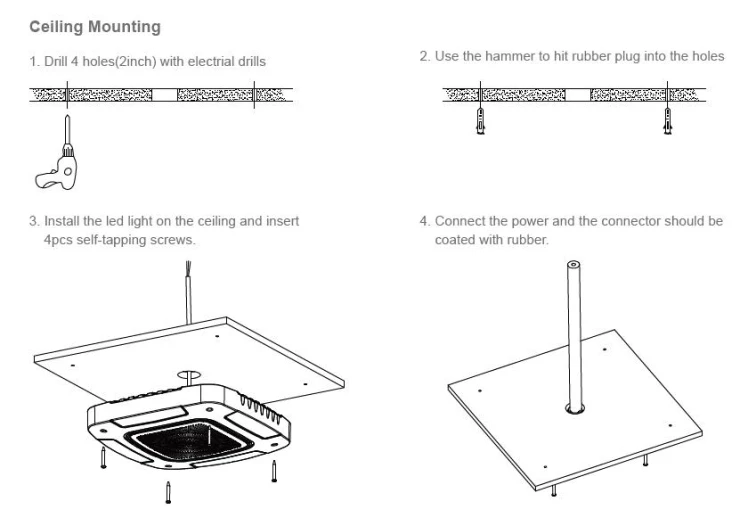

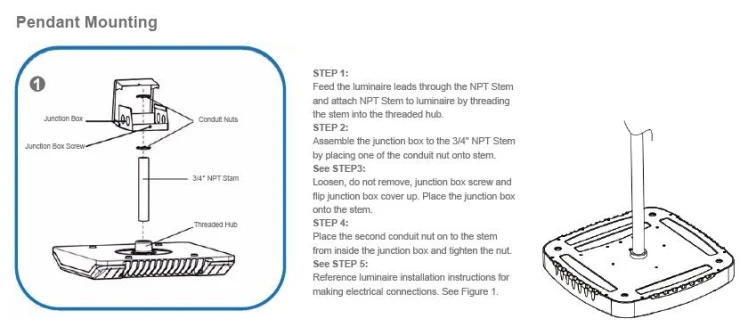

200w led canopy light Installation Method Atlas
—————
200w led canopy light Packaging information
—————
| Wattage | Product Dimension(mm/in) | Carton Box Dimension | N.W(Kg/lb) | G.W(Kg/lb) | One Carton |
| 100W | 380×380×75.5mm 14.96×14.96×2.97in | 419×419×122mm 16.5×16.5×4.8in | 2.7Kg(5.96lb) | 3.5Kg(7.72lb) | 1PCS |
| 120W | 380×380×75.5mm 14.96×14.96×2.97in | 419×419×122mm 16.5×16.5×4.8in | 2.7Kg(5.96lb) | 3.5Kg(7.72lb) | 1PCS |
| 150W | 380×380×75.5mm 14.96×14.96×2.97 in | 419×419×122mm 16.5×16.5×4.8in | 2.7Kg(5.96lb) | 3.5Kg(7.72lb) | 1PCS |

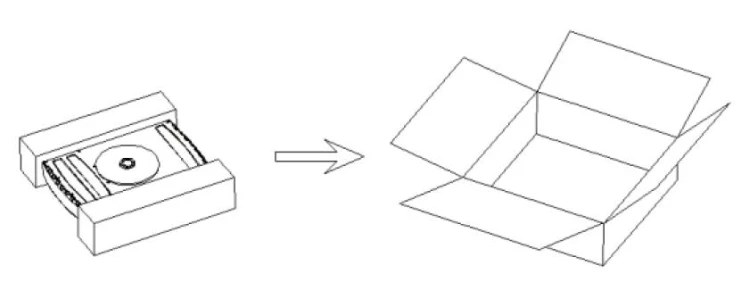

200w led canopy light Packaging Atlas
—————
Precautions For The Installation Of 200w led canopy light
—————
- Please cut off the power before installation and make sure that the installation part can bear the weight of the lamp.
- In order to prevent the lamp from falling off, please make sure that the installation is correct.
- Please do not use it in a place with corrosive gas.
- Please do not cover any material on the lamp.
- For safety, please connect the ground wire securely.
- This LED lamp has a five-year warranty from the date of purchase.
- However, failures caused by disassembly, modification, or improper construction of this product are not within the scope of this warranty.
Five-year warranty
—————
- Yaorong Technology is committed to providing customers with cost-effective LED lighting products. And provide high-quality after-sales service ahead of peers.
- Yaorong Technology provides a 5-year warranty. However, unauthorized disassembly or destruction of Yaorong Technology LED lighting products will not be eligible for warranty service.
- If you need after-sales service support, please contact our after-sales staff during the warranty period. Yaorong Technology after-sales engineers communicate with you about after-sales matters.

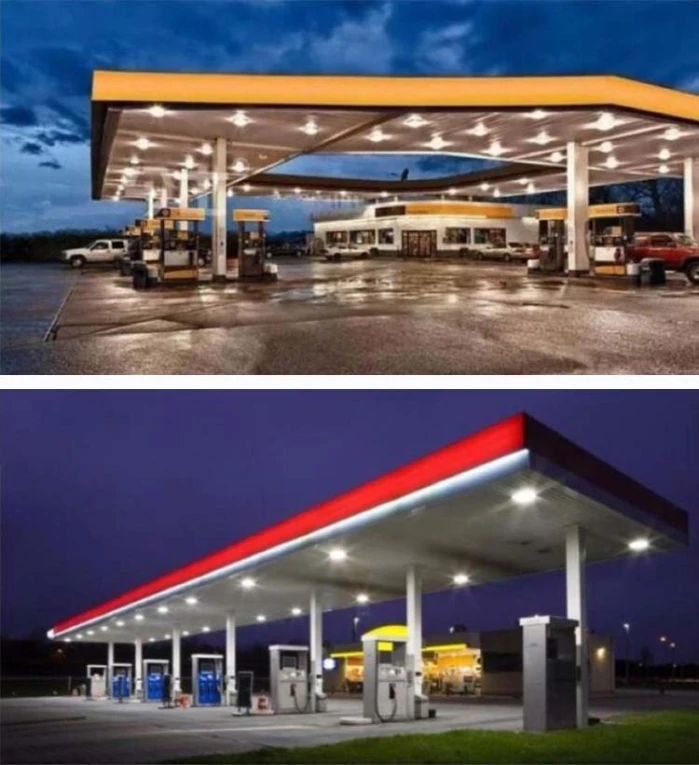

Yaorong 200w led canopy light Case
—————
Yaorong 200w led canopy light Case

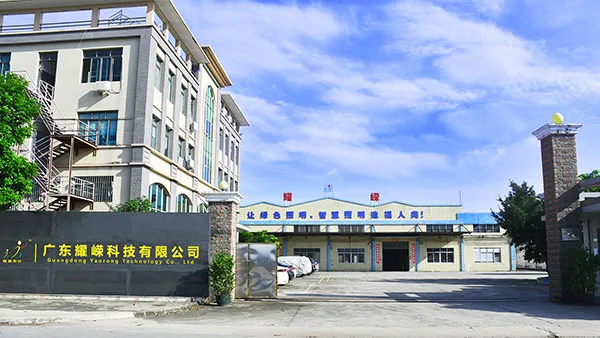

Yaorong Company Scene
—————

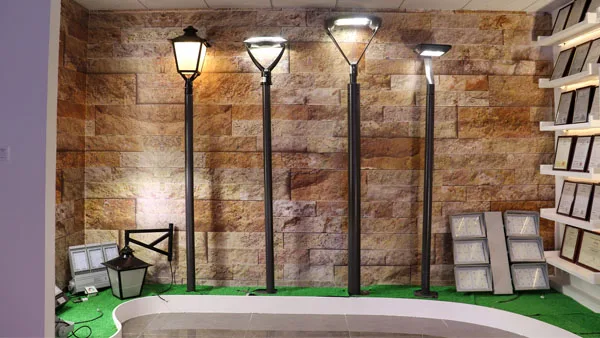

Yaorong Exhibition Hall--LED Post Top Light
Yaorong Exhibition Hall--LED Grow Light
Yaorong Factory Scene
—————
Yaorong Factory

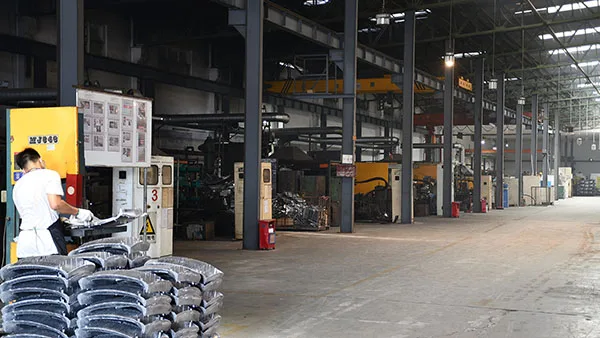

Yaorong Research Die Casting Workshop
