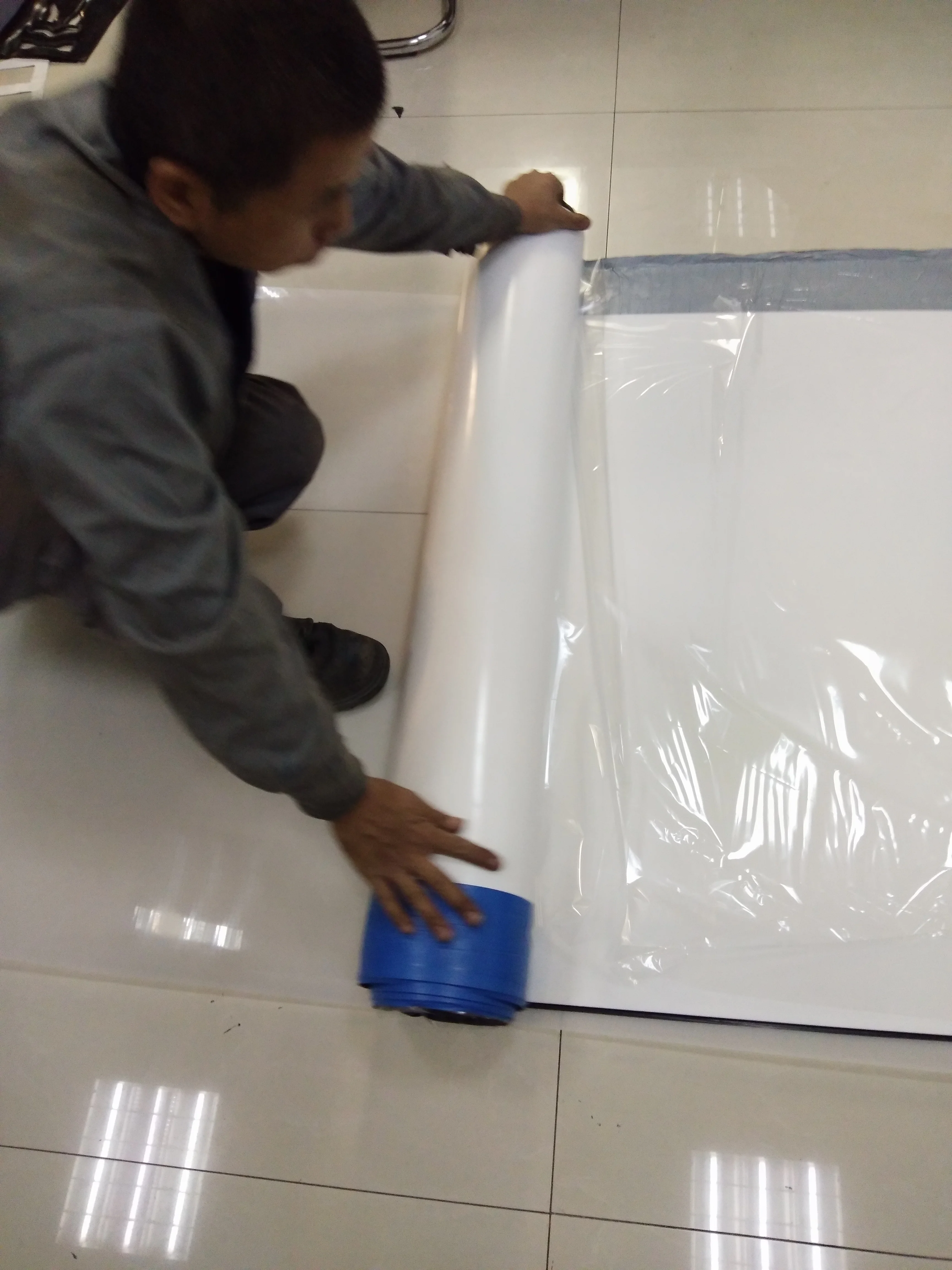

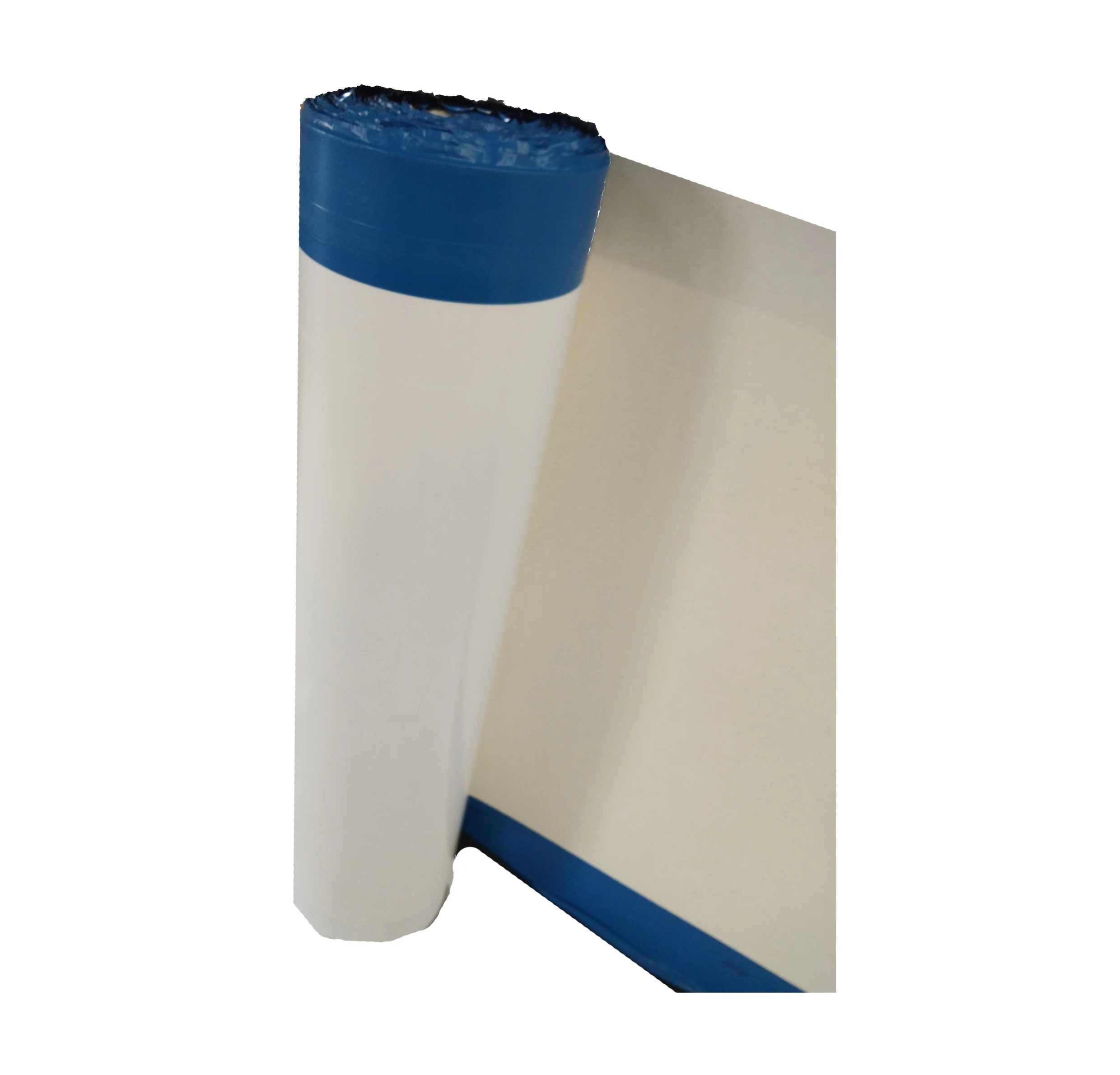

Cheap Hot Sale Top Quality High Quality Waterproofing Tpo Waterproof Membrane
- Category: >>>
- Supplier: Gansu Dibangsheng Waterproof Material Technology Co. Ltd.
Share on (1600423877037):
Product Overview
Description
1. Product introduction
(TPO)-TBP pre-laid waterproof membrane is composed of thermoplastic polyolefin sheet (TPO), polymer hot melt adhesive or butyl rubber, and surface particles and coating as the anti-adhesive layer, pre-laid anti-adhesive to achieve integration with the concrete structure The formation of effective interpenetrating bonding and huge intermolecular force between the two, so that the TPO waterproof membrane and the main body of the structure have been sealed, completely eliminate the channel of water.
2. Product specifications
Thickness: 1.2mm 1.5mm 1.8mm
Width: 1-2M
Length: ≥20M
(TPO)-TBP pre-laid waterproof membrane is composed of thermoplastic polyolefin sheet (TPO), polymer hot melt adhesive or butyl rubber, and surface particles and coating as the anti-adhesive layer, pre-laid anti-adhesive to achieve integration with the concrete structure The formation of effective interpenetrating bonding and huge intermolecular force between the two, so that the TPO waterproof membrane and the main body of the structure have been sealed, completely eliminate the channel of water.
2. Product specifications
Thickness: 1.2mm 1.5mm 1.8mm
Width: 1-2M
Length: ≥20M
3. Product characteristics
★Good flexibility: soft hand feeling, good conformability between the coil and the surface and corners of the base layer.
★Long service life: No plasticizer is added to the sheet material to maintain long-term weather resistance without aging.
★Good resistance to high and low temperature: It can be used for a long time under the environment of -40℃—120℃ without change.
★Weldability: Hot-air welder can be used at the lap joint, and the temperature is 400℃-550℃ for direct welding, which has stronger operability.
★Good self-adhesiveness: The polymer self-adhesive film has good initial adhesion, high cohesion, and strong adhesion after reacting with concrete.
4. Product application range
(TPO)-TBP pre-paved waterproofing membrane can be applied to waterproof engineering projects such as industrial and civil buildings, rail transit, tunnels, and underground comprehensive pipe corridors.
★Good flexibility: soft hand feeling, good conformability between the coil and the surface and corners of the base layer.
★Long service life: No plasticizer is added to the sheet material to maintain long-term weather resistance without aging.
★Good resistance to high and low temperature: It can be used for a long time under the environment of -40℃—120℃ without change.
★Weldability: Hot-air welder can be used at the lap joint, and the temperature is 400℃-550℃ for direct welding, which has stronger operability.
★Good self-adhesiveness: The polymer self-adhesive film has good initial adhesion, high cohesion, and strong adhesion after reacting with concrete.
4. Product application range
(TPO)-TBP pre-paved waterproofing membrane can be applied to waterproof engineering projects such as industrial and civil buildings, rail transit, tunnels, and underground comprehensive pipe corridors.
Serial number | project | index | ||||
1 | Tensile property | Pulling force（N/50m） ≥ | 600 | |||
Tensile-strength /MPa ≥ | 16 | |||||
Elongation at break of membrane /% ≥ | 400 | |||||
Phenomenon during stretching | There is no separation between the adhesive layer and the main material or tire base | |||||
2 | Tear strength of nail rod | 400 | ||||
3 | Puncture resistance | 350 | ||||
4 | Shock resistance （0.5 kg·m） | NO leakage | ||||
5 | Resistance to static load | NO leakage 20 kg | ||||
6 | Heat resistance | No slippage ,flowing or dripping 80℃， | ||||
7 | Flexibility at low temperature | Main material -35℃,No crack | ||||
8 | low temperature flexibility | Substratum -25℃,No crack | ||||
9 | Oniliness/The number of sheets | 1 | ||||
10 | Water channeling resistance(hydraulic gradient) | No water channeling 0.8MPa/35mm,4h | ||||
11 | Watertightness （0.3 MPa,120min） | waterproof | ||||
12 | Peel strength with post-cast concrete （N/mm） | undisposed ≥ | 1.5 | |||
Immersion treatment | 1.0 | |||||
Sediment polluted surface | 1.0 | |||||
Ultraviolet treatment | 1.0 | |||||
Heat-treat | 1.0 | |||||
13 | Peel strength after immersion with post-cast concrete | 1.0 | ||||
14 | Coil and coil peel is strong(Lap edgh) a/（N/mm） | undisposed | 0.8 | |||
Immersion treatment | 0.8 | |||||
15 | Peel strength of anti-sticking parts of coiled material b/（N/mm） ≤ | 0.1 Or unbonded 0.1 | ||||
16 | Thermal ageing （80℃，168h） | Tension hoiding rate /% ≥ | 90 | |||
Elongation retention rate % ≥ | 80 | |||||
Flexibility at low temperature | Main material -32℃,No crack | |||||
low temperature flexibility | Substratum -23℃,No crack | |||||
17 | Size change rate | ±1.5 | ||||
Product Category

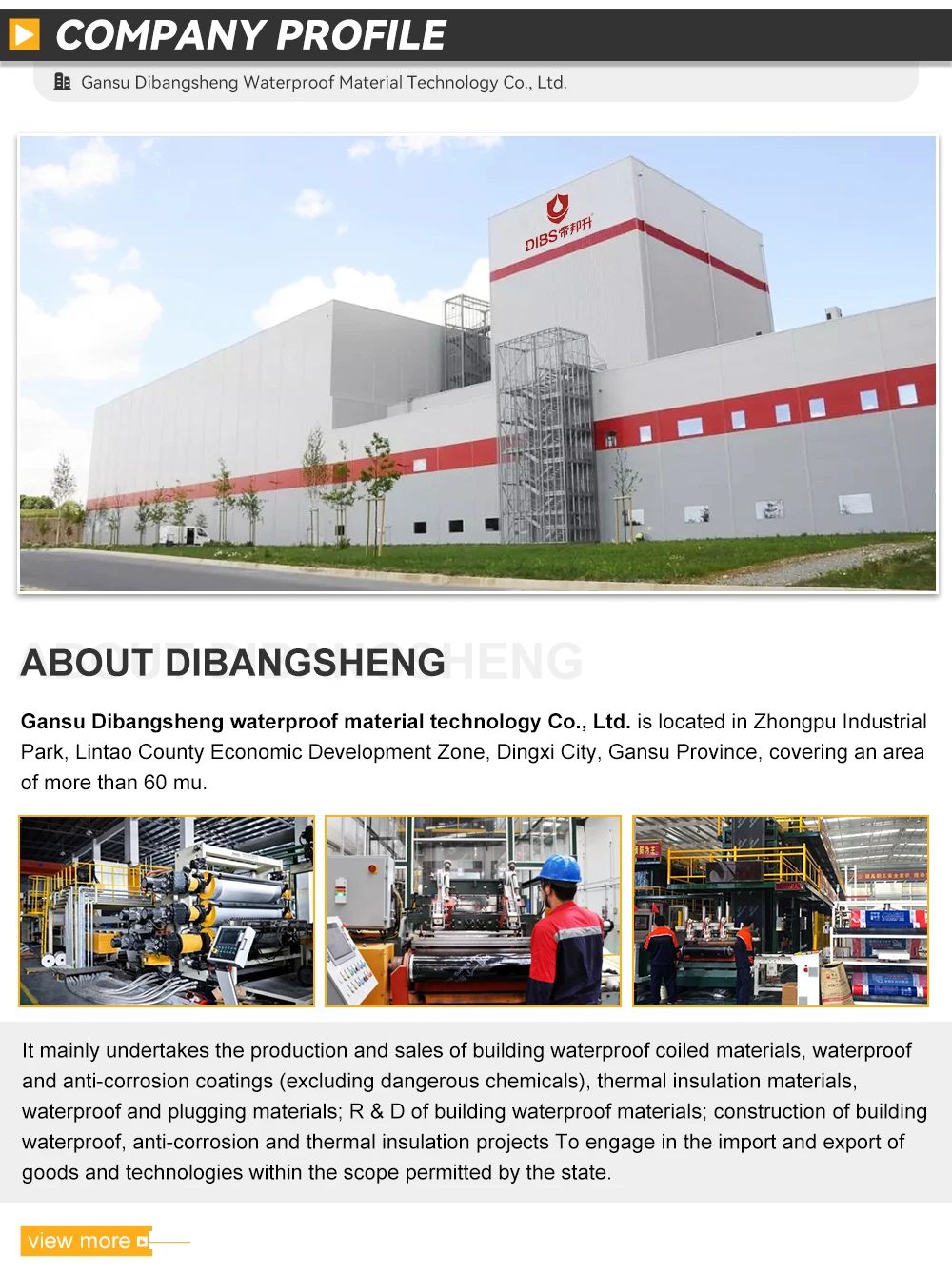

Company Profile

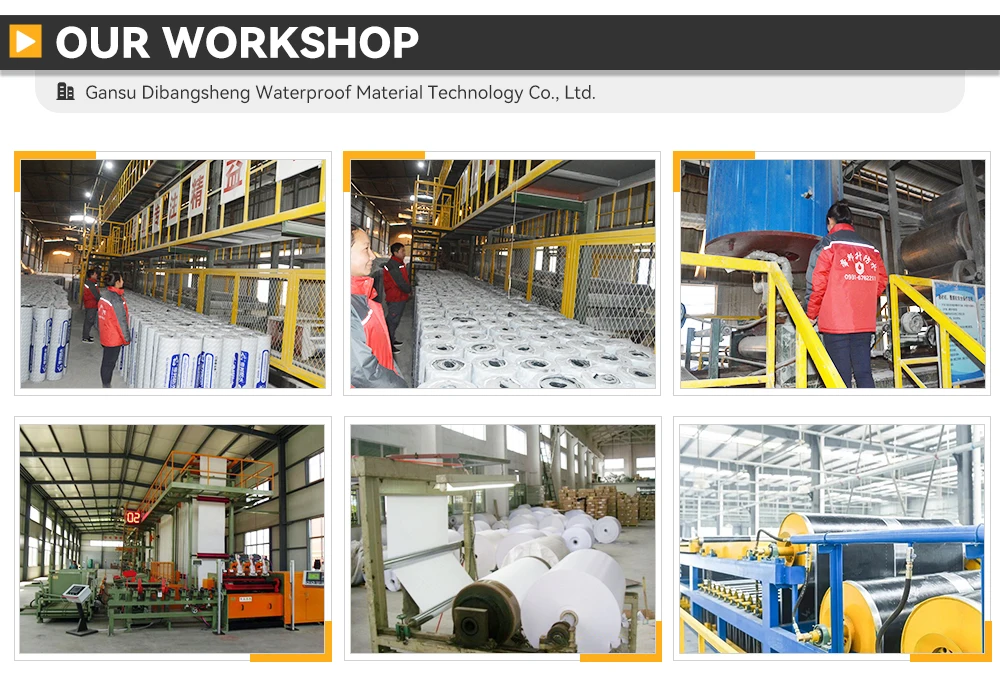

Our Workshop

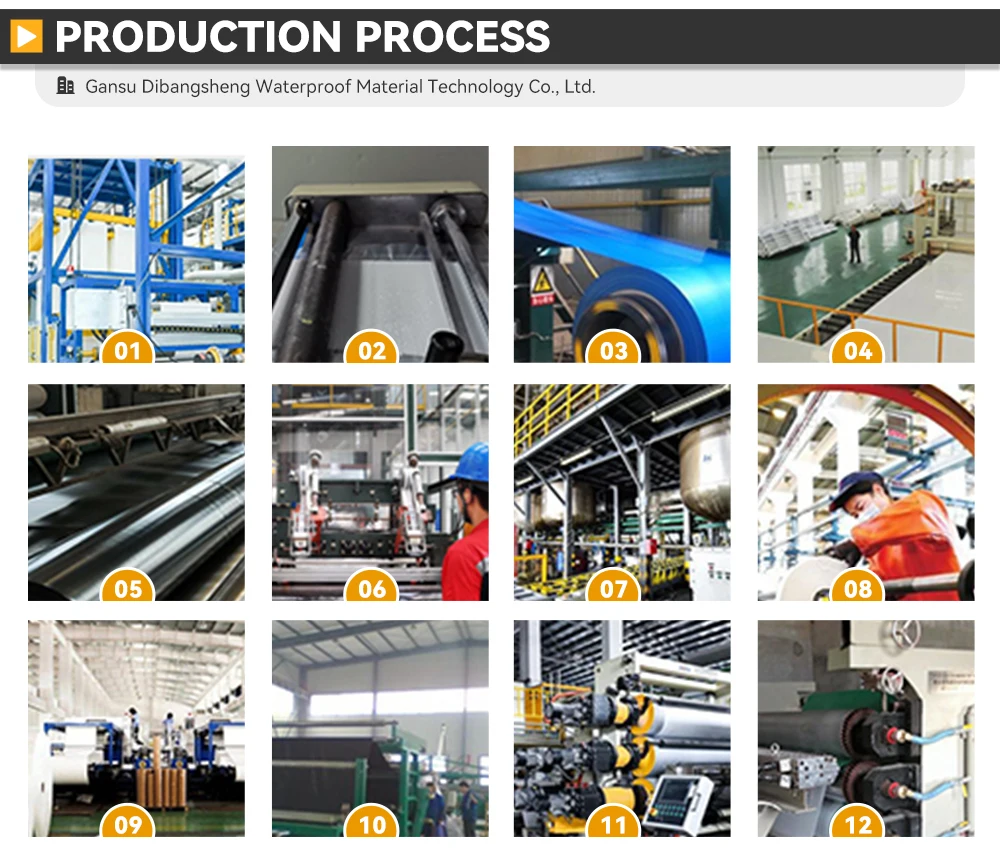

Production Process
Product Application

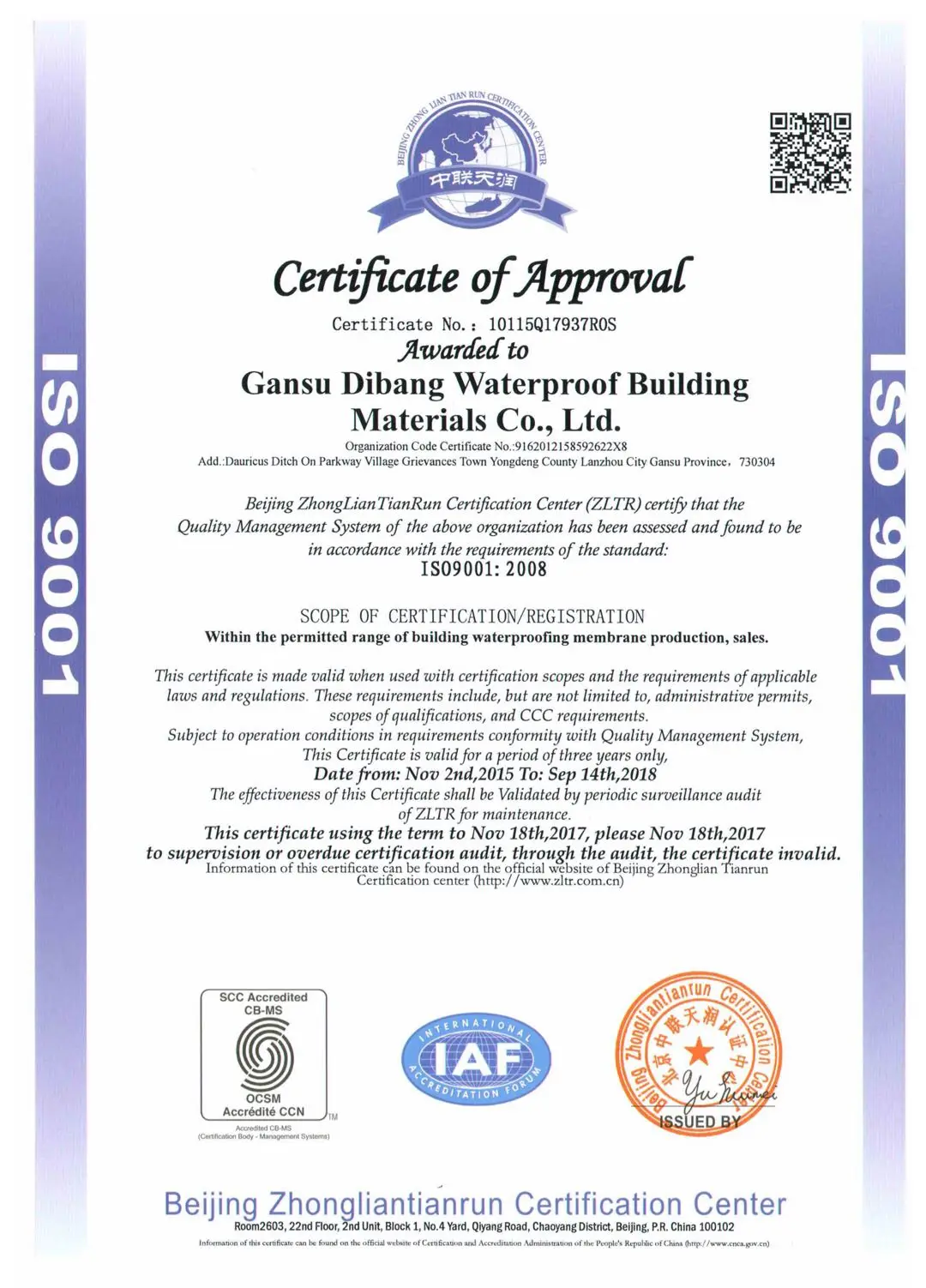

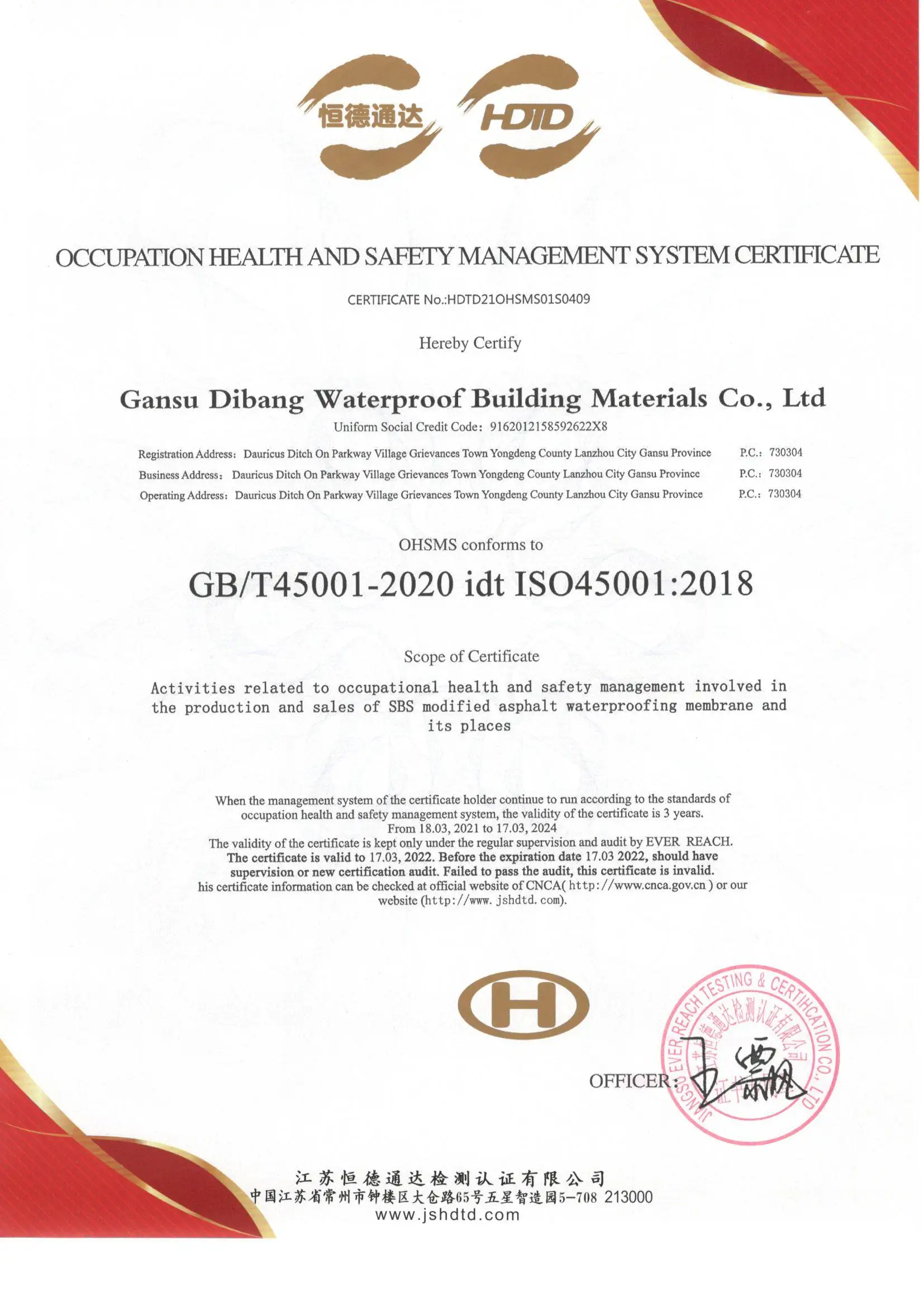

Qualification Certificate

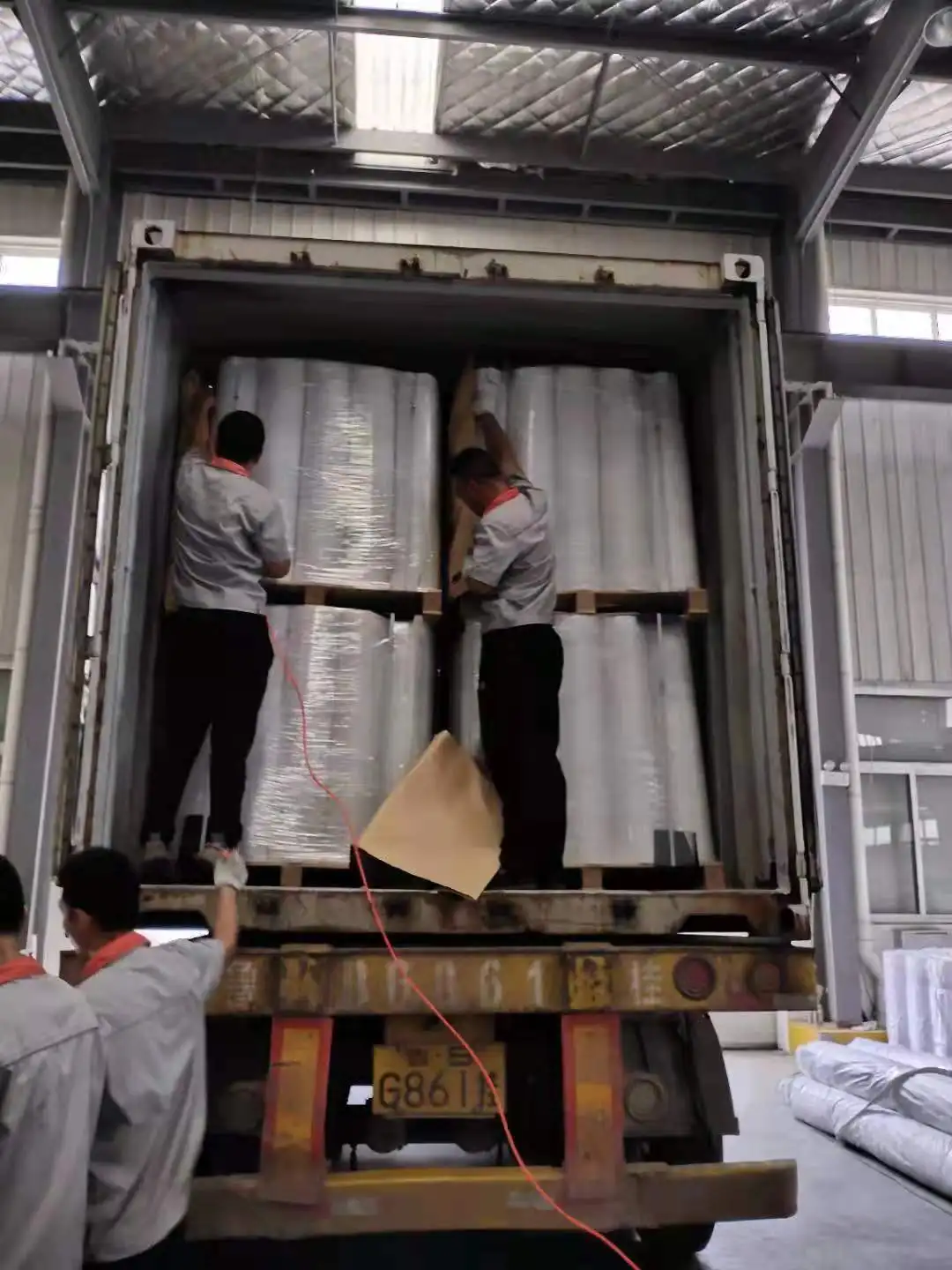

Product Packaging
