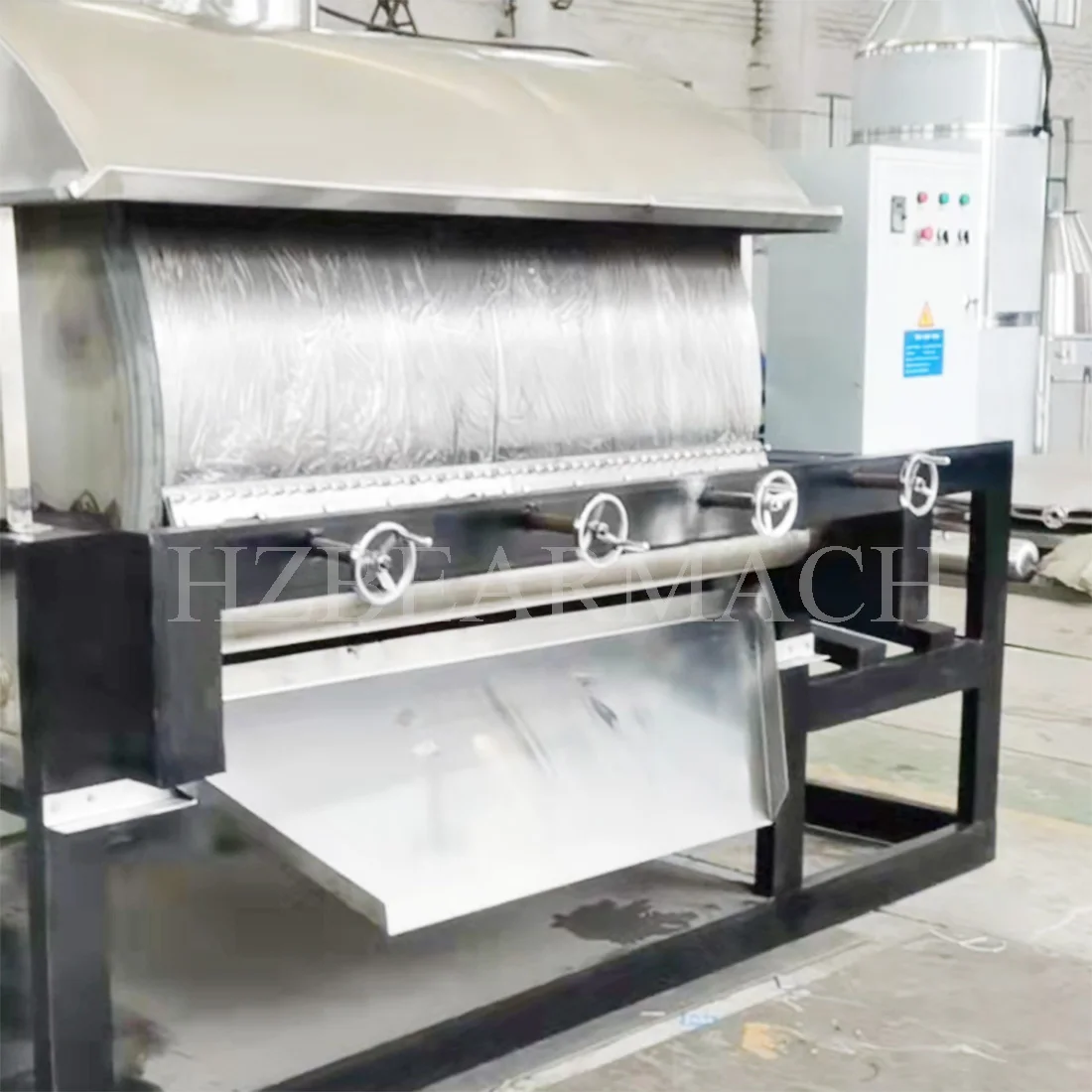

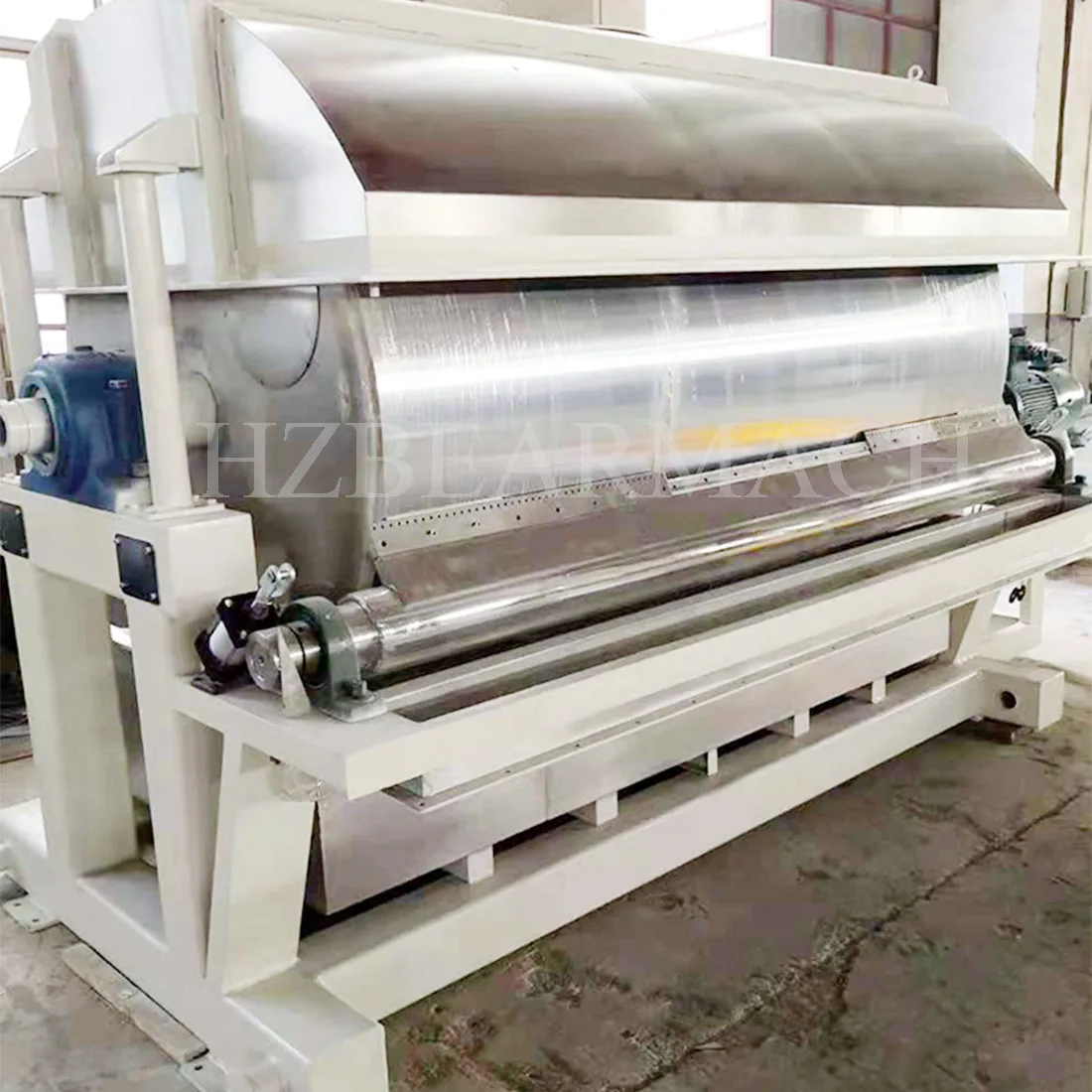

Factory Price making flake powder Scraper Drum Dryer
- Category: >>>
- Supplier: Hangzhou Bear Machinery Co. Ltd.
Share on (1600423916776):
Product Overview
Description
Main application
HG series roller scraper dryers are widely used in the production and drying of viscous and paste-like materials in the food, chemical, and herbal industries.
PRODUCT PARAMENTERS
Model | Roller size（mm） | Effective heating area（m2） | Drying capacity（kg/h） | Steam consumption（kg/h） | Power（kw） | Dimensions（mm） | Weight（kg） |
HG-600 | Φ600×800 | 1.12 | 40-70 | 100-175 | 1.1 | 1700×800×1500 | 850 |
HG-700 | Φ700×1000 | 1.65 | 60-90 | 150-225 | 2.05 | 2100×1000×1800 | 1210 |
HG-800 | Φ800×1200 | 2.26 | 90-130 | 225-325 | 3.75 | 2500×1100×1980 | 1700 |
HG-1000 | Φ1000×1400 | 3.3 | 130-190 | 325-475 | 4.75 | 2700×1300×2250 | 2100 |
HG-1200 | Φ1200×1500 | 4.24 | 160-250 | 400-625 | 4.75 | 2800×1500×2450 | 2650 |
HG-1400 | Φ1400×1600 | 5.28 | 210-310 | 525-775 | 6.25 | 3150×1700×2800 | 3220 |
HG-1600 | Φ1600×1800 | 6.79 | 270-400 | 675-1000 | 6.25 | 3350×1900×3150 | 4350 |
HG-1800 | Φ1800×2000 | 8.48 | 330-500 | 825-1250 | 8.6 | 3600×2050×3500 | 5100 |
HG-1800A | Φ1800×2000 | 10.6 | 420-630 | 1050-1575 | 8.6 | 4100×2050×3500 | 6150 |
PRODUCT DESCRIPTION

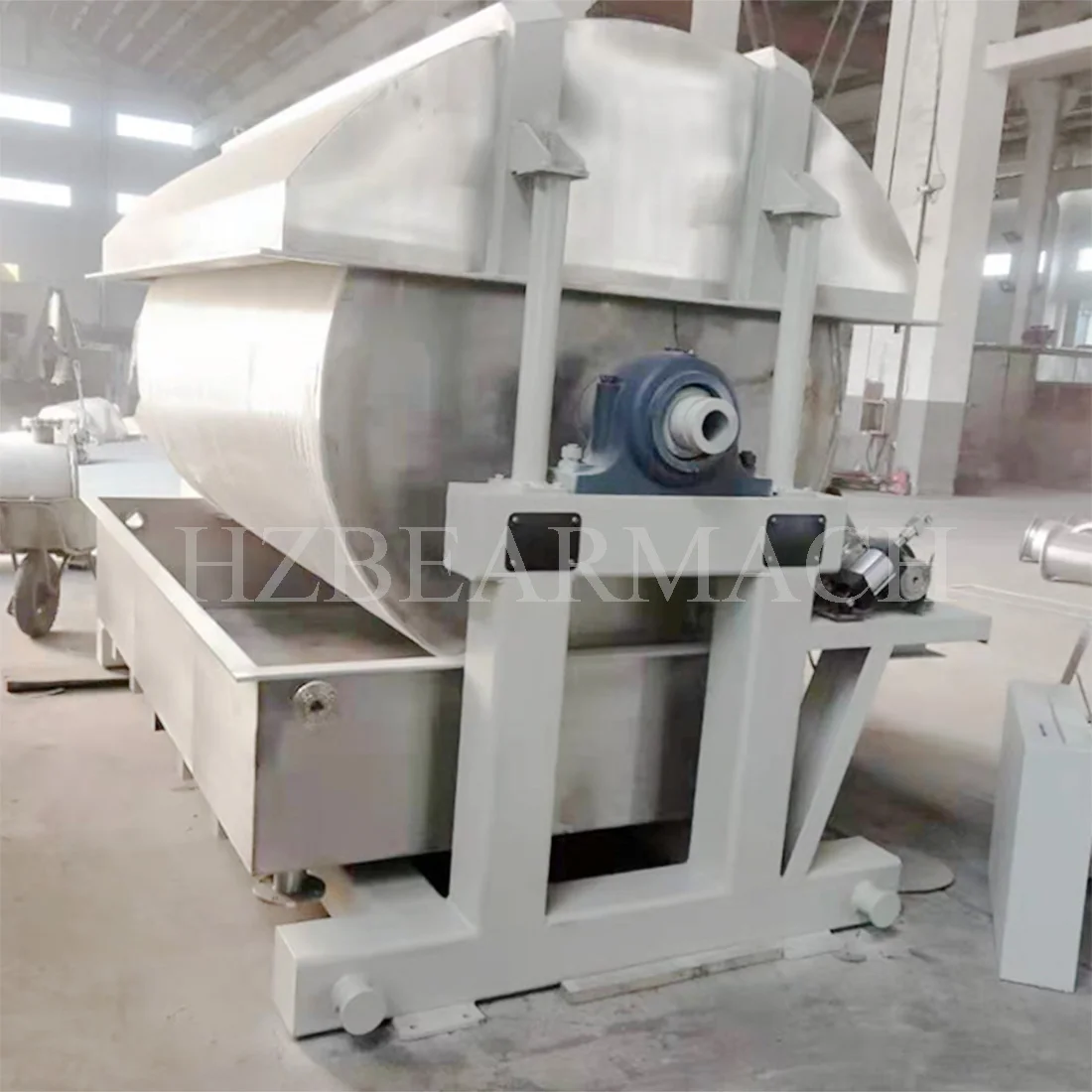

Single drum dryer :
It is used for drying materials in the form of solution or thin slurry that are floating liquid.
The film cloth method is usually immersion type or spray type.

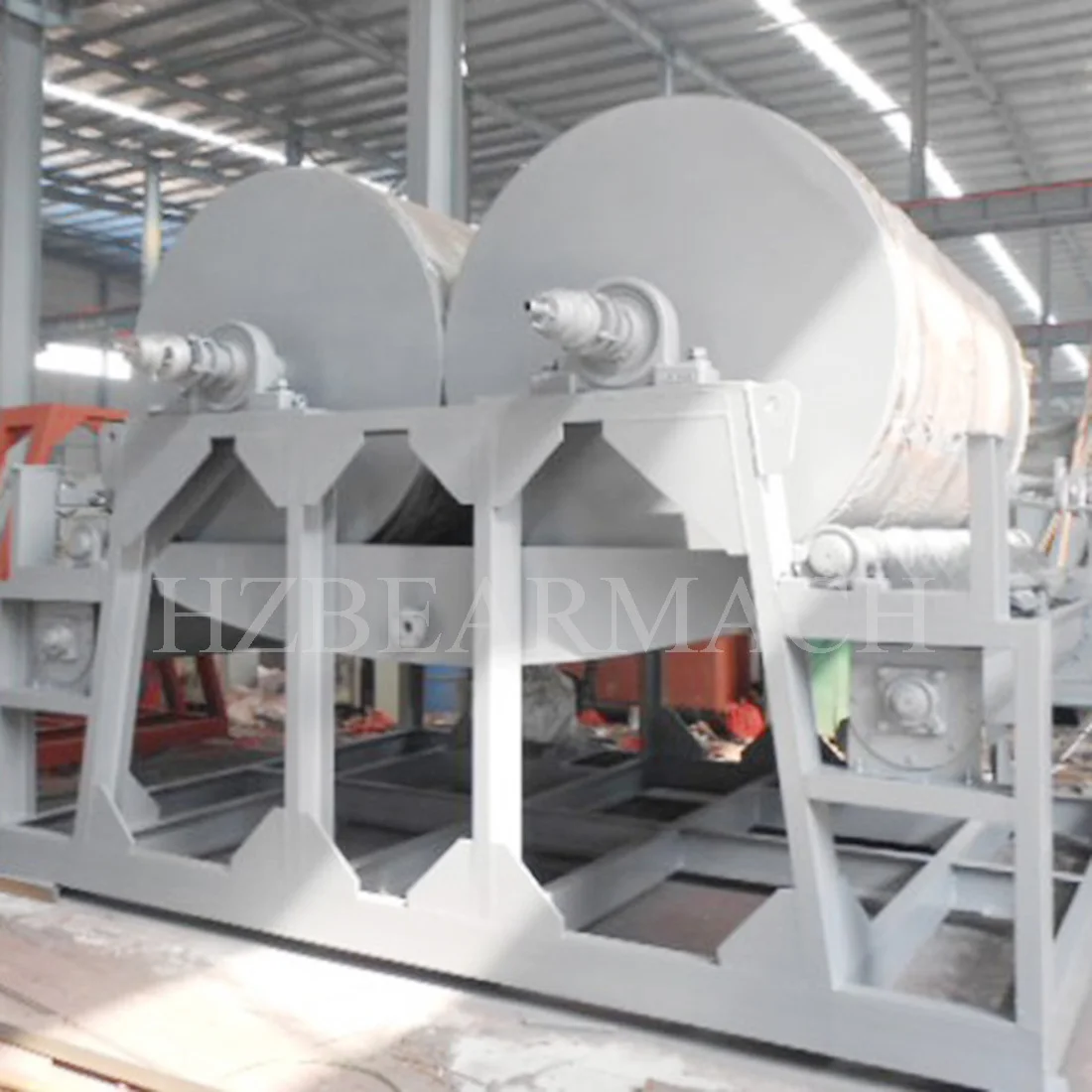

Double-cylinder dryer :

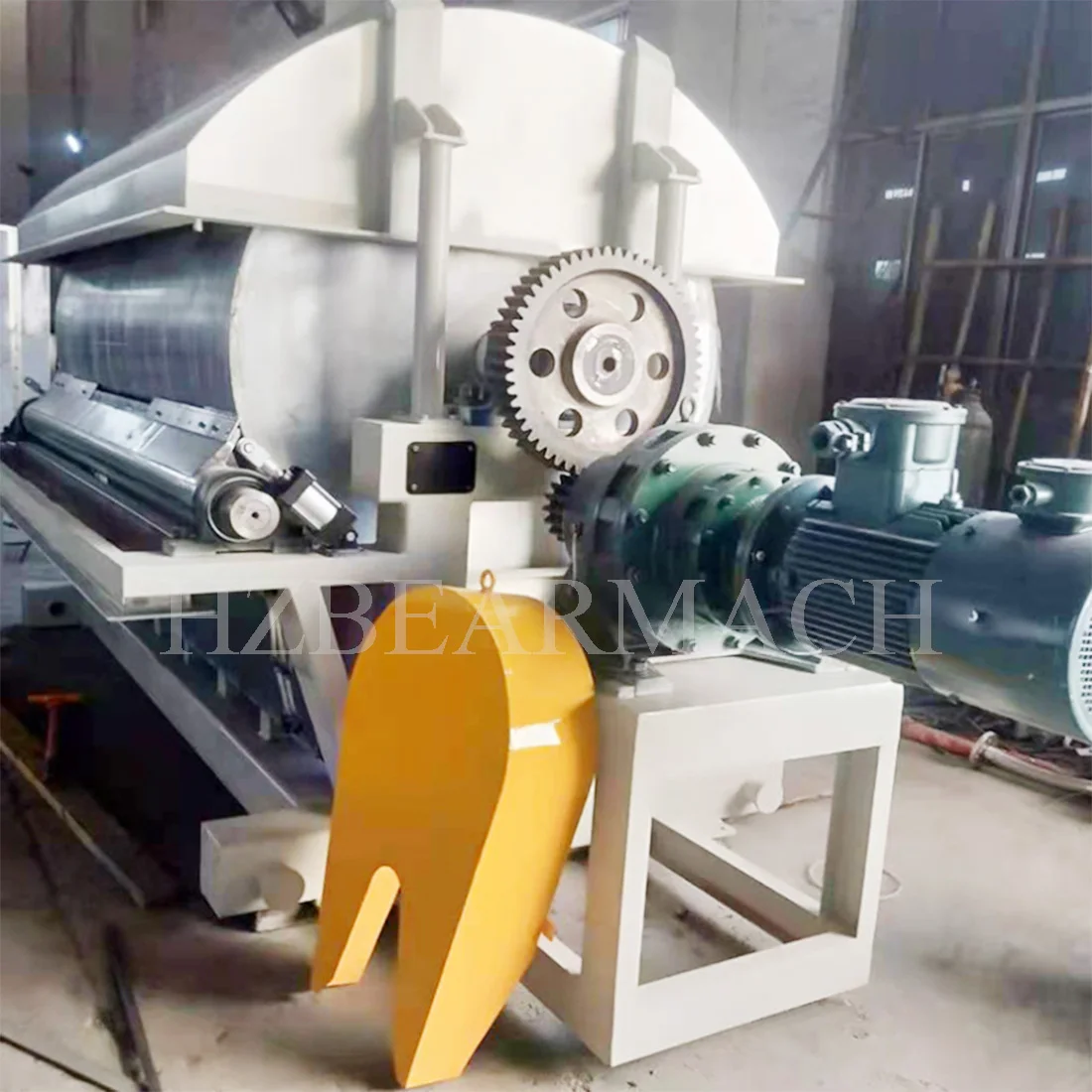

The same set of deceleration transmission device meshes with a pair of gears with the same modulus and number of teeth to make two sets of rollers with the same diameter rotate relative to each other. According to the different positions of the cloth film, it is divided into two types: the roll type and the same groove type.
Performance characteristics
1) High thermal efficiency: Most of the heat supplied in the cylinder is used for moisture vaporization, and the thermal efficiency can be as high as 70~80%.
2) Large drying rate: The heat and mass transfer process of the wet material film on the cylinder wall is consistent from the inside to the outside, and the temperature gradient is large, so that the surface of the material film maintains a high evaporation intensity, generally up to 30kg/㎡ h.
3) The drying quality of the product is stable: the heating method of the drum is easy to control, the temperature in the cylinder and the heat transfer rate of the partition wall can be kept relatively stable, so that the material film can be dried in a stable heat transfer state, and the quality of the product can be guaranteed.
4) Wide application range: Liquid phase materials dried by drums have fluidity, adhesion and stability to heat. The form of the material can be solution, suspension, emulsion, sol, etc.
5) The production capacity of a single machine is limited by the size of the cylinder: the drying area of a general drum dryer should not be too large. The drying area of a single cylinder seldom exceeds 12 square meters, and its processing capacity is generally 50-1000kg/h.
1) High thermal efficiency: Most of the heat supplied in the cylinder is used for moisture vaporization, and the thermal efficiency can be as high as 70~80%.
2) Large drying rate: The heat and mass transfer process of the wet material film on the cylinder wall is consistent from the inside to the outside, and the temperature gradient is large, so that the surface of the material film maintains a high evaporation intensity, generally up to 30kg/㎡ h.
3) The drying quality of the product is stable: the heating method of the drum is easy to control, the temperature in the cylinder and the heat transfer rate of the partition wall can be kept relatively stable, so that the material film can be dried in a stable heat transfer state, and the quality of the product can be guaranteed.
4) Wide application range: Liquid phase materials dried by drums have fluidity, adhesion and stability to heat. The form of the material can be solution, suspension, emulsion, sol, etc.
5) The production capacity of a single machine is limited by the size of the cylinder: the drying area of a general drum dryer should not be too large. The drying area of a single cylinder seldom exceeds 12 square meters, and its processing capacity is generally 50-1000kg/h.
The working principle of the scraper drum dryer
The drum dryer is a continuous operation device that dries the liquid phase material or ribbon material attached to the outer wall of the cylinder by means of heat conduction through a rotating cylinder. The material liquid to be dried flows into the material receiving tank of the drum dryer from the upper tank. The drying drum is driven by the transmission device, and the material is formed by the filming device to form a material film on the wall of the drum. The cylinder is heated continuously, and the moisture of the material film is vaporized by the heat transfer from the cylinder wall, and the material is scraped off by a scraper, and then conveyed to the storage tank through a screw for packaging. It has high thermal efficiency and can be operated continuously, so it is widely used in the drying of liquid materials or strip-shaped materials, and is more suitable for paste-like and viscous materials.
Packing&Shipping
1.We can load container at:qingdao,shanghai ,ningbo,tianjin,guangzhou etc.
2.We provide shipping method:Courier service,Air transport,Sea Transport
3.Can accept oder: Full container cargo load,Less container load
4.Our service:EXW,FOB,CIF,CNF,Door to Door etc.
5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time.
FAQ
Q1: What are the payment terms?
A: We usually accept payment by T/T, L/C, Western Union.
Q2: Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own
designed idea and that will be our honor to customize for you.
Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are Alibaba legitimate certification company (VIP), and we support payment terms like L/C, to ensure your safety.
Q4: How to ensure that I received the machine undamaged?
A: At first, our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q5: Where will the orders be shipped from?
A: It will ship from the main ports in China. And We will find the shipping company which will offer the best and most economical freight for our customers.
Welcome to contact us:
2.We provide shipping method:Courier service,Air transport,Sea Transport
3.Can accept oder: Full container cargo load,Less container load
4.Our service:EXW,FOB,CIF,CNF,Door to Door etc.
5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time.
FAQ
Q1: What are the payment terms?
A: We usually accept payment by T/T, L/C, Western Union.
Q2: Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own
designed idea and that will be our honor to customize for you.
Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are Alibaba legitimate certification company (VIP), and we support payment terms like L/C, to ensure your safety.
Q4: How to ensure that I received the machine undamaged?
A: At first, our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q5: Where will the orders be shipped from?
A: It will ship from the main ports in China. And We will find the shipping company which will offer the best and most economical freight for our customers.
Welcome to contact us:
