Factory price ONT AC ZC 521G dual band WIFI ONU similar to F670L, EG8145V5 ONT
- Category: >>>
- Supplier: Changsha Silun Network Technology Co. Ltd.
Share on (1600423925235):
Product Overview
Description
Product Description
Product Name | Dual band ONU |
Similar models | F673A/F670L/HS8546V5/EG8145V5 |
Interface | 4GE+1VOIP+2USB+2.4G&5G WIFI |
OLT | HUAWEI MA5800/ZTEC320 |
Product performance description

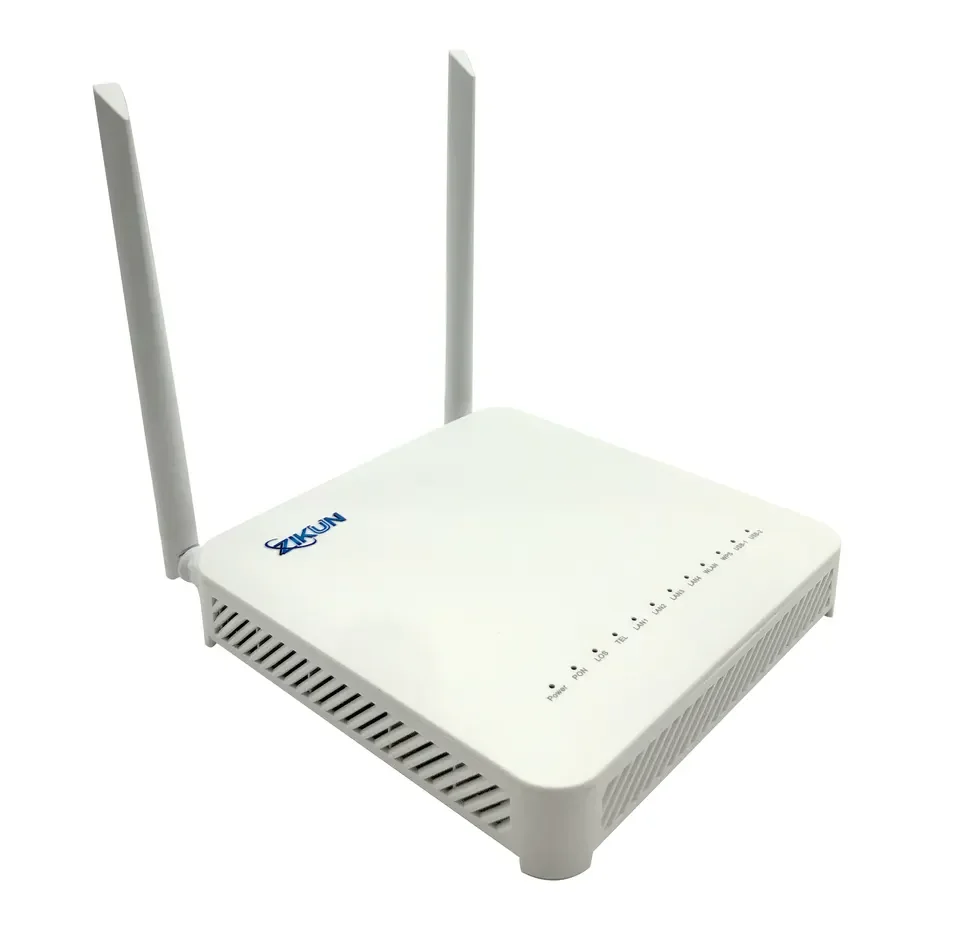

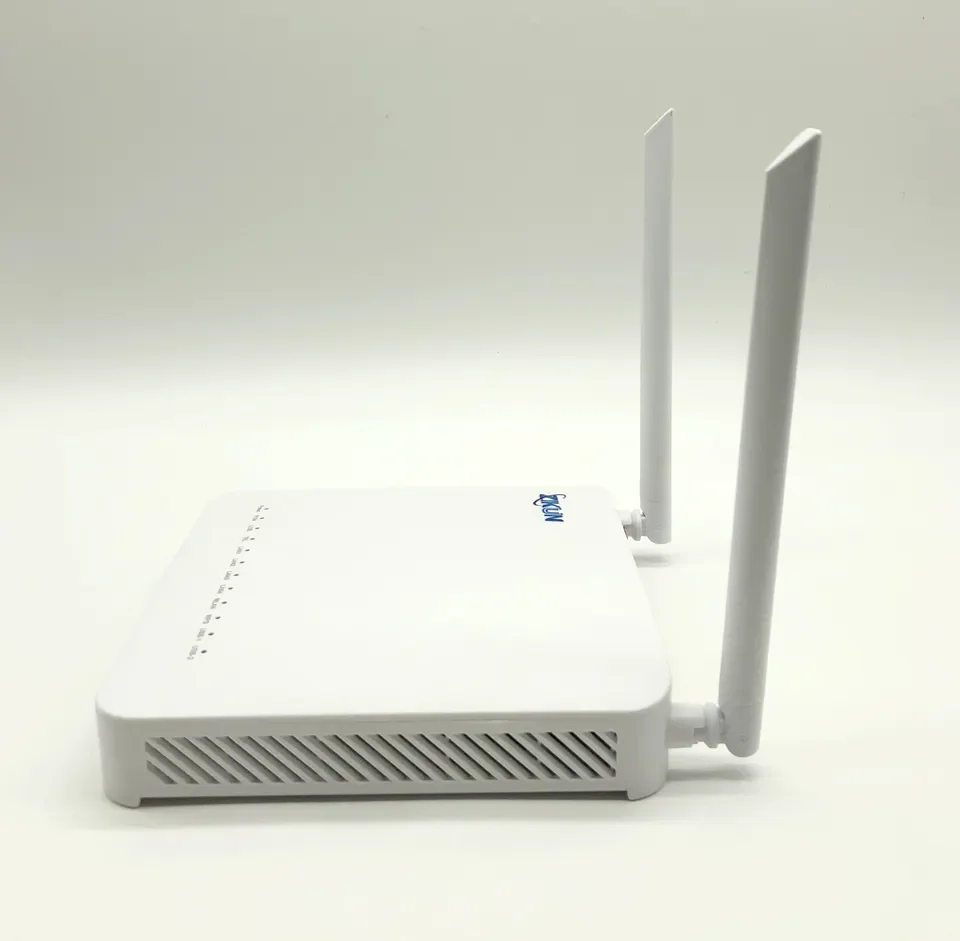

ZC-521G is a GPON Optical Network Terminal(HGU) designed for FTTH scenario.
It supports L3 function to help subscriber construct intelligent home network. It
provides subscribers rich, colorful, individualized, convenient and comfortable
services including voice, video (IPTV) and high.
It supports L3 function to help subscriber construct intelligent home network. It
provides subscribers rich, colorful, individualized, convenient and comfortable
services including voice, video (IPTV) and high.
GPON Interface
ITU-T G.984.x GPON standards
Optical port:1 GPON interface (SC/UPC)
Transmit rate:2.488Gbps downstream;1.244Gbps upstream
Wavelength::Downstream 1490nm;Upstream 1310nm
Receiving Sensitivity:-28dBm
Transmitting Optical Power: 0.5~5dBm
ITU-T G.984.x GPON standards
Optical port:1 GPON interface (SC/UPC)
Transmit rate:2.488Gbps downstream;1.244Gbps upstream
Wavelength::Downstream 1490nm;Upstream 1310nm
Receiving Sensitivity:-28dBm
Transmitting Optical Power: 0.5~5dBm
User Network Interface
1GE+3FE:1 x 10/100/1000Base-T+3x 10/100 Base-T
1 x POTS interfaces:SIP/H.248
2.4G&5G Wi-Fi interface:IEEE 802.11b/g/n @2.4G Hz
IEEE 802.11a/n/ac @5G Hz
2 x2 MIMO(2.4G&5G)
Antenna gain:5dBi
2.4G&5G concurrent
Air interface rate:300Mbit/s(2.4G);867Mbit/s(5G)
2x USB 2.0 host interface
1GE+3FE:1 x 10/100/1000Base-T+3x 10/100 Base-T
1 x POTS interfaces:SIP/H.248
2.4G&5G Wi-Fi interface:IEEE 802.11b/g/n @2.4G Hz
IEEE 802.11a/n/ac @5G Hz
2 x2 MIMO(2.4G&5G)
Antenna gain:5dBi
2.4G&5G concurrent
Air interface rate:300Mbit/s(2.4G);867Mbit/s(5G)
2x USB 2.0 host interface

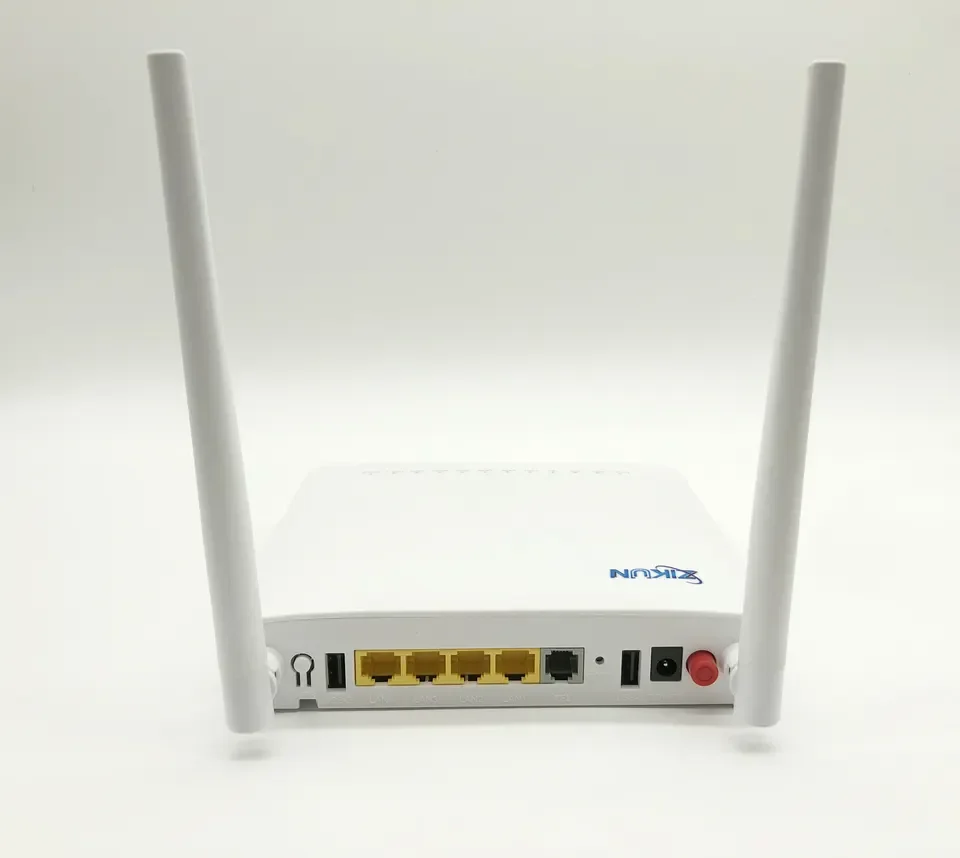

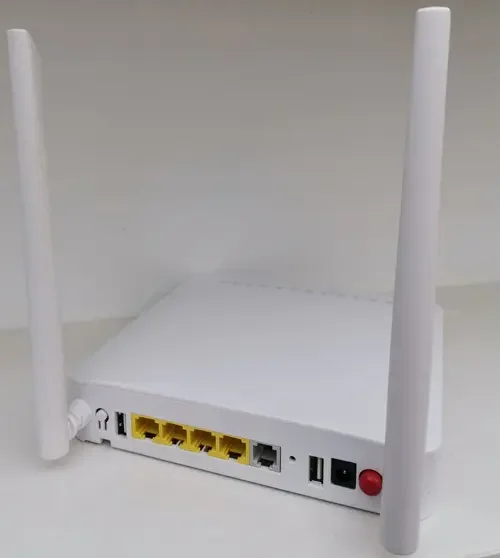

Interface/Switch | Instructions |
Switch | Control equipment power on or off |
Power Supply | Connect to the output connector of the adapter |
VOIP | Use telephone line to connector to ordinary telephone |
4-100MBPS/3-100MBPS/ 2-100MBPS/1-1000MBPS | Used to connect computers or other network devices |
Optical port | Fiber line outlet |
USB 1/USB 2 | Used tp connect mobile storage devices |

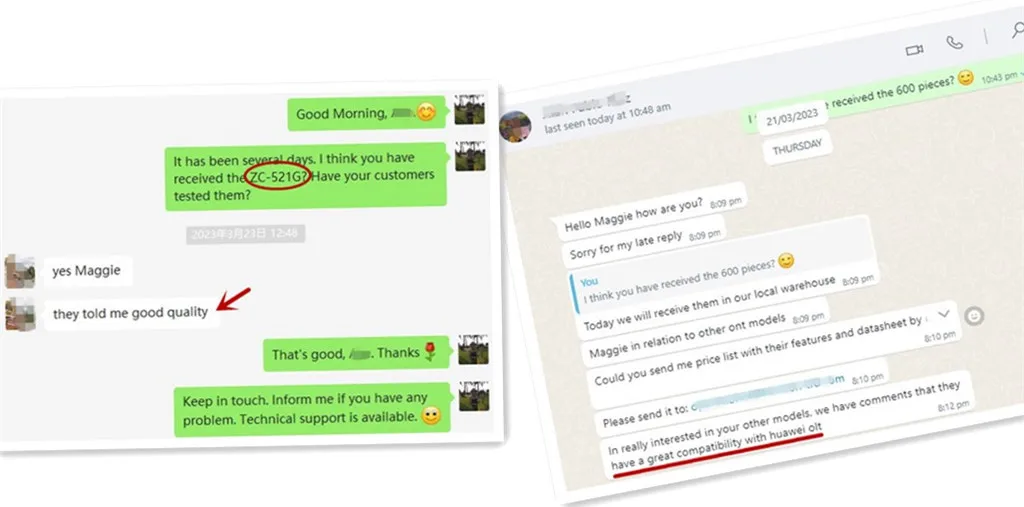

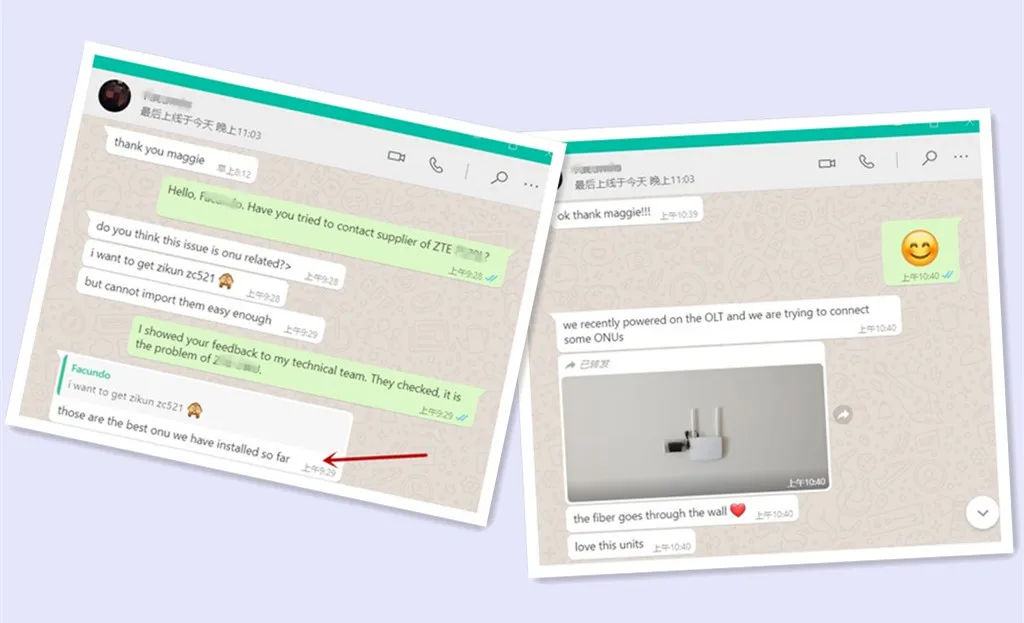

Customer Reviews
Related Products
Packing&Shipping

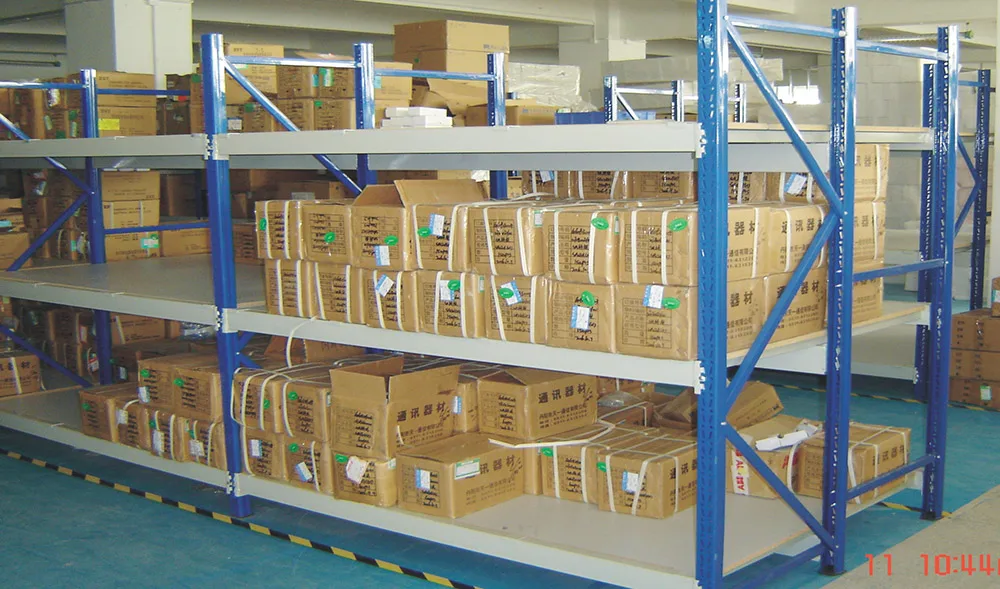

packaging:
1. All products will be packed in carton , so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement
Shipping:
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
1. All products will be packed in carton , so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement
Shipping:
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
Company Introduction
Our products mainly include the optical signal transmission and access, signal transmission and access, photoelectric signal conversion and photoelectric signal and so on.We are now the agent of well-known international brands such as HUAWEI, ZTE etc. The products are exported to Europe, America, Southeast Asia, the Middle East as well as Japan, Korea and other neighboring countries.
We will constantly improve our service and quality to create a win-win situation. If you have any question, please contact me. Please contact us to know details.
We will constantly improve our service and quality to create a win-win situation. If you have any question, please contact me. Please contact us to know details.
Our Services & Strength
After-Sales Service
1. We can provide detail documents and remote help for device installation and configuration.
2. Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
1. We can provide detail documents and remote help for device installation and configuration.
2. Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
FAQ
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q:Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 1000pcs /order, it will need extra 1-2 weeks .
Q: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our formal products.
Q: Could we make a visit to your factory?
A: Yes,sure, you are welcomed .
Our Advantages:
All the products 100% Original / Ability for OLT & ONU configuration and Firmware updating./ UK |US|AU|EU Power Adapter Available
/ English Firmware Setup Interface.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q:Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 1000pcs /order, it will need extra 1-2 weeks .
Q: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our formal products.
Q: Could we make a visit to your factory?
A: Yes,sure, you are welcomed .
Our Advantages:
All the products 100% Original / Ability for OLT & ONU configuration and Firmware updating./ UK |US|AU|EU Power Adapter Available
/ English Firmware Setup Interface.
