LAUNCH Original CAT601 Auto Transmission Oil Exchange And Fluid Clear Machine
Introduction
The transmission fluid inside transmission will go bad after a period of usage of automatic transmission. If the
transmission fluid cannot be changed completely in time, it may cause the abnormality to the transmission.
Generally speaking, Auto Transmission Cleaner and Fluid Exchanger cannot control the filling quantity of the
ATF as required, the excessive or shortage filling will cause the damage to auto transmission. iSmartATF 601
auto transmission cleaner and fluid exchanger can complete the flush and fluid exchange in 20 minutes for
transmission, torque converter and radiator. The fluid exchange rate is nearly 100%.
Features
LCD display and personalized design making easy operation.
Multi-language print.
Filling and recycling of automatic transmission fluid.
Automatic identification for the fluid flow inlet/outlet direction.
Circulating cleaning for automatic transmission.
Easy for detergent filling.
Automatic exchange of new/used fluid.
Visual display of the fluid pressures.
Accurate display of the automatic transmission fluid temperature.
Intelligent electronic control for the full automatic equivalent exchange of new and used fluid.
Manually adding and upgrading database function.

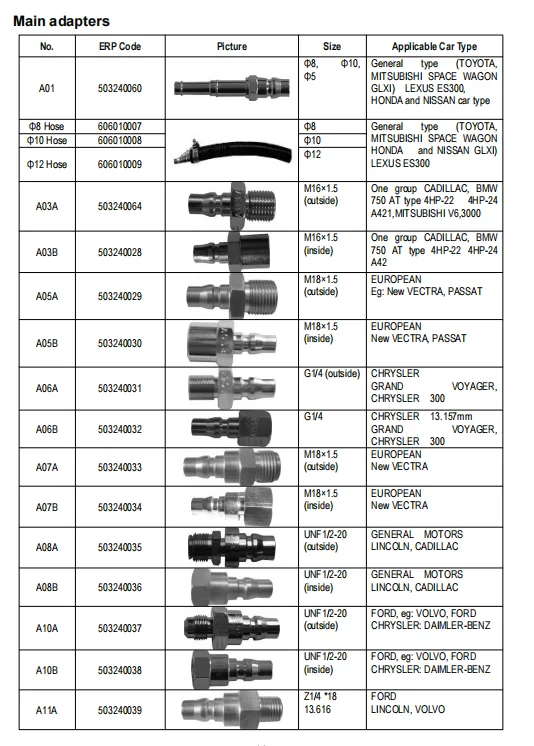

Various special adapters are applicable to vehicle types made in Europe, America and Asia.
Effectively resolve the incomplete fluid exchange of manual operation.
It improves the working performance of auto transmission.
It prolongs the work life of transmission.
Working Conditions
Ambient temperature: -10~+50°C
Relative humidity: <90%
Specifications
Power supply: 110V-127V~,50Hz/60Hz
220V-230V~,50Hz/60Hz
Maximum power: 150W
Pressure gauge: 0~150psi
Fluid outlet hose: 2.5 m
Fluid return hose: 2.5 m
Fluid draining hose: 1.2 m
Filter precision: 5µm
Filter life span: about one year if using one time a day
Fluid tank: 20L×2
Equivalent exchange error: ±100ml
Mean exchange speed: 2L/MIN
Noise: <70db
Size: 588x672x1024mm

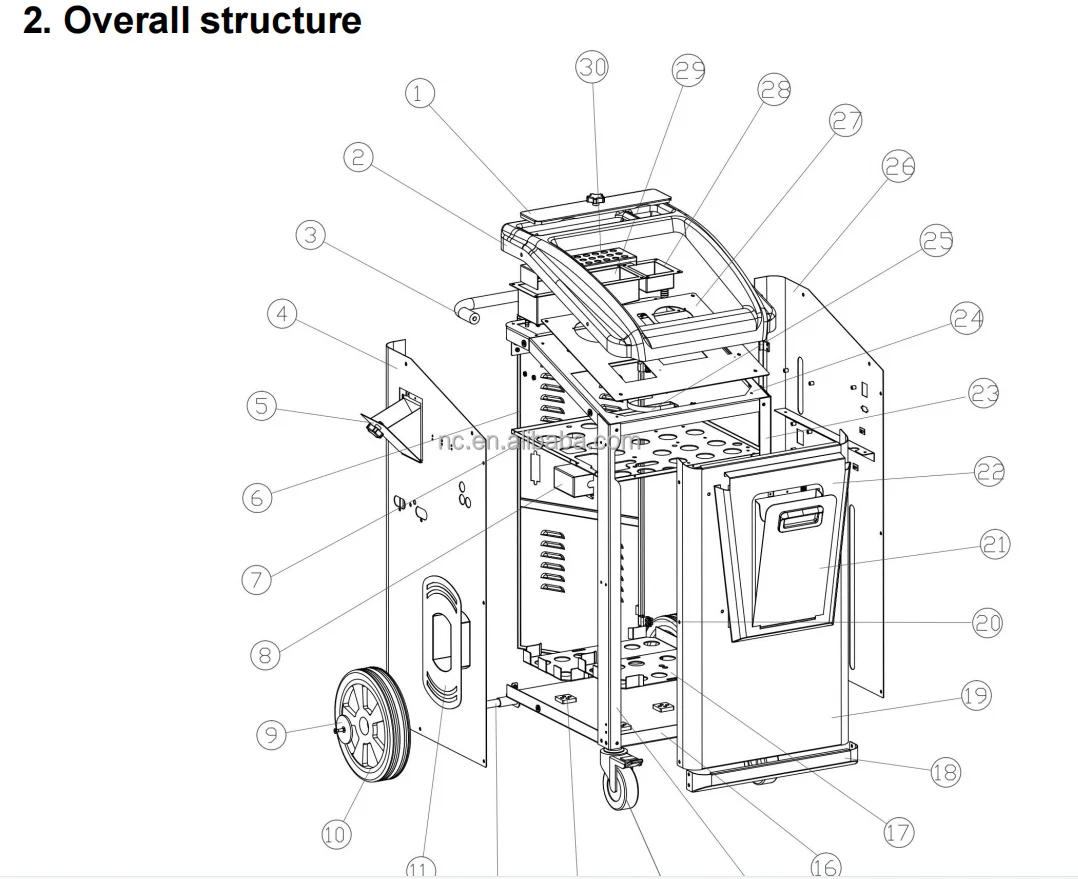

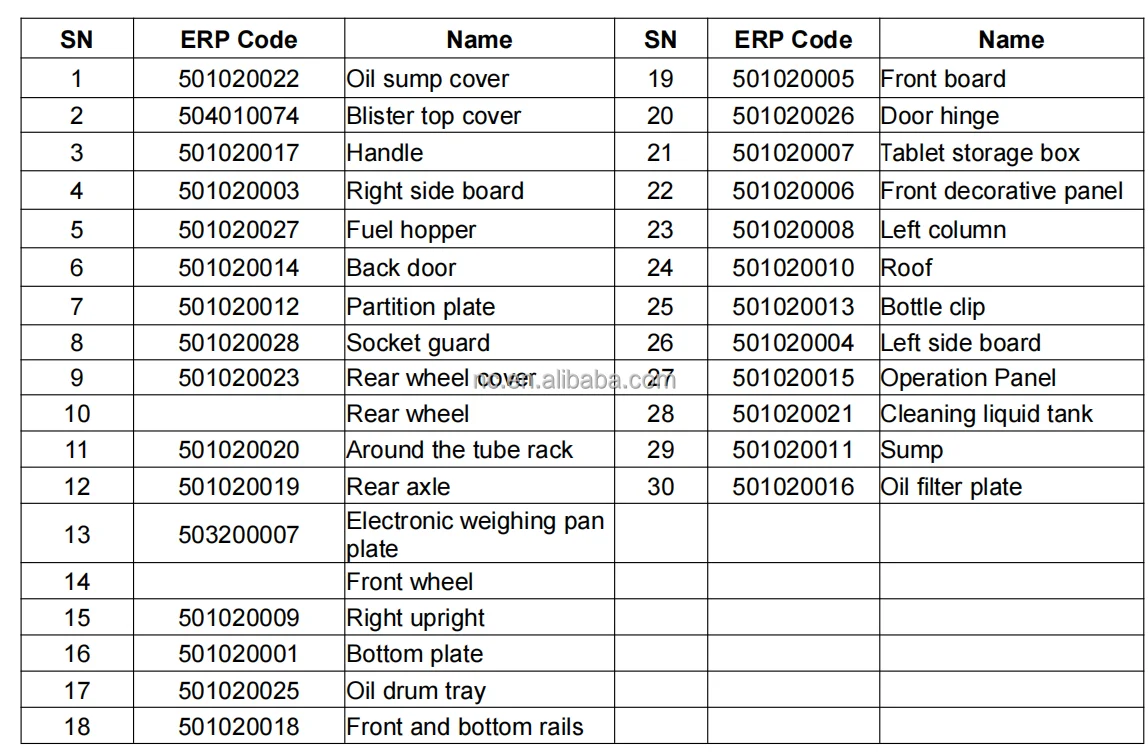

Structure
1. Outline

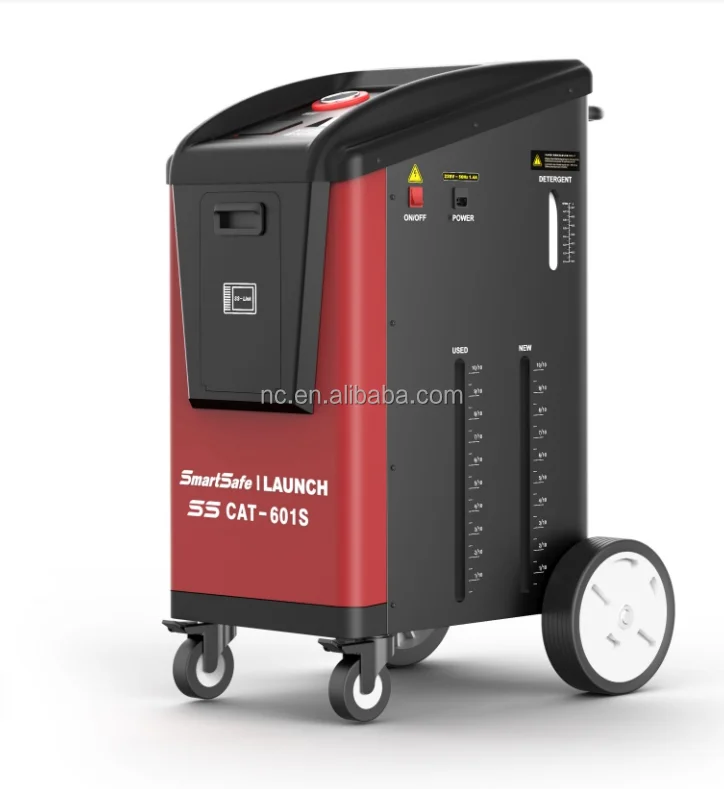

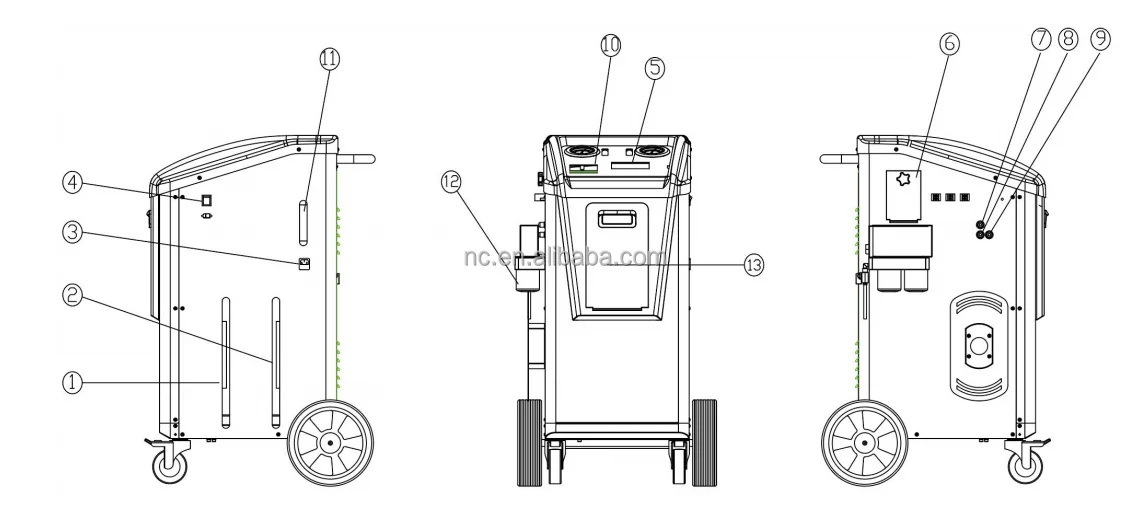

As shown in Fig.1, iSmartATF 601 is designed with a fine cabinet. There is a handle at the top of cabinet and two pairs of casters at the bottom of the cabinet, which makes it easy to move the unit. Fluid hoses are equipped with proper connectors for fast connection.
The intelligible control panel helps you operate the machine easily.
