A4 size automatic edible ink food printer for cake macaroon dragess etc printing
- Category: >>>
- Supplier: Shenzhen Inter-Jet Technology Co. Ltd.
Share on (1600423959813):
Product Overview
Description
Automatic food Print Machine for cake macaroon dragees etc printing A4 size
Product Description
New A4 size Automatic edible printing printer with edible ink can print on all kinds of food such as Macaron, M&M candies, Chocolate, cake, Biscuit,macaron etc .Each item can be printed as a unique one with colorful photoes . or you can print one color ink according with your request.
It has several advantage for this type printer
1. Its height is 0-15cm with infrared ray to sensor print media height automatically .
2. It will print object via our cupshows software with several print model , it will be more easy to operation it .
3. It will come with two jigs which convenient for you to use to print macarron, biscuit ,candies etc food
4. We will offer on-line technology support ,we can guide you to install and operation the printer until the printer start to print .
SPECIFICATIONS FOR A4 size Food printer | ||||||
The printer model | szinter-jet210c food printer | |||
Print Technology | Printing Direction | Smart Single/ Bi-directional printing mode | ||
Printing Method | Non-contact micro piezoelectric ink-jet printing | |||
Printing Nozzle | Micro piezoelectric 1440 nozzle | |||
Height Adjustment | Automatically | |||
Transmission Type | USB, Ethernet | |||
Power Supply | AC220V±10%, 50hz-60hz, Power=600w | |||
Driver | Windows XP, Vista, 2000/7/8, Windows7 W10 | |||
Software | Cupshows software PHOTOSHOP,COREDRAW ETC | |||
Language | English | |||
Warranty | One year warranty, Lifetime maintain | |||
Printing Quality | Resolution | Max.5760*1440dpi | ||
Size | 20*30cm | |||
Thickness | 0-15cm | |||
Speed | A4 size, about 2 minutes (720x360) | |||
Deviation | ±0.5mm at 25°C 50-60%RH | |||
Ink& Material | Color | BKCMYLCLM | ||
Cartridge | 220ml*6 color | |||
Type | Edible ink | |||
Cost | ink cost : about USD0.57 / sqm | |||
Material | cookies, candy, cream, biscuit, Macaron, MM candies,chocolate etc | |||
Working Environment | Temperature | 10~35°C | ||
Humidity | 20-80%RH | |||
Packing | Weight | 28kg (gross), Vol. weight:39kg | ||
Packing Size | L74cm*W60cm*H43cm, | |||
Packing | Wooden case | |||
HS Code | 8443321300 | |||
Price include (Accessories) | Machine body with 1. empty CISS 1 set refillable empty cartridge 1 L805 printer driver CD, 1 English user guide, 1 power cord, 1 USB cable. | |||

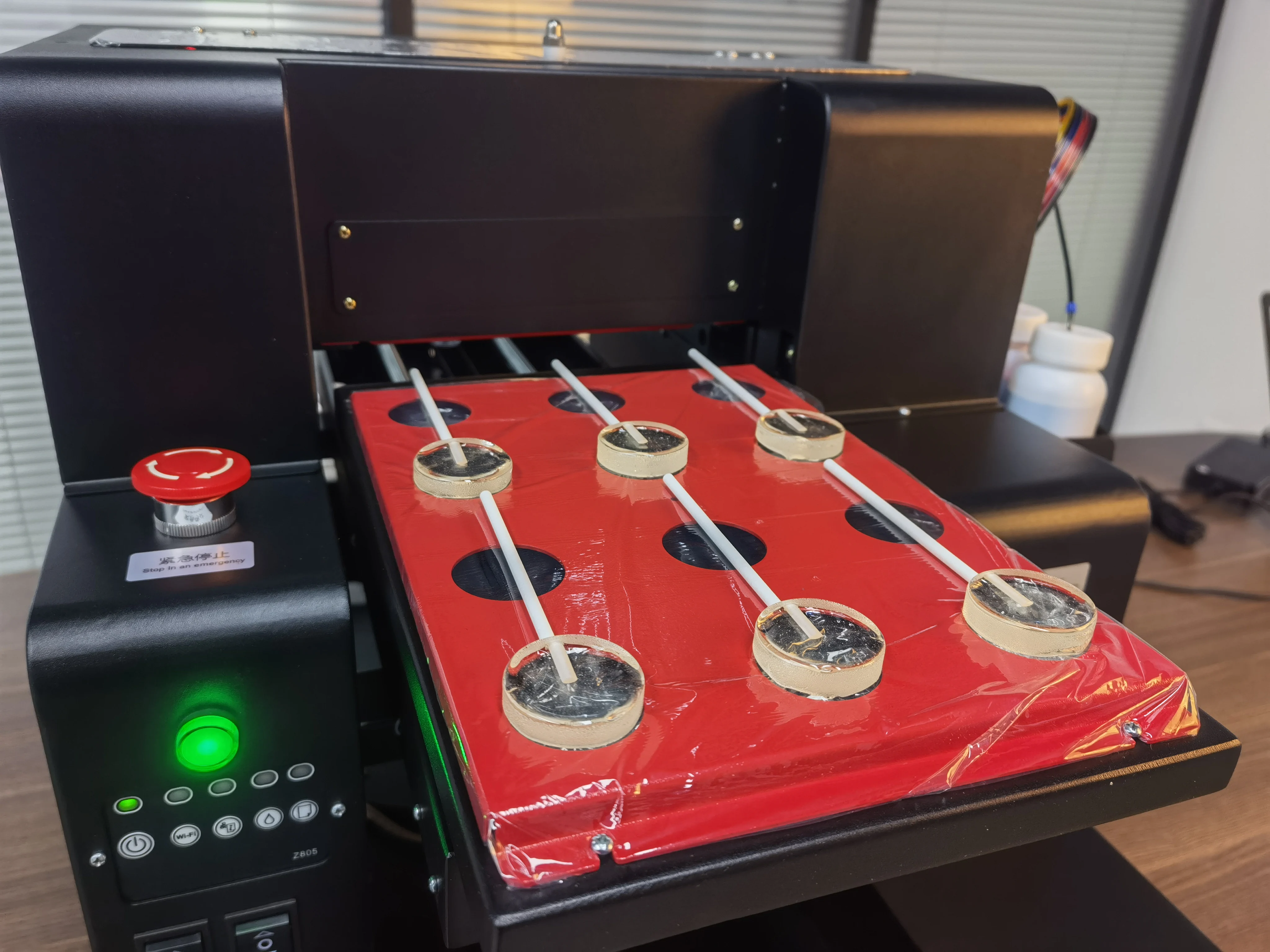

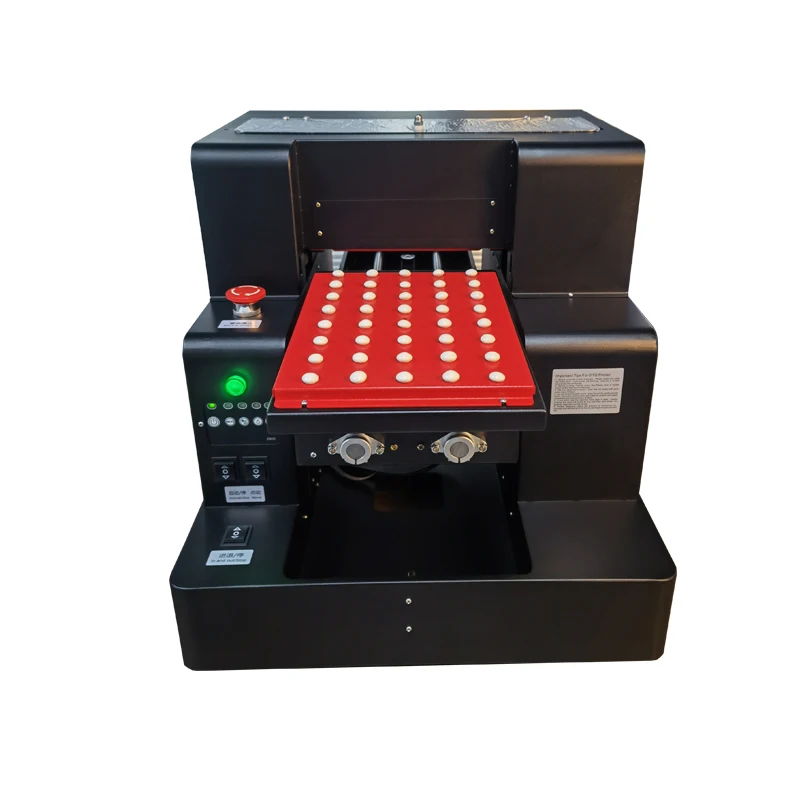

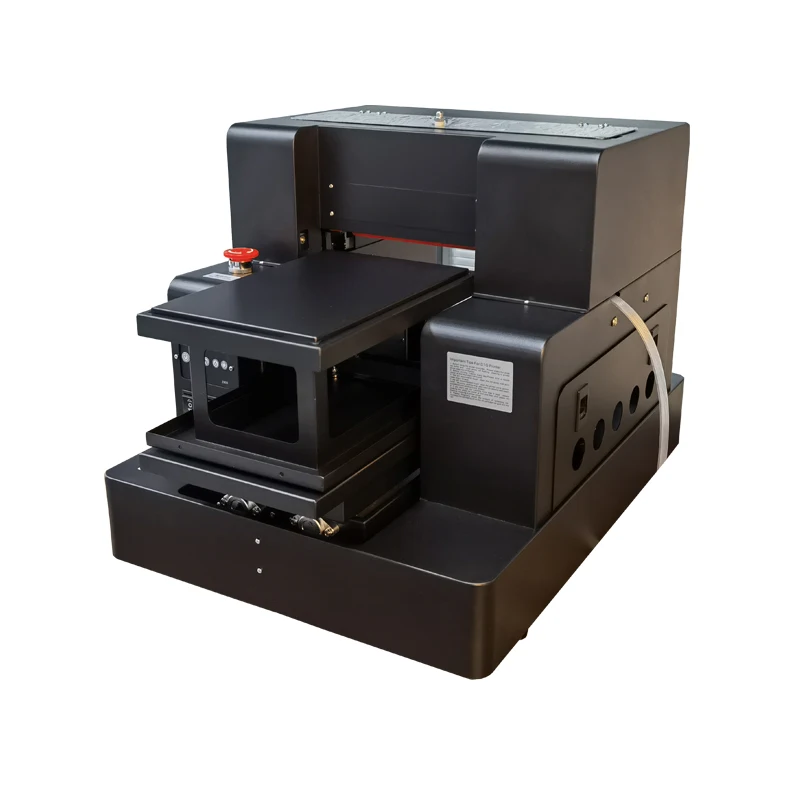

The pictures for the machine

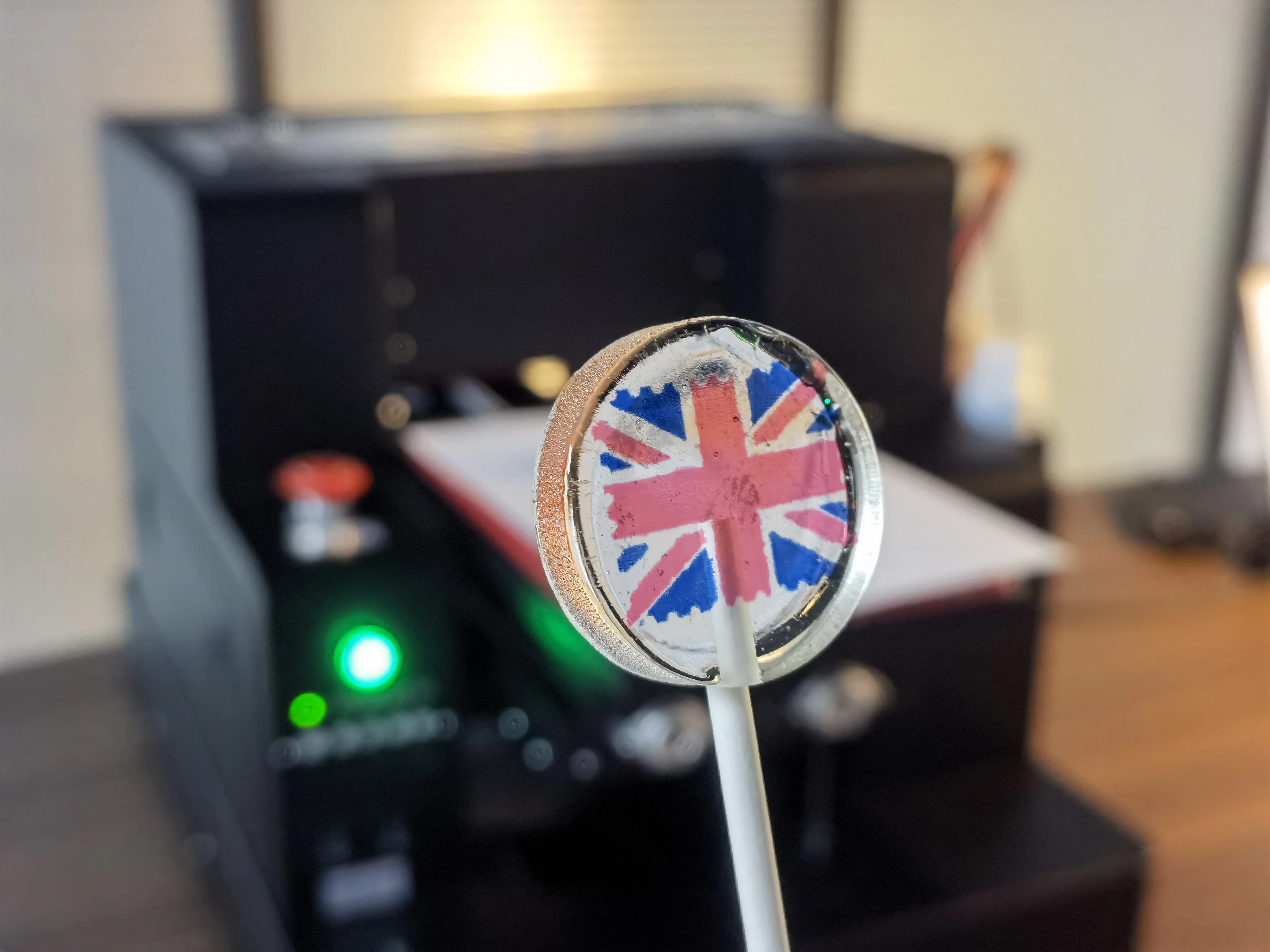

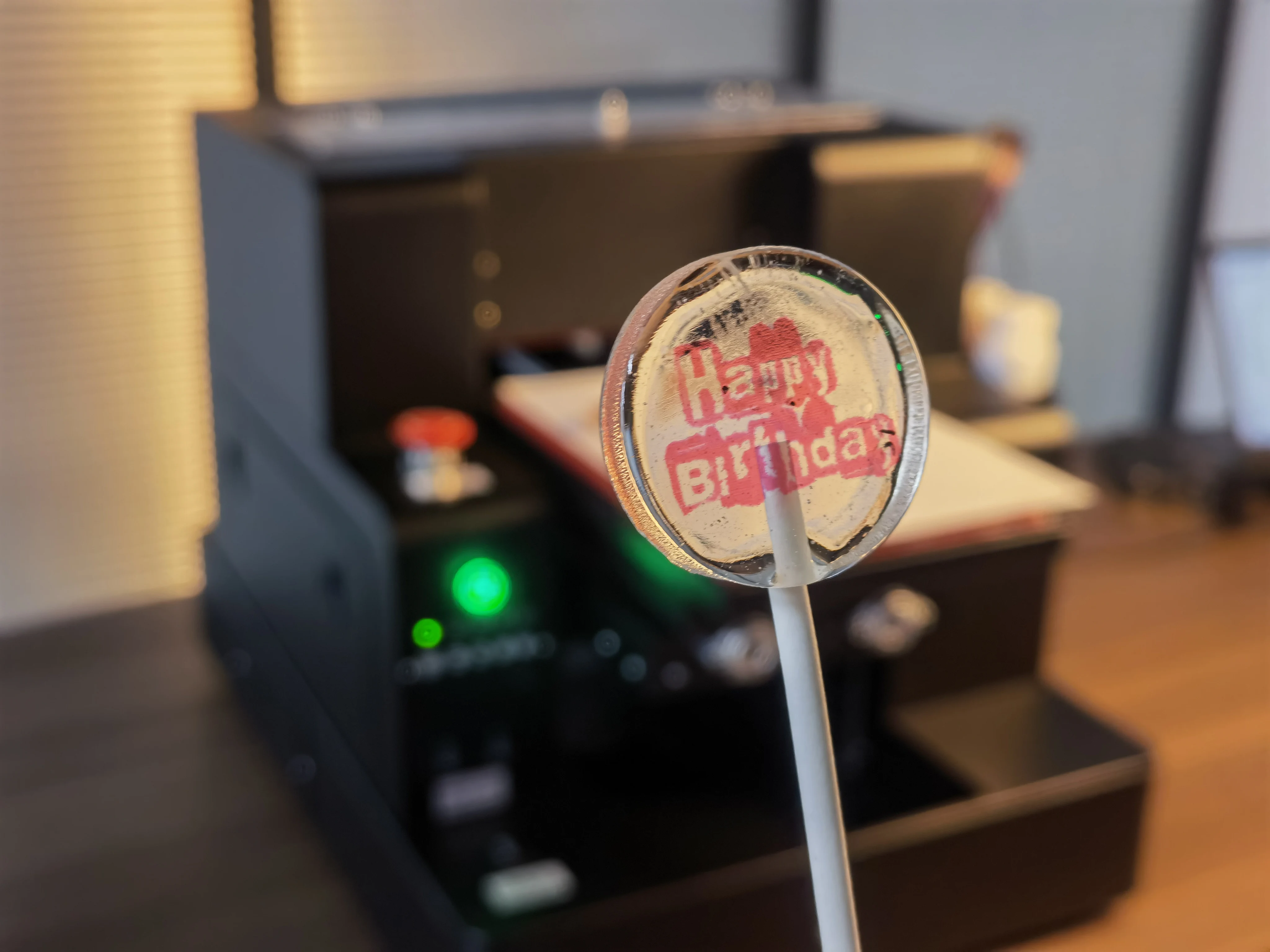

The printing samples reference
MM candies
.
Macaron
Biscuit
Small cake
Bread &Chocolate.
Icecream
Main Features for the machine :
1.The platform moving is supported by the belt and the straght-line optical axis .
2. An IC is added to shield the paper sensor in the bottom of the print head , that means it does not need to sensor the initial place to avoid " lack of paper or paper error "
3. Easy for customer to operate it , which help the customer to save lots of time .just do the following for printing: refill the ink into the CISS and install the drive for the machine , then press the Power of the machine and press "IN" button to let the platform backward completely ,and then press Power of the printer , then the printer will be prepared for printing.
4. The platform forward and backward is by pressing IN/OUT button in the control panel , which is automatical .
5. A height limited level bar is be added to avoid the printing media and print head to collision. The height can aslo be adjusted by one knob with max. height is 60cm.
2. An IC is added to shield the paper sensor in the bottom of the print head , that means it does not need to sensor the initial place to avoid " lack of paper or paper error "
3. Easy for customer to operate it , which help the customer to save lots of time .just do the following for printing: refill the ink into the CISS and install the drive for the machine , then press the Power of the machine and press "IN" button to let the platform backward completely ,and then press Power of the printer , then the printer will be prepared for printing.
4. The platform forward and backward is by pressing IN/OUT button in the control panel , which is automatical .
5. A height limited level bar is be added to avoid the printing media and print head to collision. The height can aslo be adjusted by one knob with max. height is 60cm.
Packing & Delivery
The wooden case : 78*57*46cm , valume weight : 40KG
FAQ
Following are some questions that customer to ask frequently :
Q:The edible ink can eat safely ? it has any certification
A: kindly inform you this ink can eat safely and it has MSDS available
Q:how much ink on average does the printer consume to print a meter square of colour?
A:Usually it will cost 12~14ml ink for printing one square meter .
Q:What's the print process by this printer?
A:
1). Design the artwork by Photoshop, Corel Draw, Illustrator or other software and imput the artwork into our coffee printing templete .
2). Start print. We could output the print by photoshop, corel Draw etc software directly
Q:Is there any guarantee for this printer?
A:Yes, we have guarantee for the printer. We provide one year warranty for all the electronic parts including the main board, driver board, control board, motor, etc. But there is no warranty for wearing parts like ink pump, printhead, and CISS since they are consumables.
Q:How can I install and start to use the printer? Ask you or I need to learn myself?
A:At first, you should read the users' manual to understand the machine and watch the video. We will offer you details installation documents such as how to refill the ink into the CISS , how to install the driver , how to setup the position for the coffee printing, how let the ink flow into the print head , how to setup the parameter of the computer etc
After you get the machine,if you have any problem our technician will teach you how to install and use the machine by web camera on Skype, MSN or Yahoo messenger. Whenever you have questions to the machine, you can contact our technician or me.
Q:Do you have any service for the machines?
A:We have been providing 24 hours on-line serives by skype ,msn or phone calls with professional technicians. If there is any probleme happens, the technicians will help to check the problems and offer guidance for the solution. We have all the files about the problem shooting and videos accordingly. Our technician will send the right file for the problem on time.
Our Certifications
Our Company
Shenzhen Inter-jet Technology Co.,Ltd is manufacture and exporter who dedicate to research, designing and offering full solution based on the customers' request for flatbed inkjet Printing industry . We own our workshop and technicians, and we has been in the field of inkjet Flatbed printer for several years, after years of research and production, we accumulated lots of experience on Inkjet flatbed printer.
The main products include multi-purpose flatbed printer , UV LED lamp flatbed printer , Coffee printing Flatbed printer and coating machine etc .
Currently our series offer food printing machine is one of hot products in market and owning patent and CE certification, the machine similar with Taiwan lets coffee machine , compared Let's coffee machine , our machine occupy the advantage of its price also high quality.
The series of foods printer which transmission system adopts imported stepping motor ensured zero error happened, the linear rail adopts Taiwan two-way transmission ensured the printing image high resolution and with heat equipment to print some material without coating.
Shenzhen Inter-jet Technology Co,Ltd has working on building the best experience working with all the customers. Welcome customer establishes cooperation relation with us from all over world.
