Product Overview

Description

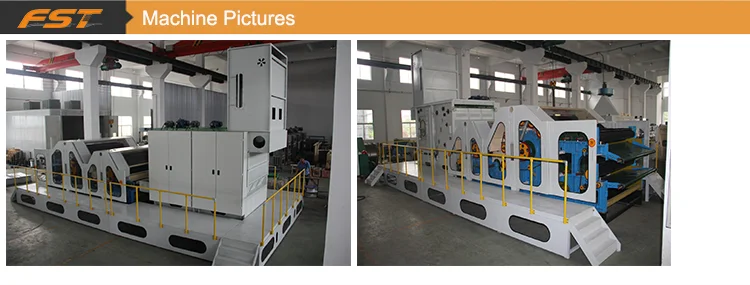

XXSL Carding Machine

Type1: Single-cylinder Double-doff Carding Machine
Single Cynlinder Double Doff Carding machine is suitable for combing of 1.5D~20D×38~76mm artificial fibers. Feeding roller is driven by frequency inverter and it is equipped with anti-metal protection device.


Working Width
1550mm/1850mm/2050mm/2350mm/2550mm
Mesh-out
20~55m/min
Doff
Φ500mm×2
Cylinder
1230mm×1
Cotton stripping
Doff comb or Roller
Power
11.5~23kw


Type2: Double-cylinder Double-doff Carding Machine
Double cylinder Double Doff Carding Machine is suitable for combing of 1.5D~20D×38~76mm artificial fibers. Double-cylinder high-speed combing makes fiber fully combed and the mesh more even. Feeding roller is driven by frequency inverter and it is equipped with anti-metal piolection device.


Working Width
1550mm/1850mm/2050mm/2350mm/2550mm
Mesh-out
20~55m/min
Doff
Φ500mm
Pre-cylinder
Φ850mm
Main Cylinder
Φ1230mm
Middle Cylinder
Φ635mm
Cotton Stripping
Roller
Power
25kw
