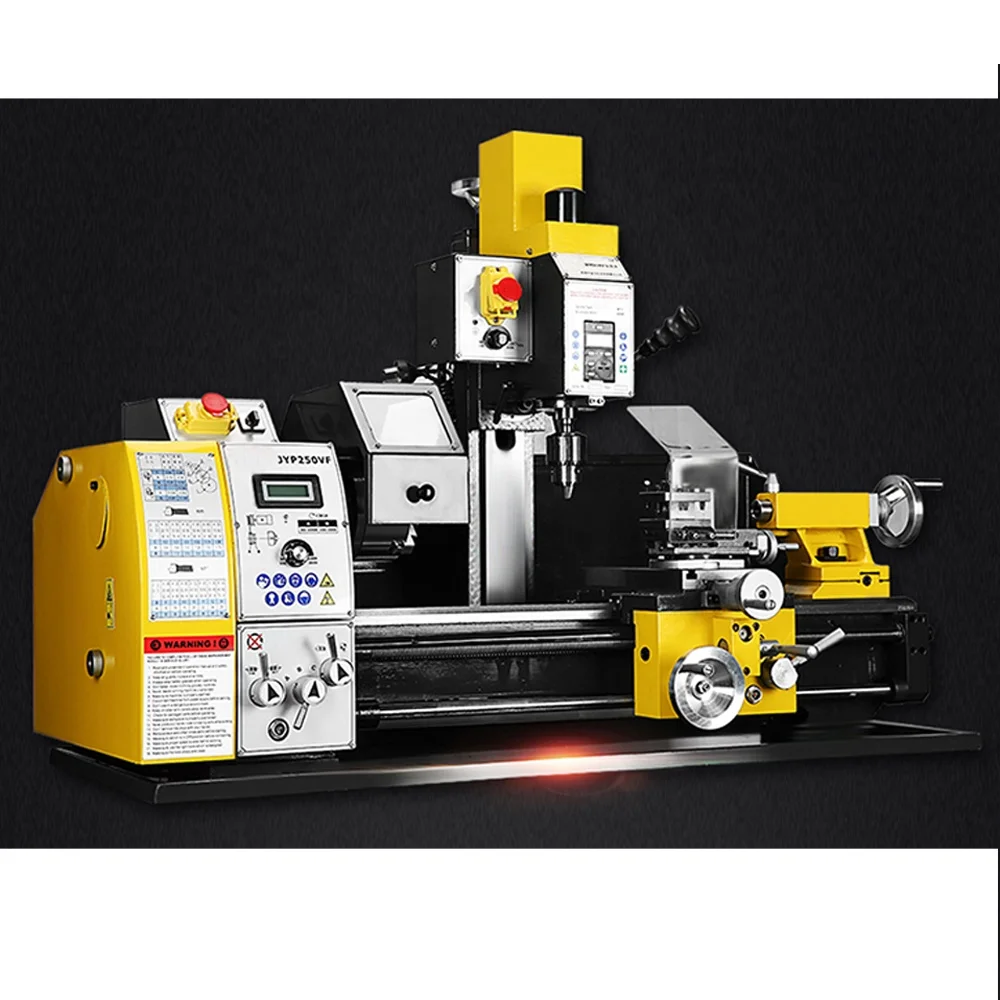

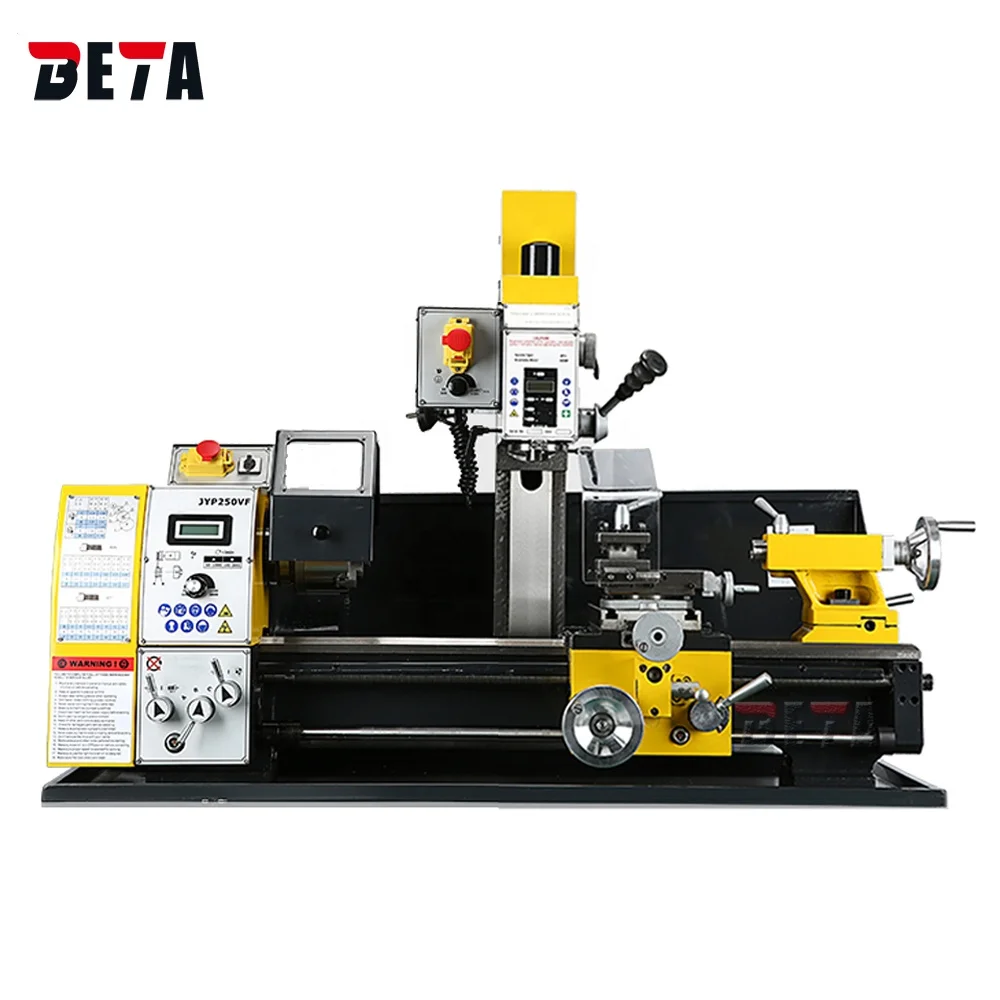

JYP250VF High precision low price lathe Manual mini lathe machine for sale
- Category: >>>
- Supplier: Tengzhou Beta Co. Ltd.
Share on (1600424008970):
Product Overview
Description
Products Description
JYP250VF High precision low price lathe Manual mini lathe machine for sale
Product Parameters
MODEL | JYP250VF |
Distance between centers | 750 mm |
Swing over bed | 250 mm |
Swing over cross slide | 145 mm |
Taper of spindle bore | MT4 |
Spindle bore | 26 mm |
Number of spindle speeds | Variable speed |
Range of spindle speeds | 50-2250 rpm |
Range of inch threads | 8-56T.P.I 21kinds |
Range of metric threads | 0.2 -3.5mm 18kinds |
Top slide travel | 60 mm |
Cross slide travel | 115 mm |
Tailstock quill travel | 70 mm |
Taper of tailstock quill | MT2 |
Motor | 1.0 kw |

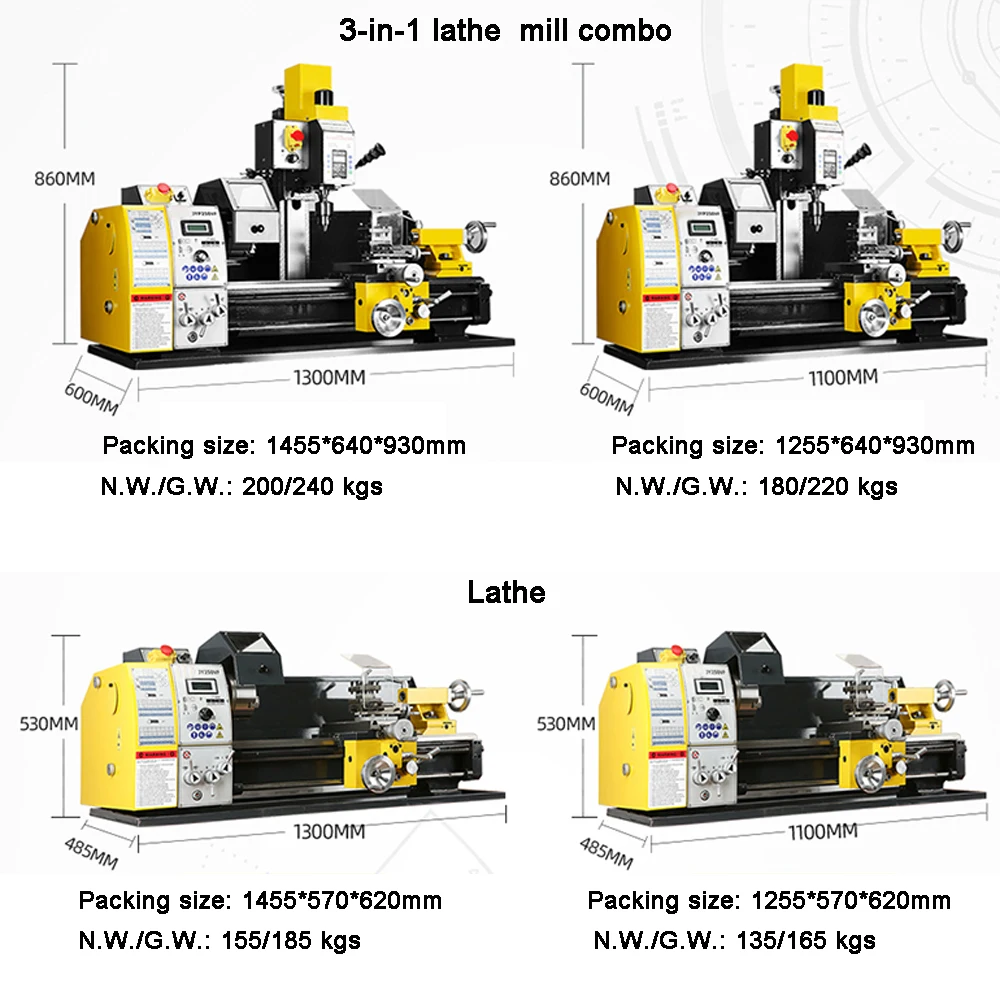

Packing size | 1455*640*930mm |
Milling head spindle taper | MT2 |
Drilling capacity | 16mm |
End milling capacity | 16mm |
Face milling capacity | 52mm |
Spindle travel | 50mm |
T-slot width | 10mm |
Spindle speed range | 50-2250rpm |
Motor power | 600W |
Voltage | as your requirements |
N.W./G.W. | 240 kgs |
Details Images
Standard accessories:
1 kW brushless DC motor
depth display,
rpm speed display,
tailstock,
3-jaw chuck,
change gears,
oil gun,
leadscrew cover,
toolpost cover,
wrenches & tool box
depth display,
rpm speed display,
tailstock,
3-jaw chuck,
change gears,
oil gun,
leadscrew cover,
toolpost cover,
wrenches & tool box
Optional accessories:
Coolant system
Work light
3-axis SINO digital readout
Europe quick change toolpost
steady rest
follow rest
live center
face plate
4-jaw chuck
drill chuck
drill bit
turning tools
milling collet
Work light
3-axis SINO digital readout
Europe quick change toolpost
steady rest
follow rest
live center
face plate
4-jaw chuck
drill chuck
drill bit
turning tools
milling collet

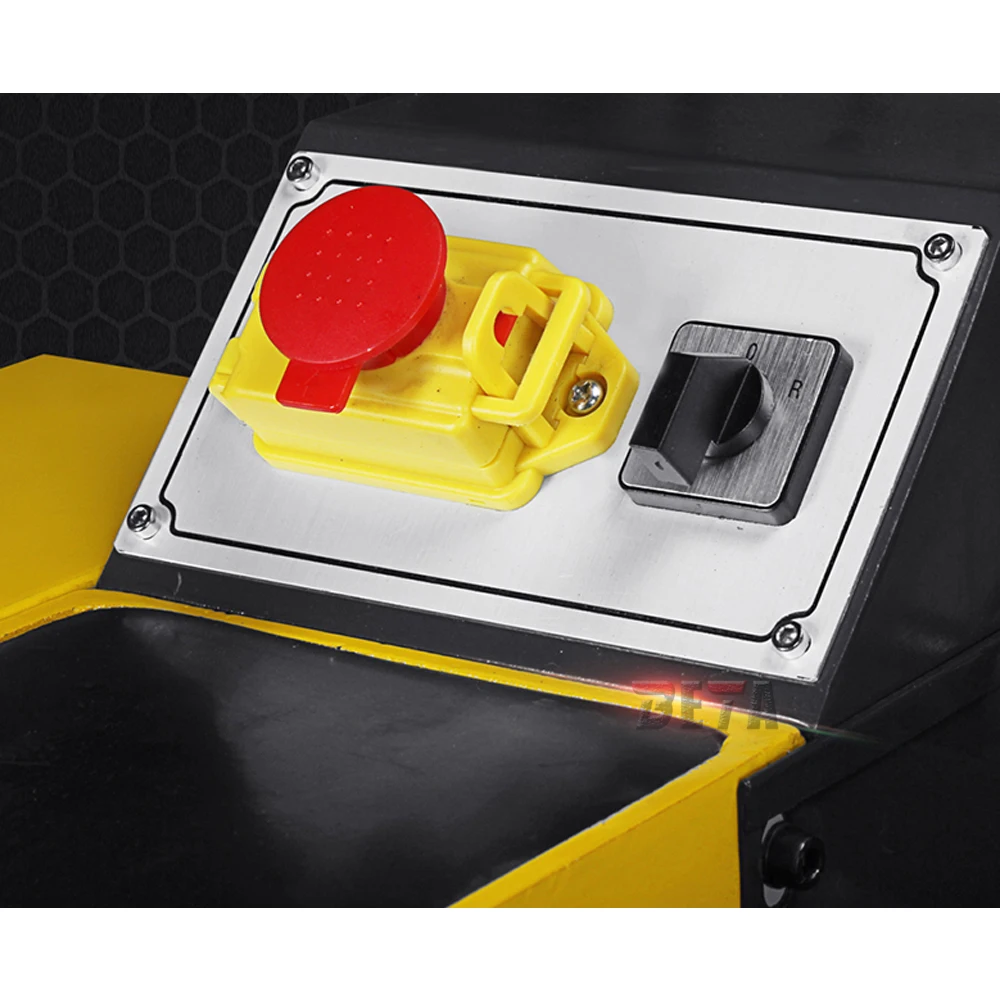

Emergency stop switch

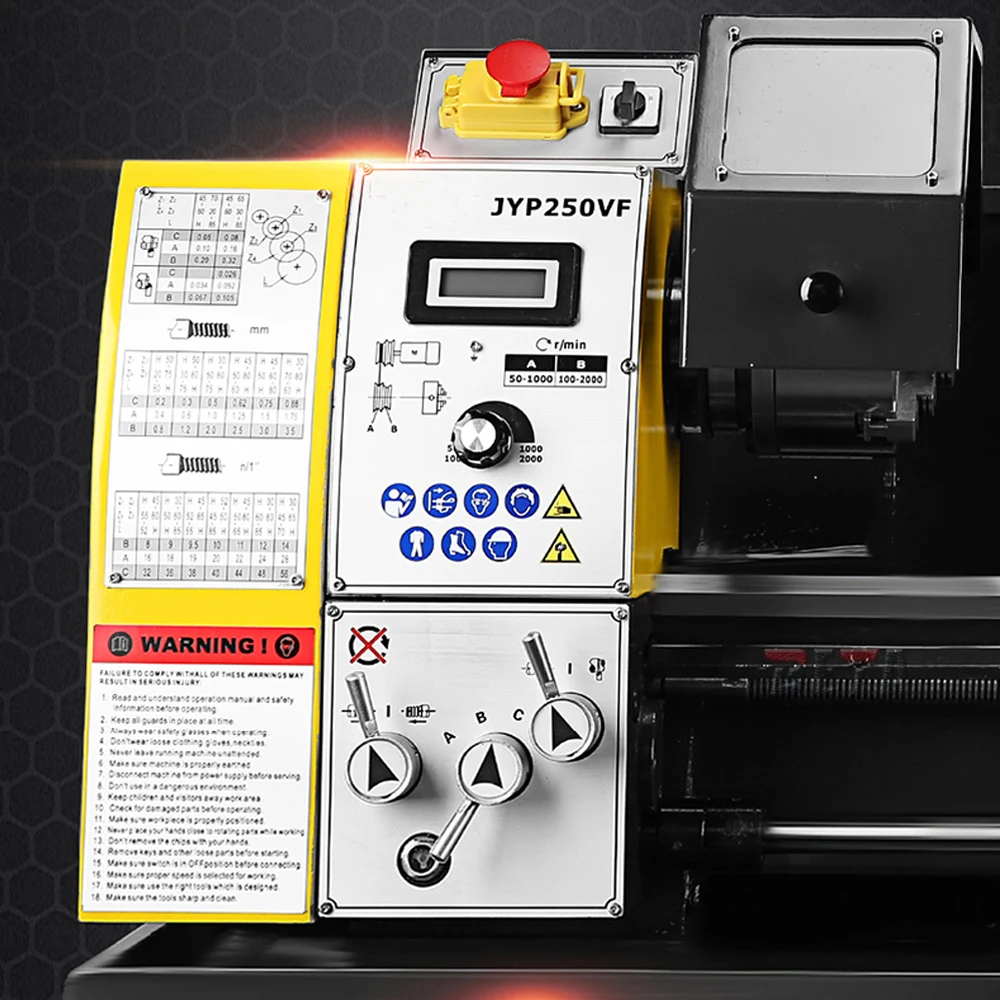

Headstock

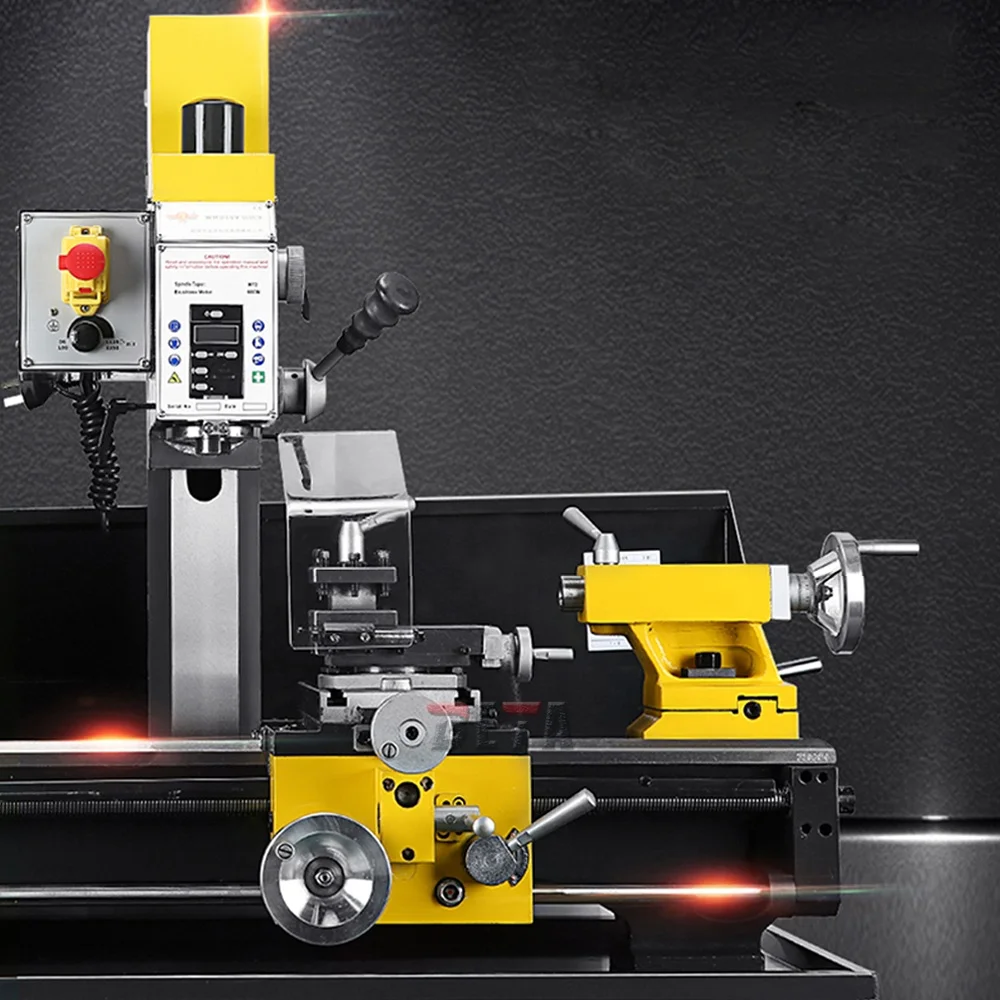

Toolpost

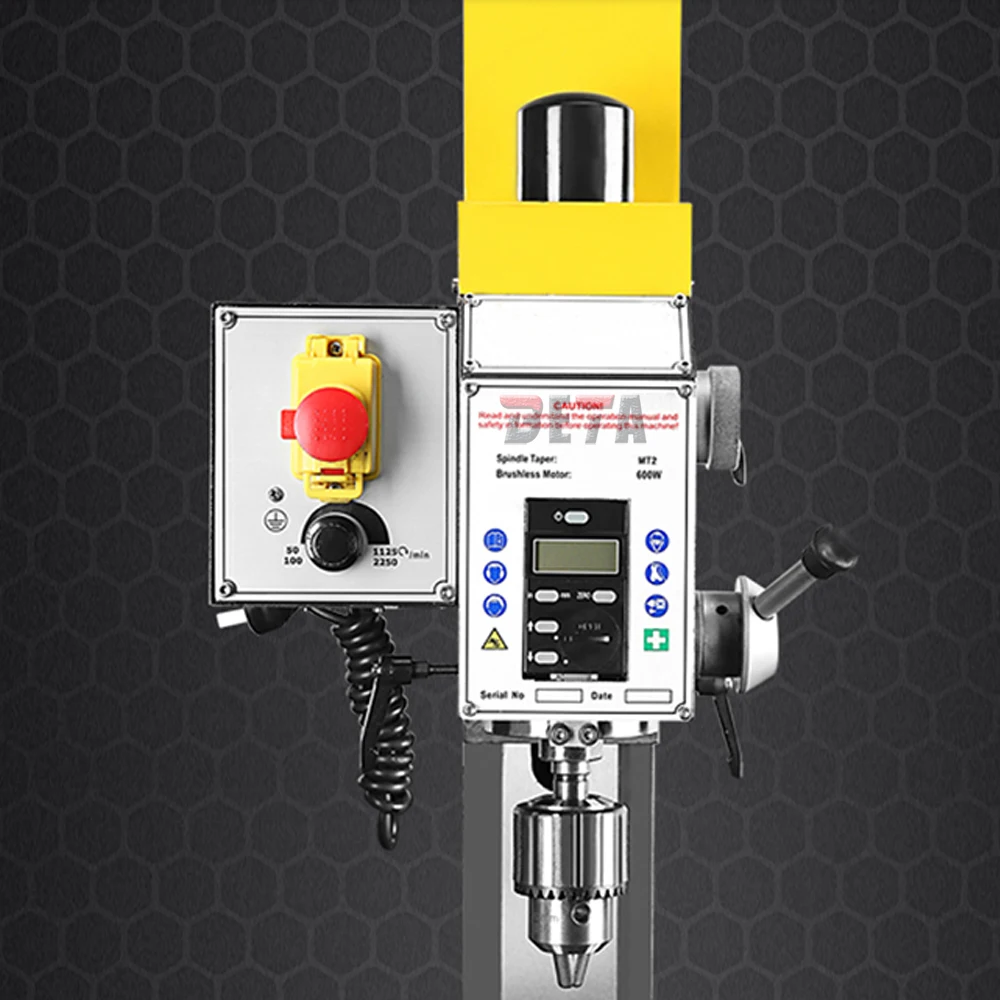

Milling head
SKF bearings
Manual 3-jaw chuck
