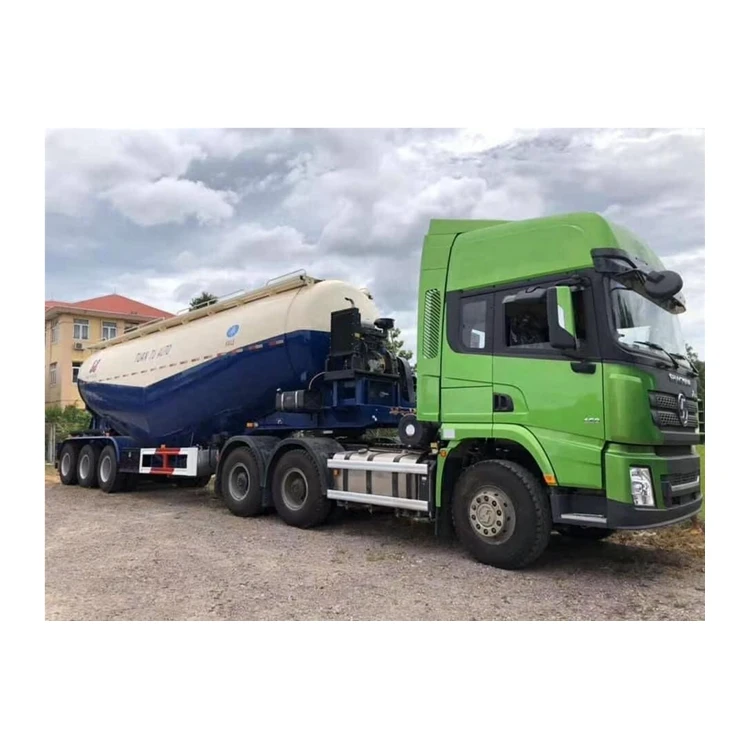

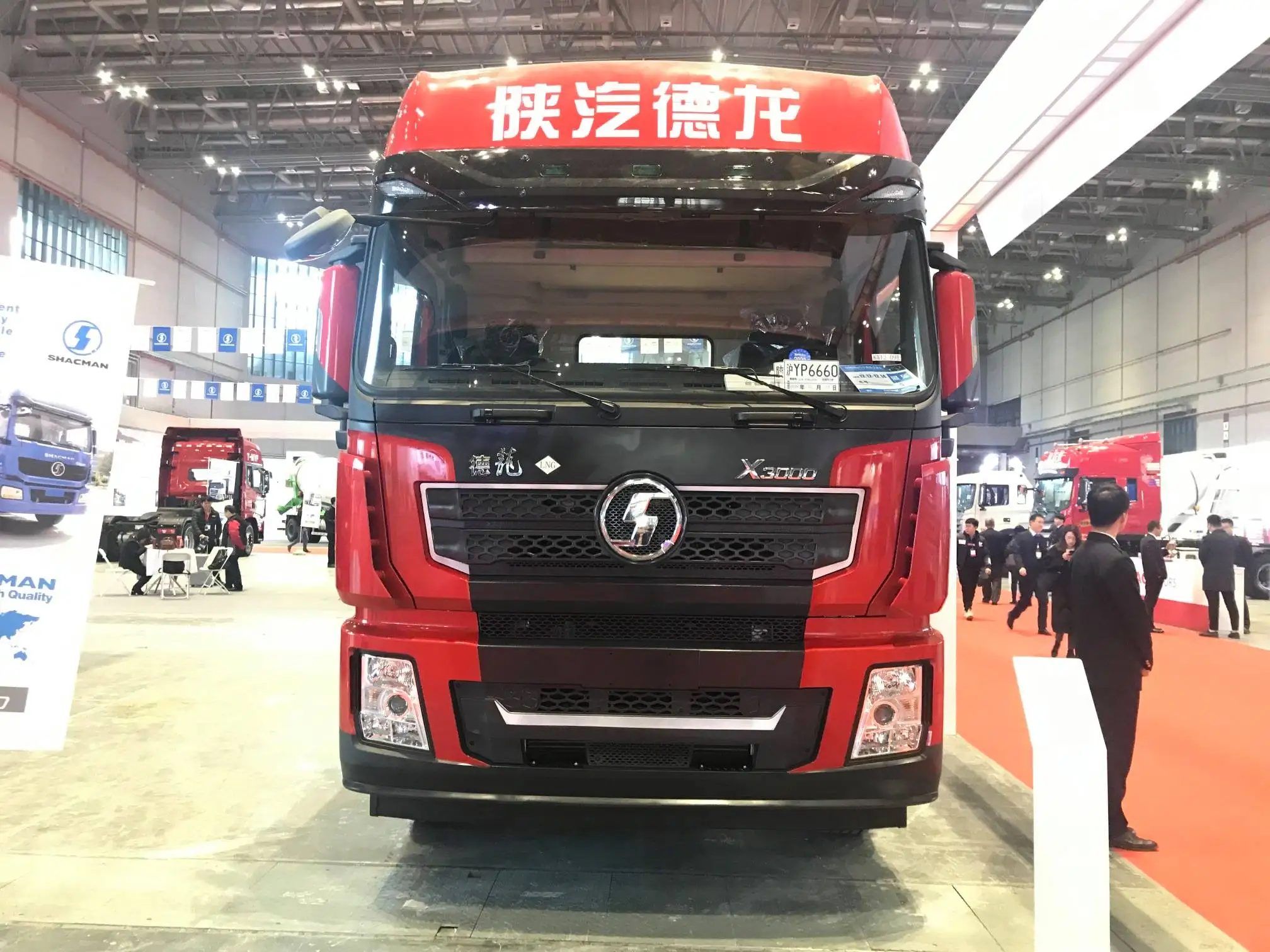

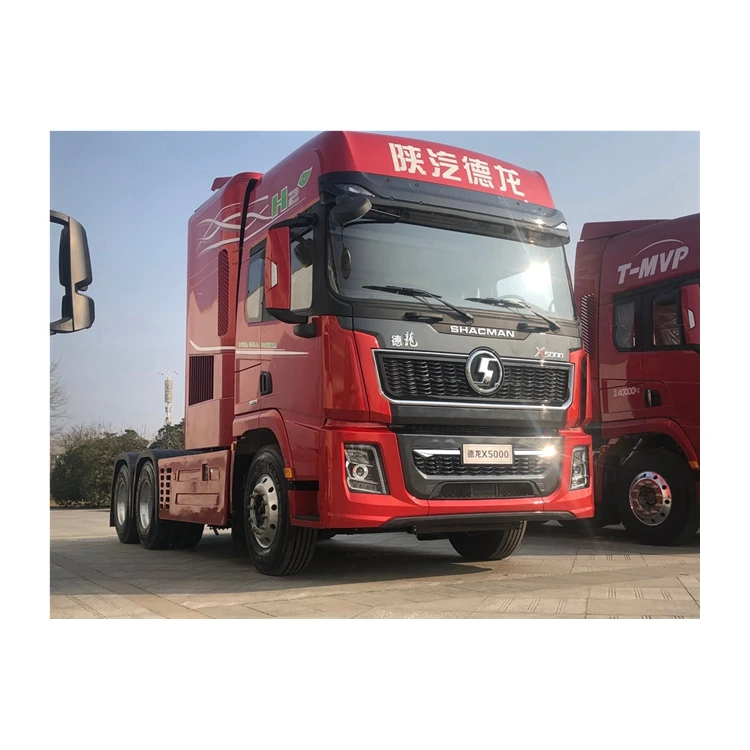

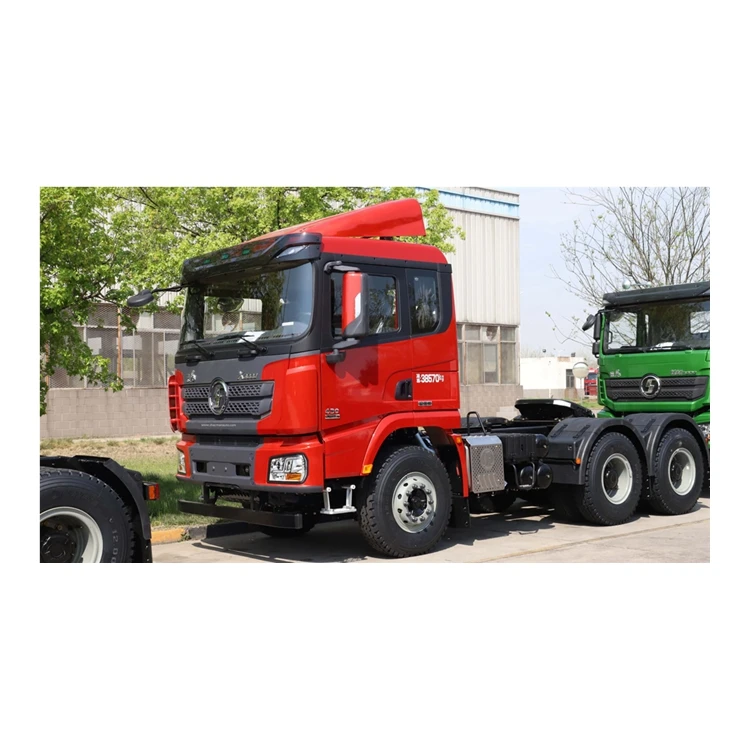

Shacman F3000 6x4 mini tractor truck | ||||
Drive | 6x4 | |||
Max weight(t) | ≤ 55 | |||
Max speed (km/h) | 110 | |||
Loaded speed(km/h) | 70~90 | |||
Vehicle model | SX42555V324 | |||
Engine | WP12.430E201 | |||
Emission standard | Euro Ⅱ | |||
Displacement | 11.596L | |||
Rated Output | 316kW | |||
Max.torque | 2000N·m | |||
Transmission | 12JSD200T-B | |||
Clutch | 430 | |||
Frame | (940-850)x300(8) | |||
Front axle | MAN 7.5T | |||
Rear axle | 13T MAN double reduction 3.364 | |||
Tire | 12R22.5 | |||
Front Suspension | Little leaf springs | |||
Rear Suspension | Little leaf springs | |||
Fuel | Diesel | |||
Capacity of the fuel tank | 400L(Aluminum shell) | |||
Battery | 180Ah | |||
Dimensions(LxWxH) | 6825x2490x3210 | |||
Wheelbase | 3175+1400 | |||
The fifth wheel | Lightweight 90 type | |||
Max.gradeability(%) | 20 | |||
Cab | Type | X3000,lengthened flat roof | ||
Cab | Equipenents | Air main seat; Four point air suspension; Automatic air conditioning; Electric heated rearview mirror; Electric flip; Central locking(dual remote control); Multi-function steering wheel | ||
