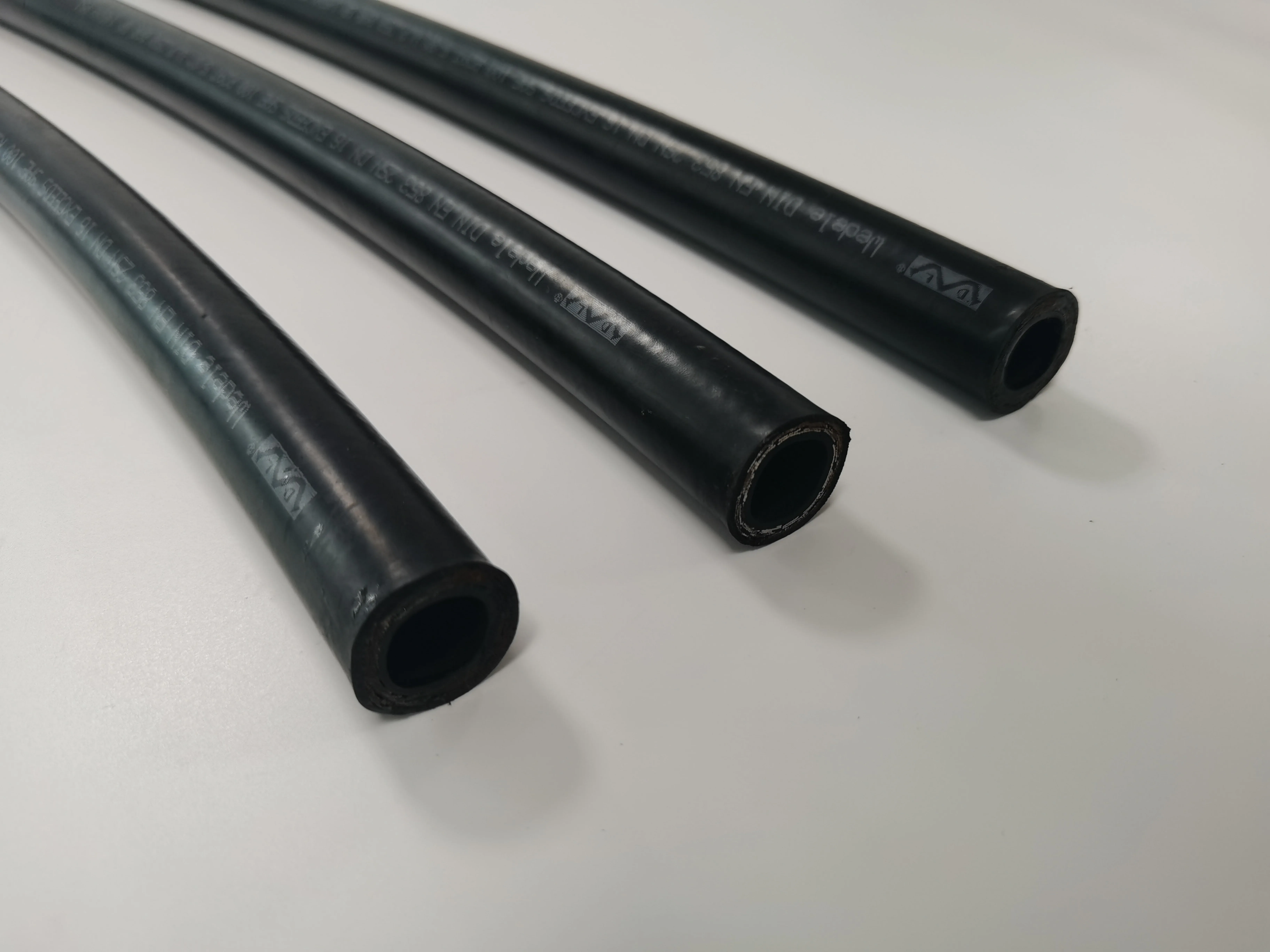

Protective Sleeve Flexible Rubber Hose SAE 100R1 R2 DN EN853 1SN 2SN High Pressure Steel Wire Braided Flexible Hydraulic Hose
- Category: >>>
- Supplier: Hennan Youcan Hydraulics Technology Co. Ltd.
Share on (1600424031908):
Product Overview
Description
Product Description
DIN EN 857 2SC DATE SHEET | ||||||||||||||||
INCH | HOSE I.D. | R.D. (mm) | O.D.(mm) | Max working pressure | Min. burst pressure 2SN | Min B.R. | ||||||||||
Min. mm | Max.mm | Min | Max | Max | Mpa | Mpa | mm | |||||||||
1/4 | 6.2 | 7.0 | 12.1 | 13.3 | 15.7 | 40 | 160 | 100 | ||||||||
5/16 | 7.7 | 8.5 | 13.7 | 14.9 | 17.3 | 35 | 140 | 115 | ||||||||
3/8 | 9.3 | 10.1 | 16.1 | 17.3 | 19.7 | 33 | 132 | 125 | ||||||||
1/2 | 12.3 | 13.5 | 19.0 | 20.6 | 23.1 | 27.5 | 110 | 180 | ||||||||
5/8 | 15.5 | 16.7 | 22.2 | 23.8 | 26.3 | 25 | 100 | 205 | ||||||||
3/4 | 18.6 | 19.8 | 26.2 | 27.8 | 30.2 | 21.5 | 86 | 240 | ||||||||
1 | 25.0 | 26.4 | 34.1 | 35.7 | 38.9 | 16.5 | 66 | 300 | ||||||||
1-1/4 | 31.4 | 33.0 | 43.2 | 45.6 | 49.6 | 12.5 | 50 | 420 | ||||||||
1-1/2 | 37.7 | 39.3 | 49.6 | 52.0 | 56.0 | 9 | 36 | 500 | ||||||||
2 | 50.4 | 52.0 | 62.3 | 64.7 | 68.6 | 8 | 32 | 630 | ||||||||
2 1/2 | 63.1 | 65.1 | 74.6 | 77.8 | 81.8 | 7 | 28 | 760 | ||||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Each step produce from our factory,strict quality control,and according to the SAE and DIN STANDARD.
Inner tube extruction area
→
High speed machines braided area
→
Cover rubber extruction area
→
Wrapped area
→
Vulcanization Area
→
Unwrapped area
→
Remove the inner core
→
Packing with packing strap
→
finished product
Ready to ship
