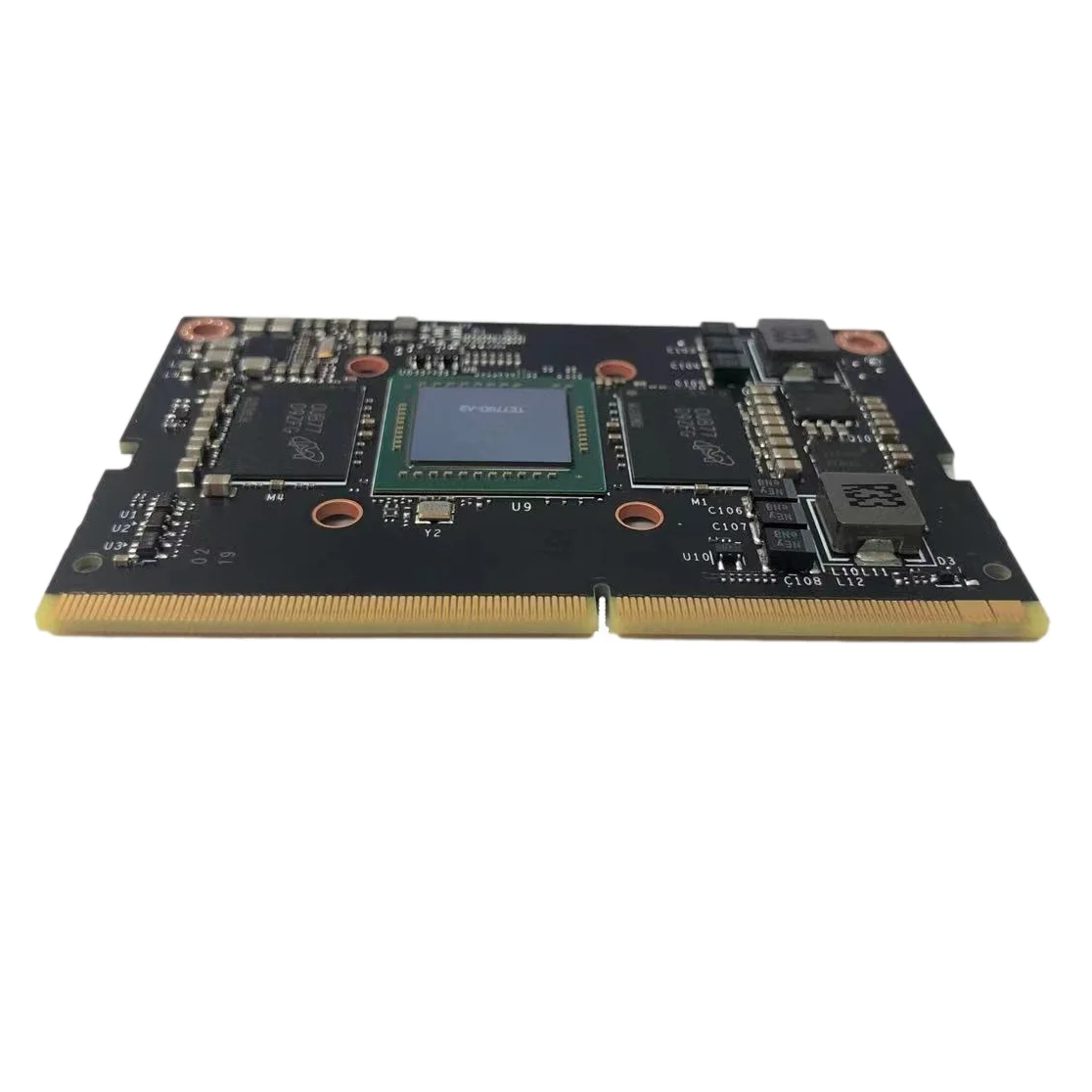

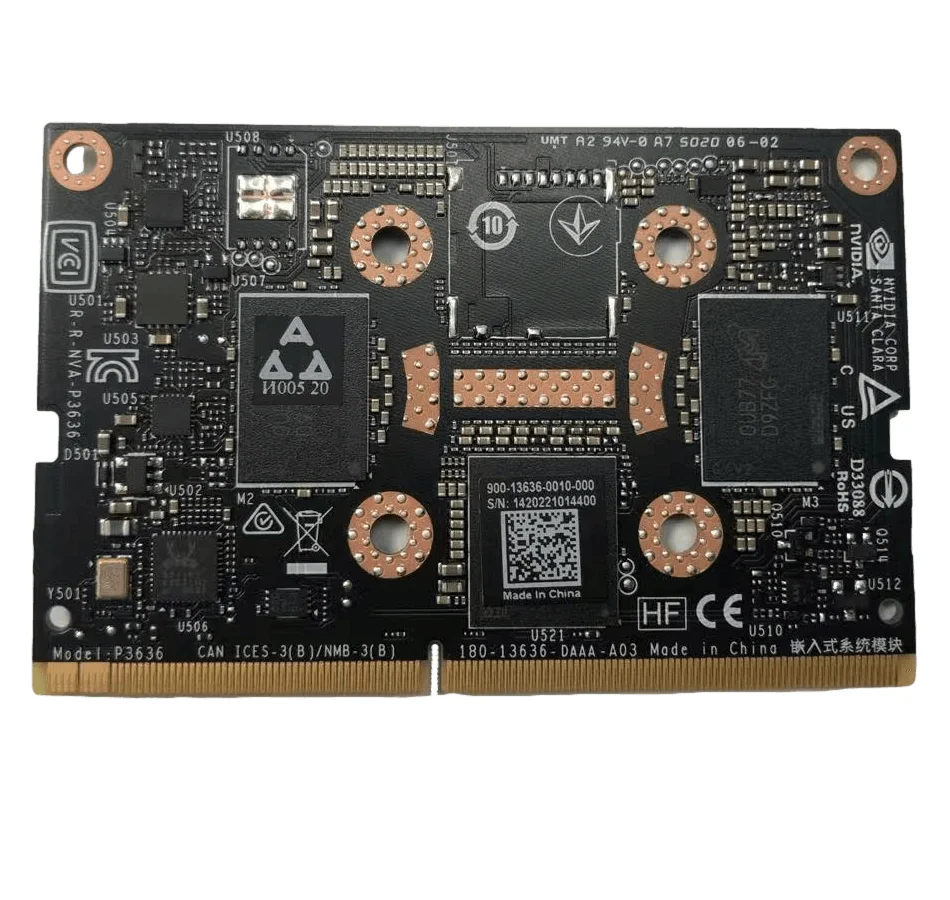

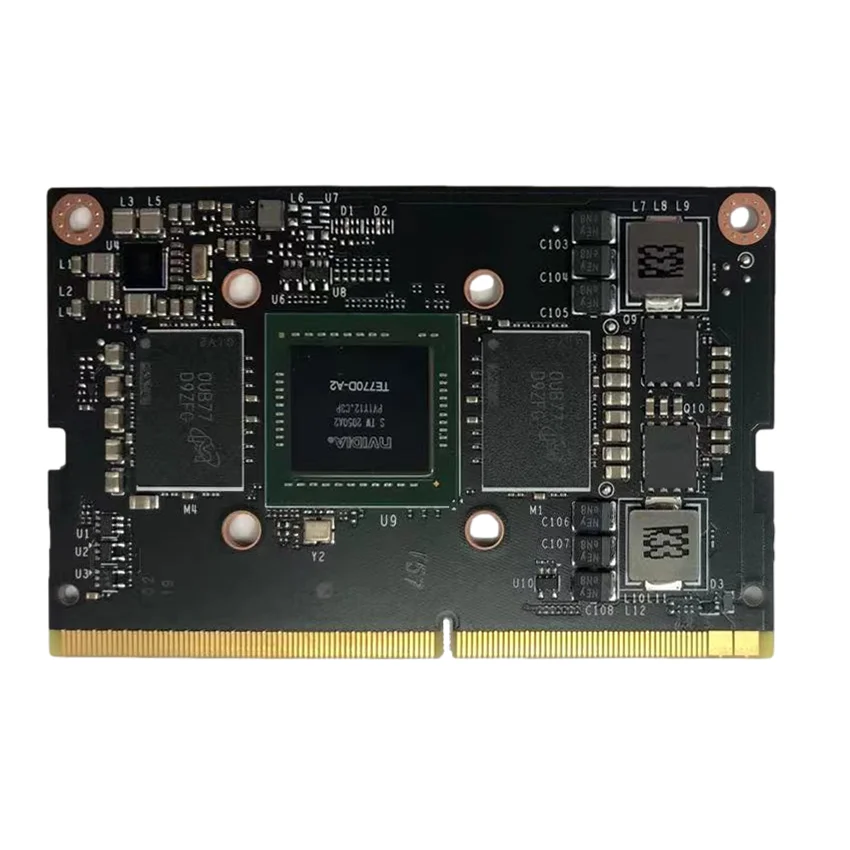

JETSON TX2 NX MODULE 4 GB 900 13636 0010 000 TX2 NX LANAI
- Category: >>>
- Supplier: Beijing Pinli Technology Co. Ltd.
Share on (1600424035920):
Product Overview
Description
NVIDIA® Jetson™ TX2 series modules give you exceptional speed and power-efficiency in an embedded AI computing device. Each supercomputer-on-a-module brings true AI computing to the edge with an NVIDIA Pascal™ GPU, up to 8 GB of memory and 59.7 GB/s of memory bandwidth, and a wide range of standard hardware interfaces.

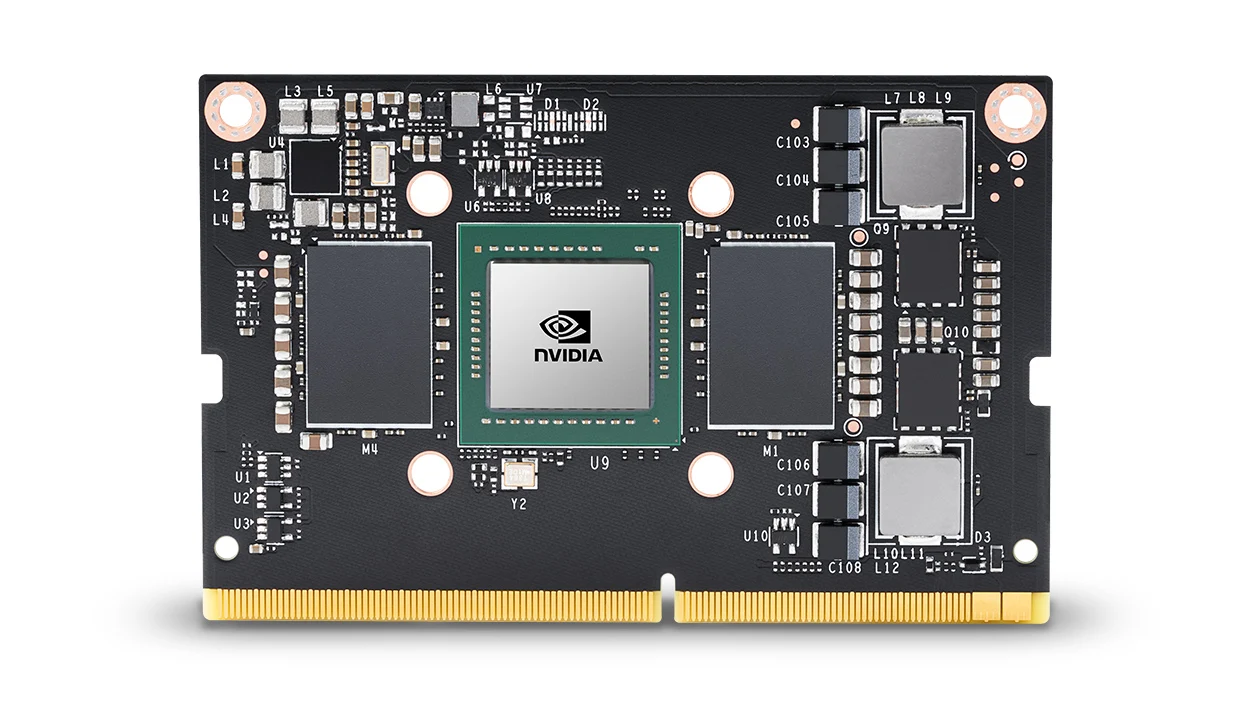

NVIDIA Jetson TX2 NX
NVIDIA Jetson TX2 NX delivers the next step in AI performance for entry-level embedded and edge products. It’s compact,
power-efficient, and ideal for your next AI solution, from manufacturing and retail to agriculture and life sciences. Pre-trained AI models, TAO Toolkit, and the NVIDIA JetPack™ SDK help you get your best product to market—fast.
power-efficient, and ideal for your next AI solution, from manufacturing and retail to agriculture and life sciences. Pre-trained AI models, TAO Toolkit, and the NVIDIA JetPack™ SDK help you get your best product to market—fast.
Technical Specifications
AI Performance | 1.33 TFLOPS |
GPU | NVIDIA Pascal™ architecture with 256 NVIDIA® CUDA® cores |
CPU | Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex |
Memory | 4 GB 128-bit LPDDR4 51.2 GB/s |
Storage | 16 GB eMMC 5.1 |
Power | 7.5W | 15W |
PCIe | 1 x1 + 1 x2 PCIe Gen2, total 30 GT/s |
CSI Camera | Up to 5 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 (3x4 or 5x2) D-PHY 1.2 (up to 30 Gbps) |
Video Encode | 1x 4K60 | 3x 4K30 | 4x 1080p60 | 8x 1080p30 (H.265) 1x 4K60 | 3x 4K30 | 7x 1080p60 | 14x 1080p30 (H.264) |
Video Decode | 2x 4K60 | 4x 4K30 | 7x 1080p60 | 14x 1080p30 (H.265 & H.264) |
Display | 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 1x 2 DSI (1.5Gbps/lane) |
Networking | 10/100/1000 BASE-T Ethernet |
Mechanical | 69.6 mm x 45 mm 260-pin SO-DIMM edge connector |
A JETSON TX2 FOR ANY APPLICATION
The extended Jetson TX2 family of embedded modules provides up to 2.5X the performance of Jetson Nano in as little as 7.5 W. Jetson TX2 NX offers pin and form-factor compatibility with Jetson Nano, while Jetson TX2, TX2 4GB, and TX2i all share the original Jetson TX2 form-factor. The rugged Jetson TX2i is ideal for settings including industrial robots and medical equipment.
COMPARE MODULES
TX2 NX | TX2 4GB | TX2 8GB | TX2i | ||||
AI Performance | 1.33 TFLOPS | 1.26 TFLOPS | |||||
GPU | 256-core NVIDIA Pascal™ GPU | ||||||
CPU | Dual-core Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor | ||||||
Memory | 4 GB 128-bit LPDDR4 51.2GB/s | 8 GB 128-bit LPDDR4 59.7GB/s | 8 GB 128-bit LPDDR4 (ECC Support) 51.2GB/s | ||||
Storage | 16 GB eMMC 5.1 | 32 GB eMMC 5.1 | 32 GB eMMC 5.1 | ||||
Power | 7.5W | 15W | 10W | 20W | |||||
PCIe | 1 x1 + 1 x2 (PCIe Gen2) | 1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2 (PCIe Gen2) | |||||
CSI Camera | Up to 5 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) | Up to 6 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) | |||||
Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 4x 1080p60 (H.265) | ||||||
Video Decode | 2x 4K60 (H.265) 7x 1080p60 (H.265) 14x 1080p30 (H.265) | ||||||
Display | 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 1x 2 DSI (1.5Gbps/lane) | 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 2 x4 DSI (1.5Gbps/lane) | |||||
Networking | 10/100/1000 BASE-T Ethernet | 10/100/1000 BASE-T Ethernet, WLAN | 10/100/1000 BASE-T Ethernet | ||||
Mechanical | 69.6 mm x 45 mm 260-pin SO-DIMM connector | 87 mm x 50 mm 400-pin connector | |||||
Smart Cities
Traffic management, parking management, transportation hub operation, public safety, and more
Healthcare
Patient monitoring, social distancing, mask detection, contact tracing, and more
Agriculture
Autonomous planting and harvesting, precision farming, yield management, and more
Construction
Mapping/planning, autonomous operation, preventive maintenance, work safety, and more
Industrial
Optical Inspection for quality control, predictive maintenance, robotic arms, and more
Retail
Asset protection, automated checkout, intelligent store analytics, digital signage, and more
Energy & Mining
Optical inspection, autonomous operation, preventive maintenance, safety, and more
Robotics & Logistics
Robots for warehouse & factory, first/last mile delivery, collaboration, service, and more
Founded in 2009, Plink-AI technology focuses on GPU solutions. It is the general agent in North China of Leadtek technology, a world-famous brand. It has been invited to become a NVIDIA partner with a full stack of NVIDIA products solutions.
Plink-AI technology takes the game graphics card, professional graphics card, GPU server, embedded AI integrated machine scheme as the main product line, serves the data center, cloud service, independent machine, medical instrument, intelligent agriculture, intelligent logistics, intelligent city, security, vehicle road coordination, industrial automation, education and scientific research and other industries, and has accumulated a large number of implementable programs, while in-depth learning DLI training On the basis of that, we will export AI professionals for the society.
Plink-AI technology adheres to the tenet of serving customers, strives for survival with quality, and provides GPU one-stop solution for customers.
Plink-AI technology takes the game graphics card, professional graphics card, GPU server, embedded AI integrated machine scheme as the main product line, serves the data center, cloud service, independent machine, medical instrument, intelligent agriculture, intelligent logistics, intelligent city, security, vehicle road coordination, industrial automation, education and scientific research and other industries, and has accumulated a large number of implementable programs, while in-depth learning DLI training On the basis of that, we will export AI professionals for the society.
Plink-AI technology adheres to the tenet of serving customers, strives for survival with quality, and provides GPU one-stop solution for customers.
How can I get the price?
We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are very anxious to get the price, please email us (dlj@plink-ai.com, lyl@plink-ai.com, zjy@plink-ai.com) or contact us by other means so that we can help you provide pricing.
Can I place an order for samples?
Yes. Please feel free to contact us.
What is your delivery time?
It depends on the number of orders and the season in which you placed your order. Usually we can ship within 7-15 days, small quantity shipment, about 30 days.
What is your payment term?
IT/T, Western Union, MoneyGram and Paypal. This is negotiable.
What is the mode of transportation?
It can be transported by sea, air or express (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.
Can the product be customized?
Our company has a professional R&D team and factory, which can meet the needs of customers to customize products, please email us for specific matters.
