Product Overview
Description
Product Overview
Micro VSR Model: MCR-VSR1
This unit is a MICRO VSR Voltage Sensitive Relay Module designed with an LED indicator and an aluminum heat sink for motorcycles.
FEATURES AT A GLANCE
The VSR is connected between the positives of the main and auxiliary batteries and works according to the voltages When the engine is started and either battery reaches 13.3 V, the VSR engages, allowing two battery banks (start and auxiliary) to be charged simultaneously. When combined voltage of batteries drops below 12.8 V (eg. the engine is stopped), the VSR disengages, separating the batteries. This system eliminates the possibility of draining the wrong battery and protects sensitive electronic equipment powered from the auxiliary battery from harmful engine start up spikes.

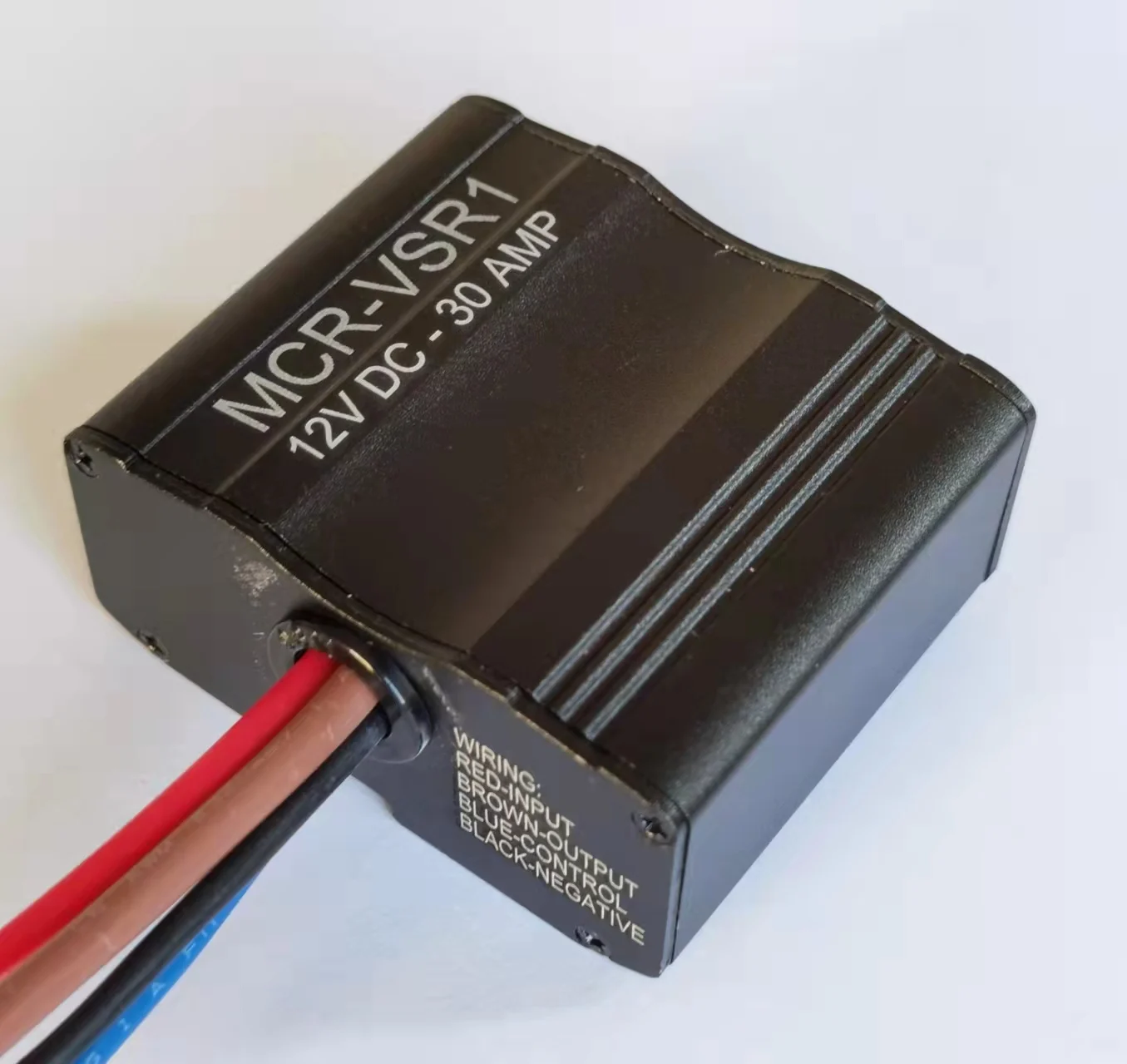

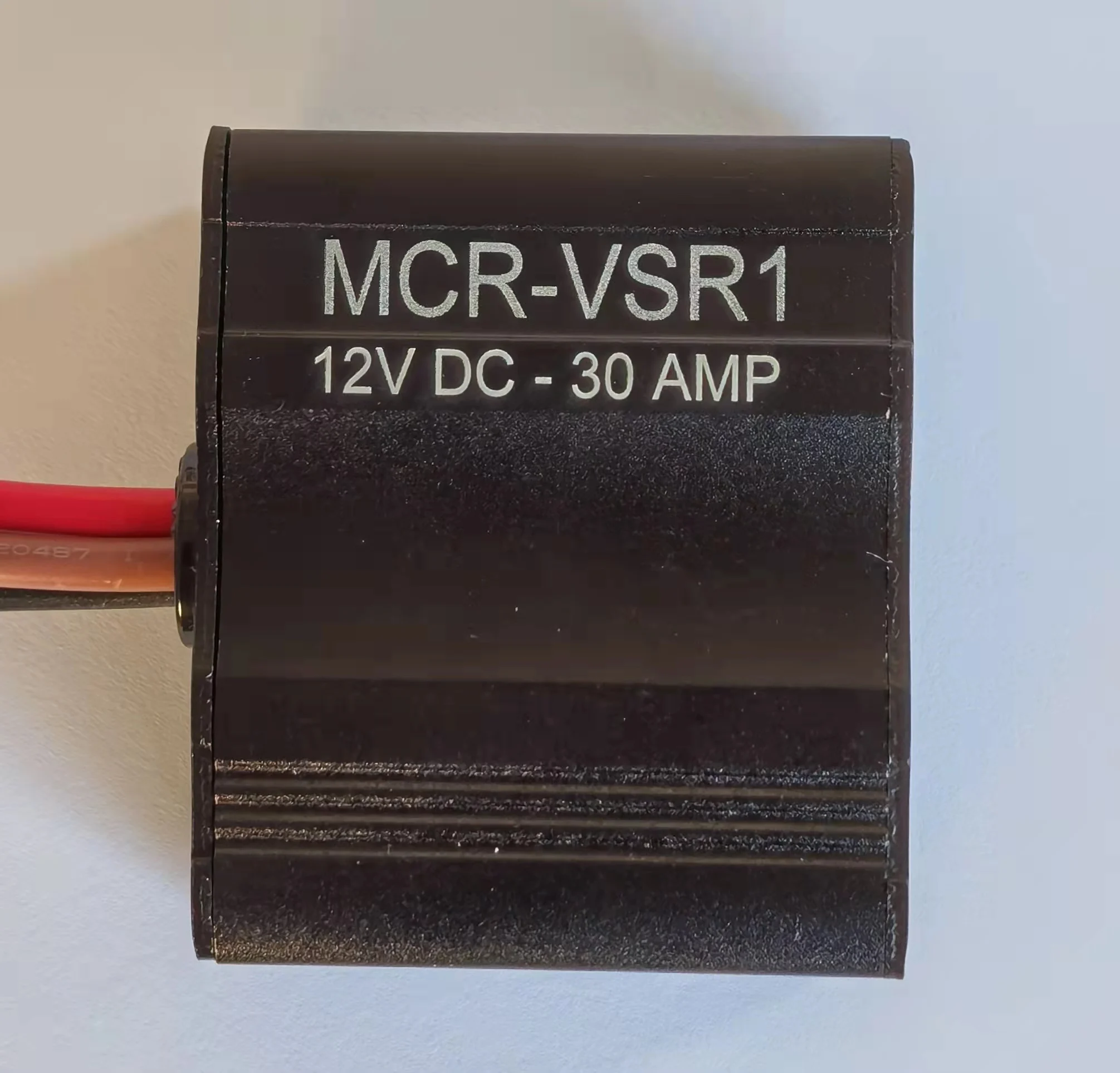

Right elevation
Left elevation

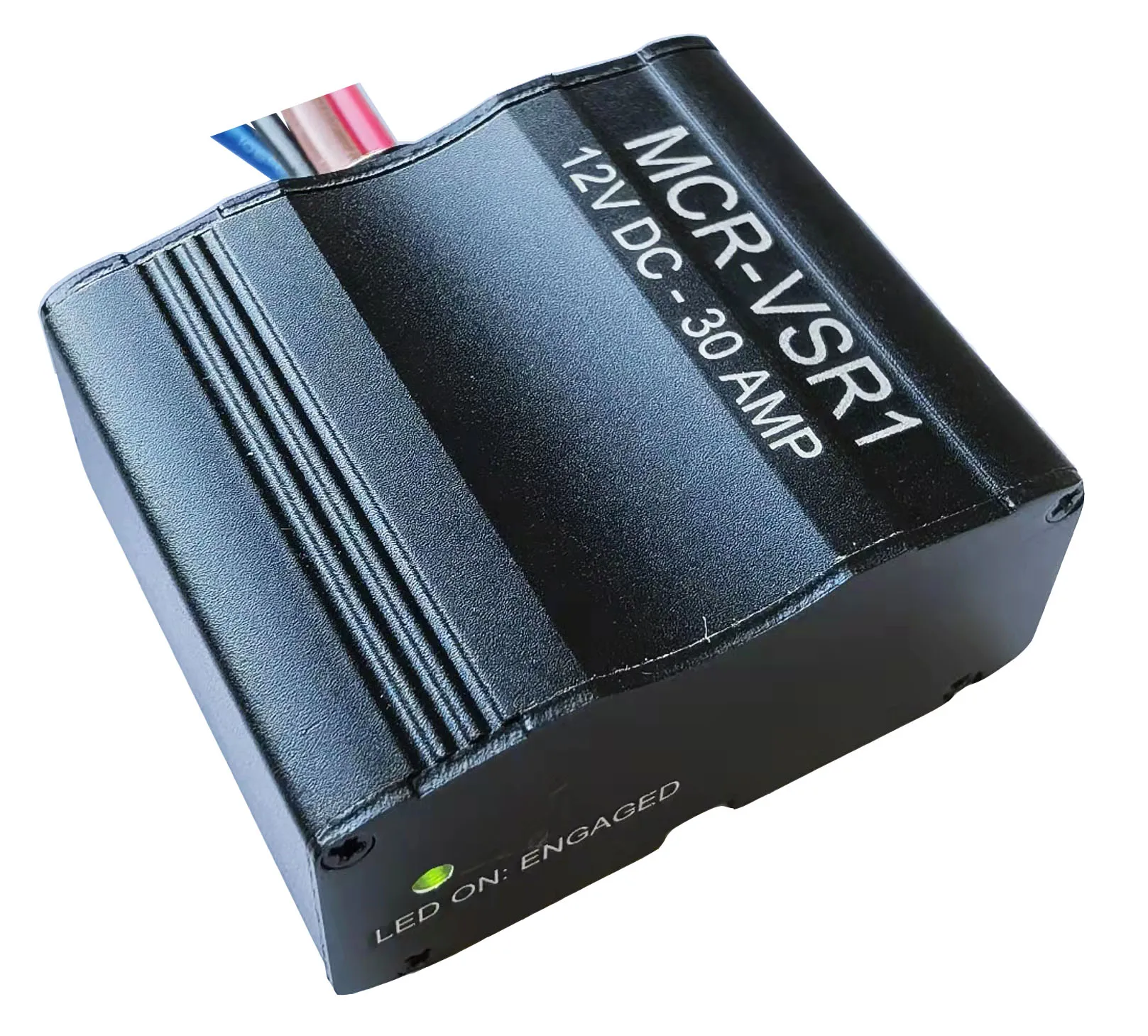

Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Rating | 12V dc 30A continuous | ||
2 | Engage | 13 3Vdc 5s delay | ||
3 | Disengage | 12.8Vdc, 5s delay | ||
4 | High voltage protection | 15.5Vdc | ||
5 | Operating current | 120mA@14.0V | ||
6 | Standby current: | 10mA max | ||
7 | Power cables | 14AWG | ||
8 | Ingress protection | IP67 |
