OEM/ODM Factory Sale PILOT SPM93 Din rail AC measuring kwh volt LCD display Monitor system Three phase channel energy meter
- Category: >>>
- Supplier: Zhuhai Pilot Technology Co. Ltd.
Share on (1600424066426):
Product Overview
Description

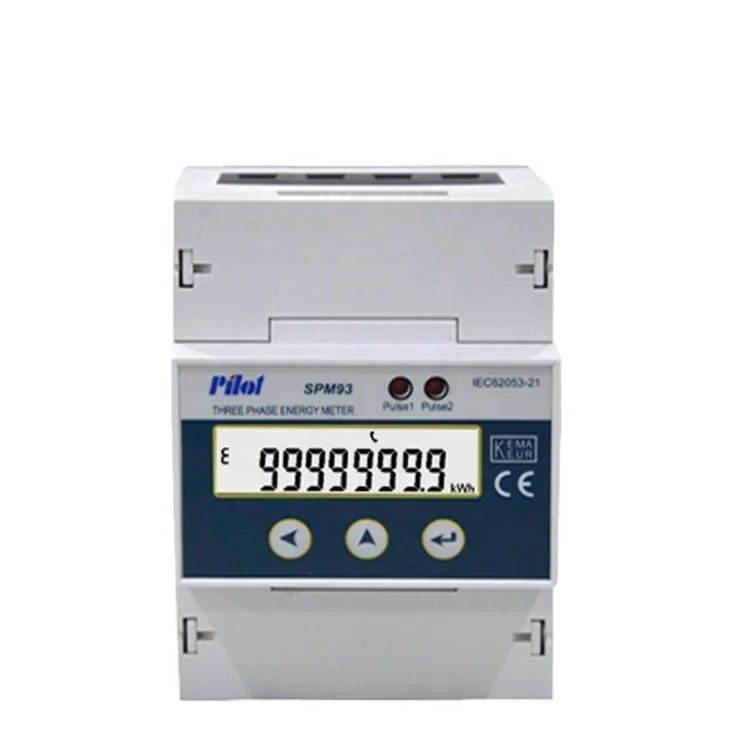

PILOT SPM93 7+1 digits LCD display Three phase energy meter
Product Description

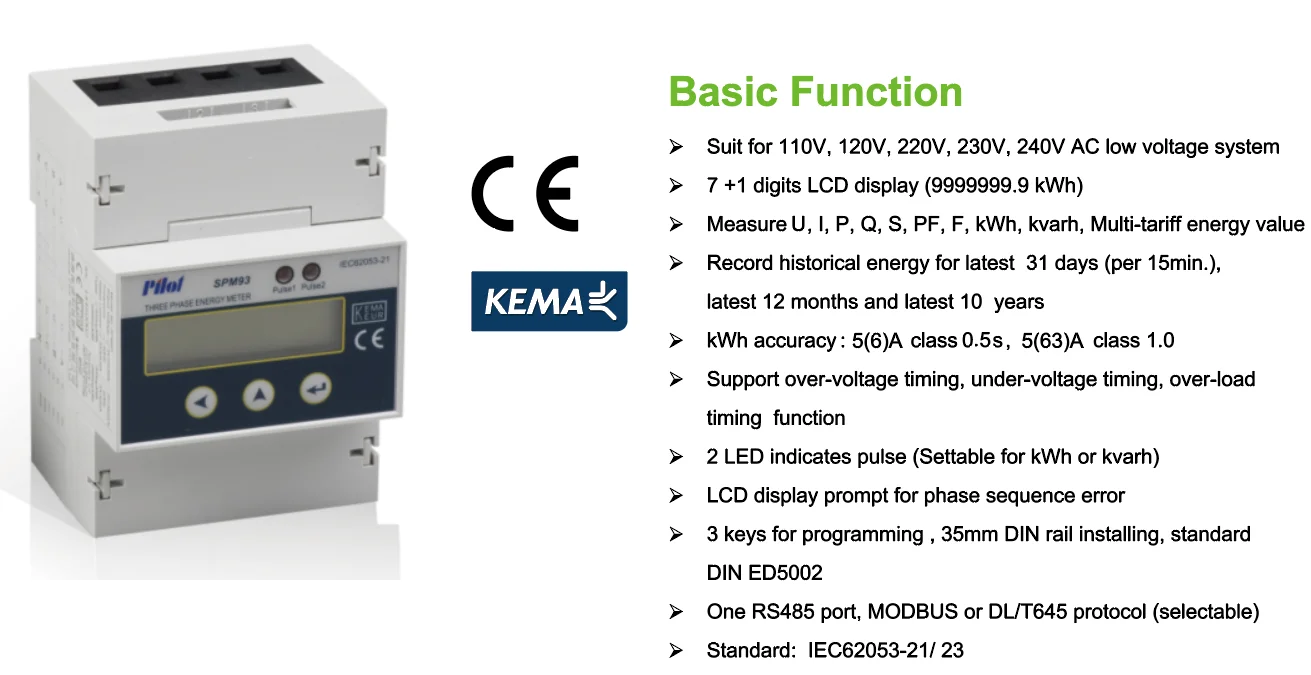

Basic Function
Suit for 110V, 120V, 220V, 230V, 240V AC low voltage system
7 +1 digits LCD display (9999999.9 kWh)

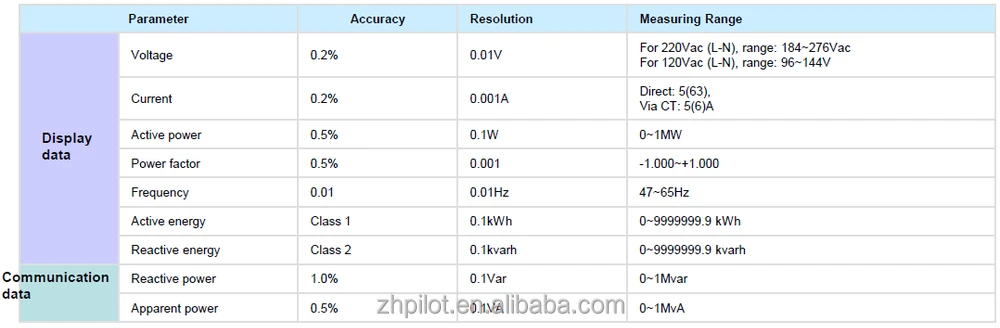

Measure and display V, I, P, PF, F, kWh, kvarh, Multi-tariff energy value
Q,S can be read via RS485
Record historical energy for latest 31days , latest 12 months and latest 10 years
kWh accuracy class 1.0
2 LED indicates pulse ((Settable for kWh or kvarh))
LCD display prompt for phase sequence error
3 keys for programming , 35mm DIN rail installing, standard DIN ED5002
High temperature resistant materials
One RS485 port, MODBUS protocol
Standard: IEC62053-21/ 23

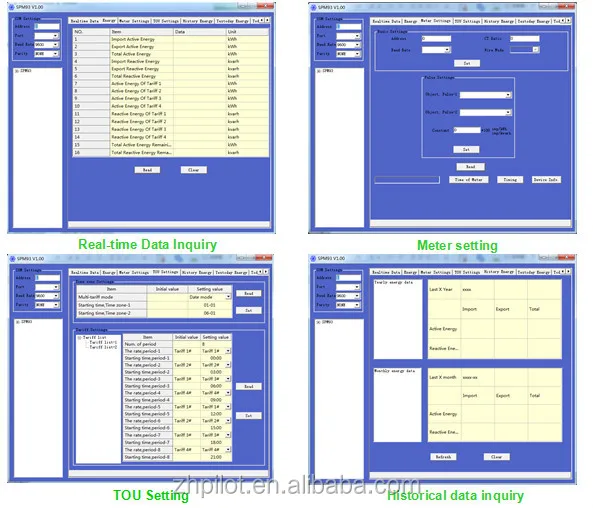

Testing software
Dimension

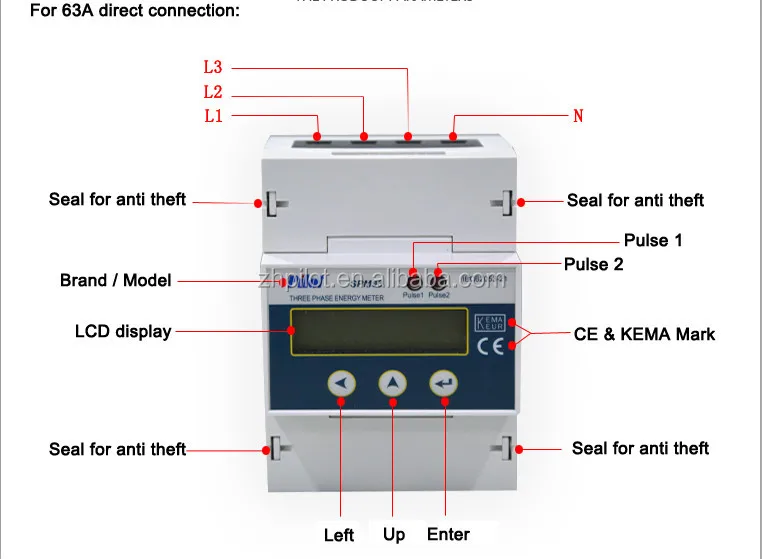

Connection introduction
Similar Products
PMAC903 DIN Rail three phase energy meter (100A direct input )
SPM91 DIN Rail Single Phase Energy Meter
PMAC201HW 12 Channel Energy Meter
