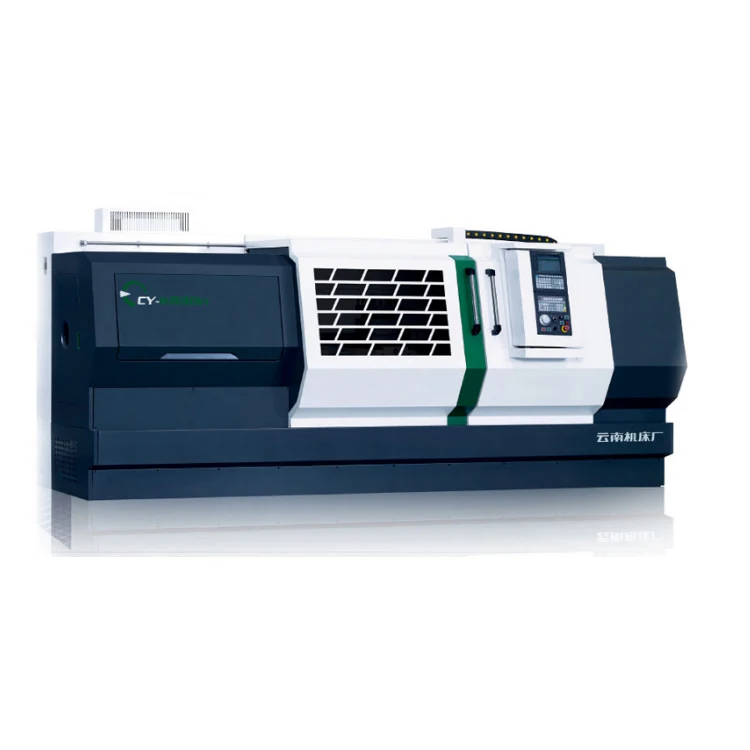

CY K510n High end Technology Manufacturing Vertical Cnc Lathe Machining Center Cnc Lathe Processing
- Category: >>>
- Supplier: Fancy machinery Co. Ltd.
Share on (1600424096638):
Product Overview
Description
Products Description
Project | Unit | Specification | Remark | ||
Maximum Turning Diameter On The Bed | mm | φ510 | |||
Top Distance | mm | 750/1000/1500/2000 | |||
Maximum Cutting Diameter | mm | φ500，φ460* | |||
Maximum Turning Diameter On The Skateboard | mm | φ290 | |||
Z-direction Rail Span | mm | 390 | |||
X-direction Rail Span | mm | 210 | |||
Spindle End Type And Code | A2-8 | ||||
Spindle Front Hole Taper | φ90，1:20 | ||||
Spindle Hole Diameter | mm | φ82 | |||
Maximum Passing Bar Diameter | mm | ф70（Ordinary chuck） | |||
Spindle Speed Range | r/min | 35-2500 | |||
Spindle Maximum Output Torque | Nm | 780 | |||
Spindle Speed Series | Automatic 3-speed, stepless in the file | ||||
Main Motor | 30 Minute Rating | kW | 11 | ||
Output Power | Continuous Rating | kW | 7.5 | ||
Standard Chuck | Chuck Diameter | mm | ф250 | ||
X-axis Rapid Traverse Speed | m/min | 4（radius） | |||
Z-axis Rapid Traverse Speed | m/min | 8 | |||
X-axis Travel | mm | 290 | |||
Z-axis Travel | mm | 730 | 750mmSpecification | ||
980 | 1000mmSpecification | ||||
1480 | 1500mmSpecification | ||||
1980 | 2000mmSpecification | ||||
Tailstock Sleeve Diameter | mm | φ75 | |||
Tailstock Sleeve Stroke | mm | 150 | |||
Tailstock Spindle Taper Taper | Mohs | M5 | |||
Machine Features
1. The specially designed lndependent Spindle structure ensures the maximum heat dissipation and bringsdown the heat distortion.
2. Unique design brings high precision, high rigidity and low noise performance in turning.
3. Automatic 3-step gear box with inverter is standard spindle drive,while servo motor drive as optional.
4. The optional Teach-ln function of CY-K series makes the quick and simple setup, programming and easy tooperate.
5. Electronic handwheels with Teach-In function is optional.
1. The specially designed lndependent Spindle structure ensures the maximum heat dissipation and bringsdown the heat distortion.
2. Unique design brings high precision, high rigidity and low noise performance in turning.
3. Automatic 3-step gear box with inverter is standard spindle drive,while servo motor drive as optional.
4. The optional Teach-ln function of CY-K series makes the quick and simple setup, programming and easy tooperate.
5. Electronic handwheels with Teach-In function is optional.
A.The specially designed IndependentSpindle structure ensures themaximum heat dissipation and bringsdown the heat distortion. whilemanual chuck or Hydraulic chuck asoptional.
B.Automatic 3-step gear box withinverter is standard spindle drivelmprove the output torque of spindle.The Max. output torque of spindle is2000Nm.
C.Manual / Hydraulic tailstock.
D.4 / 6-position electronic turret
Single piece legs and bed ways enhance the cutting rigidity.
Servo motors are directly driven with ball screw. comprehensive lubrication,heavy load, high accuracy.
