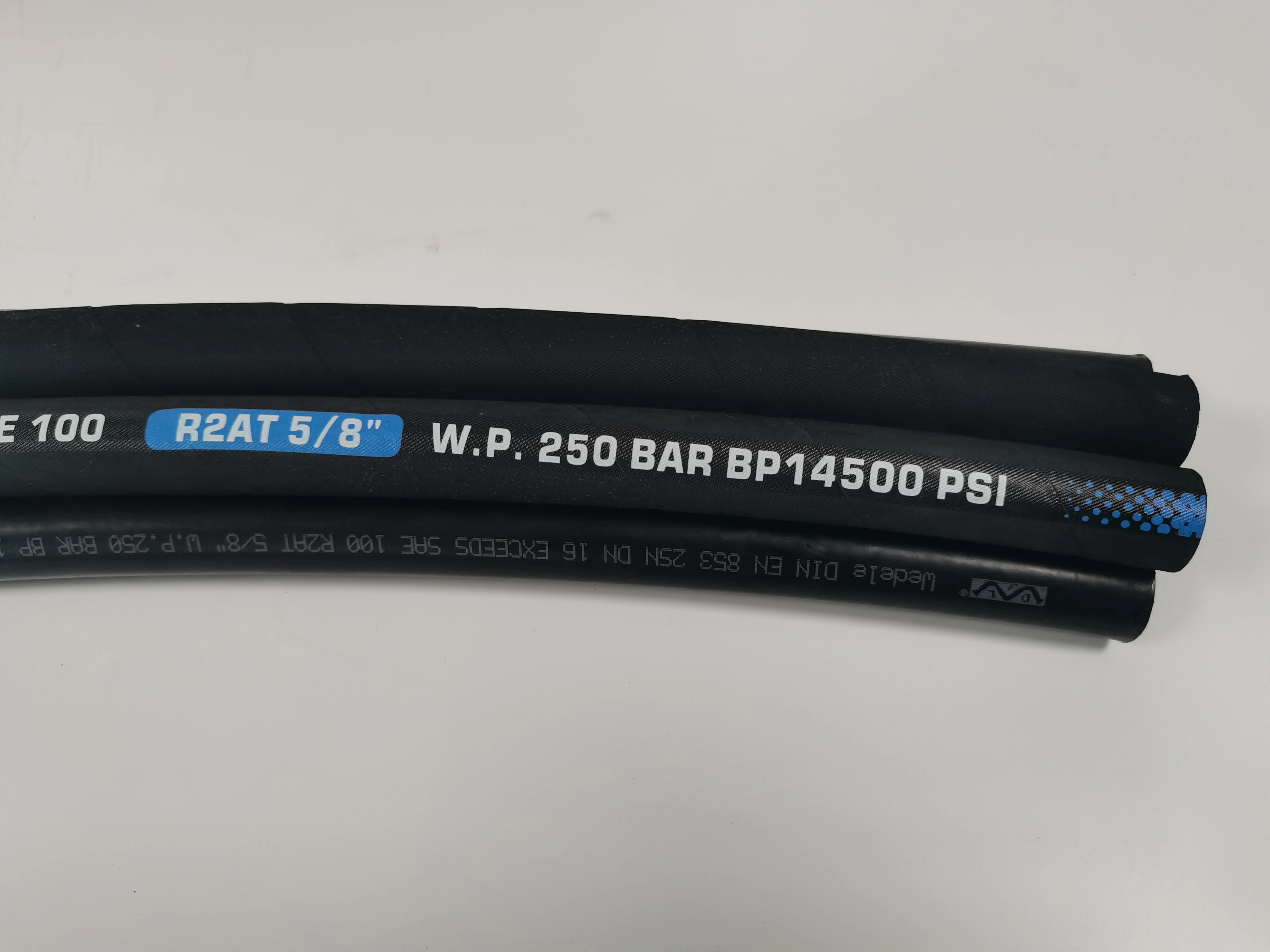

SEL SEMPERIT SEMPERFLEX PARKER RUBBER FLEXIBLE HIGH PRESSURE Mangueras Hidraulicas SAE100 R1 AT R2 AT R5 HYDRAULIC HOSE
- Category: Rubber Hoses >>>
- Supplier: Hennan Youcan Hydraulics Technology Co. Ltd.
Share on (1600424124344):
Product Overview
Description
Product Description
DIN EN 857 2SC DATE SHEET | ||||||||||||||||
INCH | HOSE I.D. | R.D. (mm) | O.D.(mm) | Min burst pressure | Min. Bend Radius | Hose weight | ||||||||||
Min. mm | Max.mm | Min | Max | Max | Mpa | mm | g/m | |||||||||
1/4 | 6.4 | 6.9 | 10.6 | 11.7 | 14.2 | 160 | 75 | 0.28 | ||||||||
5/16 | 7.9 | 8.5 | 12.1 | 13.3 | 16.0 | 140 | 85 | 0.31 | ||||||||
3/8 | 9.5 | 10.1 | 14.4 | 15.6 | 18.3 | 132 | 90 | 0.46 | ||||||||
1/2 | 12.7 | 13.5 | 17.5 | 19.1 | 21.5 | 110 | 130 | 0.49 | ||||||||
5/8 | 15.8 | 16.7 | 20.5 | 22.3 | 24.7 | 100 | 170 | 0.68 | ||||||||
3/4 | 18.8 | 19.8 | 24.6 | 26.4 | 28.6 | 86 | 200 | 0.78 | ||||||||
1 | 25.4 | 26.4 | 32.5 | 34.3 | 36.6 | 66 | 250 | 0.96 | ||||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Each step produce from our factory,strict quality control,and according to the SAE and DIN STANDARD.
Inner tube extruction area
→
High speed machines braided area
→
Cover rubber extruction area
→
Wrapped area
→
Vulcanization Area
→
Unwrapped area
→
Remove the inner core
→
Packing with packing strap
→
finished product
Ready to ship
Certifications
Exhibition
