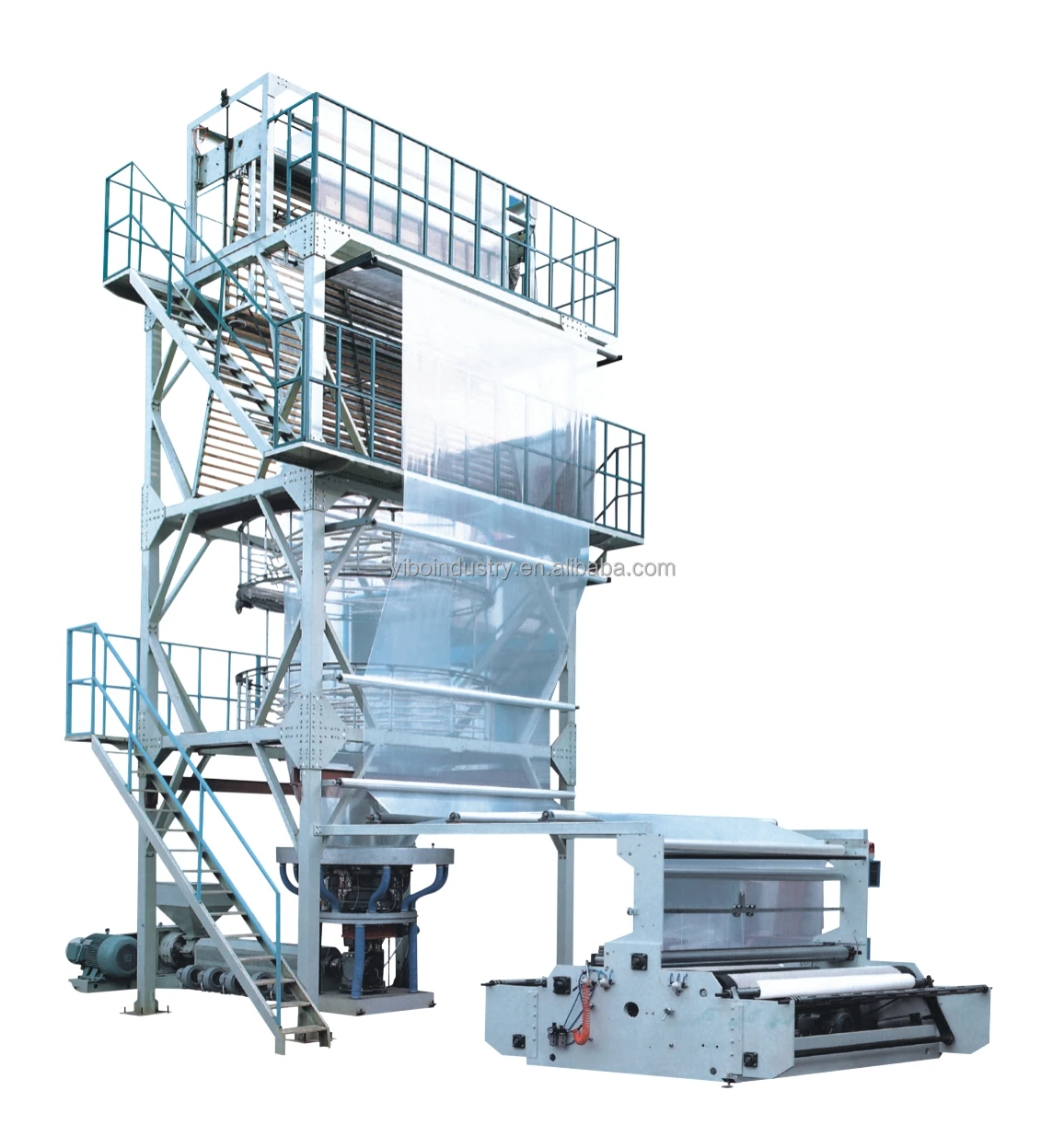

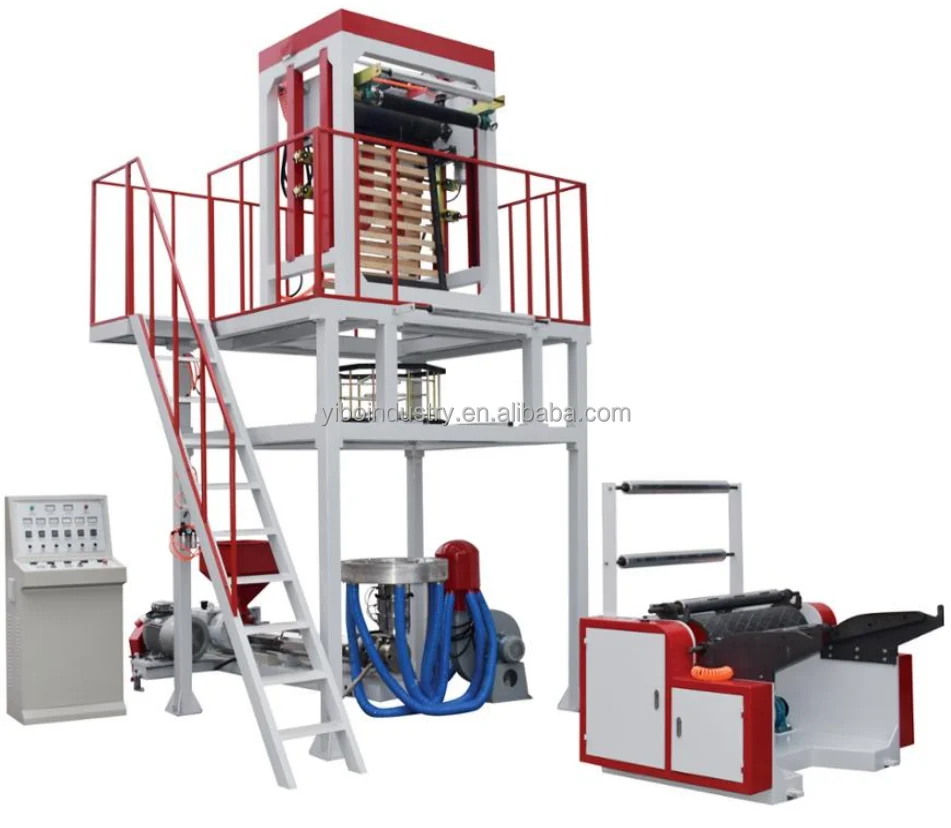

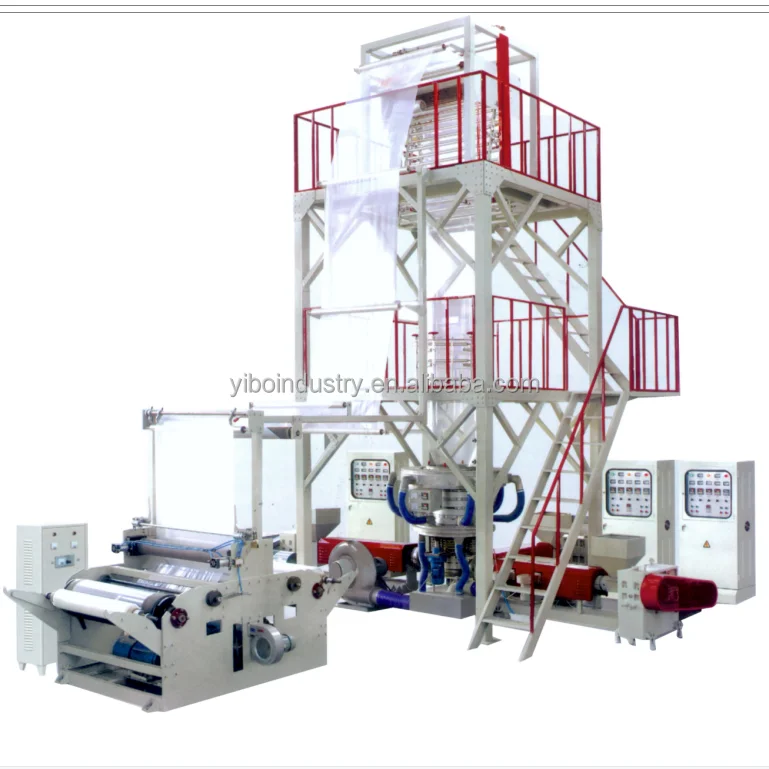

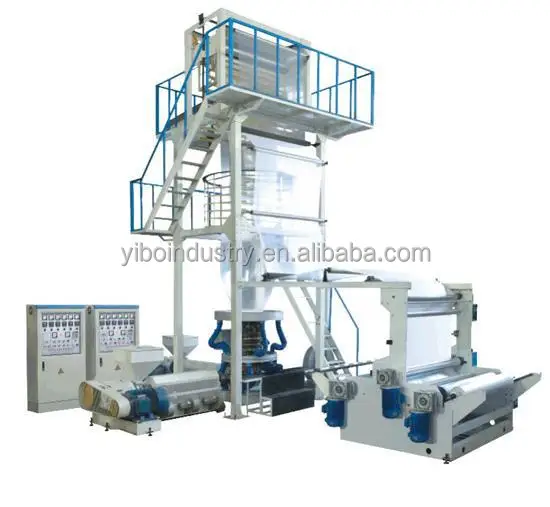

Poly pe garbage bags t shirt bags film machine Extruder extrusion blown film line
- Category: >>>
- Supplier: Wenzhou Yibo Trade Co. Ltd.
Share on (1600424130784):
Product Overview
Description
Product Description
Characteristic:
1. Main motor and take-up motor are controlled by inverter
2. By pneumatic cylinder system to adjust the gap of take-up roller
3. Material of screw and barrel: 38CrMoAlA Polished with nitrogen Treatment
Hardness of heat treatment: screw HV≥740, barrel HV≥900
Depth of hardening:0.6-0.7mm
Brittleness grade: ≤2 grade
4. Gear box: hard tooth surface heat quenching and tempering/auto. Oil lubricated
5. Die material: steel 45#/surface treatment of flow channel: hard chrome- plating
6. Digital display temperature controller
1. Main motor and take-up motor are controlled by inverter
2. By pneumatic cylinder system to adjust the gap of take-up roller
3. Material of screw and barrel: 38CrMoAlA Polished with nitrogen Treatment
Hardness of heat treatment: screw HV≥740, barrel HV≥900
Depth of hardening:0.6-0.7mm
Brittleness grade: ≤2 grade
4. Gear box: hard tooth surface heat quenching and tempering/auto. Oil lubricated
5. Die material: steel 45#/surface treatment of flow channel: hard chrome- plating
6. Digital display temperature controller
Spare parts | Model and specifications | Quantity | Manufacturer |
Main motor | 18.5kw | 2 | Nanjing, China |
Main motor | 22kw | 1 | Nanjing, China |
Main Inverter | 18.5kw | 2 | Pioneer, shanghai |
Main Inverter | 22kw | 2 | Pioneer, shanghai |
Gearbox | 173 | 2 | Shuguang, hangzhou |
Gearbox | 180 | 1 | Shuguang, hangzhou |
Screw | Φ55mm | 2 | Zhoushan , China |
Screw | Φ60mm | 1 | Zhoushan , China |
Die head | Φ150mm | 1 | Ruian |
Temperature | Ormon | ||
Switch | Siemens | ||
Electric | Schneider |

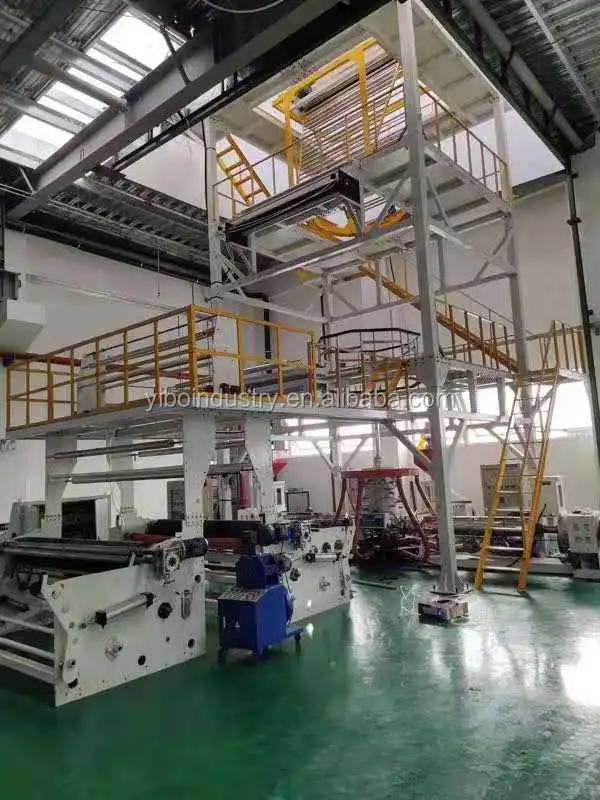

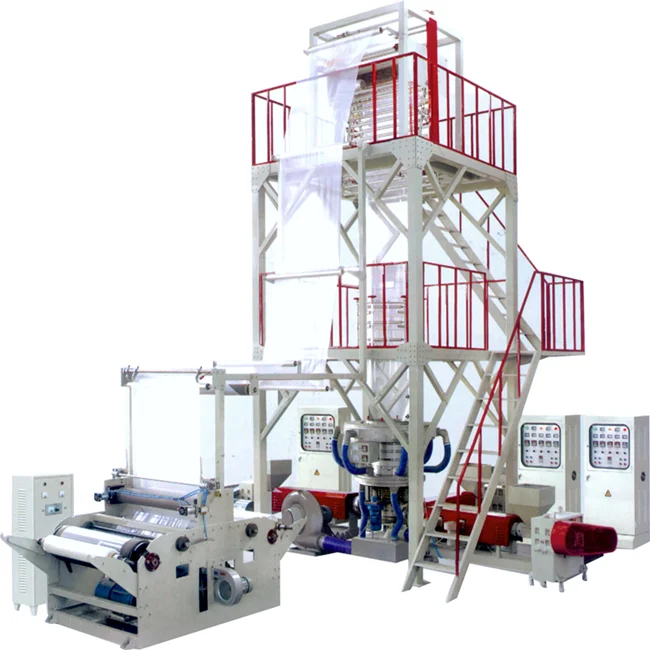

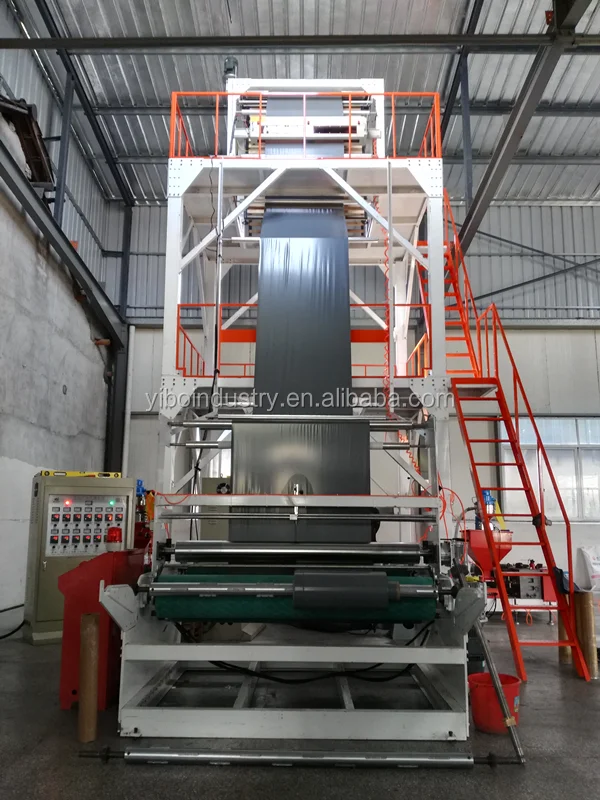

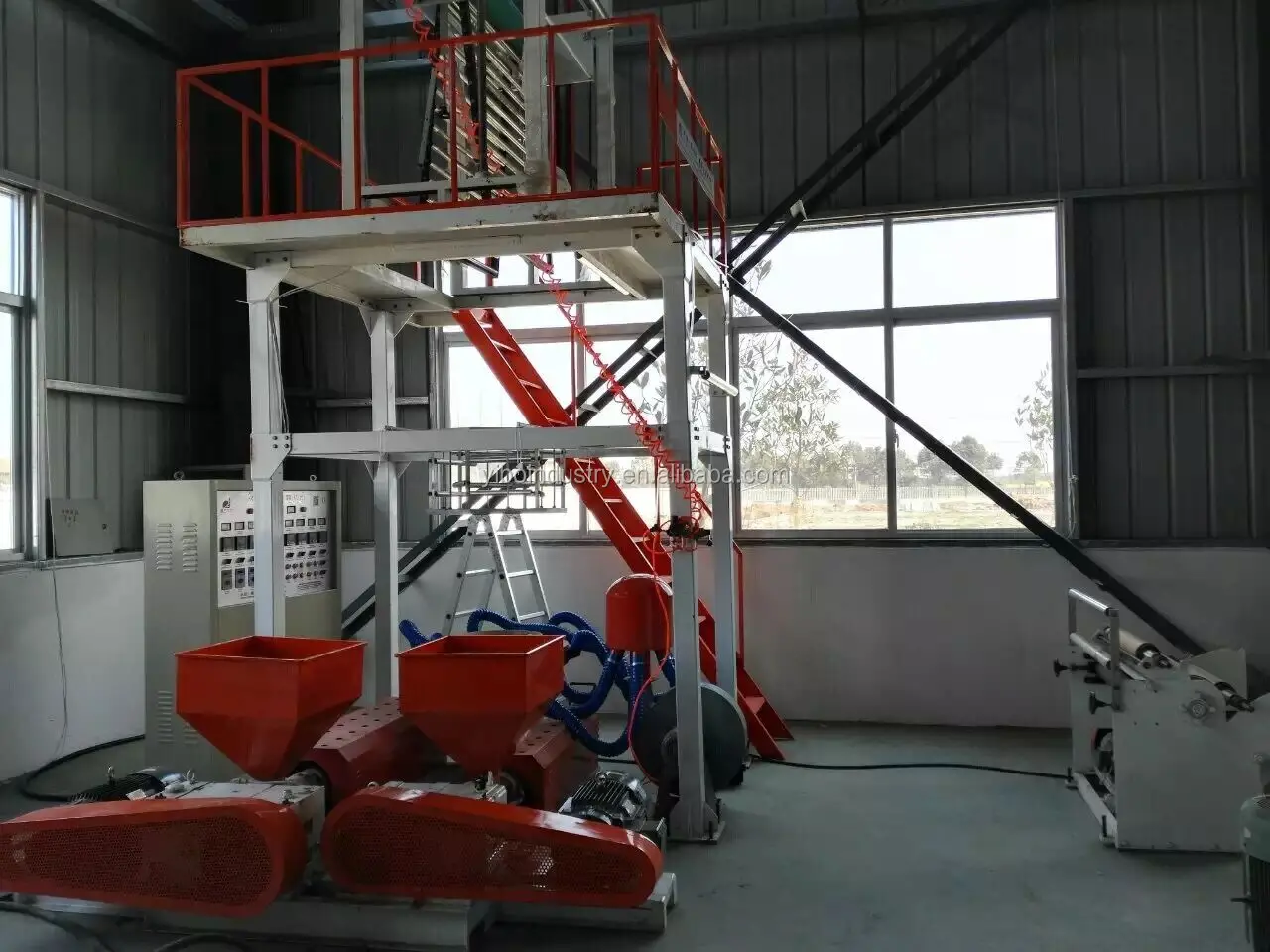

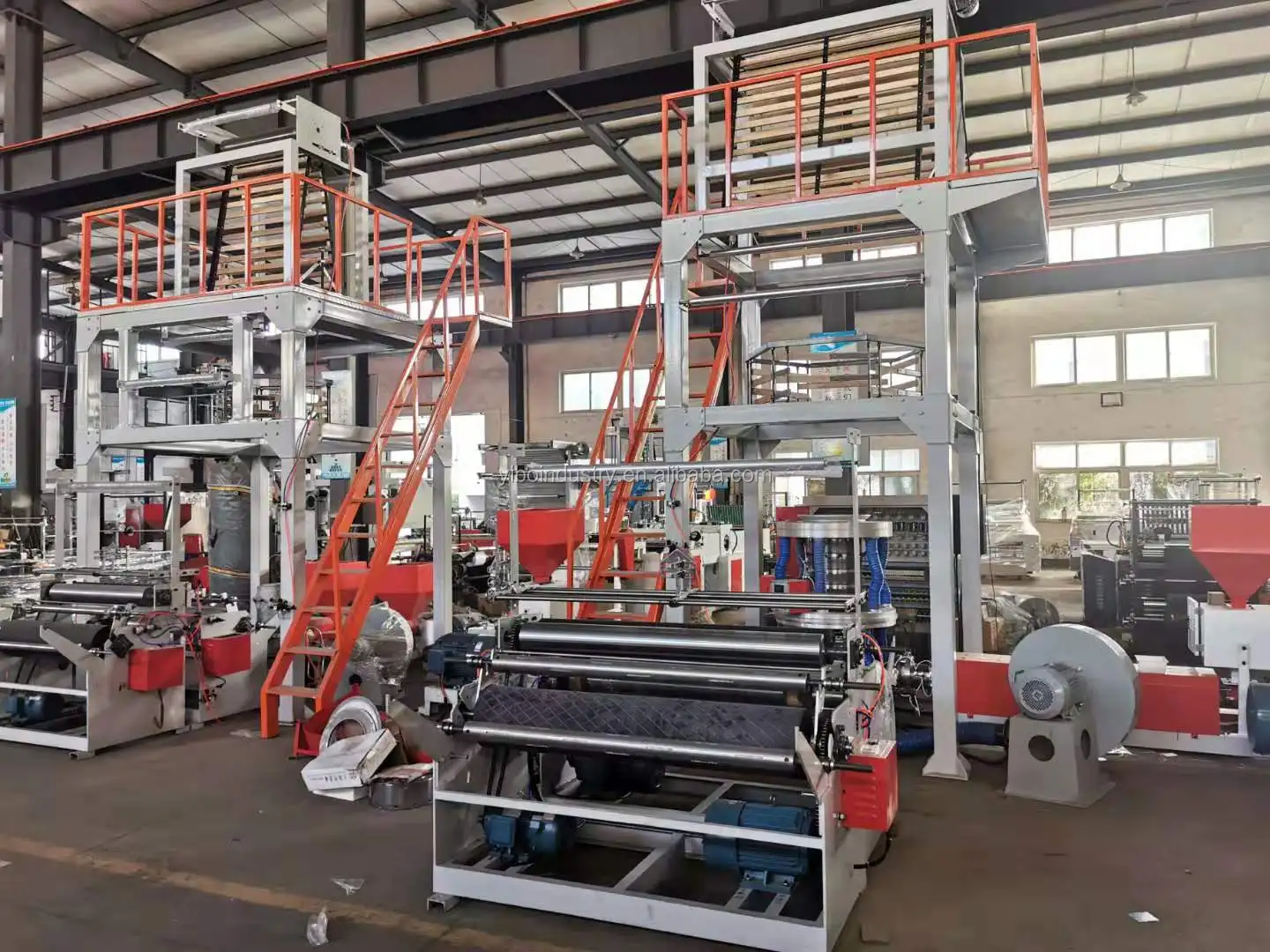

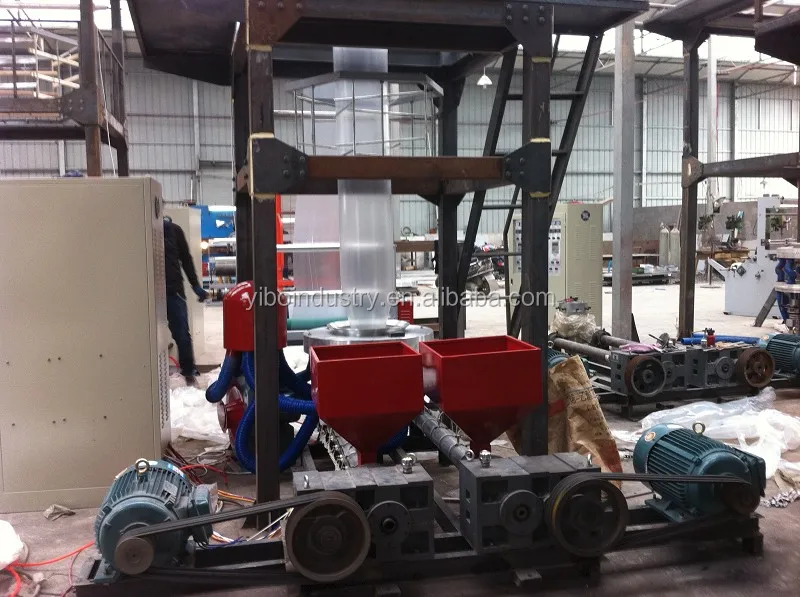

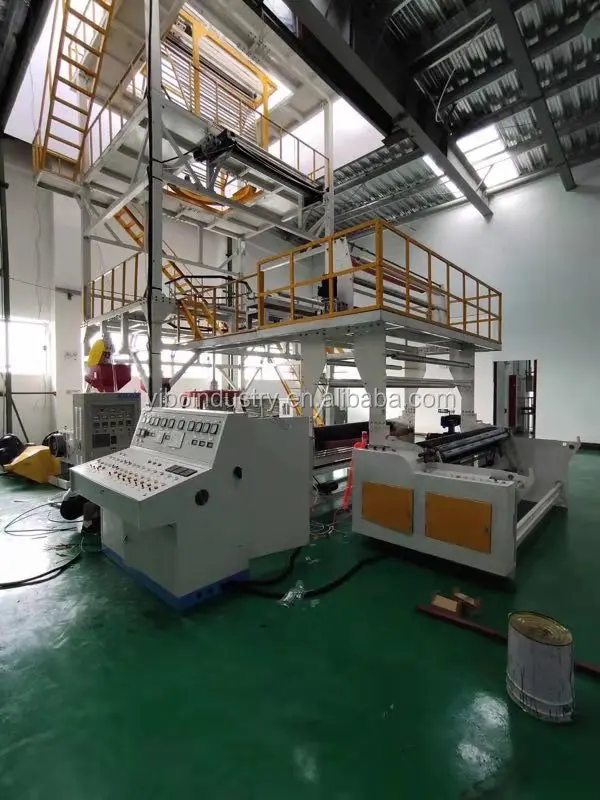

Machine show
