Sunkko 2.8KW Battery Spot Welding Machine for Cylindrical Cell Battery 737G Spot Welder
- Category: Spot Welders >>>
- Supplier: Shanghai Lucosy Technology Co. Ltd.
Share on (1600424137097):
Product Overview
Description
Product Overview

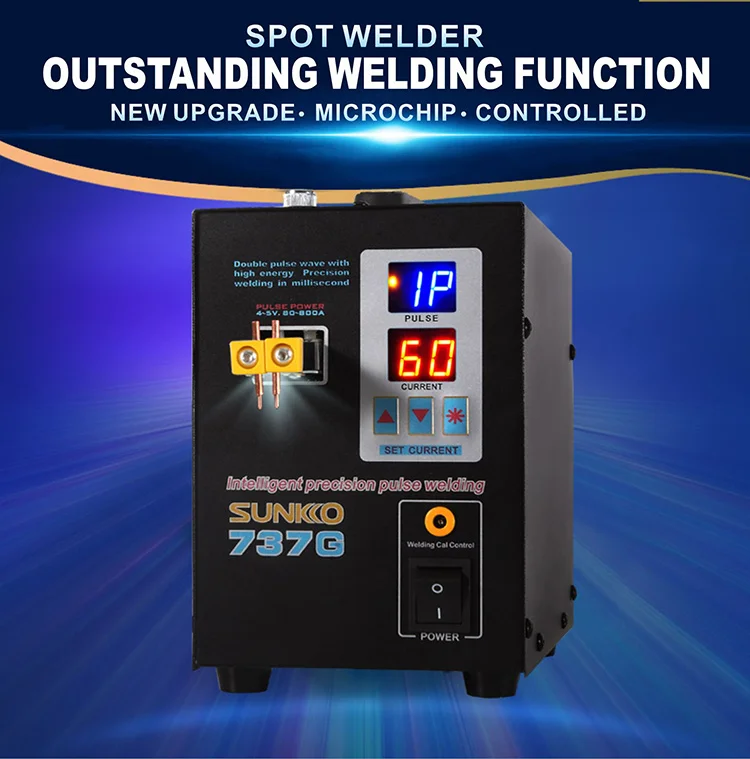

737G Spot Welder 2.8KW Battery Spot Welding Machine for 18650 Battery Pack Spot Welder
-Sunkko 737G+ battery spot welder is specially designed for 18650, 26650, 21700 and 32650 battery packs. It can weld 0.1-0.2mm nickel sheet. It is suitable for the welding of battery packs such as electric tools and small household appliances.
welding parts
** voltage input : AC110V/220V+10V
** primary current : 2A-15A
** Welding current : 50A-800A

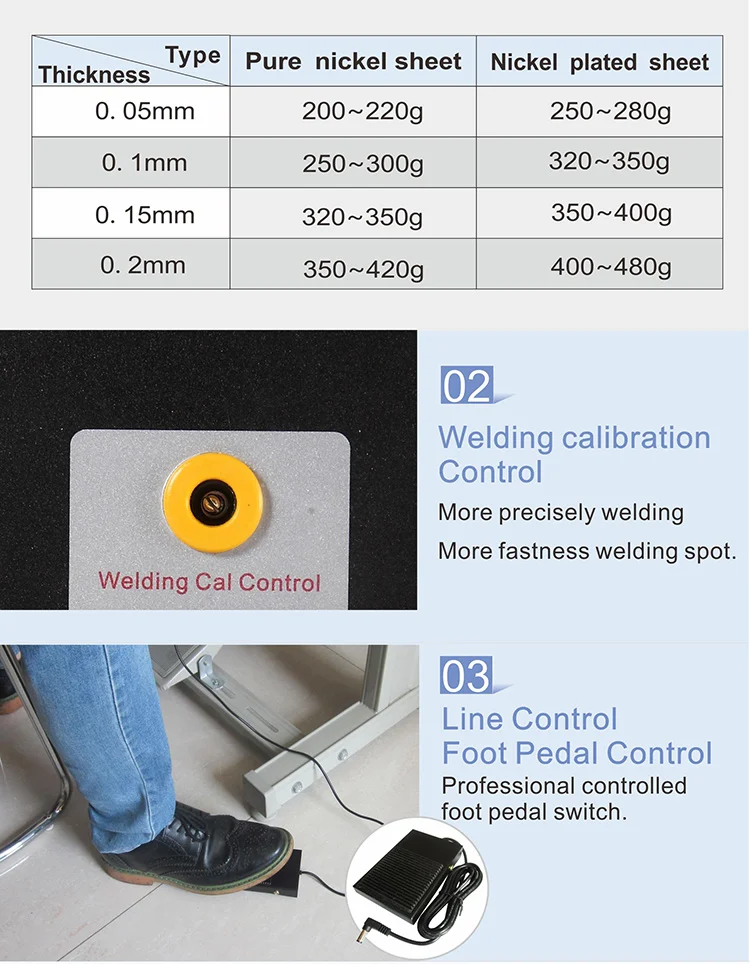

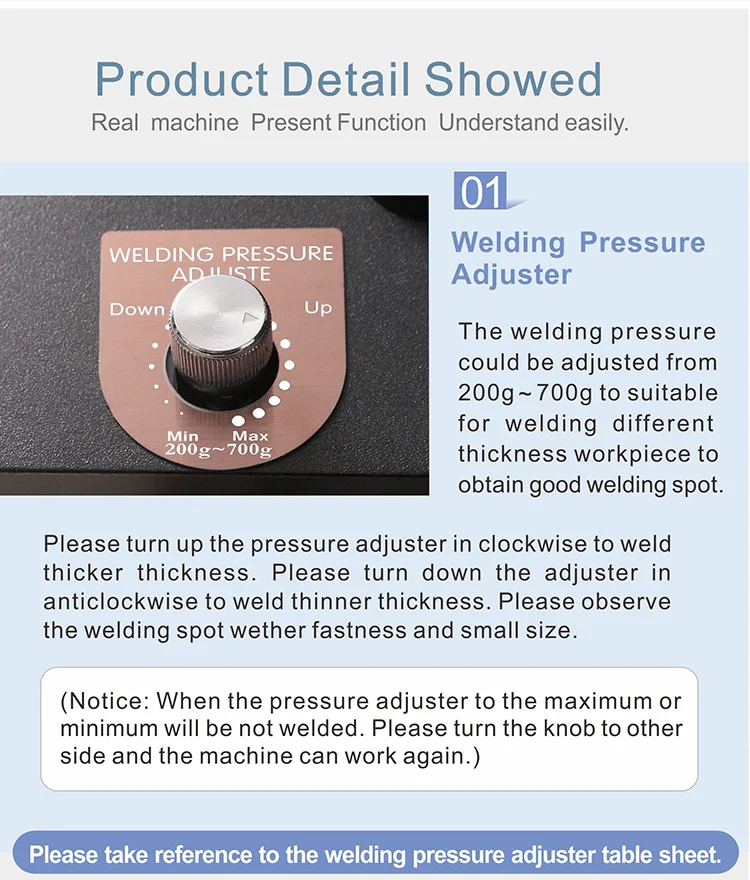

** Welding pressure : 200g-700g
** 1 pulses : 0.05-0.12mm
** 2 pulses: 0.12-0.15mm
** Size : 140*245*200mm
** Net Weight : 4.3kg
** Net Weight : 4.3kg
** Gross Weight: 5.5kg
**Package size:215*370*310mm

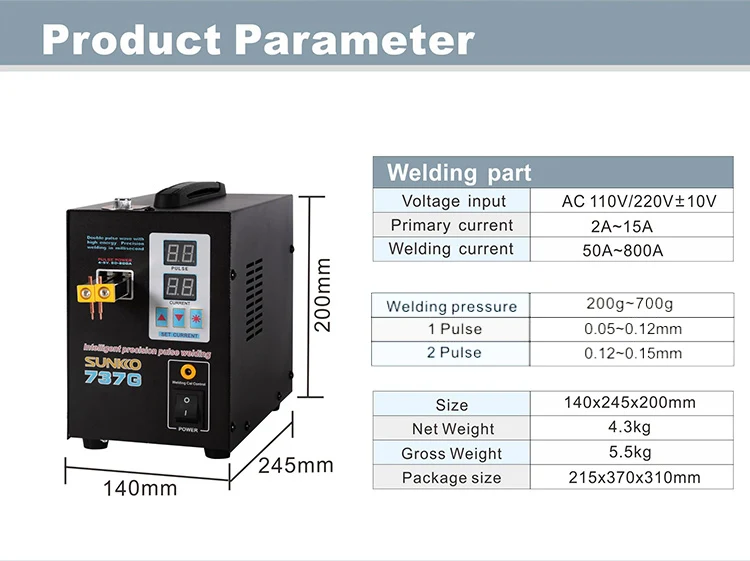

Model | 737G | 1 Pulse | 0.05-0.12mm |
Power | AC110V/220V | 2 Pulse | 0.12-0.15mm |
Primary current | 2-15A | Size | 245 x 200 x 140mm |
Welding current | 50-800A | Net Weight | 4.3kg |
Welding pressure | 200-700g | Gross weight | 5.5kg |
Details Images

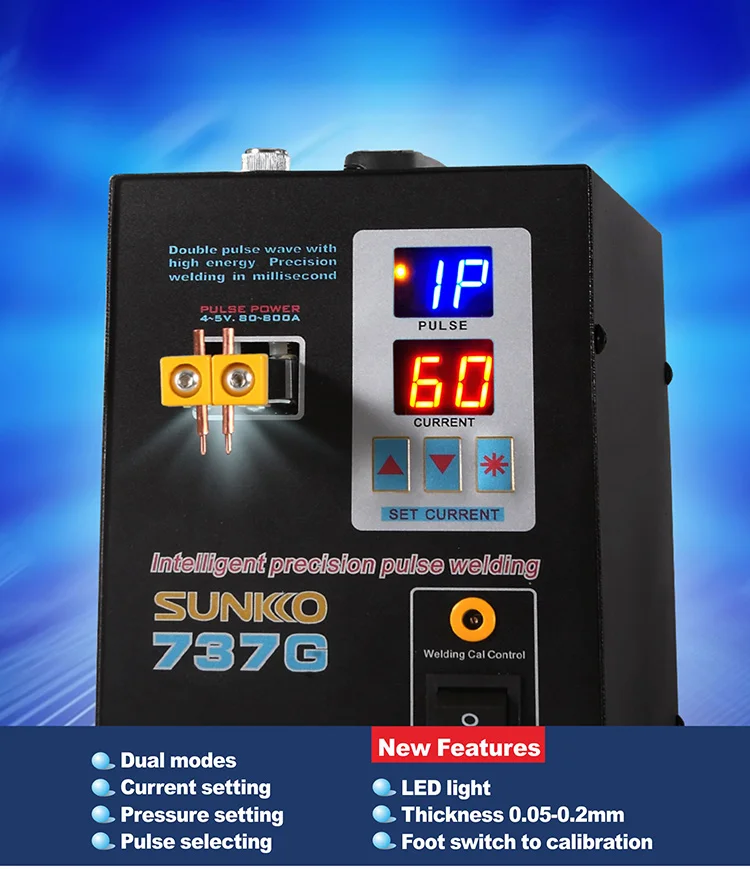

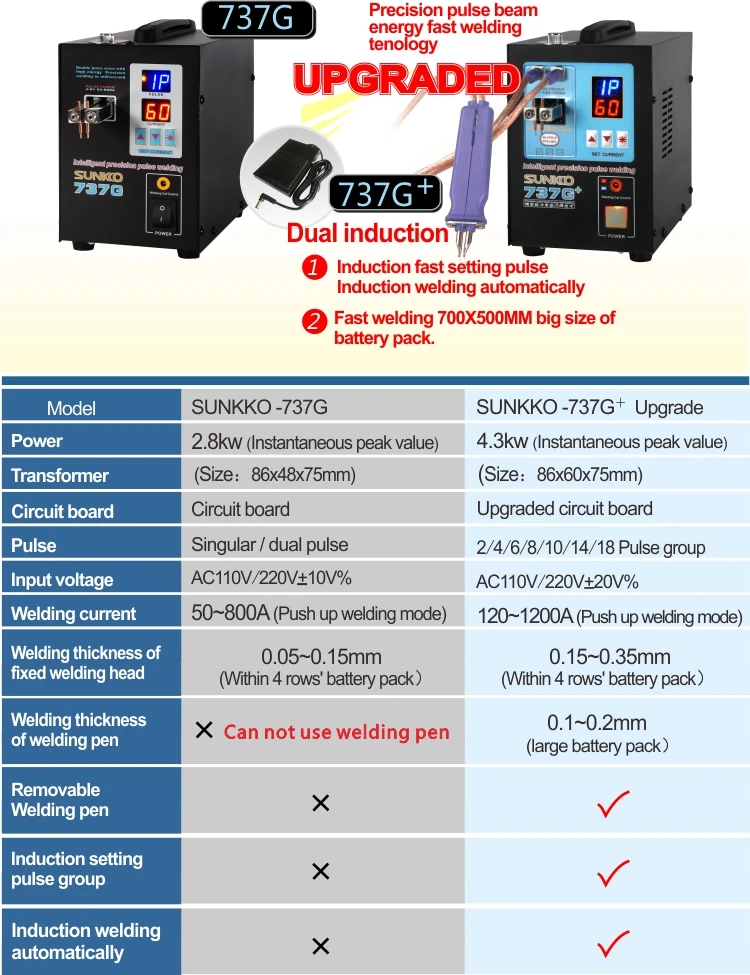

Upgrading
Good Quality Welding Machine

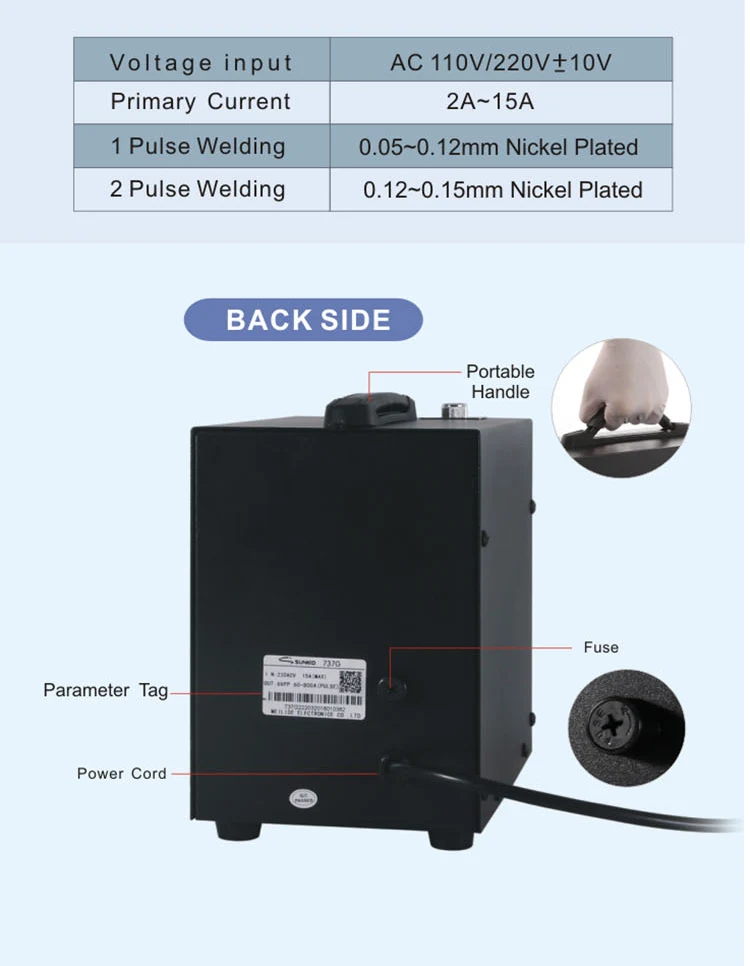

Voltage input | AC 110v/220v+-10v |
Primary Current | 2A-15A |
1Pulse Welding | 0.05-0.12mm Nickel Plated |
2Pulse Welding | 0.12-0.15mm Nickel Plated |

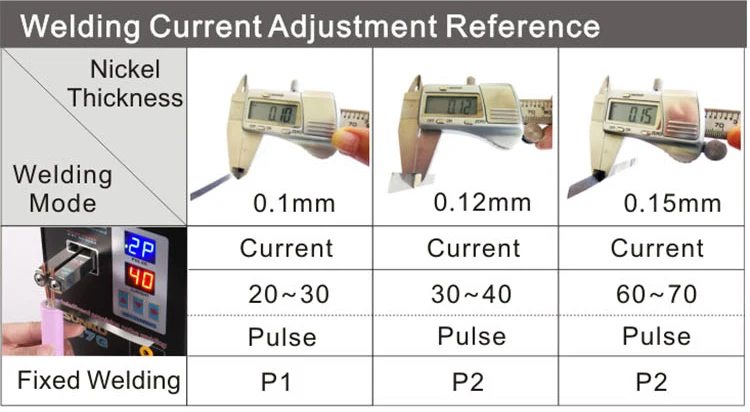

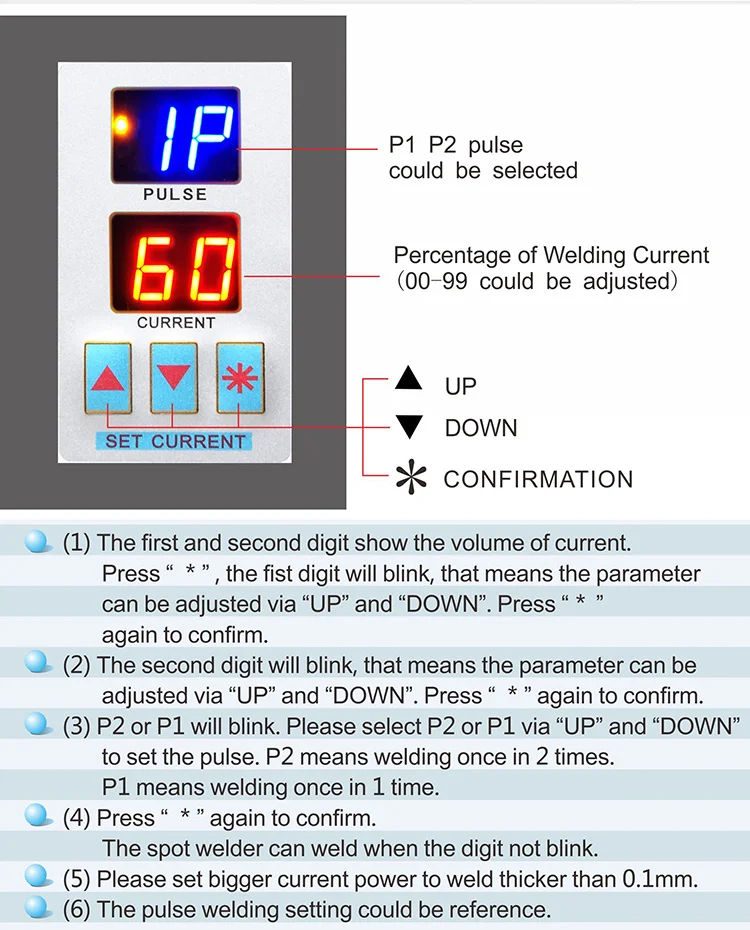

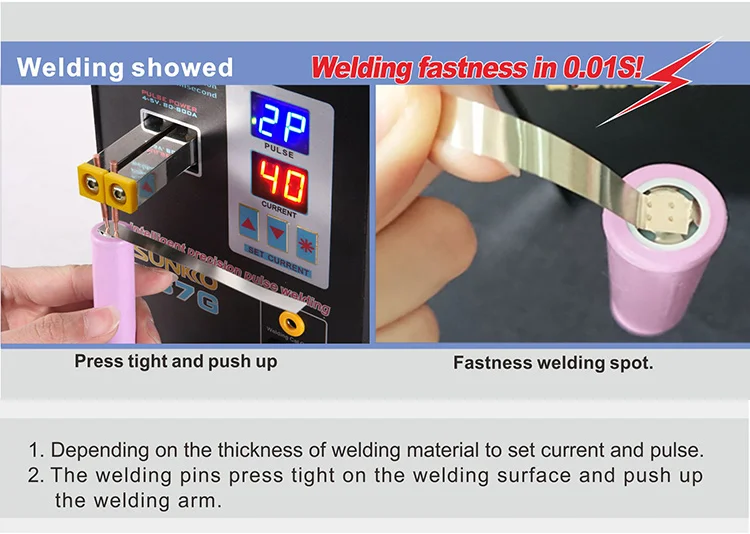

1.Depending on the thickness of welding material to set current and pulse.

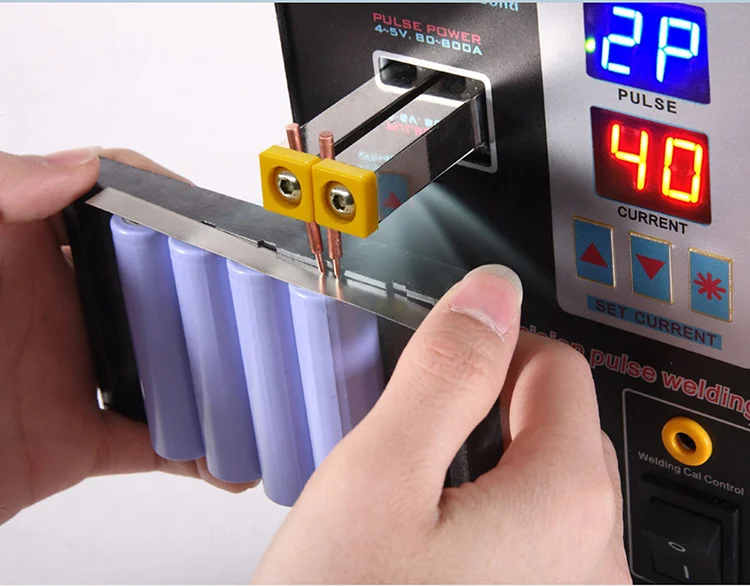

2.The welding pins press tight on the welding surface and push up the welding arm.
