Small Netlink ONT FTTR Equipment EPON No WiFi TR069 F412 V6.0 1GE 1FE 1POTS Smart Android Wireless ONT ONU FOR ZTE
- Category: >>>
- Supplier: ShenZhen Hi-Fiber Electronic Co. Ltd
Share on (1600424146157):
Product Overview
Description
Products Description

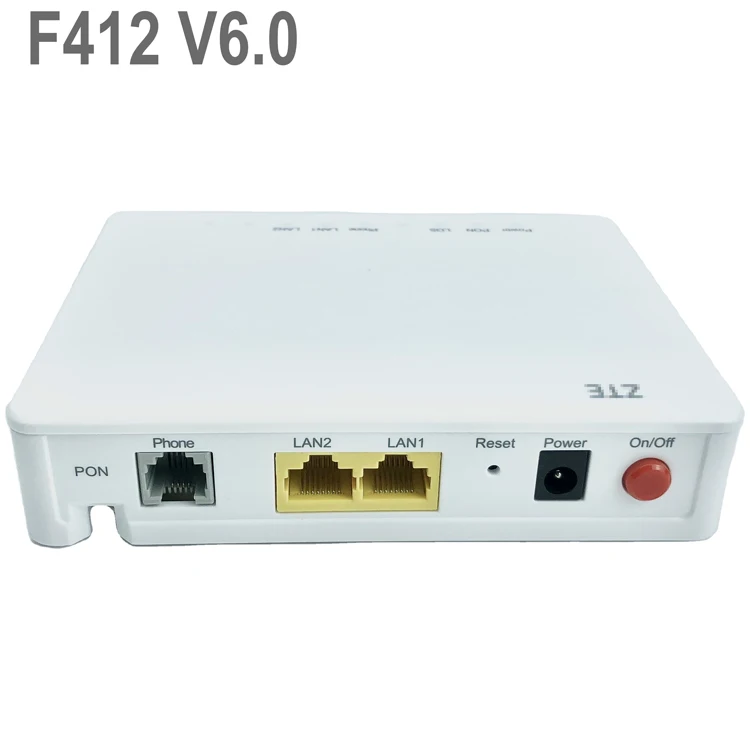

FTTO EPON ONU ONT F412 V6.0
F412 is an EPON Optical Network Terminal designed for SFU (Single Family Unit) used in FTTH scenario, and realize ultra-broadband access for home or SOHO users through xPON technology. Provide POTS voice interface and FE/GE adaptive Ethernet interface. The key features of the product are plug and play, remote diagnosis, link monitoring and green energy saving.
FTTO EPON ONU ONT F412 V6.0
It provides subscriber with rich, colorful, individualized, convenient and comfortable triple-play services including video (IPTV), voice, wireless access, convenient network storage services and high speed internet access. It has a small, smart appearance and green, Energy-saving advantage. Using TR069 and OAM protocol, O&M cost can be reduced effectively by supporting remote service provisioning, intelligent fault diagnosis and performance statistic functions.
Version & Firmware
All ONU/ONT products are Global Version with English Firmware and English Package Box. we will replace new Case/Shell, New package box, new power plug. we will test function of the PBC, make sure 100% work fine.if you want special sticker on the ONU, we can help design and paste for you free.
Power Plugs
we can provide Power Plug with Europe Standard, America Standard, Australia Standard, United-Kingdom Standard and India Standard, please choose according to your target marketplace.

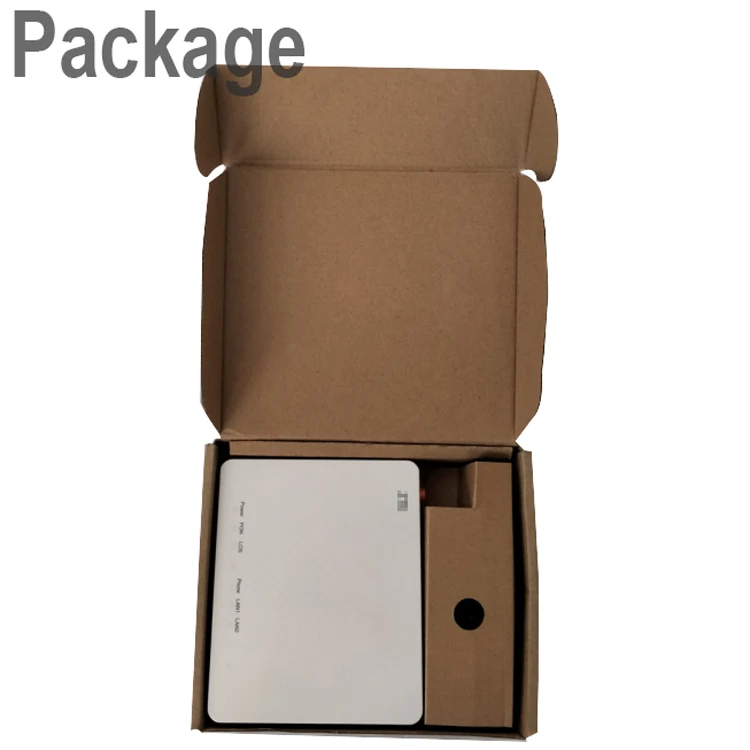

Package Box
Size: CM
Weight: KG
Carton
Size : CM
Weight: KG
QTY/CTN: pcs
QTY/CTN: pcs
Product Paramenters
Technical items | Descriptions |
Model | F412 V6.0 |
Out Port contains | 1GE+1FE+1TEL |
WIFI signal | No |
No | |
Wireless gain | No |
USB | No |
LAN | 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
TEL | H248/Sip Voice protocol |
PPPOE | support |
Firmware | English |
Dimension/weight | 135mm*111mm*30mm/170g |
Fiber port | 1 EPON interface, ingle-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
Wavelength | Tx 1310nm, Rx 1490nm |
Fiber interface | SC/FC-UPC/APC Dual mode/Singal mode |
RX sensitivity | >-28dBm (1490nm) |
DC power | 12V 0.5A, external AC-DC power adapter |
Button | Reset, power |
Operation | Working temperature: -5- +55℃ working humidity:10-90%(non-condensation) |
Storage | Storage temperature: -30℃- +60℃ storage humidity: 10-90%(non-condensation) |
