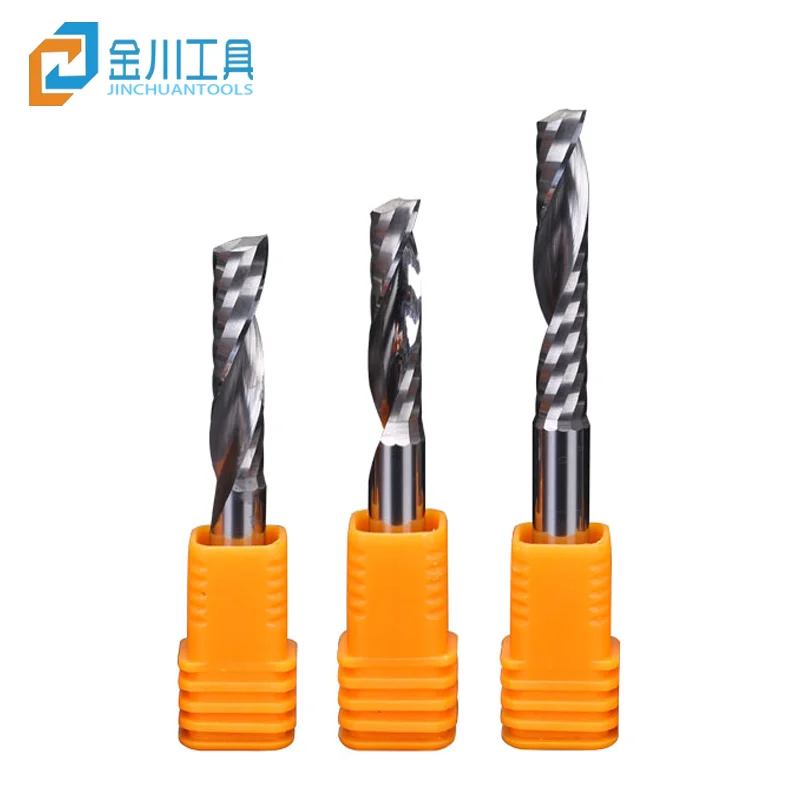

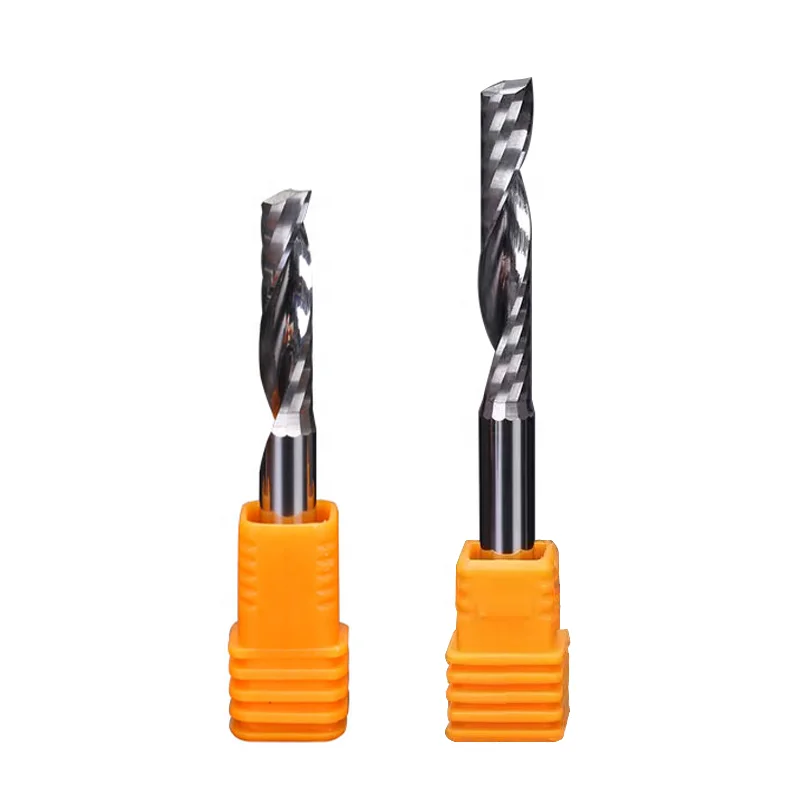

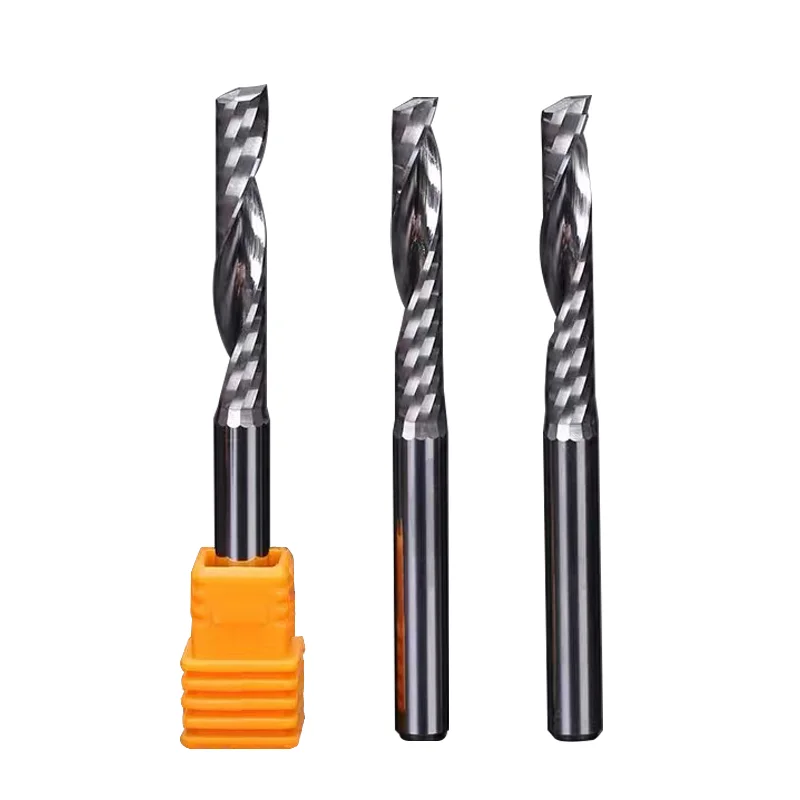

Hot sale 6mm cutting wood Acrylic PVC MDF spiral carbide endmill single one 1 flute end mill router bits woodworking
- Category: >>>
- Supplier: Shenzhen Jinchuan Precision Tools Co. Ltd.
Share on (1600424174531):
Product Overview
Description
Product Overview
Production Description
Applicable material | Acrylic, PVC, PC, PET, PMMA, MDF Board,Multilayer board, Plastic, Aluminum sheet. |
Applicable machine | Advertising engraving machine, metal engraving machine, Polishing machine, CNC machine |
Processing Effect | Cleaning surface and edge , sharp cutting edge, and long shelf life |
Processing Suggestions | Choose the bits with cutting length of 2-5mm longer than the processing material |
Features | Using mirror sharpening technology , large chip removal, sharp cutting edge, long shelf life, smooth surface. |
Processing product video

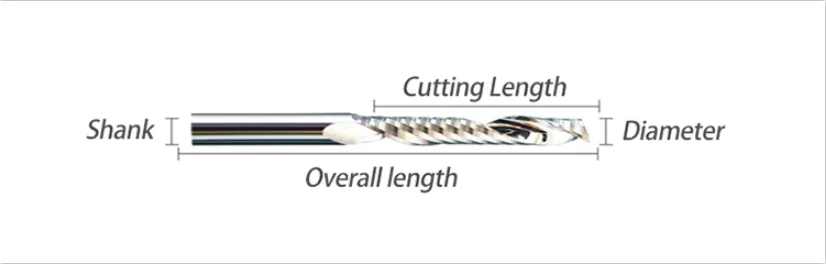

PRODUCT SPECIFICATIONS
Item No | Prodnct Name | Shank | Diameter | Cutting Length | Ocerall Length |
JCA6DL7001 | Single flute spiral carbide end mills | 4 | 4 | 8 | 42 |
JCA6DL7002 | Single flute spiral carbide end mills | 4 | 4 | 12 | 42 |
JCA6DL7003 | Single flute spiral carbide end mills | 4 | 4 | 15 | 42 |
JCA6DL7004 | Single flute spiral carbide end mills | 4 | 4 | 17 | 42 |
JCA6DL7005 | Single flute spiral carbide end mills | 4 | 4 | 20 | 45 |
JCA6DL7006 | Single flute spiral carbide end mills | 4 | 4 | 22 | 45 |
JCA6DL7007 | Single flute spiral carbide end mills | 4 | 4 | 25 | 48 |
JCA6DL7008 | Single flute spiral carbide end mills | 4 | 4 | 28 | 50 |
JCA6DL7009 | Single flute spiral carbide end mills | 4 | 4 | 32 | 60 |
JCA6DL70010 | Single flute spiral carbide end mills | 4 | 4 | 42 | 70 |
JCA6DL70011 | Single flute spiral carbide end mills | 5 | 5 | 22 | 48 |
JCA6DL70012 | Single flute spiral carbide end mills | 5 | 5 | 25 | 50 |
JCA6DL70013 | Single flute spiral carbide end mills | 5 | 5 | 32 | 60 |
JCA6DL70014 | Single flute spiral carbide end mills | 5 | 5 | 42 | 70 |
JCA6DL70015 | Single flute spiral carbide end mills | 5 | 5 | 52 | 80 |
JCA6DL70016 | Single flute spiral carbide end mills | 6 | 5 | 22 | 48 |
JCA6DL70017 | Single flute spiral carbide end mills | 6 | 6 | 12 | 45 |
JCA6DL70018 | Single flute spiral carbide end mills | 6 | 6 | 15 | 45 |
JCA6DL70019 | Single flute spiral carbide end mills | 6 | 6 | 17 | 45 |
JCA6DL70020 | Single flute spiral carbide end mills | 6 | 6 | 22 | 48 |
JCA6DL70021 | Single flute spiral carbide end mills | 6 | 6 | 25 | 50 |
JCA6DL70022 | Single flute spiral carbide end mills | 6 | 6 | 28 | 55 |
JCA6DL70023 | Single flute spiral carbide end mills | 6 | 6 | 32 | 60 |
JCA6DL70024 | Single flute spiral carbide end mills | 6 | 6 | 38 | 65 |
JCA6DL70025 | Single flute spiral carbide end mills | 6 | 6 | 42 | 70 |
JCA6DL70026 | Single flute spiral carbide end mills | 6 | 6 | 52 | 80 |
JCA6DL70027 | Single flute spiral carbide end mills | 6 | 6 | 62 | 100 |
JCA6DL70028 | Single flute spiral carbide end mills | 6 | 6 | 72 | 110 |
How much do you know about edge polishing
Polishing of cutting edges and grooves
1. The cutting edge polishing increases the sharpness of the cutting edge, eliminates the slight gap of the bits edge, and makes
the processed product smoother and cleaner. 2. Mirror polishing inside the groove improves chip removal, will not stick to chips,
will not stick to the bits, ensure the sharpness of the cutting edge, and increase the shelf life of the tool. 3. Corresponds to a
variety of plates, solves difficult processing problems, and achieves good versatility
1. The cutting edge polishing increases the sharpness of the cutting edge, eliminates the slight gap of the bits edge, and makes
the processed product smoother and cleaner. 2. Mirror polishing inside the groove improves chip removal, will not stick to chips,
will not stick to the bits, ensure the sharpness of the cutting edge, and increase the shelf life of the tool. 3. Corresponds to a
variety of plates, solves difficult processing problems, and achieves good versatility
How to choose the proper bits
Not recommended:
1、The shank is too long, which makes the high-speed rotation of the machining unstable and causes the tool to break. 2、The
cutting length and the board surface are too long, resulting in too much blade length, hanging in the air without force, and easy to break the knife
cutting length and the board surface are too long, resulting in too much blade length, hanging in the air without force, and easy to break the knife
Recommend:
1、Choose proper cutting length 2、choose proper diameter
3、Do not extend the pole too long
4、The cutting length exceeds the thickness of the plate by 2-5 mm
3、Do not extend the pole too long
4、The cutting length exceeds the thickness of the plate by 2-5 mm

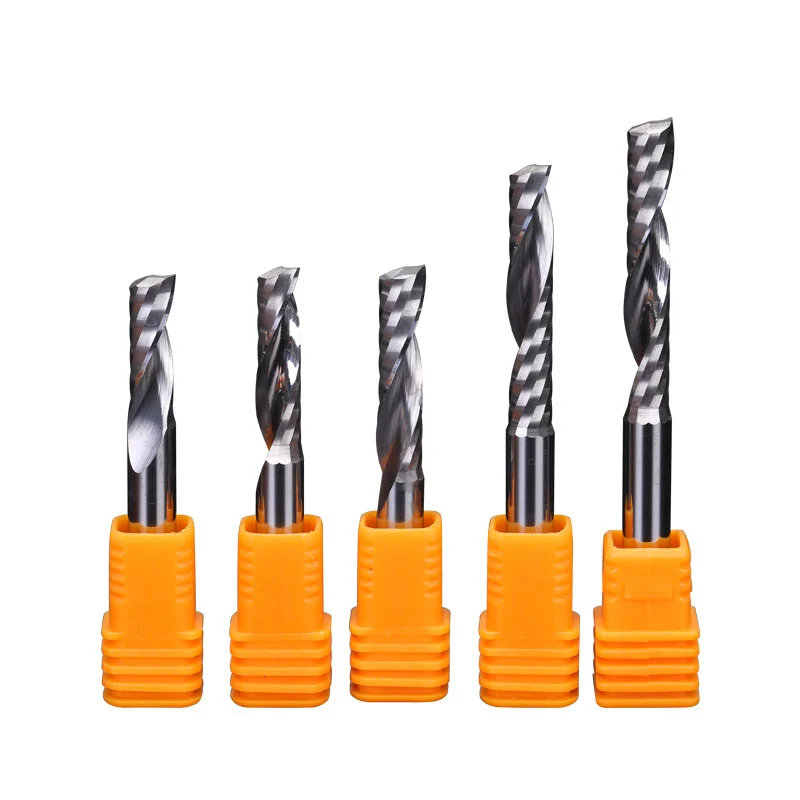

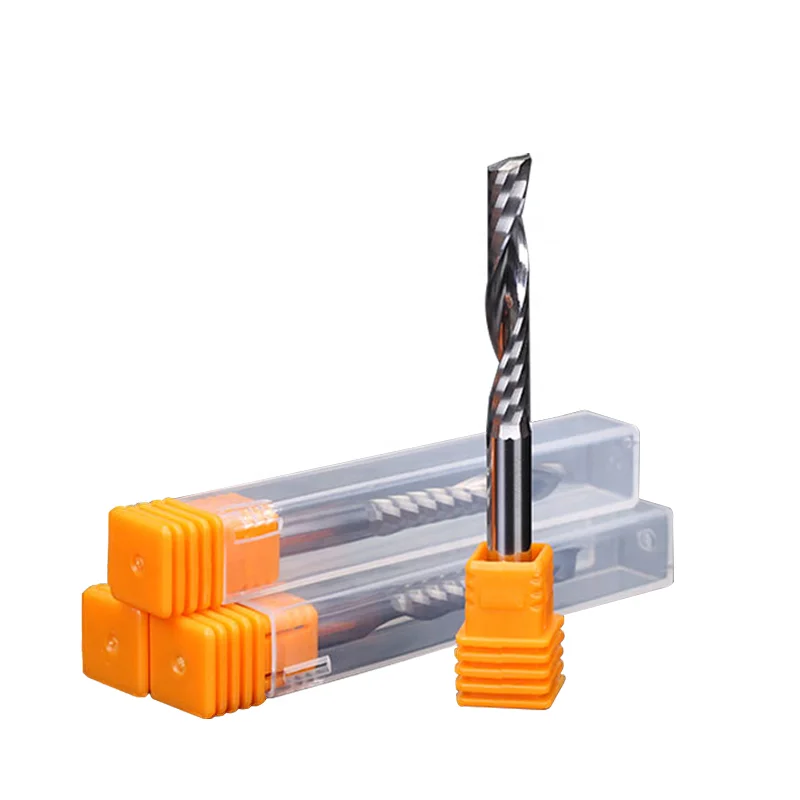

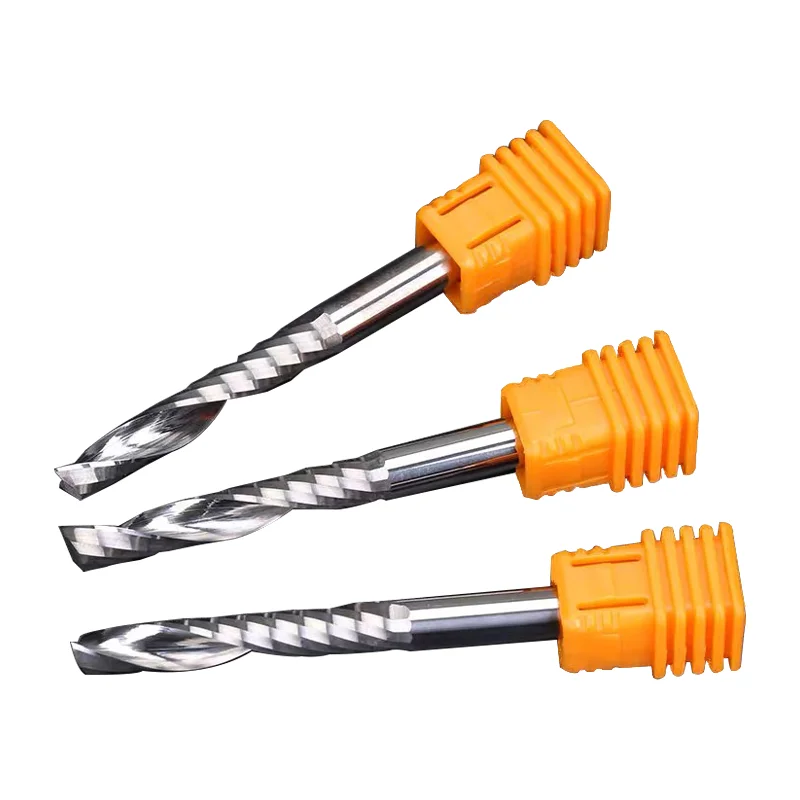

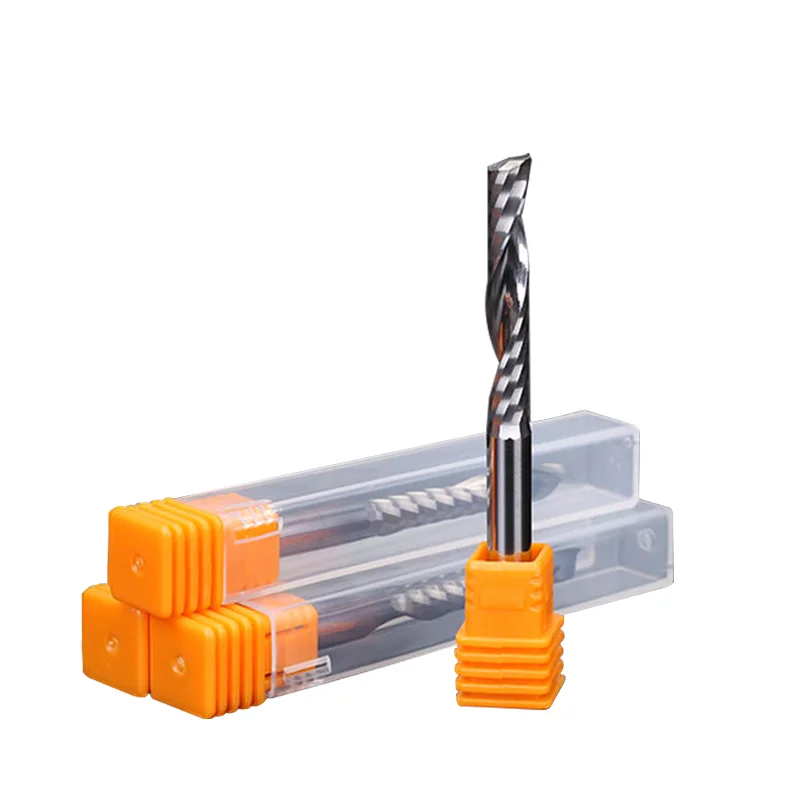

Product real shot pictures

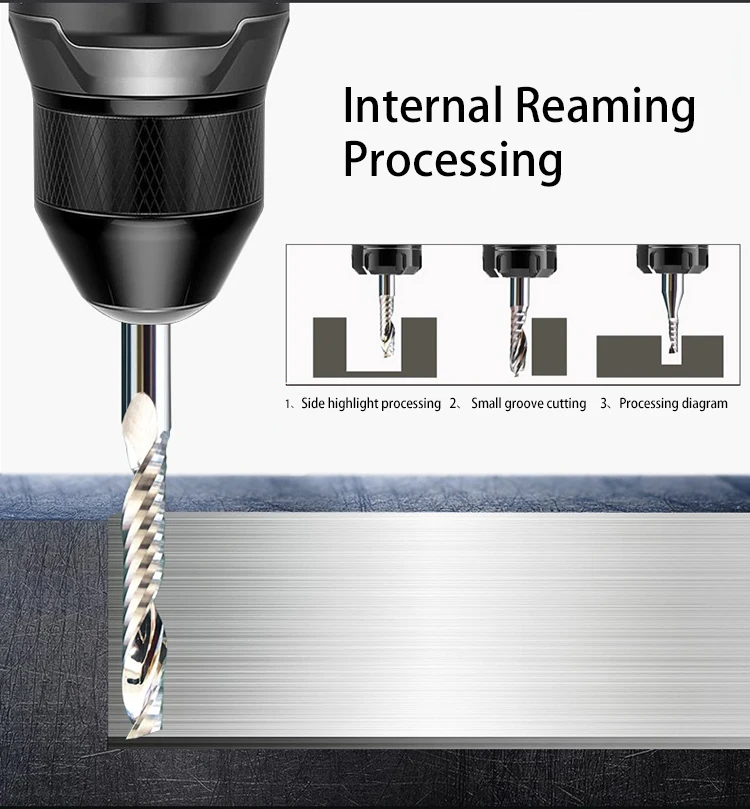

Processing diagram
A variety of machines can be processed
Engraving Machine
Precise Engraving machine
CNC Machine
A variety of plates can be applied
Acrylic
PVC
ASC Sheet
MDF Board
PP board
PA board
PRODUCT SPECIFICATIONS
FAQ
Q1：What is the processing speed of this tool?
A1：We recommend 22000-24000rpm/Min, Feed rate is 1-5m/Min
Q2: Can PVC soft glass be processed?
Q2: Can PVC soft glass be processed?
A2: Yes, it can cut PVC, Acrylic, PP board
Q3: Can cut PS sheets ?
A3: Yes, but it is easy to
stick to the tools
stick to the tools
Q4: Can mill bakelite?
A4: Yes, you need slow down feed speed , it is not recommended to use, it is easy to
break we recommend to process the bakelite with a PCB corn milling cutter
break we recommend to process the bakelite with a PCB corn milling cutter
Q5: Is it okay to mill the iron keyway
A5: No, it cancut aluminum alloy, mainly for PVC, Acrylic, PC, PMMA, PP Sheets
Q6: Can it drill ?
A6: Yes, it can.
Q7: Can it be used on an electric drill
A7: No, Only applicable to machining centers above 20,000 rpm
