Product Overview
Description
18-18-6 Automatic bottling capping line liquid carbonated soda drinks water glass bottle beer filling machine
Item | Parameters | Item | Parameters |
Washing heads | 18 | Vacuum pump | 0. 20m3/h |
Filling heads | 18 | Power | main motor: 1.5KW hopper motor: 0 .18KW vacuum pump motor:1.1KW chain motor: 0.75KW |
Capping heads | 6 | Dimensions | Accoring to the machine |
Capacity | 3000BPH-4000BPH | N.W. | 3000kg |
Bottle type | height:150~ 300mm bottle neck:50~85mm bottle diameter: 50-75mm | Working voltage AC | It can be customized by the customers'electrical conditions. |
Air consumption | 0.15m3/min(0.4~0.6Mpa) | Control voltage DC | It can be customized by the customers'electrical conditions. |
CO2consumption | 1.6kg/l000L | Frequency converter | SIEMEMS |
Water consumption | 0. 8m3/h | PLC | SIEMEMS |
Touch screen | PLC | Pneumatic element | SMC |

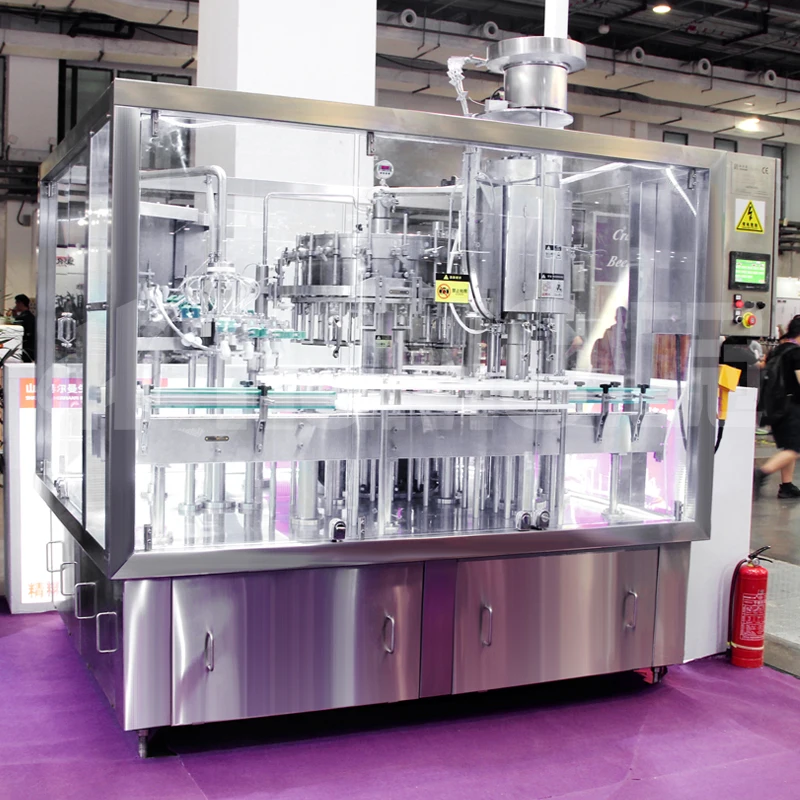

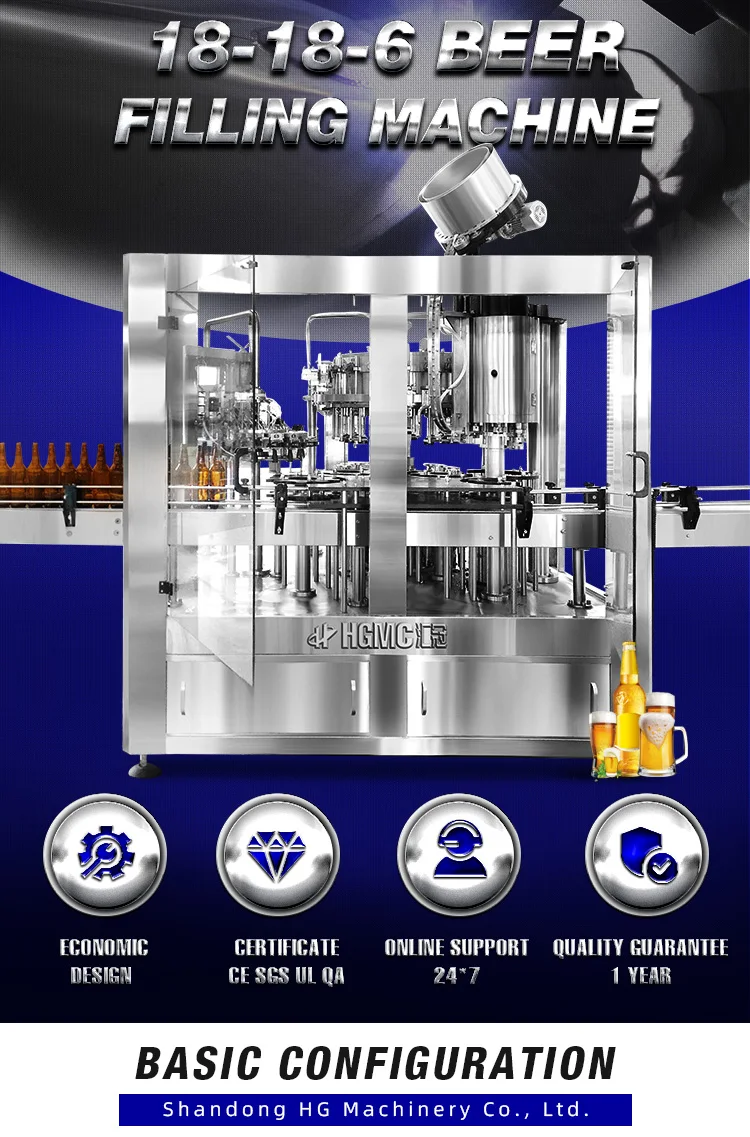

18-18-6 Glass Bottle Filling Machine
The 18 heads filling machine designed by HG Company adopts the counter pressure filling technology which can perfectly realize the
requirments of twice vacuum, Co2 injection. The machinealso adopts 3 in 1 compact design, easy to operate and maintain..
requirments of twice vacuum, Co2 injection. The machinealso adopts 3 in 1 compact design, easy to operate and maintain..
Filling machines designed by HG company adopts the counter pressure filling technology which can perferctly realize the requirements of twice vacuum, Co2 injection. All filling machines also adopts 3 in 1 compact design, easy to operate and maintain.

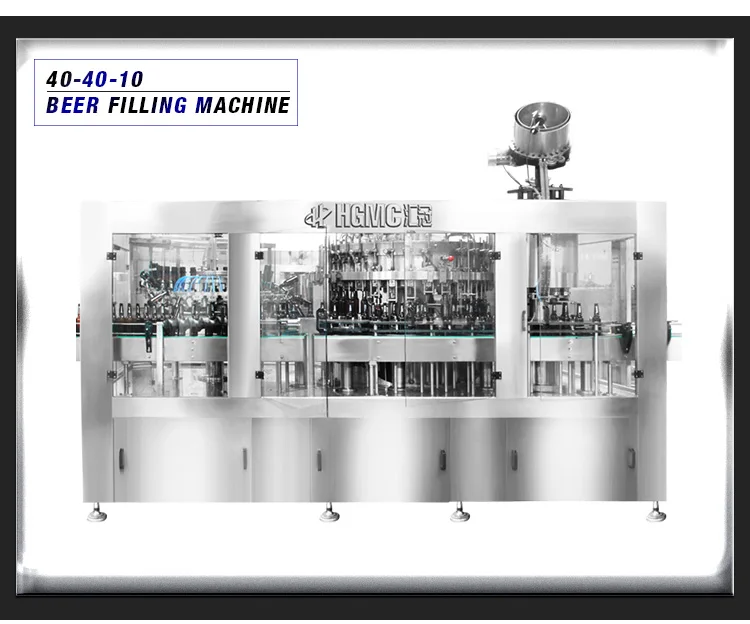

40-40-10 Glass Bottle Beer Filling Machine
The machine is adopts counter pressure filling technology, this machine is specially designed for beer filling. The machine has the advantages of high speed, reliable output, compact design and stable operation. The machine suitable for medium or large capacity breweries.
The machine is adopts counter pressure filling technology, this machine is specially designed for beer filling. The machine has the advantages of high speed, reliable output, compact design and stable operation. The machine suitable for medium or large capacity breweries.

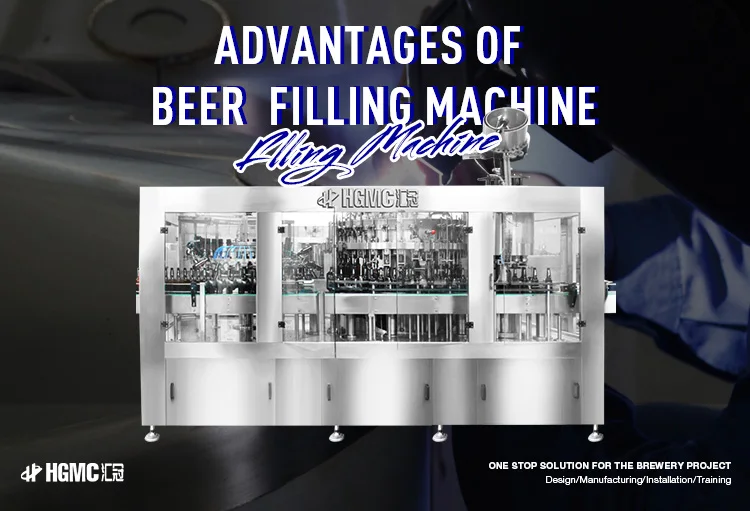

Advantage:
The machine is our patent product.
The machine adopts the counter pressure filling technology which can realize the requirements of twice vacuum, co2 injection.
The machineadopts 3 in 1 compact design, easy to operate and maintain.
Using the external filling valve can ensure the quality of beer

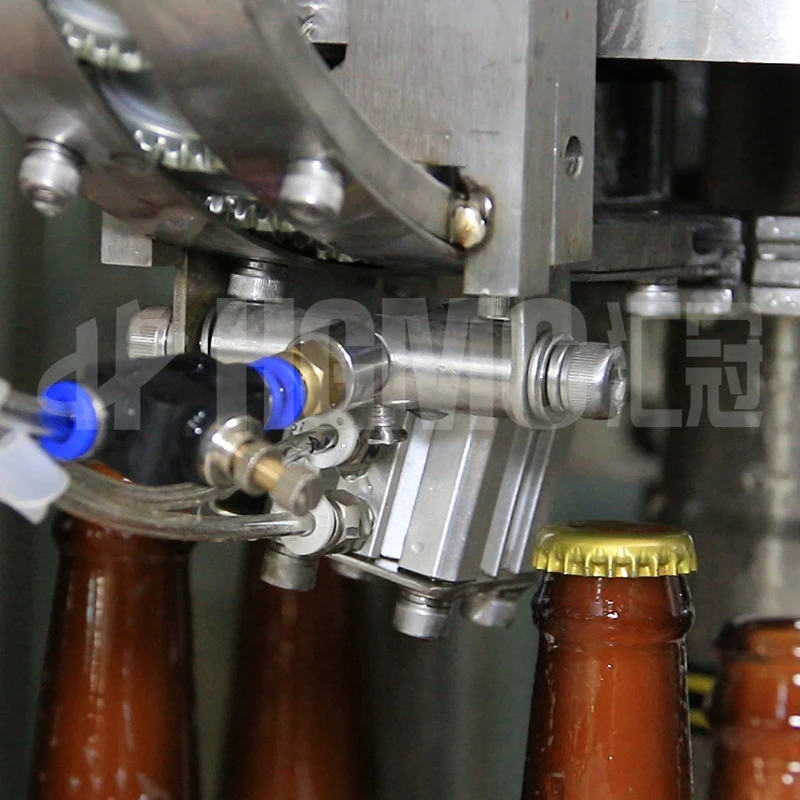

Using mechanical gland instead of pneumatic gland improves the quality and stability of gland. All mechanical transmission,
basically reaching zero failure rate.
Two times of vacuumizing and two times of carbon dioxide filling can minimize the amount of oxygen dissolved and maintain the
taste of beer. Equal pressure filling makes the filling process more stable.
The application of the sensor realizes filling only when there is bottle, no bottle, no filling, and the beer scrap rate is less
than 0.8%.
All cables are installed on the top of the equipment, making it safer to use.
The machine is our patent product.
The machine adopts the counter pressure filling technology which can realize the requirements of twice vacuum, co2 injection.
The machineadopts 3 in 1 compact design, easy to operate and maintain.
Using the external filling valve can ensure the quality of beer
Using mechanical gland instead of pneumatic gland improves the quality and stability of gland. All mechanical transmission,
basically reaching zero failure rate.
Two times of vacuumizing and two times of carbon dioxide filling can minimize the amount of oxygen dissolved and maintain the
taste of beer. Equal pressure filling makes the filling process more stable.
The application of the sensor realizes filling only when there is bottle, no bottle, no filling, and the beer scrap rate is less
than 0.8%.
All cables are installed on the top of the equipment, making it safer to use.
Item | Production capacity | Filling method | Material | Dimensions |
HG-4-4-1 | 240-360BPH | Isobaric filling | SUS304 | 1550*550*1750mm |
HG-6-6-1 | 500-800BPH | Isobaric filling | SUS304 | 1520*1125*2350mm |
HG-8-8-3 | 800-1000BPH | Isobaric filling | SUS304 | 1850*1600*2500mm |
HG-18-18-6 | 3000-4000BPH | Isobaric filling | SUS304 | 2500*2000*2500mm |
HG-40-40-10 | 8000-10000BPH | Isobaric filling | SUS304 | 4200*3000*2700mm |
Q:How many years of experience in brewing equipment do you have?
A: We have more than 20 years in brewing and beer filling equipment.
Q: Where is your factory located?
A: Our factory is located in New Town, Jiyang Zone, Jinan, Shandong, China, 2 hours high speed train to Beijing.
Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm before production.
Q: How long the warranty will be?
A: 1 years warranty for the main equipment.
Q: How about the installation?
A: We can supply the installation. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
Q: How do you guarantee the filling machine operation?
A: Before the delivery, we will test and debug all machines in good condition and record the video for your checking.
A: We have more than 20 years in brewing and beer filling equipment.
Q: Where is your factory located?
A: Our factory is located in New Town, Jiyang Zone, Jinan, Shandong, China, 2 hours high speed train to Beijing.
Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm before production.
Q: How long the warranty will be?
A: 1 years warranty for the main equipment.
Q: How about the installation?
A: We can supply the installation. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
Q: How do you guarantee the filling machine operation?
A: Before the delivery, we will test and debug all machines in good condition and record the video for your checking.
Our Service
1.Pre-service:
-Layout:Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an
equipment footprint according to your requirement.
-Technical Drawings : We will offer Technical Drawings of each tank based on the equipment layout .
-3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive experience
-Layout:Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an
equipment footprint according to your requirement.
-Technical Drawings : We will offer Technical Drawings of each tank based on the equipment layout .
-3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive experience
2.After service
We guarantee the quality of the main machine within 1 year. If the electrical elements go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
After warranty, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support. We can also dispatch our engineer to your brewery to install and adjust the machines for you. He can also train your staff to use the equipment.
We guarantee the quality of the main machine within 1 year. If the electrical elements go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
After warranty, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support. We can also dispatch our engineer to your brewery to install and adjust the machines for you. He can also train your staff to use the equipment.
