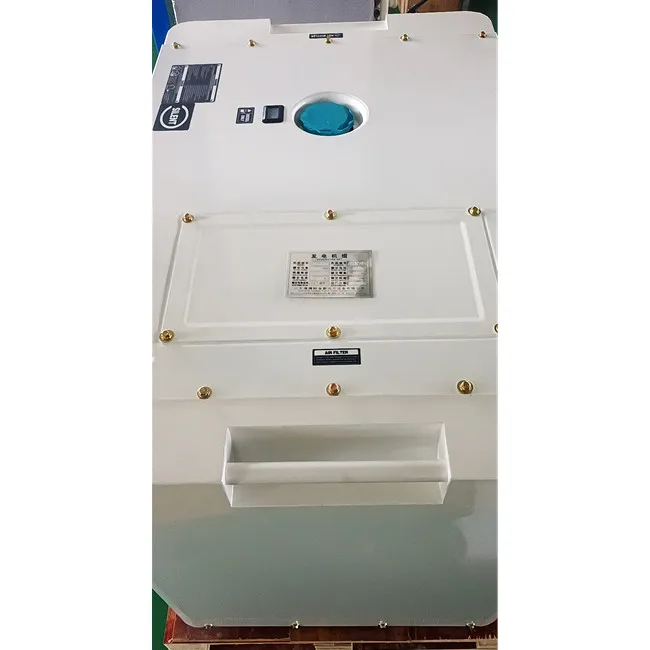

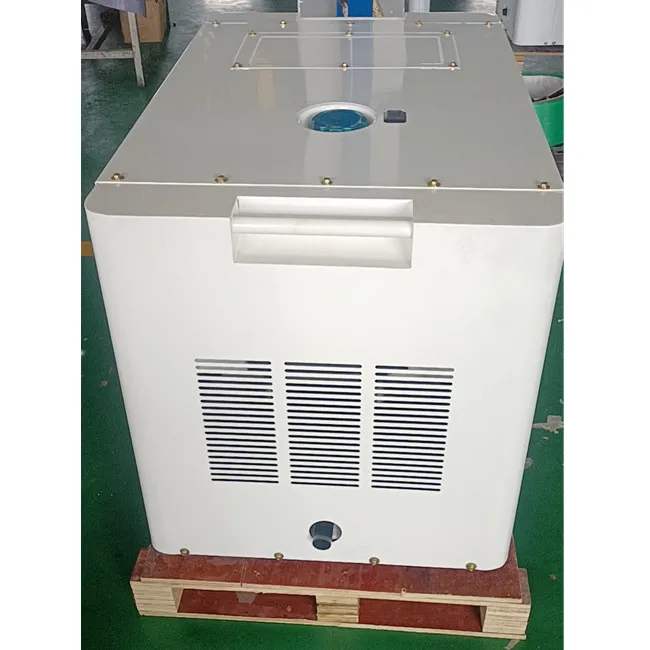

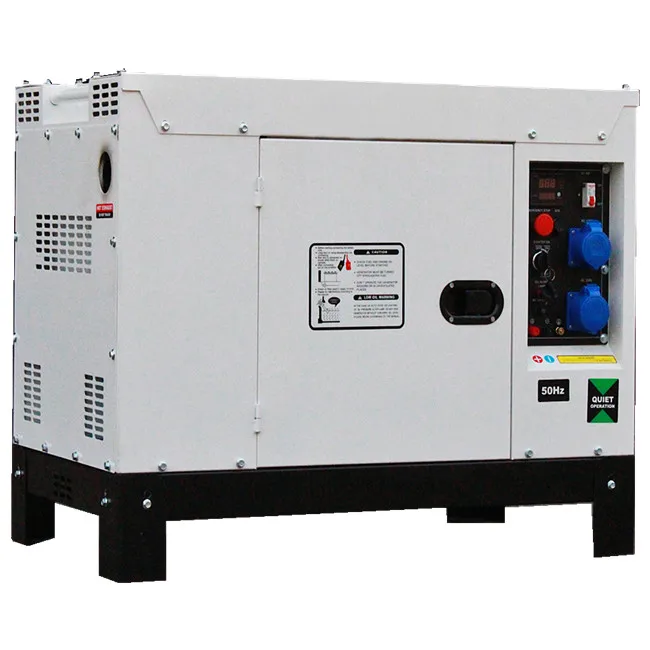

our silent / rainproof /open type diesel genset are widely used for bulding,hospital , air port, shop , housing,telecommunications, factory, ship ect, it is ideal chooice for the prime or backup power.

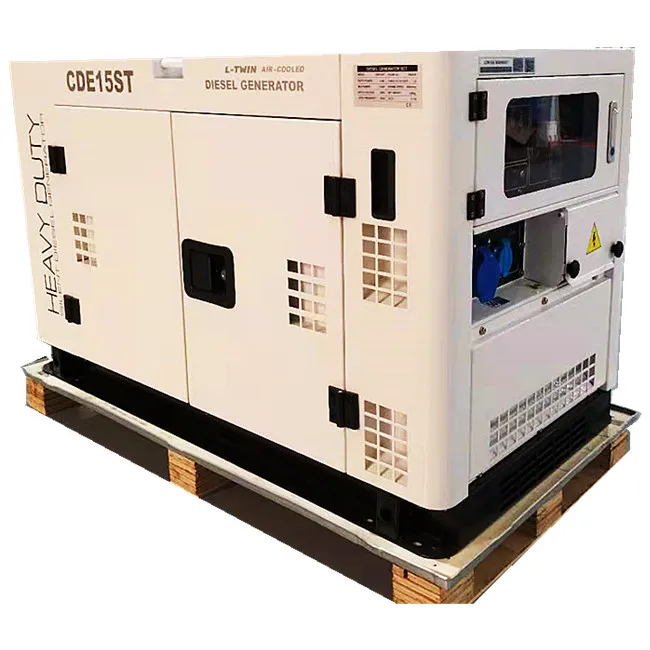

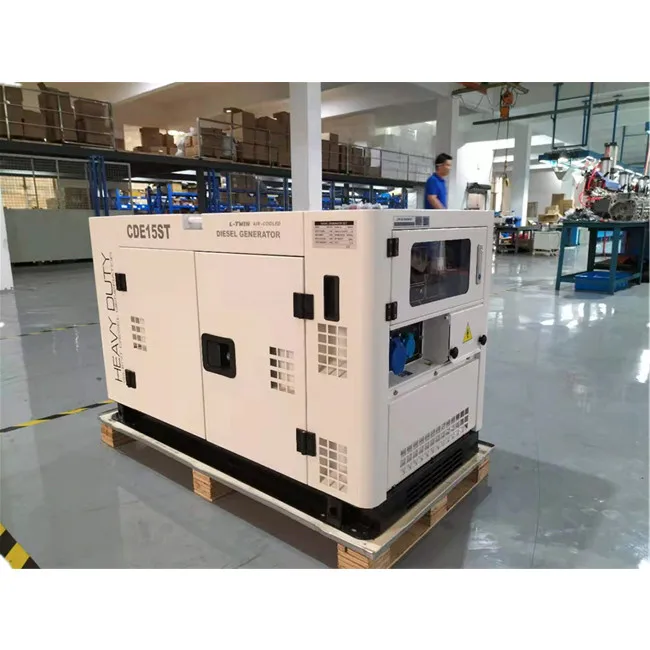

Generator set | Model | DG22000SE |
Maximum output power (kw) | 15 | |
Rated output power (kw). | 15 | |
Rated voltage(V). | 120,220,220,240,120/240,220/380,230/400, 240/415 | |
Rated frequency (Hz) | 50/60 | |
Rated speed (rpm) | 3000/3600 | |
The number of phases | Single phase/ three phase | |
Factor | 1 | |
alternater | self-excited,2-pole or 3 pole | |
Ignition system | Direct spray | |
noise level (at 7m) (dB) | 68-72 | |
fuel tank capacity (L) | 30 | |
Continuous working hours(h). | 12 | |
Engine | Model | 2v95 |
Engine type | two cylinder,vertical, four stroke, forced air cooling, direct injection | |
Displacement (cc) | 1247 | |
Bore X stroke(mm). | 95X88 | |
Oil capacity (L) | 1.65 | |
Oil model | CD level or SAE10W-30, 15W-10 | |
Fuel model | Diesel 0 s(summer)-10s(winter)-35 (cold). | |
How to start | Electric start | |
Oil alarm | Yes | |
Fuel indicator | Yes | |
Battery capacity | 12V-32HA maintenance-free battery | |
The output wiring method | Full copper post | |
Fuel consumption Fuel (L). | 2 | |
Other features | Control pannel | Digital display table, frequency, voltage, running time, cumulative time |
Random tool | Plugs, instructions, certificates | |
Caster attachment | biger cabine | |
biger wheel | yes | |
ATS | yes | |
remote control | yes | |
RS 485 interface | yes | |
Measurement mm | 1350X750X890 | |
Weight(kg). | 297 |
1. beatiful design.
2. beatiful colour.
3. samller bulky
4. light weight .
with fuel tank, which can conntinue running 8hours.
simple control pannel and convience socket
Packaging | ||
Size | 950(L) * 620(W) * 650(H) | |
Weight | 220kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Q1: How is your Package & Payment & Delivery Date & Warranty?
Package: Plastic film (free of charge) or wooden case (add USD200 for wooden)
Q2: What is your payment terms?
Payment: by 30% T/T as deposit, 70% balance are payed before shipment. Or 100% L/C at sight.
Q3:what is your delivery time?
Delivery: 7-25 days after we get the deposit.
Q4:What is your warranty?
Warranty: Guarantee for one year or 1000 running hours (whichever come first shall apply) from installed date.During the guarantee period. such as Cummins or Perkins generators. they are international brands and the after-sale service is worldwide. you can contact your country's after-sale or contact us for repairment. when replacing spare parts, please kindly take some pictures to describe the problems. we will solve it a.s.a.p.
Q5: Any advantage of Digital Control Panel?
1) Controller Brand: Smartgen, Deepsea,ComAp
2) Control Panel: English interface,LED screen and touch buttons.
3) Main Functions:
1- Display loading power, voltage, current, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
Q6: Do you accept OEM or ODM
Yes, we can do both of them.
