China Leading Frequency Inverter Manufacturer AC Drives VFD Speed Controller for 45KW 220V Three Phase Motor
- Category: >>>
- Supplier: Guangzhou Bedford Electric Equipment Co. Ltd.
Share on (1600424305859):
Product Overview
Description
Products Description
Bedford--B503PRO series general purpose vector frequency inverter
The B505 series adopt the DSP control system, completely speed sensorless vector control. It has built-in PG-free vector control (SVC) and V/F control. It is widely used in applications that have higher requirements for speed control accuracy, torque response speed, and low-frequency output characteristics.

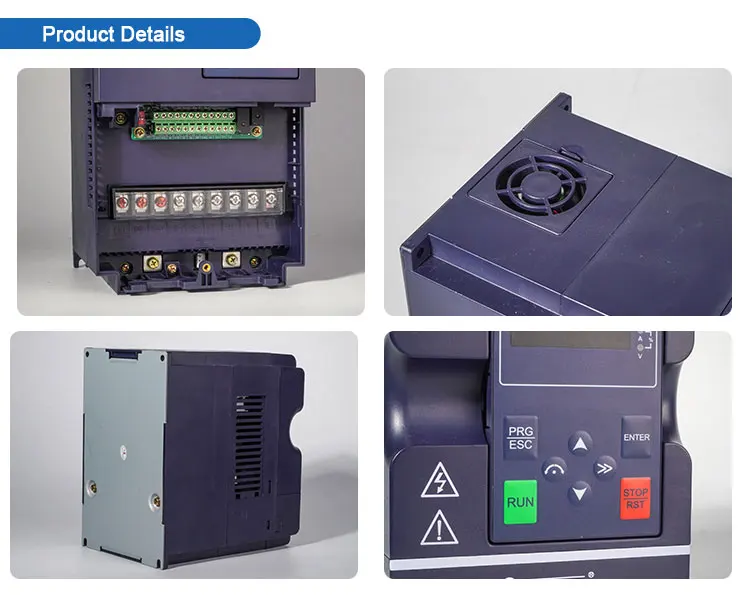

Details
Main Control Function | ||||
No. | Item | Specification | ||
1 | Control Mode | Sensorless Vector Control (SVC), V/F Control, Torque | ||
2 | Overload Capacity | 60s with 150% of rated current, 3s with 180% of rated current | ||
3 | Starting Torque | 150% of rated torque at 0.5Hz (SVC) | ||
4 | Speed Adjusting Range | 1:100 (SVC) | ||
5 | Speed Accuracy | ± 0.5% of maximum speed (SVC) | ||
6 | Carrier Frequency | 0.5kHz ~16.0kHz | ||
7 | Reference Frequency Source | Digital setting, analog setting, pulse setting, serial communication setting, multi-speed setting, simple PLC setting, PID setting, etc., can realize the combination of setting and mode switching | ||
8 | Torque Control Function | Provide multiple torque setting source | ||
9 | Control | PID Control Function and Traverse Control Function | ||
10 | Multi-Step Speed Control Function | 16 steps speed can be set | ||
11 | Non-Stop | Non-Stop when power is instantaneously cut off | ||
12 | Speed trace Function | Start the running motor smoothly | ||
13 | Automatic Voltage Regulation (AVR) Function | Automatically keep the output voltage stable when input voltage fluctuating | ||
14 | Up to 25 fault protections | Protect from over current, over voltage, under voltage, over heat, phase failure, over load etc | ||
...... | ||||

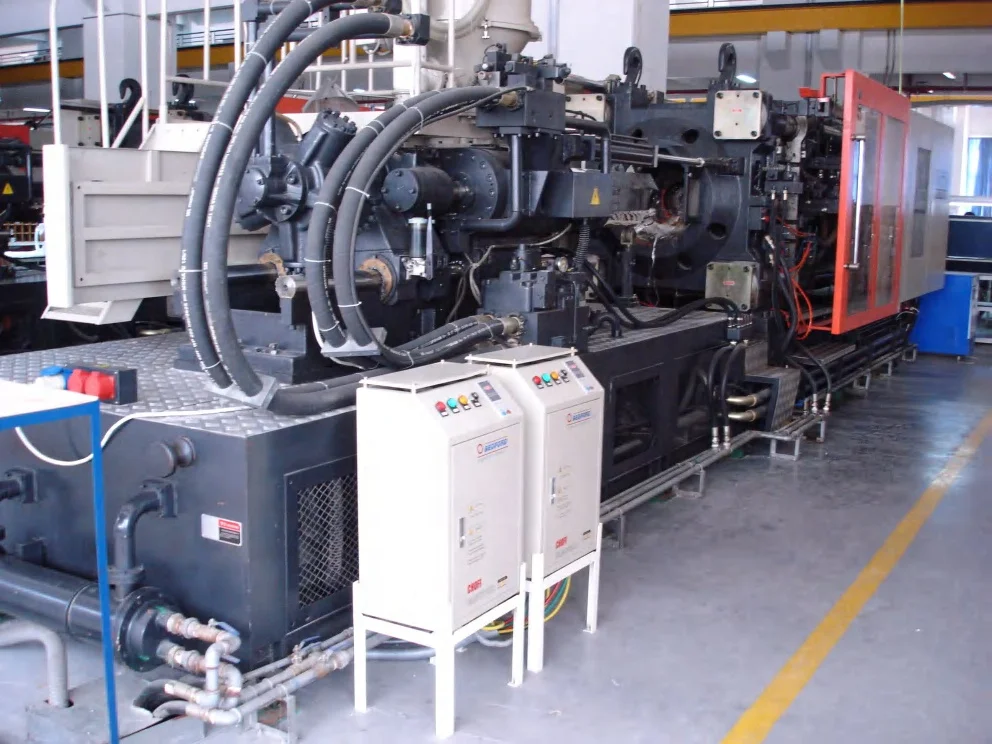

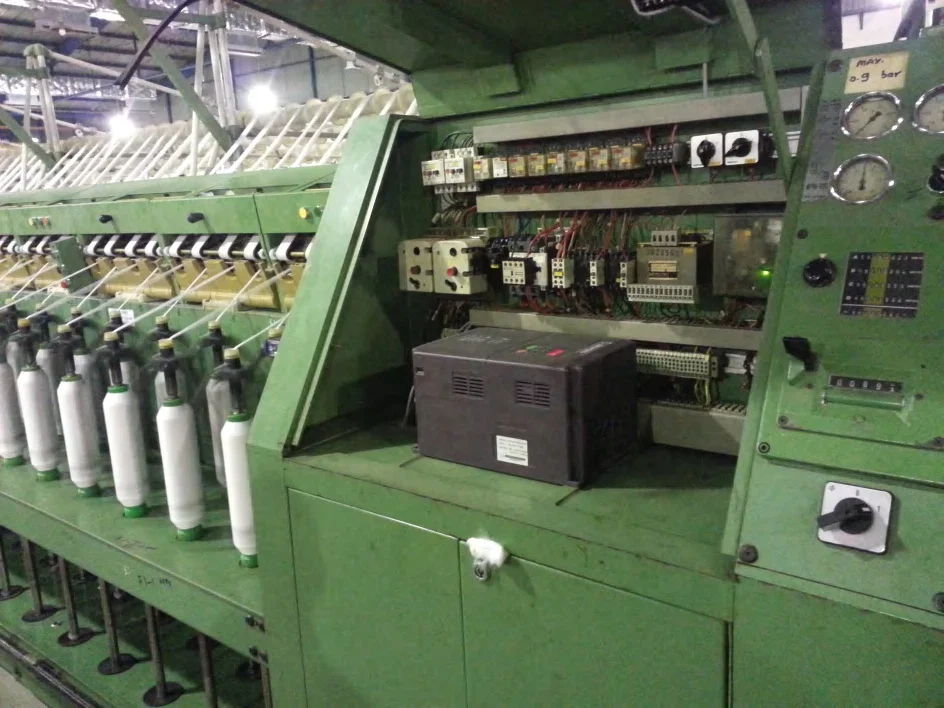

Application
For all kind of three-phase asynchronous motor
It can control the speed of three-phase asynchronous motor on any machine, supports simple PLC with up to 16 steps speed control.
Common application: Textile machinery, electric motors, foodstuff processing machinery, light industry, pharmacy machinery, etc.
Why Choose Us
Guangzhou Bedford Electric Equipment Co., Ltd. is a national high-tech enterprise integrating R&D, production, sales and service, specializing in the production of various variable frequency inverter, integrated pump controller, solar pumping inverter, motor energy saver, various pump, water supply equipment, swimming pool pump inverter.
Why Bedford:
Reasonable price for wholesalers, end customers are introduced to wholesalers.
Assembly line production, large monthly supply capacity, fast delivery.
Obtained more than 30 patents and exported to more than 70 countries.
Assembly line production, large monthly supply capacity, fast delivery.
Obtained more than 30 patents and exported to more than 70 countries.
A professional R&D team with 20+ years of industry experience.
Passed CEISO9001 quality management system certification.
Manufacturer of the most complete series of inverter in China.
Provide lifelong maintenance services and online technical support.
Support low MOQ and OEM services, 100% timely delivery.
Passed CEISO9001 quality management system certification.
Manufacturer of the most complete series of inverter in China.
Provide lifelong maintenance services and online technical support.
Support low MOQ and OEM services, 100% timely delivery.
Exhibition
VR
Certifications
FAQ
Q1 : What's the different between inverter and solar inverter?
Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept DC
input, it more save power.
Q2: What should be noticed when installing inverter?
Put the product in a place where is well ventilate,cool, dry and water-proof. Do not stress or put foreign objects into the
inverter. Remember to turn on the inverter before turn on the appliance.
Q3: Do we need to set the parameter before using ?
No need, our preset parameters can already meet your normal use.
And our inverter is AI intelligent working.
If you need to adjust the parameters yourself, you can do it in a few simple steps.
Q4: What is the payment terms?
100% T/T in advance for sample order. 50% T/T in advance, banlance 50% T/T before delivery for bulk order.
Q5: What is your main market?
Our brands are well known in Europe, Africa, Middle East, Southeast Asia and South America.
Q6: Where is your factory located?
Our factory is located in Guangzhou, China, and you can get to our company within one hour from Guangzhou Baiyun Airport or Canton
Fair Complex.You are very welcome to visit our company.Please feel free to contact us if you need information on road conditions
or directions.
Q7 : How about the delivery time?
3-5 days for sample order;15-25 days for bulk order.
Q8:What is the supply capacity of your factory?
The monthly output of inverters is over 10,000 units.
Monthly output of water pumps is more than 8,000 units.
For regular orders, we can deliver to you in 5-24 days.
Q9: How can I trust you ?
We are a certified high-tech enterprise in China and an Alibaba certified factory.
We have got ISO certificate and are a China Honest Management Enterprise.
There are more than 250 people in our factory and more than 100 registered trademarks, patents and technology patents.
Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept DC
input, it more save power.
Q2: What should be noticed when installing inverter?
Put the product in a place where is well ventilate,cool, dry and water-proof. Do not stress or put foreign objects into the
inverter. Remember to turn on the inverter before turn on the appliance.
Q3: Do we need to set the parameter before using ?
No need, our preset parameters can already meet your normal use.
And our inverter is AI intelligent working.
If you need to adjust the parameters yourself, you can do it in a few simple steps.
Q4: What is the payment terms?
100% T/T in advance for sample order. 50% T/T in advance, banlance 50% T/T before delivery for bulk order.
Q5: What is your main market?
Our brands are well known in Europe, Africa, Middle East, Southeast Asia and South America.
Q6: Where is your factory located?
Our factory is located in Guangzhou, China, and you can get to our company within one hour from Guangzhou Baiyun Airport or Canton
Fair Complex.You are very welcome to visit our company.Please feel free to contact us if you need information on road conditions
or directions.
Q7 : How about the delivery time?
3-5 days for sample order;15-25 days for bulk order.
Q8:What is the supply capacity of your factory?
The monthly output of inverters is over 10,000 units.
Monthly output of water pumps is more than 8,000 units.
For regular orders, we can deliver to you in 5-24 days.
Q9: How can I trust you ?
We are a certified high-tech enterprise in China and an Alibaba certified factory.
We have got ISO certificate and are a China Honest Management Enterprise.
There are more than 250 people in our factory and more than 100 registered trademarks, patents and technology patents.
