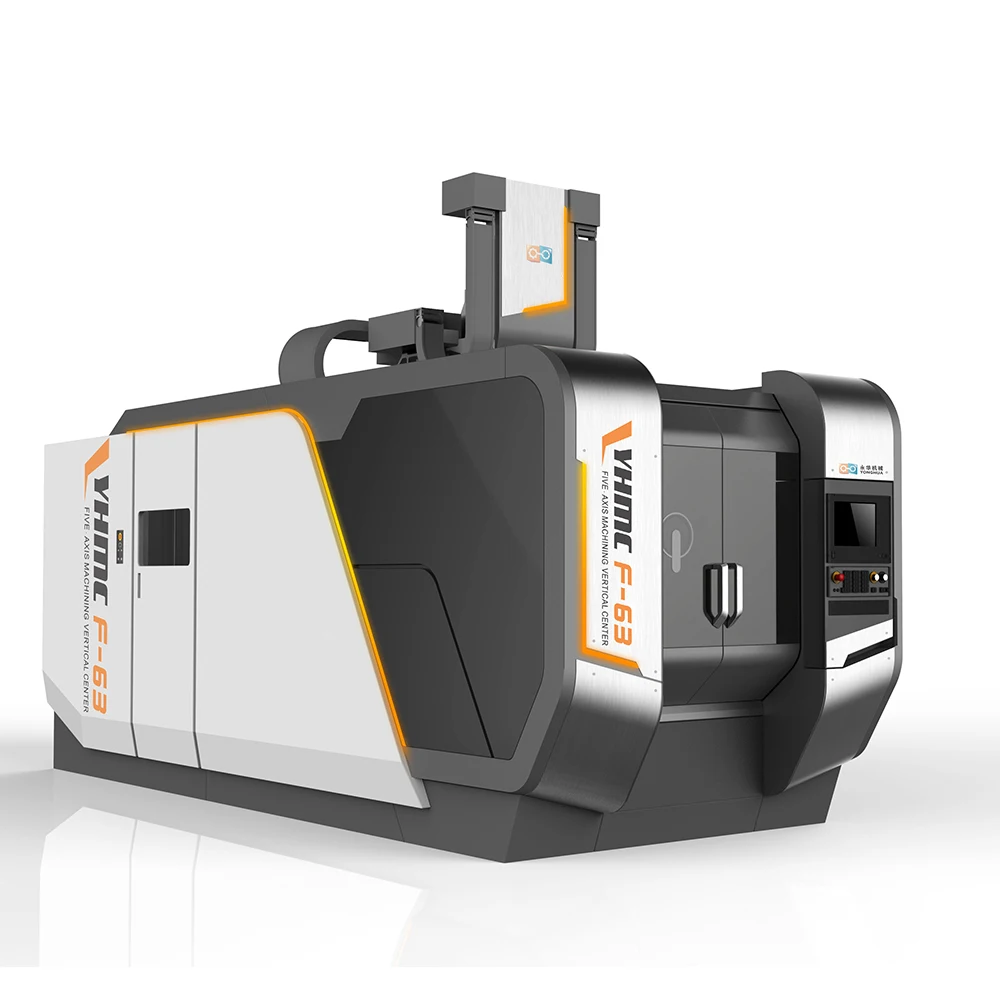

flexible motorized spindle cnc machining center 5 axis
- Category: >>>
- Supplier: Jinan Deed Precision Machine Tool Co. ltd.
Share on (1600424306735):
Product Overview
Description
Product Description
| Control System | SIMENS 840DSL |
| TRAVEL | |
| X-axis travel | 800 mm |
| Y-axis travel | 800 mm |
| Z-axis travel | 600 mm |
| A-axis travel | 135° |
| C-axis travel | 360° |
| SPINDLE | |
| Drive type | Build-in |
| Spindle taper | HSK-A63 |
| Max. Speed | 18000 rpm |
| Spindle Power | 34 kW |
| Spindle Torque | 72/91 N.m |
| TABLE | |
| Size | Φ630 mm |
| T-Slot | 18x5x125 |
| Max load | 800 kg |
| Rapid traverse | 48/48/40 m/min (60 rpm) |
| ACCURACY | |
| Positioning X/Y/Z | 0.008/0.008/0.008mm |
| Repeatability X/Y/Z | 0.004/0.004/0.004mm |
| RepeatabilityA/C | ±5" |
| ATC | |
| Type | ATC-40T |
| Maximum tool size(full/unfull/length) | Φ75/Φ120/ 270 |
| Maximum tool weight | 6 kg |
| OTHERS | |
| Air Pressure | 0.65 Mpa |
| Power Capacity | 100 kVA |
| Machine Weight | 20 T |
| Machine Floor Space (L *W *H) | 6200×2500×3650 mm |
| STANDARD CONFIGURTION: | |
| SIMENS 840DSL | Workpiece air cooling |
| Build-in Spindle | ATC 40T |
| Roller Linear guideway for 3 axes | Water Gun |
| Ball screw for 3 axes | Drag Chain |
| Ball screw bearing for spindle | Manual Pulse Generator |
| Spindle taper air blow | Working lamp |
| Spindle air curtain dust-free | Tri-color Alarm light |
| Spindle ring spray | Ball screw Pre-stretch |
| Flexible cover | Air conditioner |
| Auto lubrication system | CE components |
| Air gun | Linear scale for 3 axes |
| Whole machine cover | Mechanical & electrical manuals |
| Workpiece water cooling | Spindle water chiller |
| Chip conveyor and chip cart | Nitrogen balancing |
| OPTIONAL CONFIGURTION: | |
| Lead Screw Hollow Cooling | HEIDENHAIN |
| Chip Scraper | Automatic Door |
| ATC 60T | Door interlock |
| Coolant through spindle-CTS | Column heightening |
| High volume flushing system | Workpiece measuring |
| Z axis drop preventer | Tool measuring |
Product Application
Exhibition&Customers

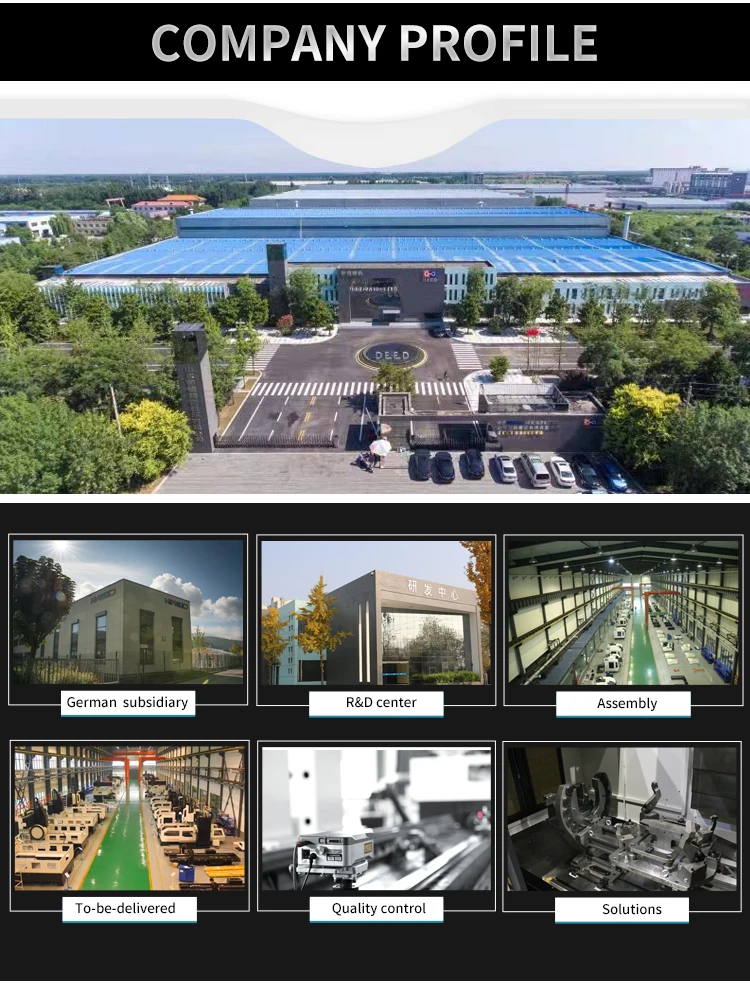

Company Profile
Certifications
Packaging & Shipping

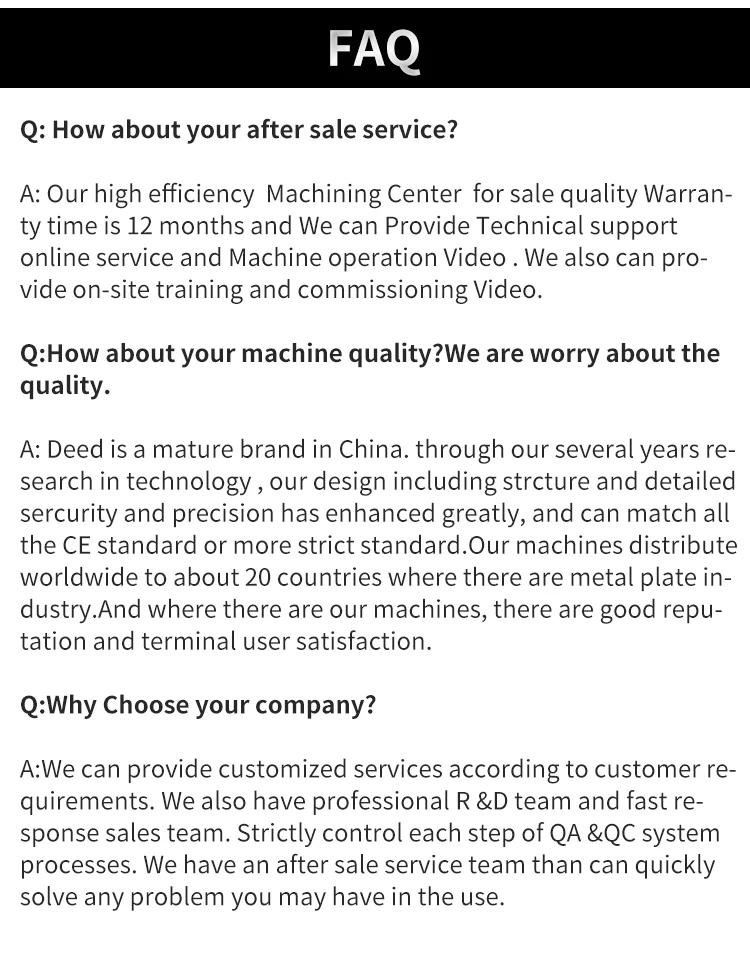

FAQ
