Product Overview

Description



Product Description


1. Application
Temperature transmitter for converting various input signals into
a scalable 4 to 20mA output signal.
2. Input
Resistance thermometer (Pt100,Pt1000,Cu50,Cu100)
Thermocouple (K,N,R,S,B,T,E,J)

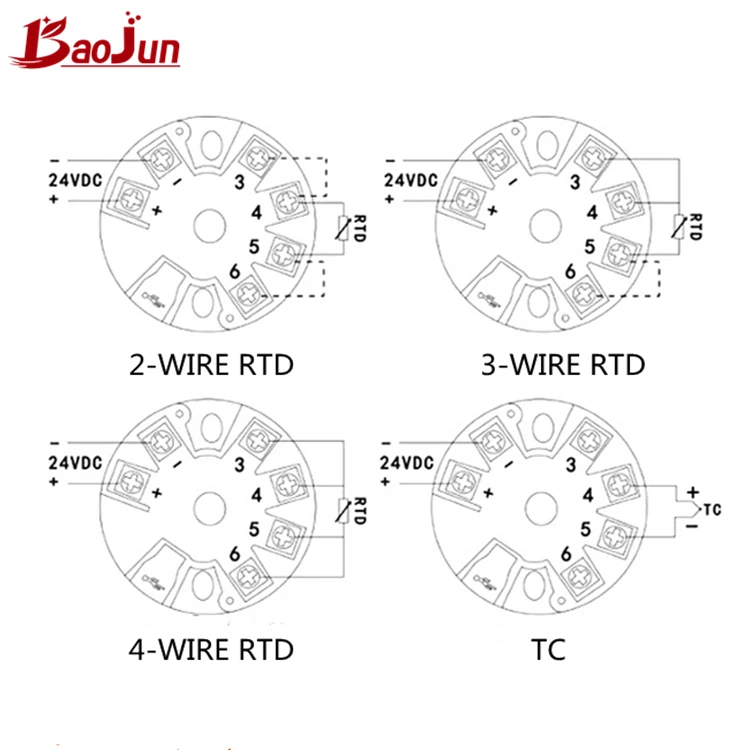

3. Installation
Directly installed to TC and RTD Form B.
Equipped with special card can realize DIN35 guide rail installation.


Technical Data


Input
Measured variable
Temperature
Measurement accuracy
0.2%
Compensation precision
±1°C
Output
Output signal
4~20mA
Signal on alarm
IH = 20.08mA ; IL= 3.92mA
Input Sensor break,output current
20.16mA
Sensor short circuit,output current
3.84mA
Protection
Reverse polarity protection
Essential parameter
Supply voltage
7.5~45V,d.c.
Temperature drift
0.01% F.S./ °C
Damping time
5-45S Reach 99% of the final value
Electromagnetic compatibility
GB/T17626.4-2008(IEC61000-4-4:2004)
Minimum range
50°C
Weight
32g
Rated operating condition - Environment temperature
Storage temperature
-50°C~+105°C
Operating temperature
-40°C~+85°C
Relative humidity
≤85%
Reference operating conditions
23°C

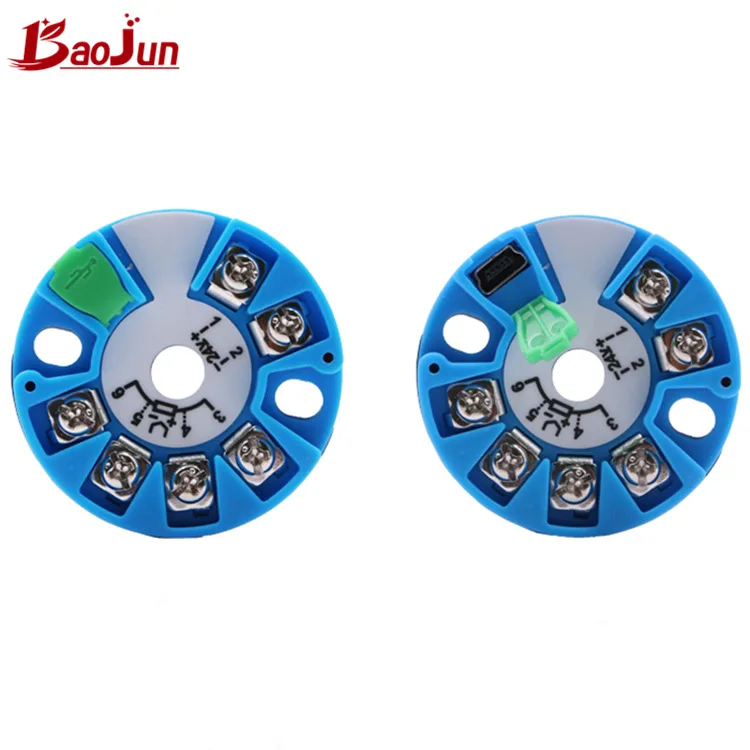

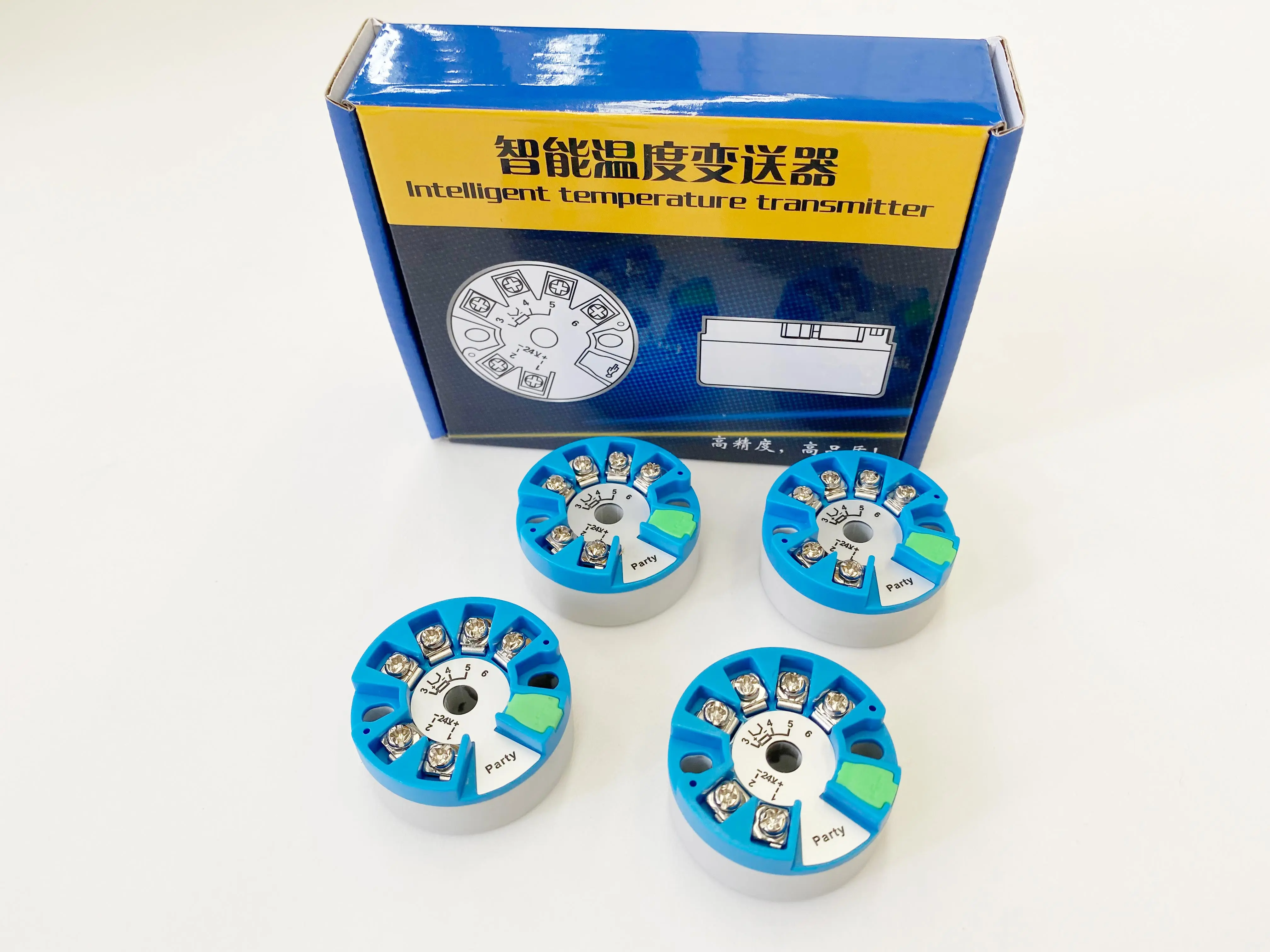

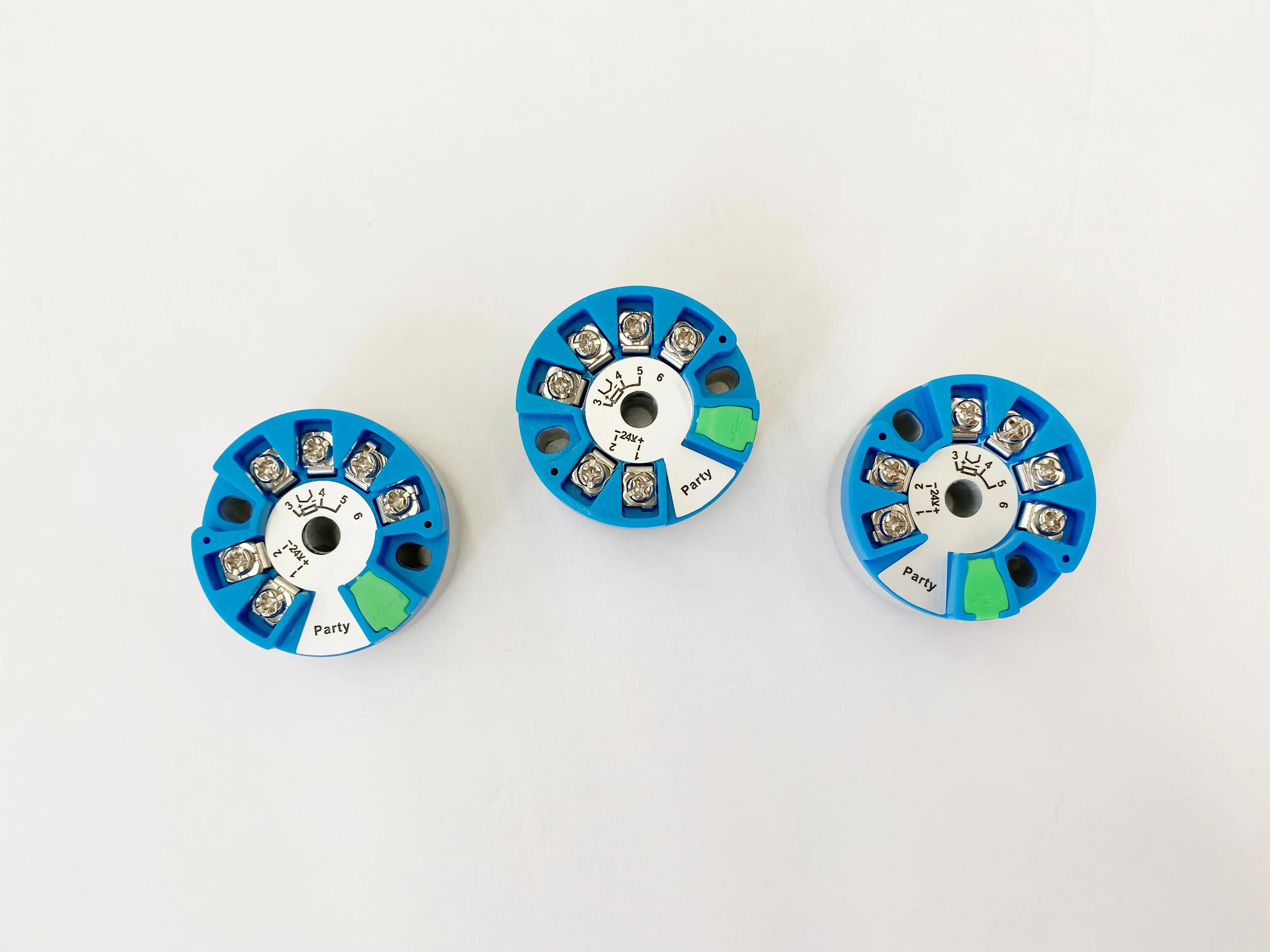

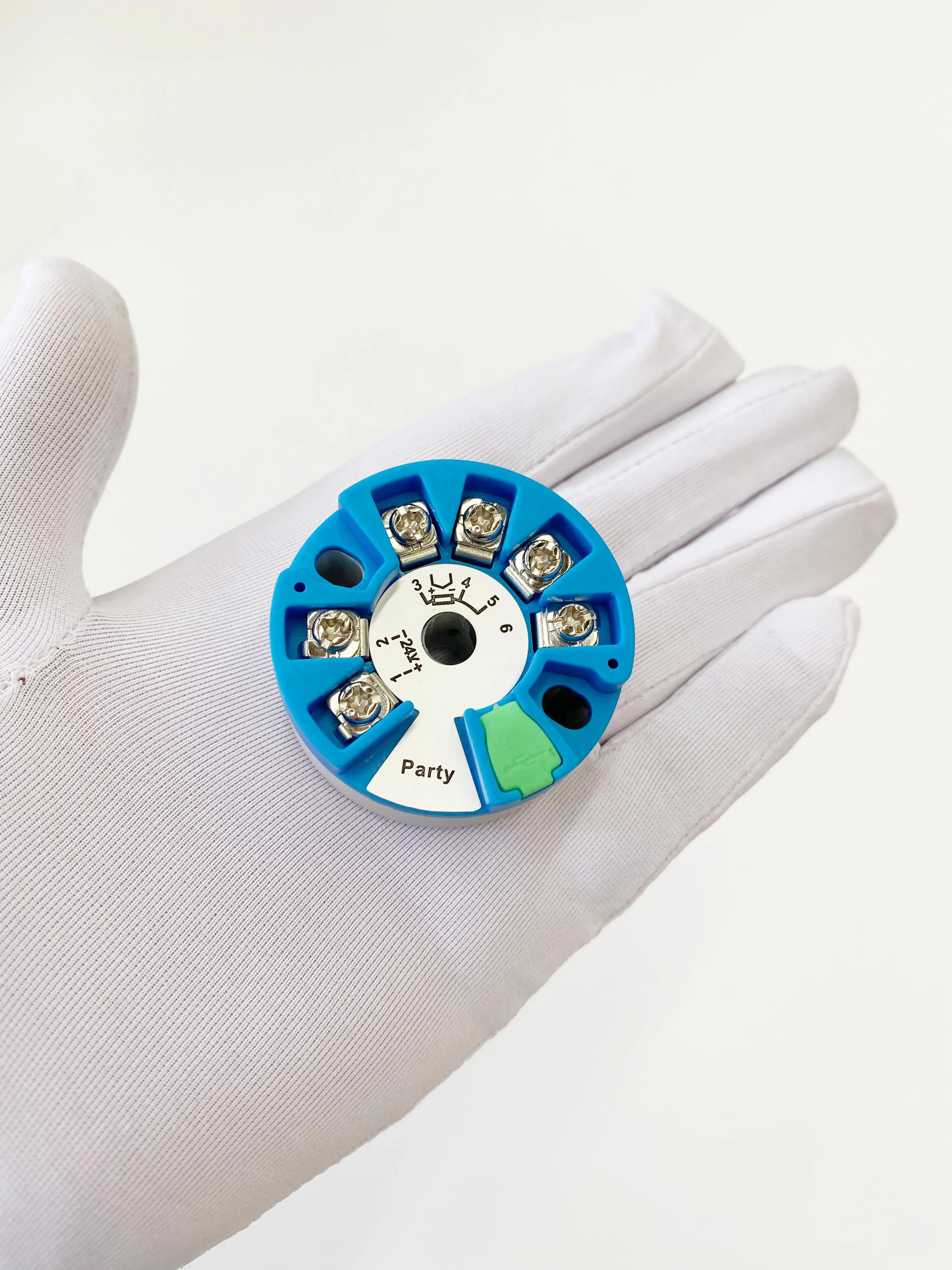

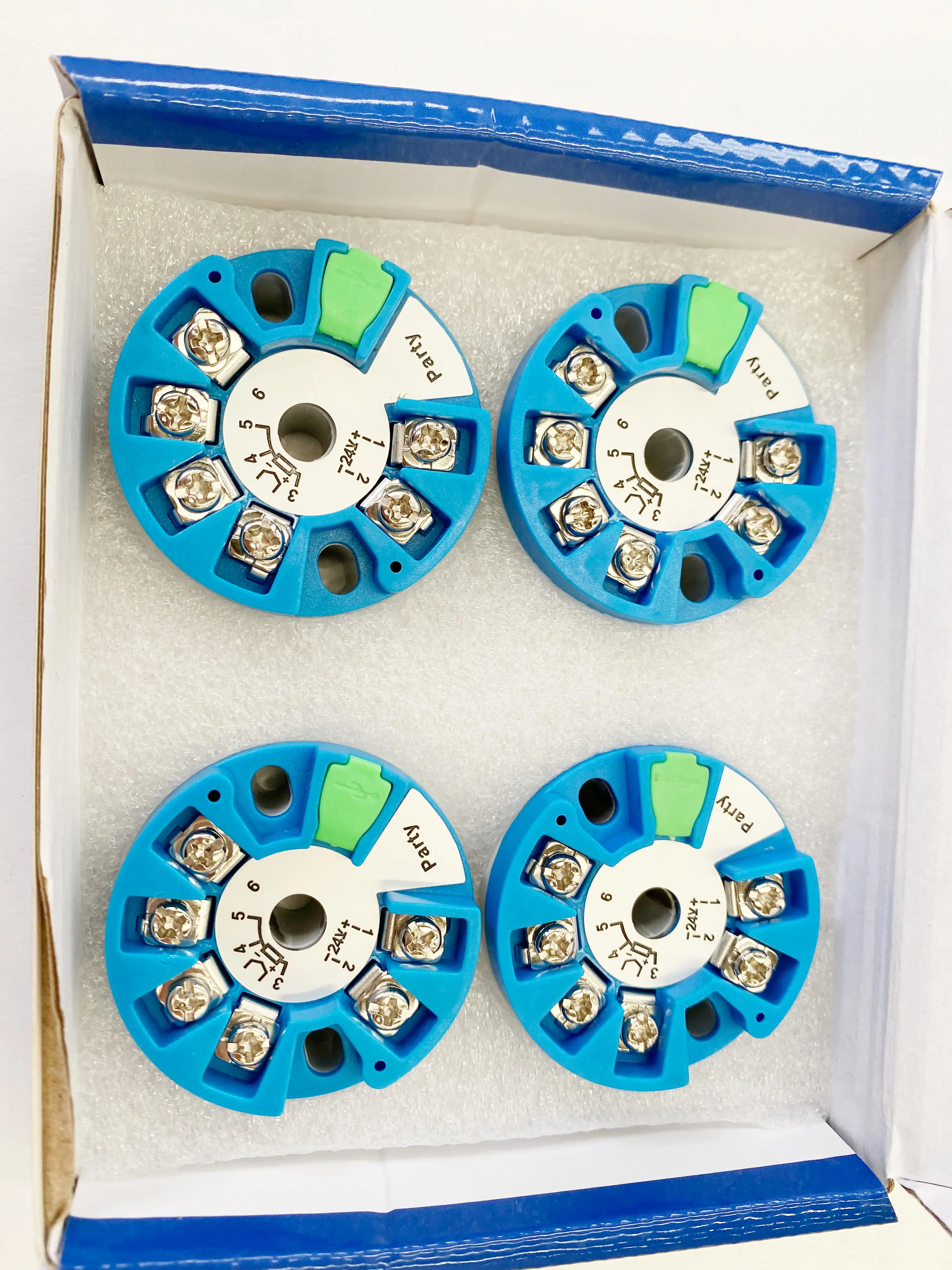

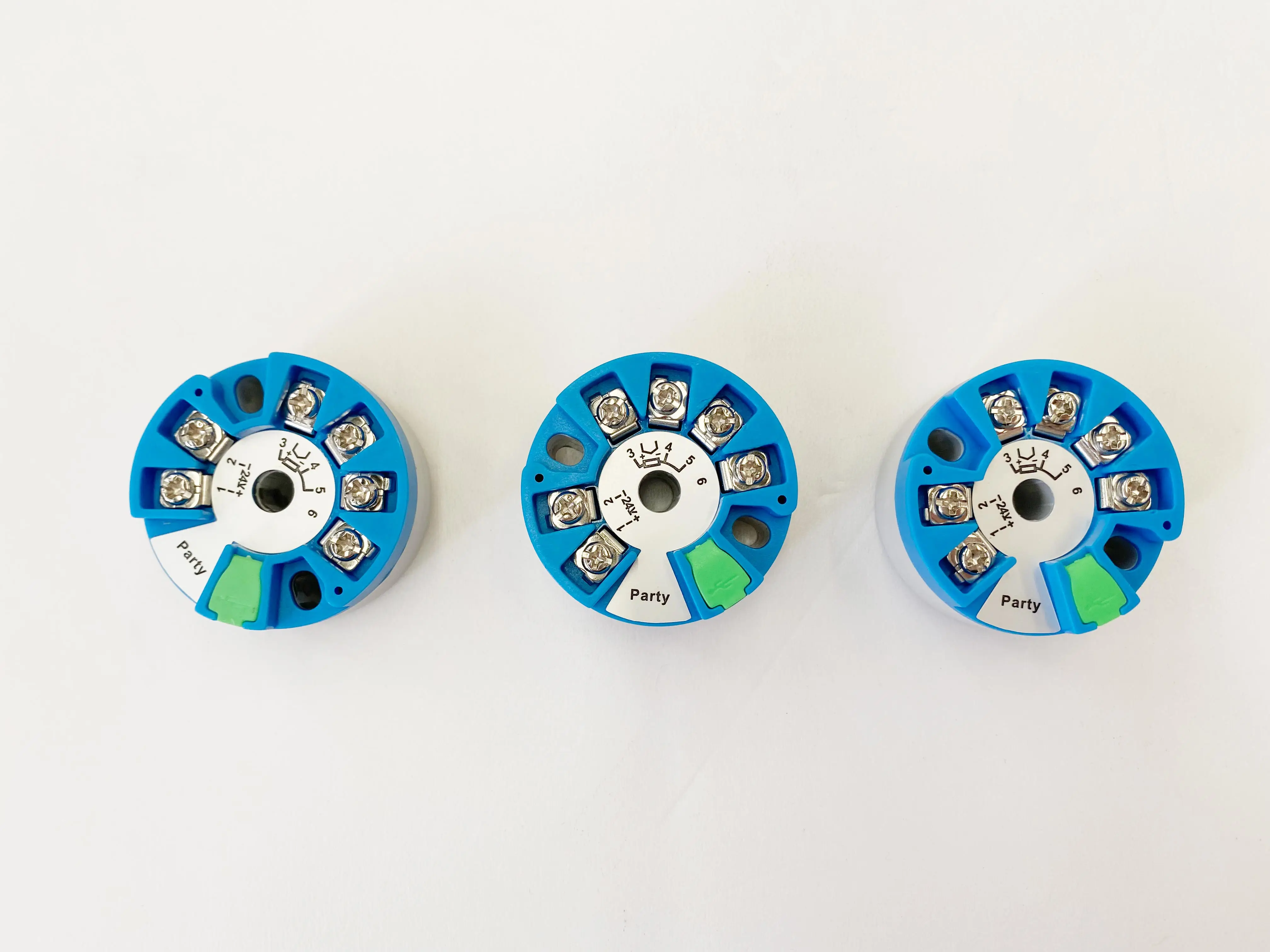

Detailed Images
