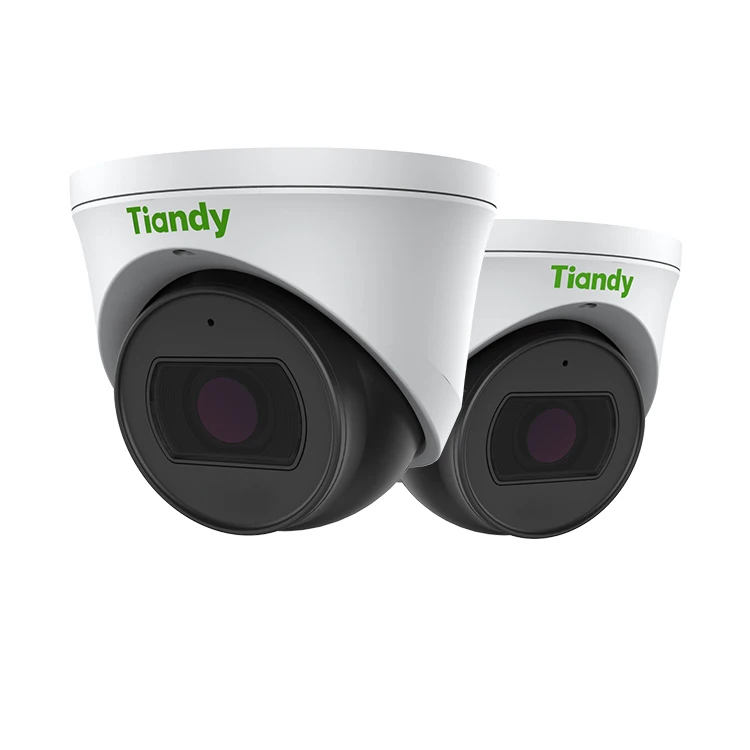

Tiandy 5MP TC C35XS Turret Starlight High Performance Alarm Two Way Audio Poe Fixed 2.8mm Security IP Camera
- Category: >>>
- Supplier: Nanjing Quanxi Electronic Technology Co. Ltd.
Share on (1600424376429):
Product Overview
Description
Tiandy 5MP TC-C35XS Turret Starlight High Performance Alarm Two Way Audio Poe Fixed 2.8mm Security IP Camera
Features
• Default: Metal+Plastic, M: Metal Housing
• Up to 2592x1520@25fps
• S+265/H.265/H.264
• Min. illumination Color: 0.002Lux@F1.6
• 120dB WDR
• Smart IR, IR Range: 30m
• Support tripwire and perimeter
• Built-in Mic, SD Card Solt, Reset Button
• Built-in Mic, SD Card Solt, Reset Button
• Operating Conditions -35°~65°, 0~95% RH
• POE, IP67
Image enhancement
Product Parameters
Camera | ||
Image Sensor | 1/2.8" CMOS | |
Signal System | PAL/NTSC | |
Min. Illumination | Color: 0.002Lux@ (F1.6, ACG ON), B/W: 0Lux with IR | |
Shutter Time | 1s to 1/100,000s | |
Day & Night | Dual IR Cut Filter with Auto Switch | |
Wide Dynamic Range | 120dB | |
Angle Adjustment | pan 0~340°, tilt 0~75°, roate 0~360° | |
Lens | ||
Lens Type | Fixed | |
Focus | 2.8mm | |
Lens Mount | M12 | |
Aperture | F1.6, Fixed | |
FOV | Horizontal field of view: 93.8° | |
Illuminator | ||
IR LEDs | 2 | |
IR Range | Up to 30m | |
Wavelength | 850nm | |
White LEDs/Warmlights | N/A | |
Compression Standard | ||
Video Compression | S+265/H.265/H.264 | |
Video Bit Rate | 32Kbps~6Mbps | |
Audio Compression | G.711/G.711U/ADPCM | |
Audio Bit Rate | 8K~48Kbps | |
Image | ||
Max. Resolution | 2592x1520 | |
Main Stream | PAL: 25fps (2592 1520, 2560 1440, 2304 1296, 1920 1080, 1280 720) | |
NTSC: 25fps (2592 1520, 2560 1440), 30fps (2304 1296, 1920 1080, 1280 720) | ||
Sub Stream | PAL: 25fps (704 576, 704 288, 640 360, 352 288) | |
NTSC: 30fps (704 480, 704 240, 640 360, 352 240) | ||
Third Stream | N/A | |
Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser | |
Image Enhancement | BLC/3D DNR/HLC | |
ROI | N/A | |
OSD | 16 16, 32 32, 48 48, 64 64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions | |
Picture Overlay | N/A | |
Privace Mask | Yes, 4 regions | |
Smart Defog | Yes | |
Feature | ||
Alarm Trigger | Motion Detection, Mask Alarm, IP Address Conflict | |
Video Analytics | Tripwire, Perimeter | |
Early Warning(EW) | N/A | |
Network | ||
ANR | Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) | |
Protocols | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet | |
System Compatibility | ONVIF (PROFILE S/T/G), SDK, CGI (IE), P2P(Mutually exclusive with Profile G) | |
Remote Connection | 7 | |
Client | Easy7, EasyLive | |
Web Version | Web5 | |
Interface | ||
Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port | |
Audio I/O | Mic in | |
Alarm I/O | N/A | |
Reset Button | Yes | |
On-board storage | Built-in MicroSD card slot, up to 512 GB | |
General | ||
Firmware Version | - | |
Web Client Language | 16 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Farsi, Arabic, Vietnamese | |
Operating Conditions | -35 ～ 65°C , 0～ 95% RH | |
Power Supply | DC 12V±25%, PoE (802.3af) | |
Power Consumption | MAX: 6W (12V) MAX: 7W (PoE) | |
Protection | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 | |
Heater | N/A | |
Dimensions | 116.6*83.7mm ( 4.59*3.30inch) | |
Weight | Metal+Plastic: 0.34Kg (0.75lb) Metal: 0.47Kg (1.04lb) | |
