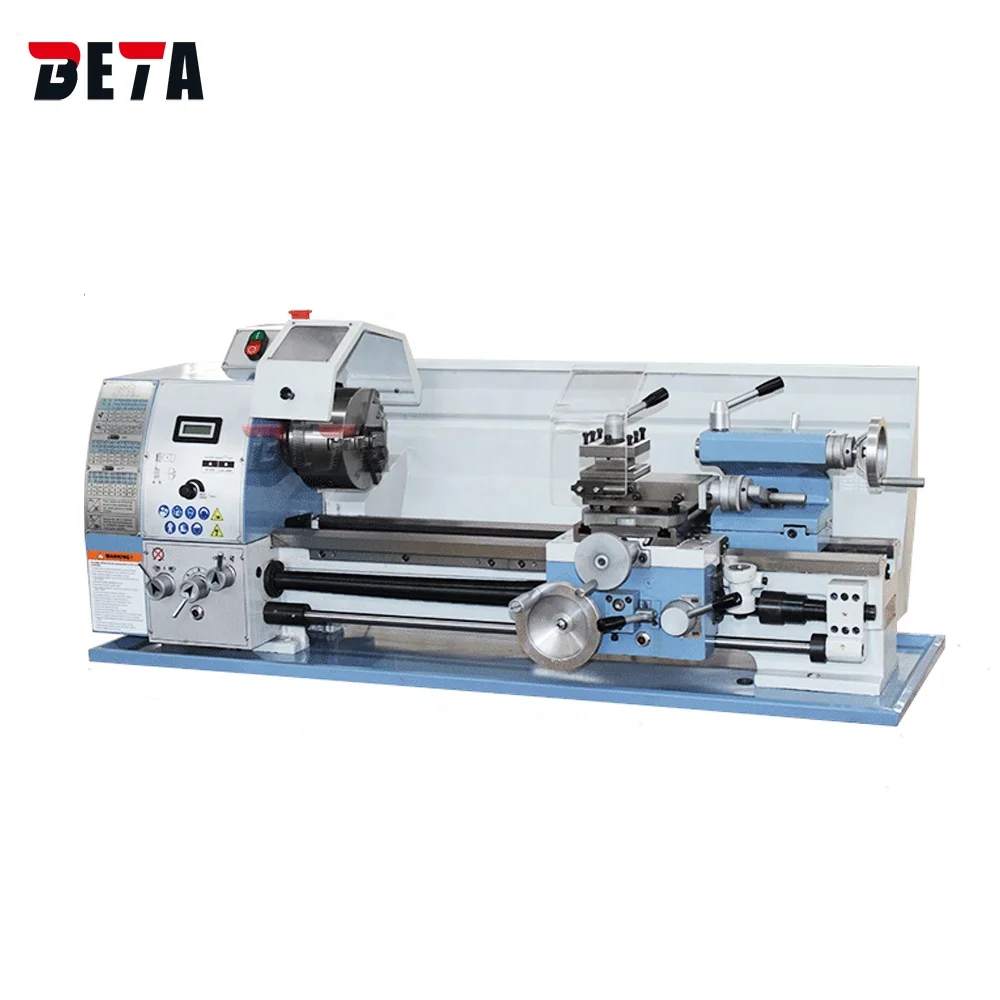

JY290VF Small manual lathe metal machine High accuracy manual lathe price
- Category: >>>
- Supplier: Tengzhou Beta Co. Ltd.
Share on (1600424382677):
Product Overview
Description
Products Description
JY290VF Small manual lathe metal machine High accuracy manual lathe price
Product Parameters
Model | JY290VF |
Distance between centers | 700mm |
Swing over bed | 280mm |
Swing over cross slide | 165mm |
Spindle bore | 38mm |
Number of spindle speeds | variable speed |
Range of spindle speeds | 50-1800rpm |
Range of inch threads | 8-56 I/n” 21kinds |
Range of metric threads | 0.2 -3.5mm 18kinds |
Top slide travel | 60mm |
Cross slide travel | 165mm |
Tailstock quill travel | 80mm |
Taper of tailstock quill | MT3 |
Motor | 1.1kw Brushless Motor |
Packing size | 1400*700*680mm |
Net /Gross weight | 208kg/245kg |
Details Images

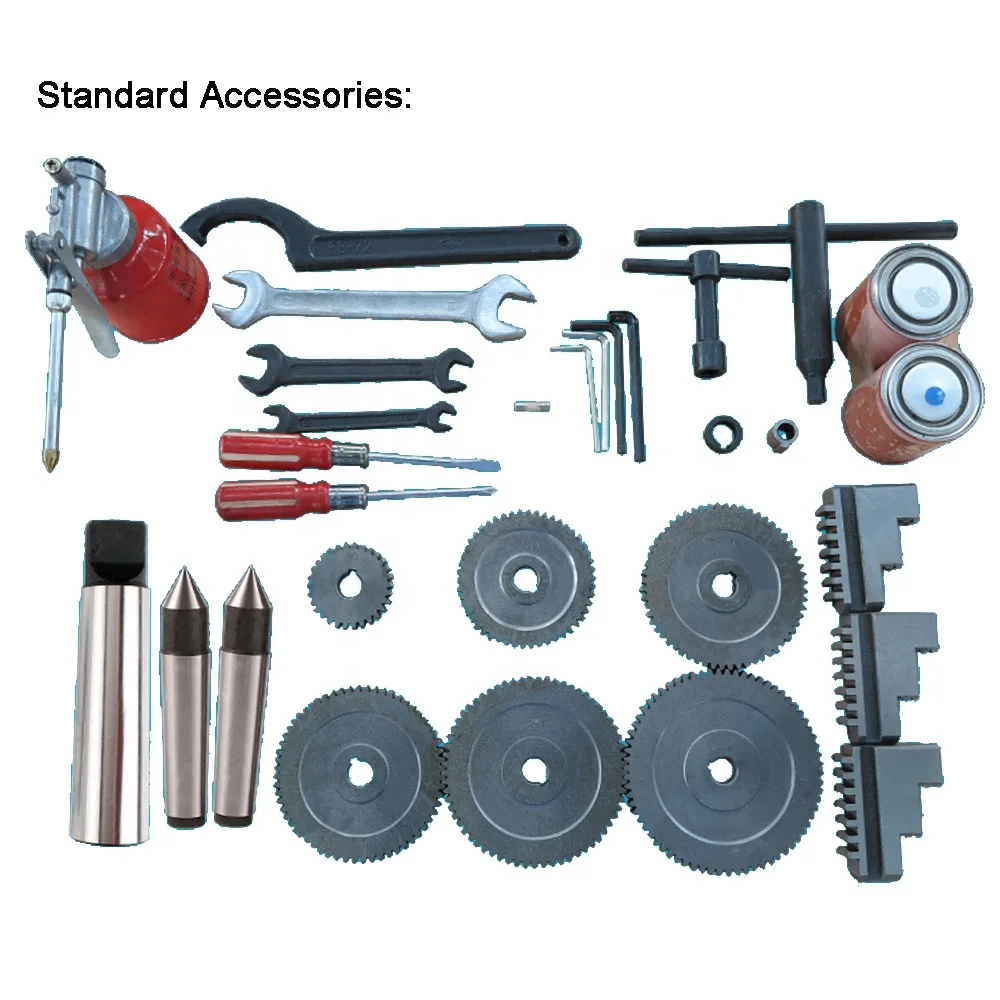

Standard accessories:
depth display,
rpm speed display,
tailstock,
3-jaw chuck,
change gears,
oil gun,
leadscrew cover,
toolpost cover,
wrenches & tool box
rpm speed display,
tailstock,
3-jaw chuck,
change gears,
oil gun,
leadscrew cover,
toolpost cover,
wrenches & tool box
Optional accessories:
Coolant system
Work light
3-axis SINO digital readout
Europe quick change toolpost
steady rest
follow rest
live center
face plate
4-jaw chuck
drill chuck
drill bit
turning tools
milling collet
Work light
3-axis SINO digital readout
Europe quick change toolpost
steady rest
follow rest
live center
face plate
4-jaw chuck
drill chuck
drill bit
turning tools
milling collet
Toolpost cover

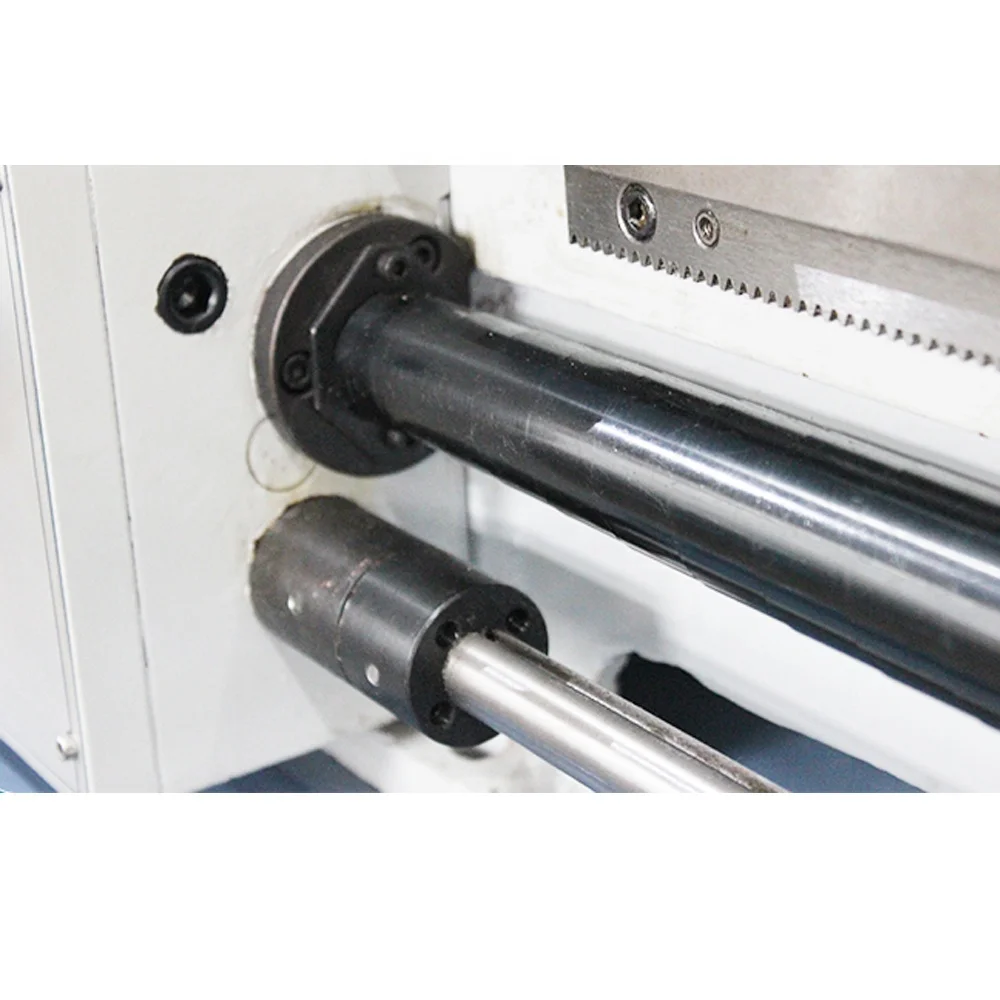

Leadscrew cover

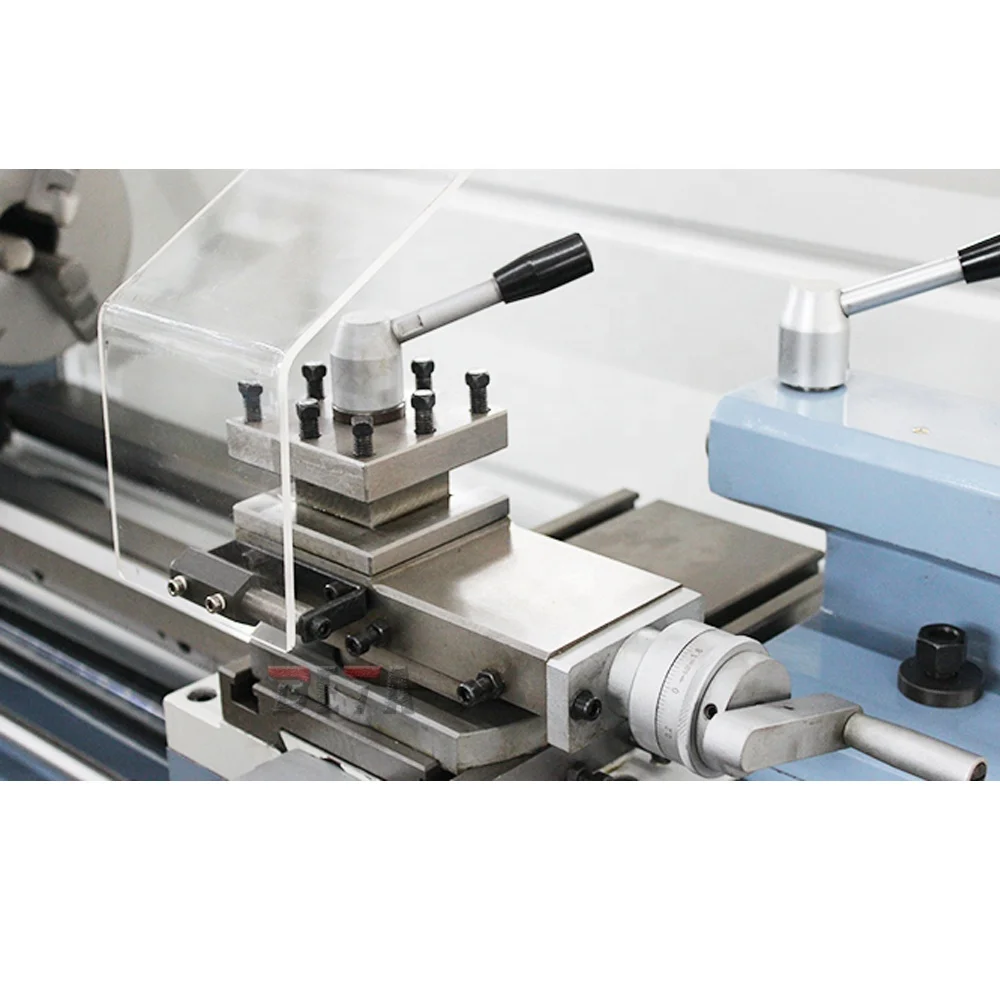

4-position tool post
Rpm speed display
Gears feeding box controller by three handles
Change gears
