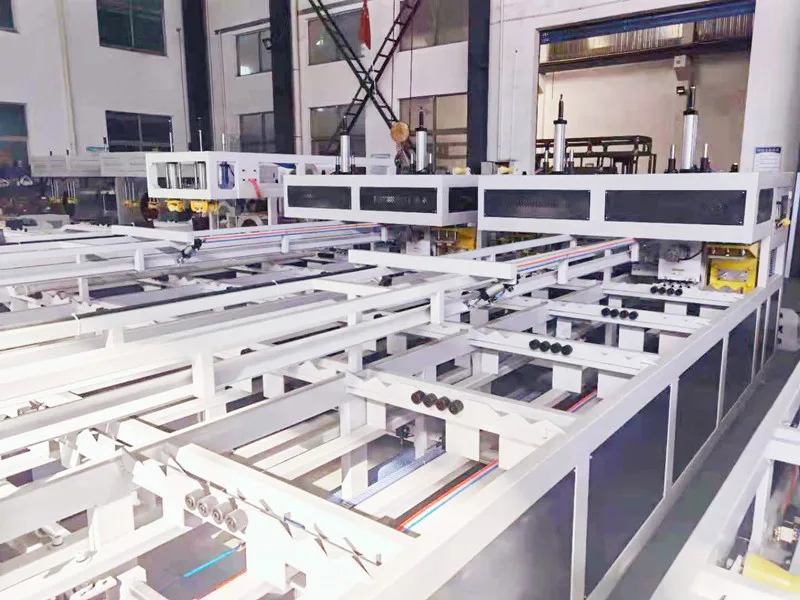

Plastic pipe winding machine PE Pipe Double Winder pipe production extrusion line

Product Overview

Description

Product name: Plastic pipe winding machine



Features and application:

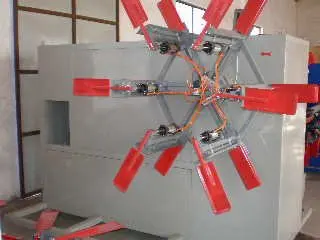

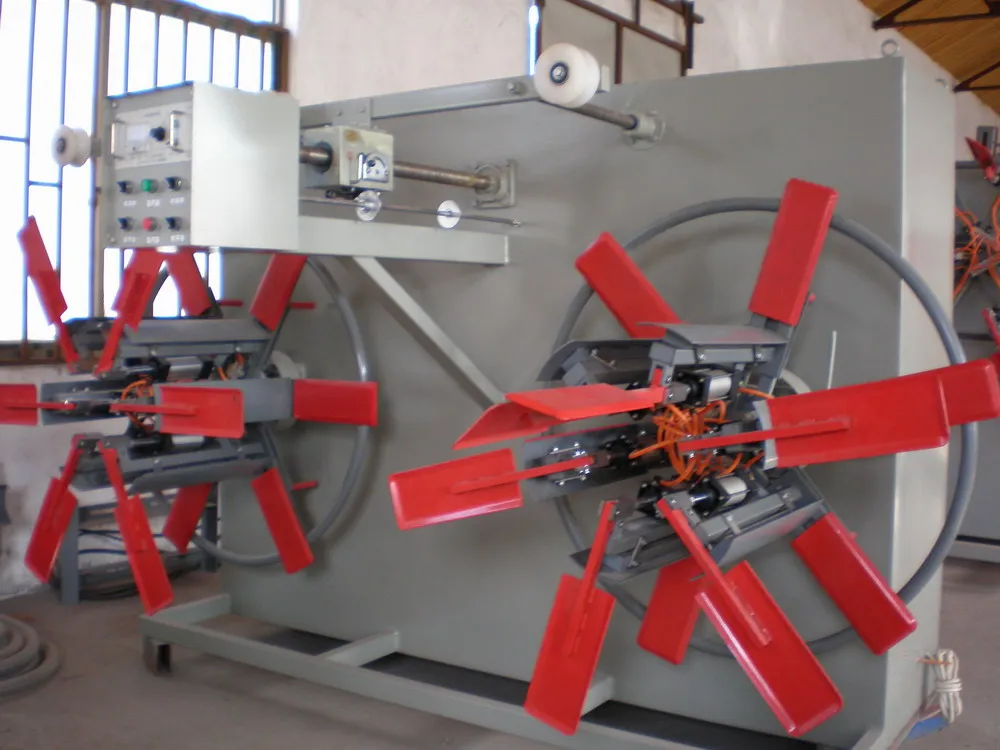

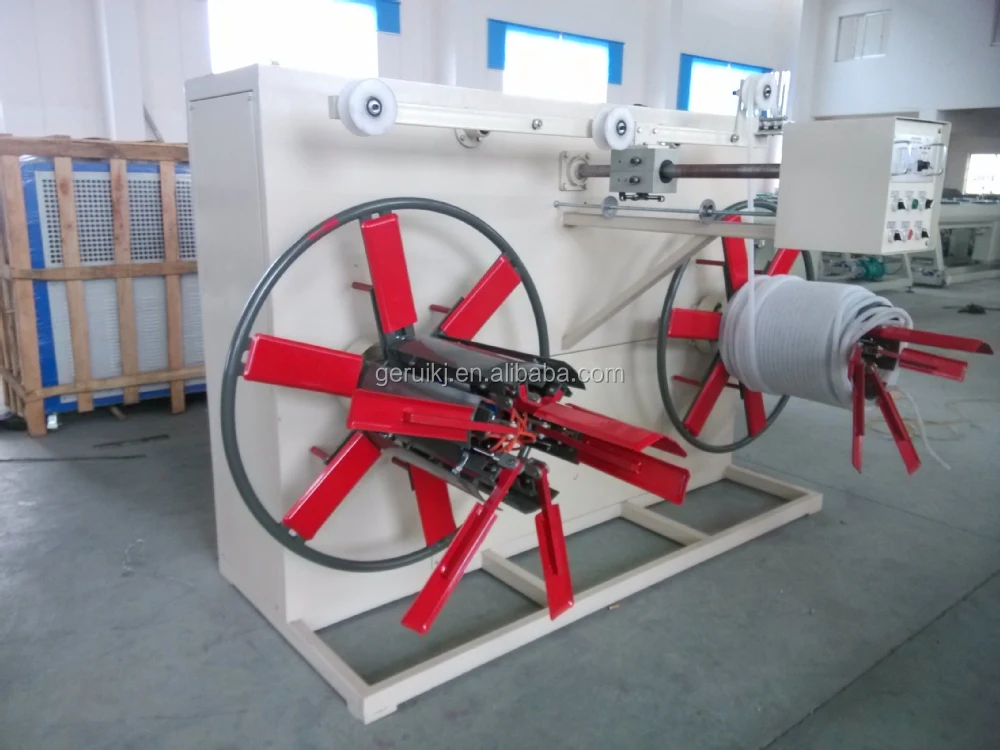

The machine is mainly used in winding—up and packing of aluminium—plastic compound pipe,cross—linking compound pipe and other plastic soft pipes. It adopts automatically winding. Adjusting winding speed and winding method.It has two disk for continuous winding. It adopts air—operated method. The wheel rib of the winding up wheel adopts air—operated opening and closing.It is equiped with a ray creel stand to automatically wind displacement. It reaches winding up orderly. The machine structure is compact.Its automatication is high,Its appearance is beautiful and its operation is convenient.



Model	1200 twin-plate pipe	1600 twin-plate pipe	3000 single-plate pipe
Inner diameter	500-1000mm	550-1000mm	1000-3000mm
Winding speed	0.5-30m/min	0.5-30m/min	0.5-15m/min
Winding width	300-500mm	300-500mm	200-500mm
Winding pipe spec	16-32mm	16-63mm	63-110mm
Air pressure	0.6mpa	0.6mpa	0.6mpa
Moment motor power	10N.M	10N.M&16N.M	30N.M
Dimension	2700×1700×1800	3000×2800×2000	3500×2000×3500
Weight	1000kg	1500kg	3000kg
