Navan Full Automatic 10L Water Plastic Bottle Washing Filling Capping Machine
- Category: >>>
- Supplier: Zhangjiagang Navan Industrial Co. Ltd.
Share on (1600424448327):
Product Overview
Description
Product Paramenters
Model | CGFL4-4-1 (linear type) | CGFL8-8-1 (linear type) | CGFL12-12-1 (linear type) | CGF12-12-4R (rotary type) | CGF16-16-4R (rotary type) | CGF20-20-6R (rotary type) | |||||
Productiona capacity(bottle/hour) | 600-800 | 1200-1500 | 1800-2000 | 3000-3500 | 4000-4500 | 5000-6000 | |||||
Suitable bottle diameter(mm) | Φ=100-200 H=170-380(5000-10000ml) | ||||||||||
Spraying pressure（kg/cm²） | 2-3 | ||||||||||
Motor power/Maiin motor(kw) | 3.0 | 3.0 | 3.7 | 5.0 | 6.5 | 9.0 | |||||
Overall dimension(L×W×H）(mm) | 4200×1400×2500 | 6100×1400×2500 | 8800×1400× 2500 | 3100×2100× 2550 | 3800×2300× 2800 | 4500×2800× 2900 | |||||
Weight（kg） | 2500 | 3500 | 4500 | 4800 | 5500 | 7500 | |||||
Products Description

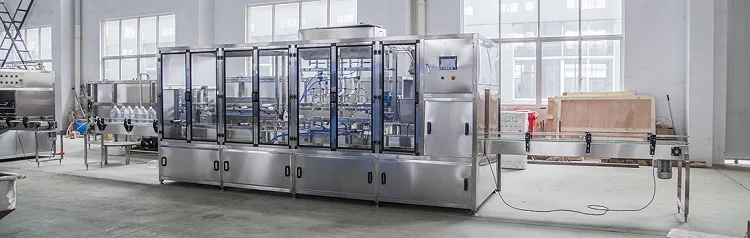

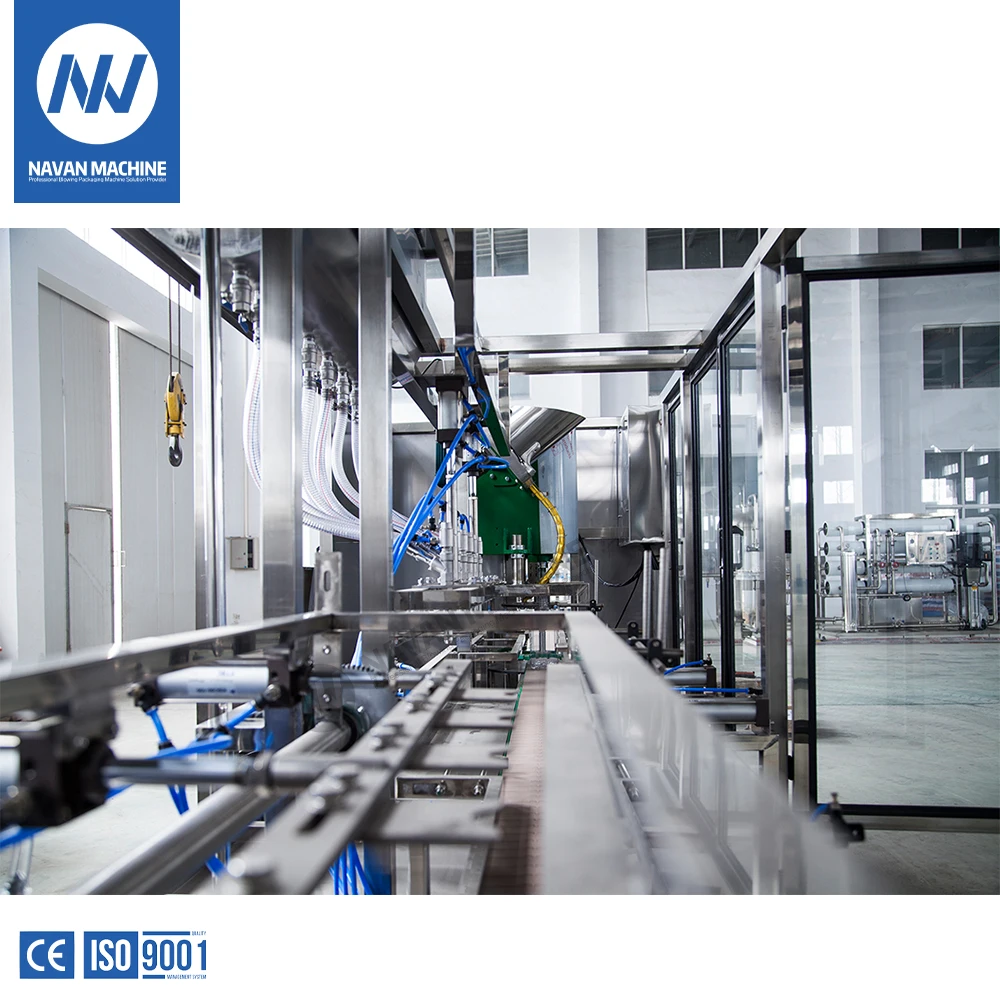

NAVAN Automatic Linear Model 3L-10L Water Bottle Rinsing Filling Capping Machine
Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimisation. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.

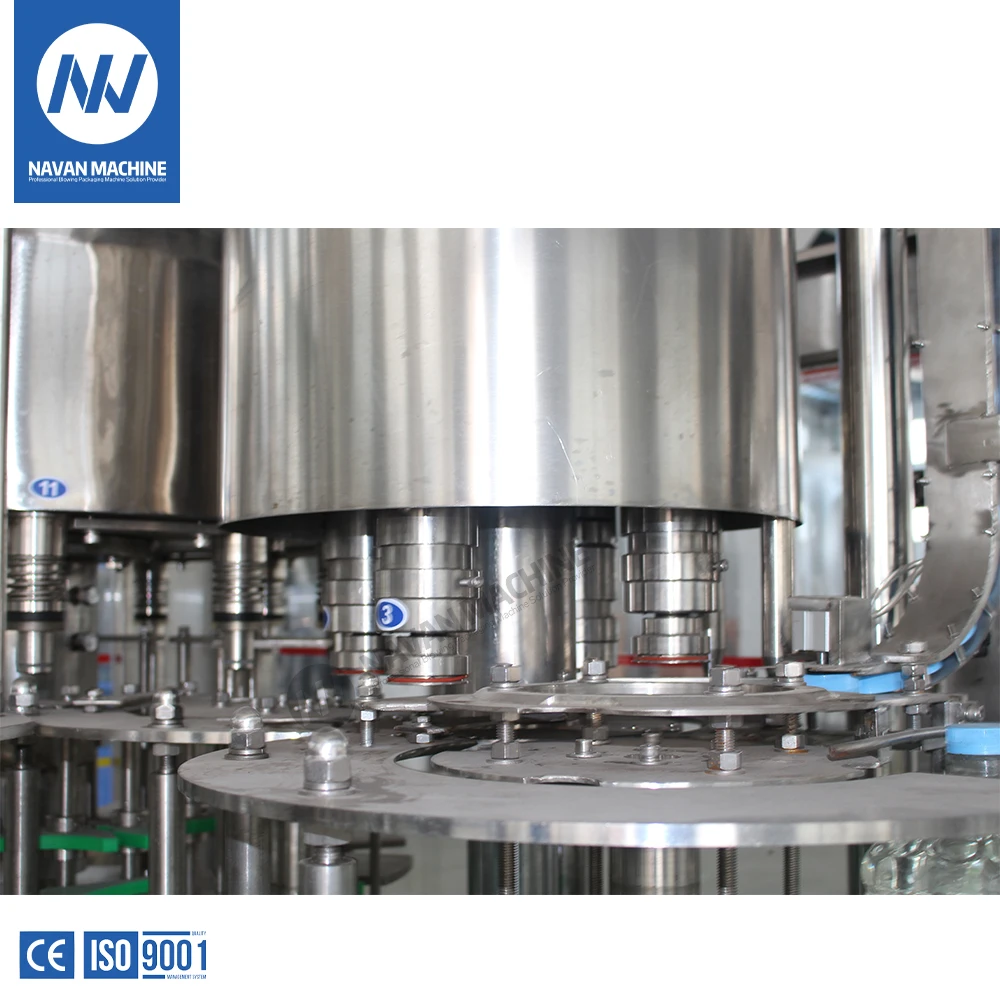

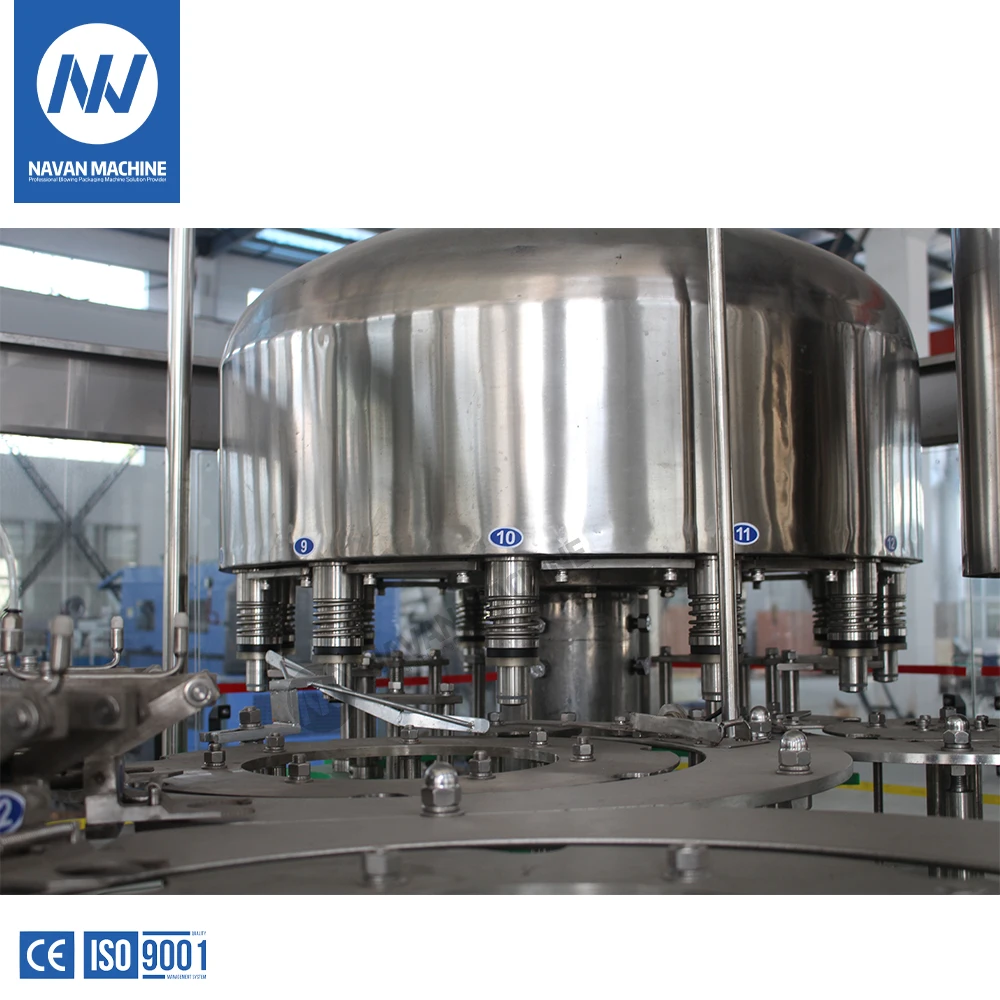

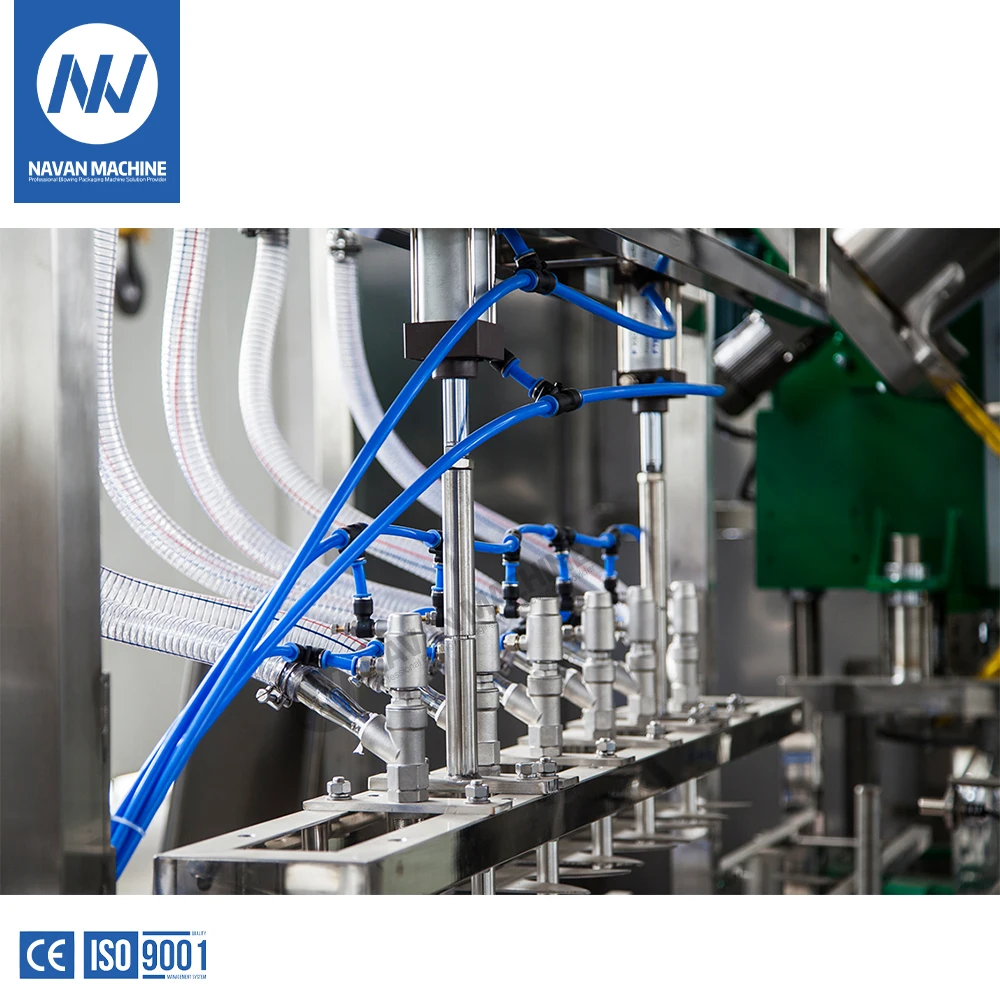

Bottle Filler
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing

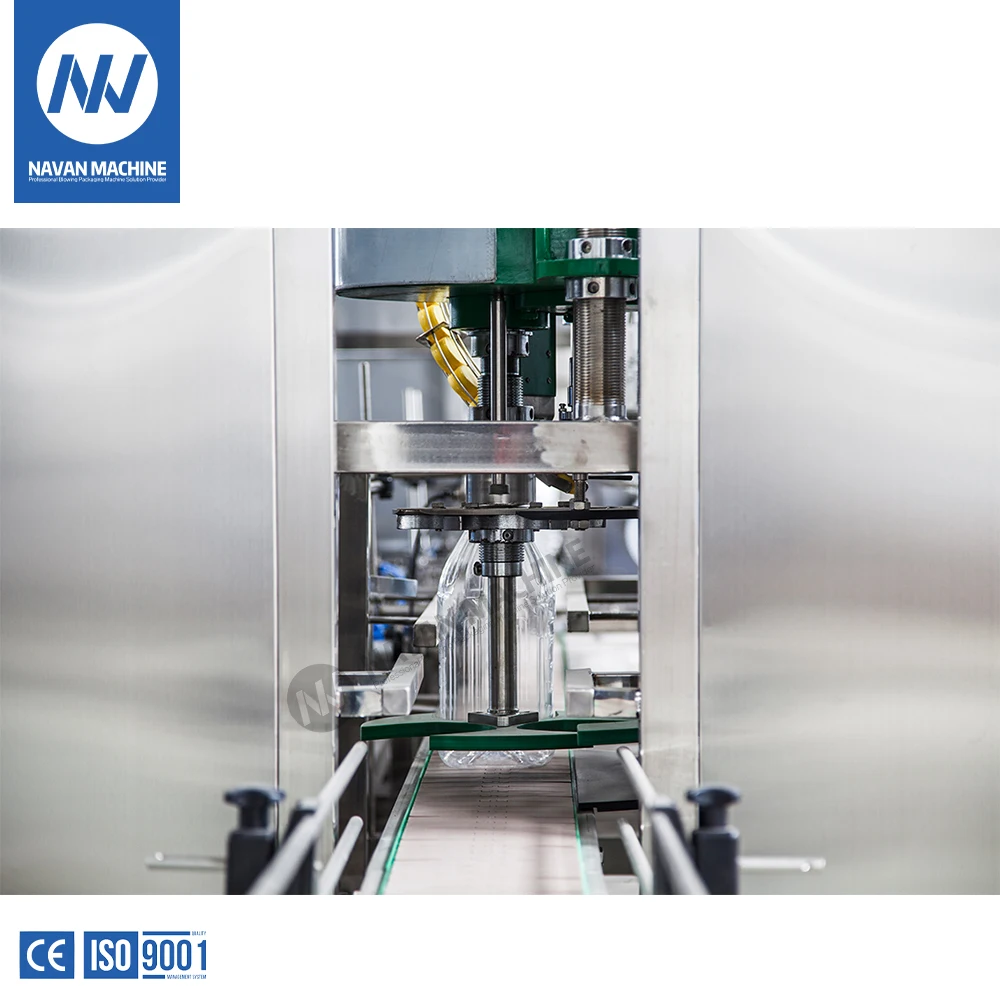

Bottle Capper
The Capper consists of an internal steel structure with stainless steel casing. Fixed components include the cap hopper, cap feeder and cam actuating capping heads. The cap feeder and all contact parts are made of stainless steel or food grade plastic.
The cap feeder guides the caps onto a chute for pick-up. A rotative capping turret with magnetic chuck heads applies plastic screw caps on PET bottles.
The cap feeder guides the caps onto a chute for pick-up. A rotative capping turret with magnetic chuck heads applies plastic screw caps on PET bottles.
Core Devices Brands
Recommend Products
Bottle Blowing Machine
Water Treatment System
Water Filling Machine
Bottle Labeling Machine
Bottle Packing Machine
Beverage Solution
Why Choose Us
·Navan machines are utilized in large and small companies all around the world since 1990s.
·Customized service,Navan machines can design the machines according your requirements.
·Navan machines provide complete full produciton line from A to Z.
·Customized service,Navan machines can design the machines according your requirements.
·Navan machines provide complete full produciton line from A to Z.
