Hot selling product solar power inverter 3000w pure sine wave power inverter manufacturer
- Category: >>>
- Supplier: Foshan Panpower Science&technology Co. Ltd.
Share on (1600424463147):
Product Overview
Description
WS Series Low Frequency Inverter
Main Features：
* Type: Low frequency with transformer;
* Power: 1KW~7KW;
* DC voltage: 12V/24V/36V/48V;
* AC output voltage: 110V/120V/220V/230V/240V;
* Frequency: 50/60Hz auto;
* Pure sine wave & AVR output;
* Selectable charging current based on applications；
* Configurable AC/Solar input priority via LCD setting;
* Compatible to mains voltage or generator power;
* Can with communicationRS232/USB/SNMP/Wifi；
* Smart battery charger design to optimize batteryperformance;
* Stable performance, safe and reliable, long service life.
* Type: Low frequency with transformer;
* Power: 1KW~7KW;
* DC voltage: 12V/24V/36V/48V;
* AC output voltage: 110V/120V/220V/230V/240V;
* Frequency: 50/60Hz auto;
* Pure sine wave & AVR output;
* Selectable charging current based on applications；
* Configurable AC/Solar input priority via LCD setting;
* Compatible to mains voltage or generator power;
* Can with communicationRS232/USB/SNMP/Wifi；
* Smart battery charger design to optimize batteryperformance;
* Stable performance, safe and reliable, long service life.

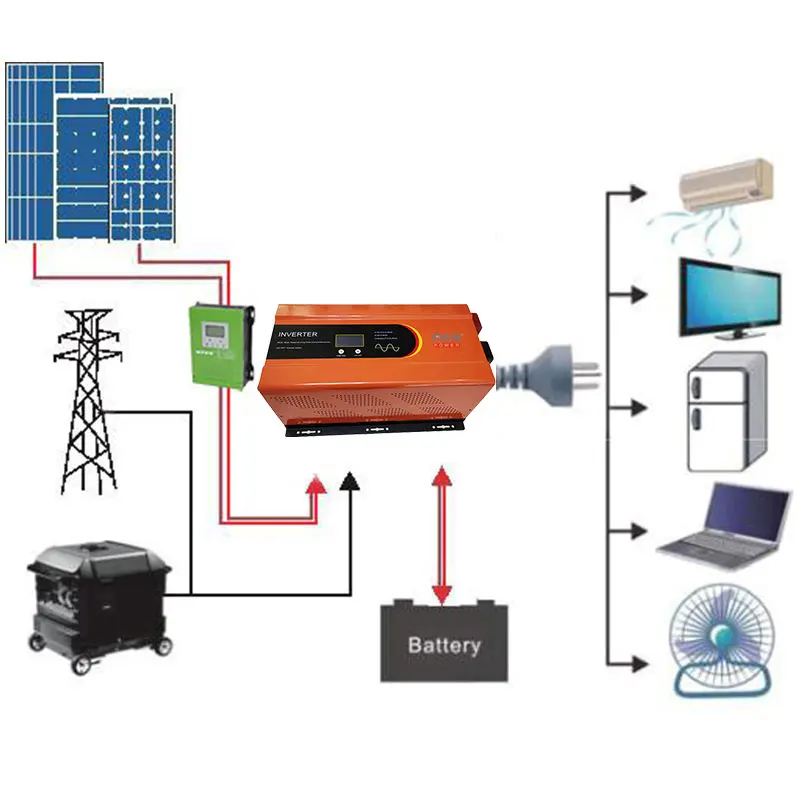

Off Grid System Diagram:
Product Description
①LCD display screen ②ON/OFF button ③Function button(mute button)
Product Paramenters
Model | WS1K | WS1.5K | WS2K | WS3K | WS4K | WS5K | WS6K | WS7K | ||||||||
Rated power | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | 7KW | ||||||||
Surge power | 3KW | 4.5KW | 6KW | 9KW | 12KW | 15KW | 18KW | 21KW | ||||||||
AC Input & Output | ||||||||||||||||
Voltage | 220VAC | |||||||||||||||
Selectable Voltage Range | 165-275VAC (220VAC) | |||||||||||||||
Frequency Range | 50Hz/60Hz automatic recognition | |||||||||||||||
AC Voltage Regulation | 220vac±3% (DC Batt. mode) | |||||||||||||||
Transfer Time | ≤4ms | |||||||||||||||
Wave Form | Pure Sine Wave | |||||||||||||||
Transformer type | Toroidal | Strip | ||||||||||||||
Transfer efficiency | ≥90%（full load） | |||||||||||||||
Battery | ||||||||||||||||
Battery Voltage | 12V/24V | 12V/24V/48V | 48V | |||||||||||||
Type | Gel/SLA/AGM/Water/Lithium(lifepo4) Battery | |||||||||||||||
DC Charge Voltage | 12~16VDC (12V)/20~32VDC (24V)/40~64VDC (48V) | |||||||||||||||
Overcharge Protection | Battery voltage ≧16VDC (12V) ≧32VDC (24V) ≧64VDC (48V) | |||||||||||||||
Ac Charger（optional） | ||||||||||||||||
AC Charge Current | 1A~35A(adjustable) | |||||||||||||||
Working mode | ||||||||||||||||
01 mode | AC mains priority mode（ups） | |||||||||||||||
02 mode | ECO mode（ups） | |||||||||||||||
03 mode | DC battery priority mode（solar inverter） | |||||||||||||||
Communication Port(optional) | ||||||||||||||||
Type | USB/RS232/ RS485/SNMP/Wifi | |||||||||||||||
Physical | ||||||||||||||||
Dimension, D*W*H(MM) | 460*235*200 | 580*335*200 | ||||||||||||||
Company Profile
Foshan Panpower Science & Technology Co.,Ltd is the earliest manufacturer in China,producing power supply products. We have independent intellectual property and strong design and development capability. Our products include UPS power, kinds of inverter, EPS, voltage stabilizer, maintenance-free sealed lead acid battery. Our products are applied to many industries, such as aviation, railway, bank, security, electric power, road, national defense, insurance,electrical power and others. The customs, hospitals and governments give us a good evaluation due to our competitive price, high quality and complete service.
Certifications
PACKAGE&SHIPPING
Why Choose Us
1. 10 years UPS and Power Inverter export experiences
2. 20 years UPS and Power Inverter manufacturer experiences
3. 11 years of high-level OEM Experience
4. 200,000pcs Monthly Capacity
5. Hi-tech Advanced R&D Team
6. Certifications--Applied with CE, ISO 9001, ISO14001 etc
7. Quality guarantee—warranty.
8. OEM / ODM acceptable
9. 100% QC inspection and testing before shipment
2. 20 years UPS and Power Inverter manufacturer experiences
3. 11 years of high-level OEM Experience
4. 200,000pcs Monthly Capacity
5. Hi-tech Advanced R&D Team
6. Certifications--Applied with CE, ISO 9001, ISO14001 etc
7. Quality guarantee—warranty.
8. OEM / ODM acceptable
9. 100% QC inspection and testing before shipment
FAQ
Q1: Are you a factory?
A1: Yes, we are a factory specialized in inverter field over 20 years, solar controller since 2006 year.
Q2: Are you inverter pure sine wave output?
A2: Yes, all of our inverters are pure sine wave output.
Q3: What kind of output you can do?
A3: Normally, we produce inverter with 110V/120V/220V/230V/240V/380V/400V/415V, 50Hz/60Hz.
If you have special requirements, pls tell us for engineer consulting.
Q4: What appliances your inverters can load?
A4: Can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.
A1: Yes, we are a factory specialized in inverter field over 20 years, solar controller since 2006 year.
Q2: Are you inverter pure sine wave output?
A2: Yes, all of our inverters are pure sine wave output.
Q3: What kind of output you can do?
A3: Normally, we produce inverter with 110V/120V/220V/230V/240V/380V/400V/415V, 50Hz/60Hz.
If you have special requirements, pls tell us for engineer consulting.
Q4: What appliances your inverters can load?
A4: Can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.
