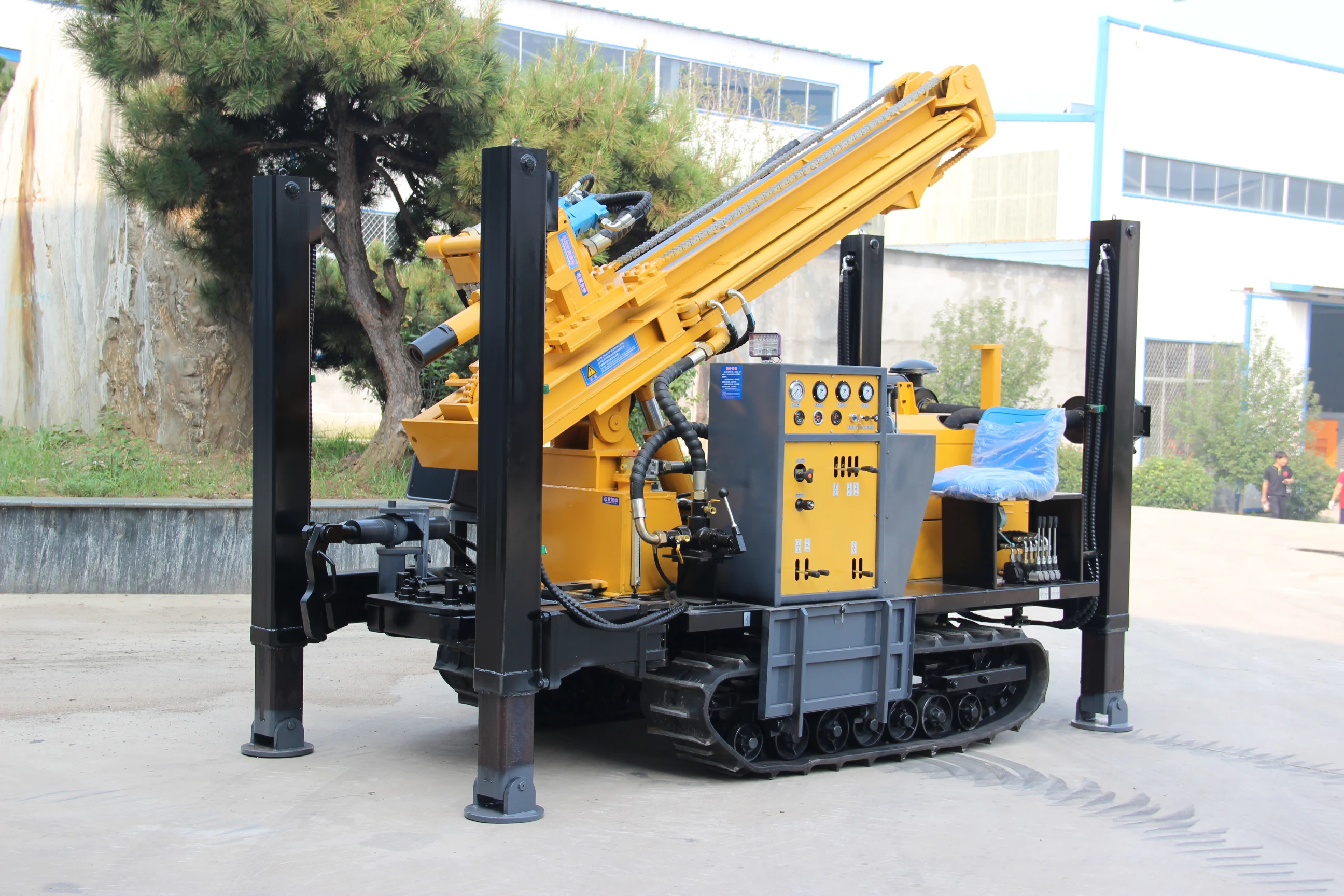

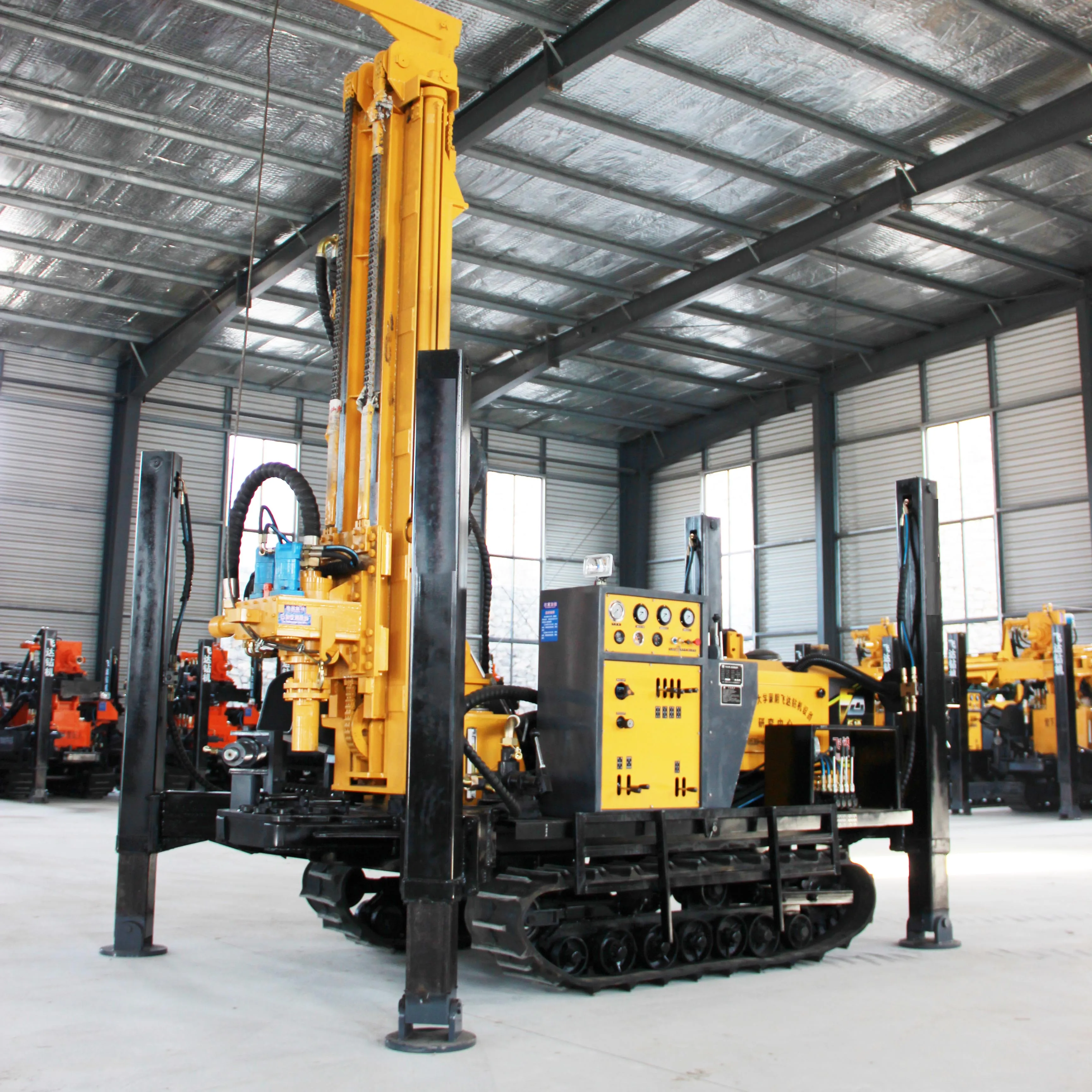

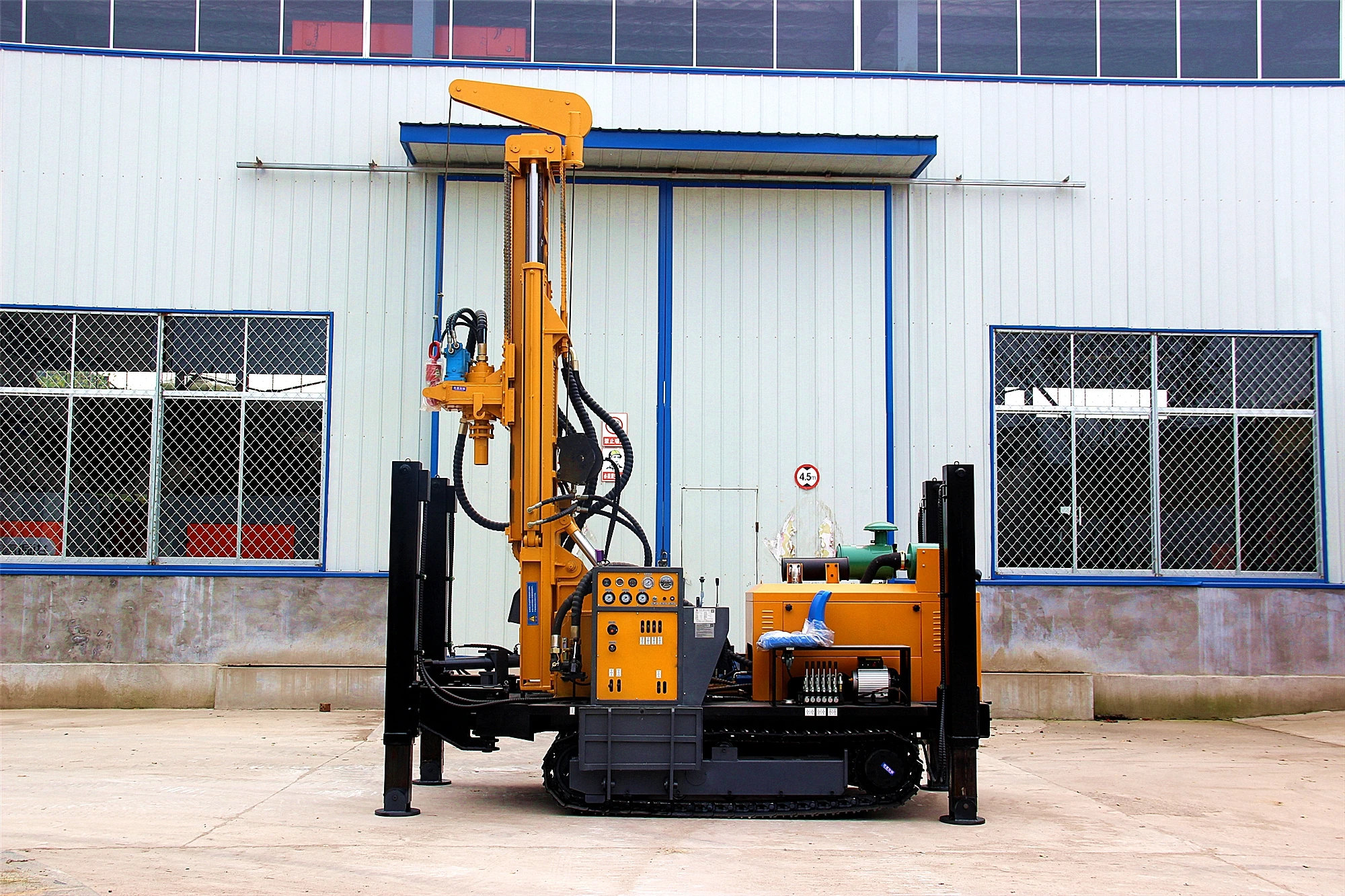

STARS Underground Rig Wells 200m Deep Water Drilling Machine
- Category: >>>
- Supplier: Chengdu Shidashi Mechanical Equipment Co. Ltd.
Share on (1600424466943):
Product Overview
Description
Product Categories
200m depth diesel engine pneumatic rigs track-type crawler type water well drilling rig machine
1. It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.
2. It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism orhydraulic chuck.
3. It hashole bottom pressure gauge to be easy to master the situation in the hole.
4. It also has advantage of Compact structure,concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountainareas.
3. It hashole bottom pressure gauge to be easy to master the situation in the hole.
4. It also has advantage of Compact structure,concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountainareas.
Product Paramenters
Model | KS - 200 |
Drilling depth(m) | 200 |
The hole dia.(mm) | 140-254 |
One-time advance length (m) | 6.6 |
Walking speed (Km/h) | 2.5 |
Climbing angle(Max) | 30 |
Equipped capacitor (KW) | 70 |
Using air pressure (MPA ) | 1.7-3.0 |
Air consumption （m3 / min ) | 17-30 |
Drill pipe diameter (mm) | Φ76 / Φ89 |
Drill pipe length (m) | 1.5m 2.0m 3.0m |
Rig lifting force | 17 |
Swing speed (rpm) | 45-70 |
Swing torque (N.m) | 4300-5500 |
Dimension（mm） | 5900*1800*2450 |
It has the advantages of large drilling, deep drilling, fast footage, flexible and efficient.
Details Images

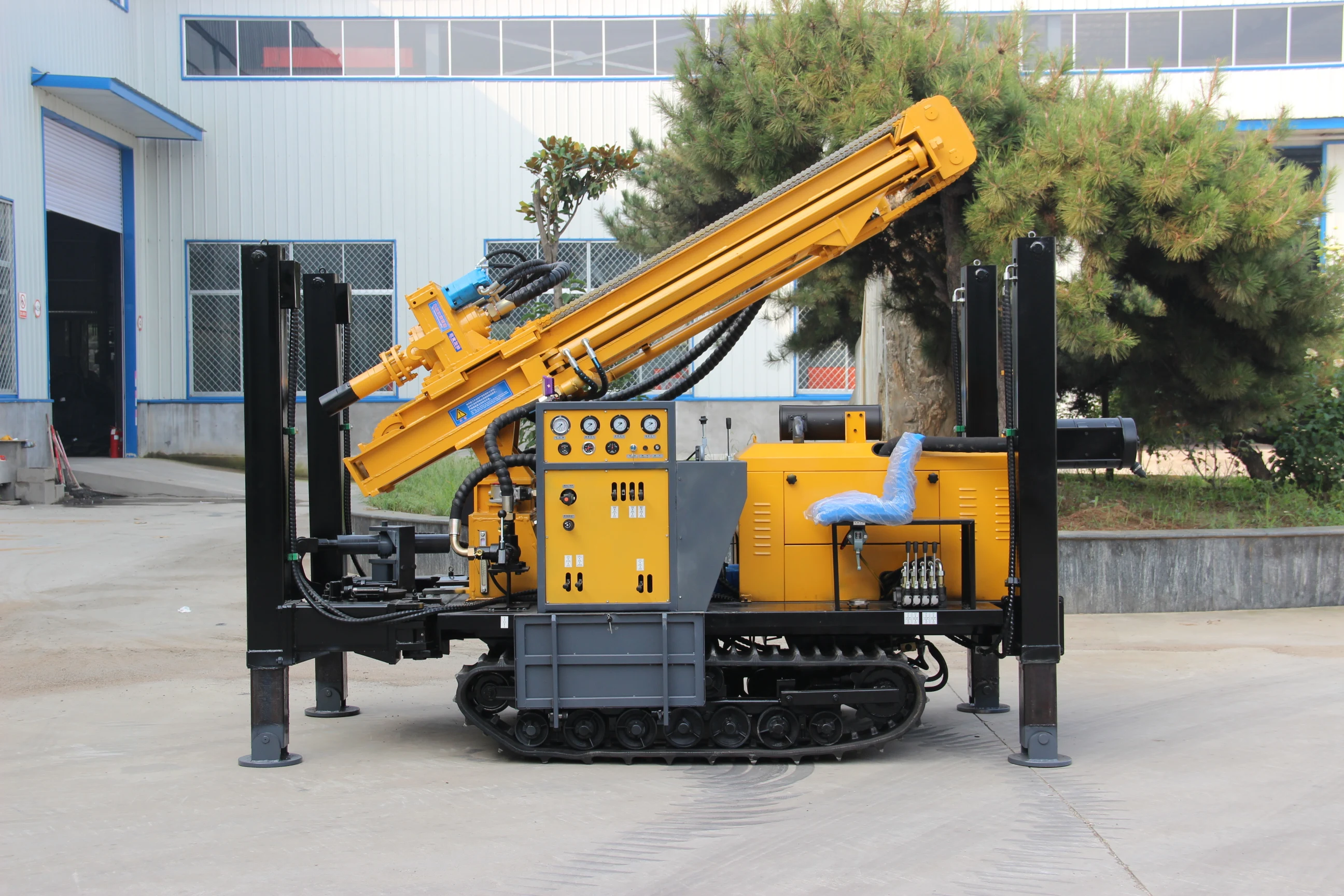

Console
The console is composed of a console frame, manual reversing valve, pressure reducing valve, speed regulating valve, oil pressure
gauge, various pipelines, engine instruments, throttle cable, flameout cable, damper control, etc. All control functions are
concentrated on the console, which is easy to operate, time-saving and labor-saving. The operator can stand on a foot pedal with
sufficient area to operate.
gauge, various pipelines, engine instruments, throttle cable, flameout cable, damper control, etc. All control functions are
concentrated on the console, which is easy to operate, time-saving and labor-saving. The operator can stand on a foot pedal with
sufficient area to operate.
Promotion part
The propulsion part is composed of propulsion cylinder, chain, slide plate and so on. When the piston rod of the propulsion
cylinder comes out and retracts, it drives the pulley block, and the slide plate slides up and down on the carriage through the
chain. The resin slider structure is adopted on the skateboard, which effectively reduces the wear of the slideway. The axial
pressure can be adjusted during deep hole drilling.
cylinder comes out and retracts, it drives the pulley block, and the slide plate slides up and down on the carriage through the
chain. The resin slider structure is adopted on the skateboard, which effectively reduces the wear of the slideway. The axial
pressure can be adjusted during deep hole drilling.

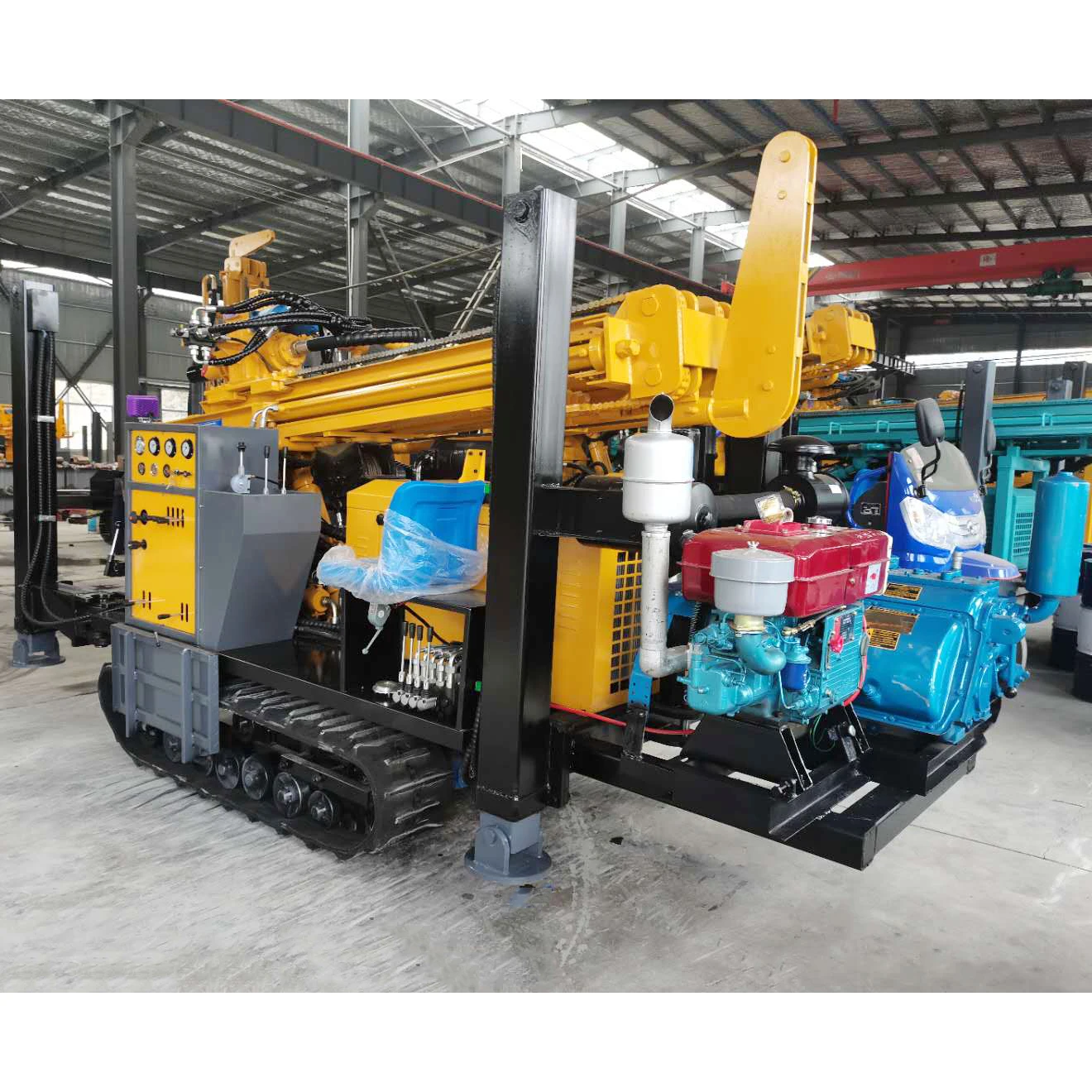

Power system
It is composed of engine, coupling, oil pump connecting plate, and air filter. The air filter is composed of three-stage air
pre-filter and air fine filter. It can effectively protect the engine from normal use under severe working conditions.
pre-filter and air fine filter. It can effectively protect the engine from normal use under severe working conditions.
Details determine success or failure, we focus on every detail of the product, every process, every process, we focus on creating the best quality products, to provide you with higher product quality.
Application
Our machines can be applied to various countries in the world, suitable for various scenarios, various geological scenarios including deserts, swamps, grasslands, mountains, orchards, etc.

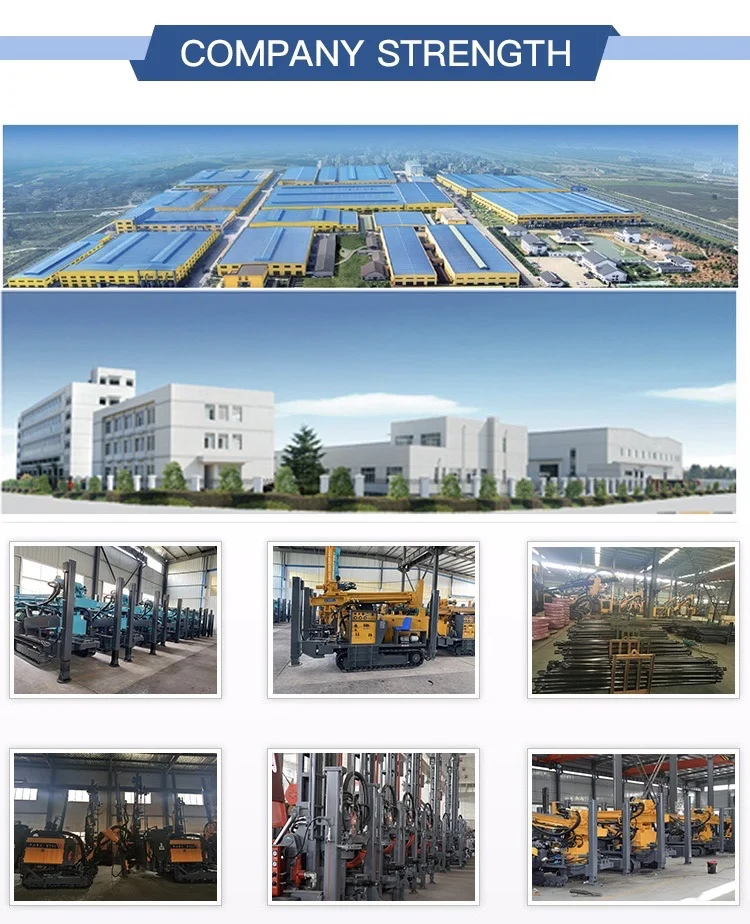

Our Company

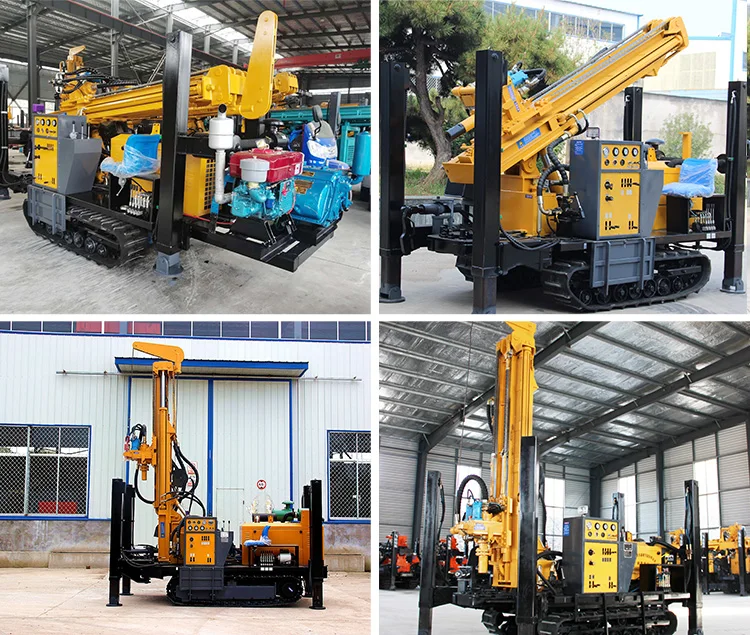

Customer Photos
Our customers are distributed all over the world. You are not alone. The quality of our machines is very good. Customers have given us certain affirmations. Contact us for information about the machine
Packaging & Shipping
We will provide safe and reliable transportation for your goods. We will pack your goods in wooden boxes, and related supporting goods will be arranged in the same container. We usually take the shipping method, and it takes about 30 days to arrive. Thespecific time depends on the situation. Of course, I will also use land transportation or other transportation methods.
Related Products
We also have your drilling rigs` related accessories——drilling bits, drilling rods, drilling pipe, Underwater detector and so on.Just send message to us to get the best price!
