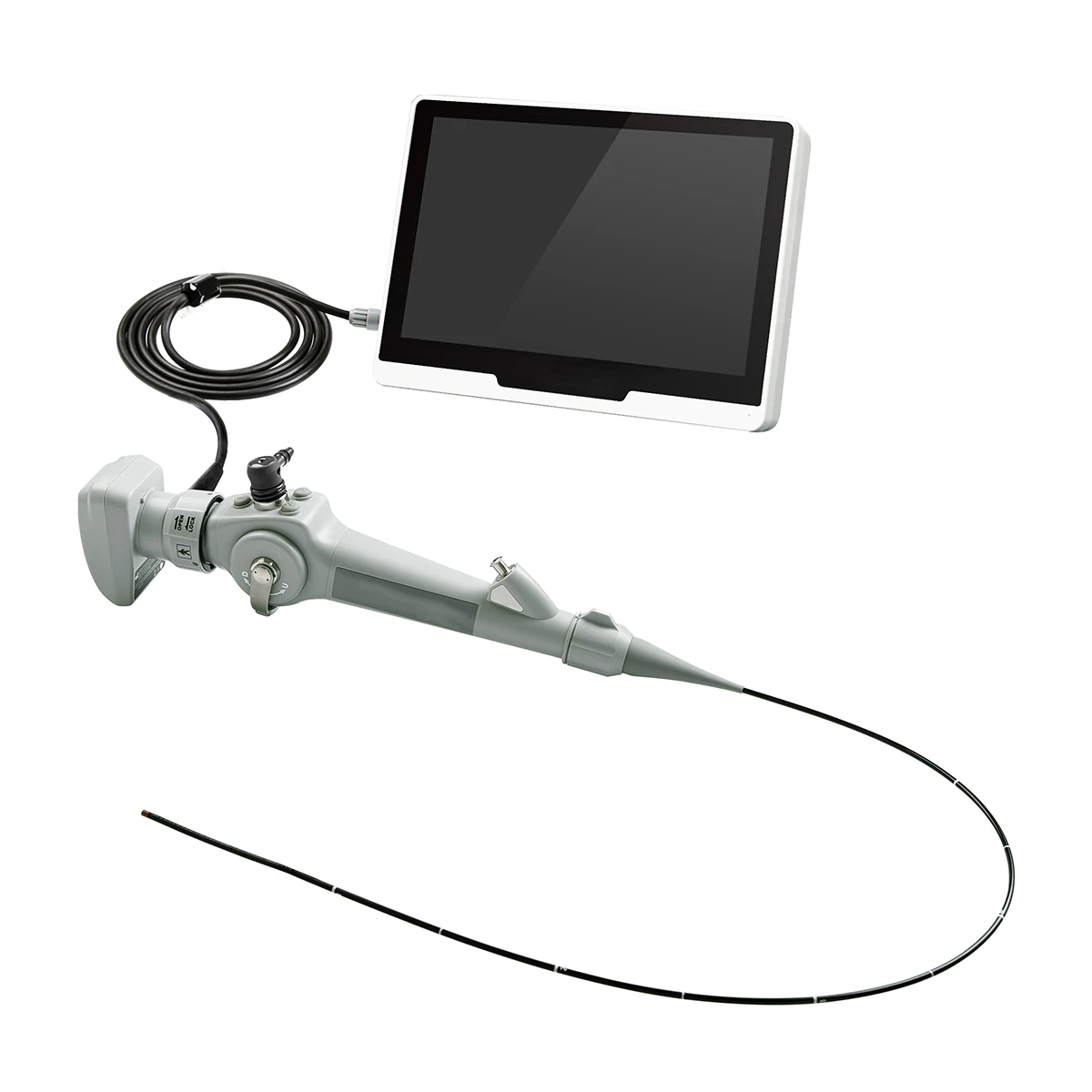

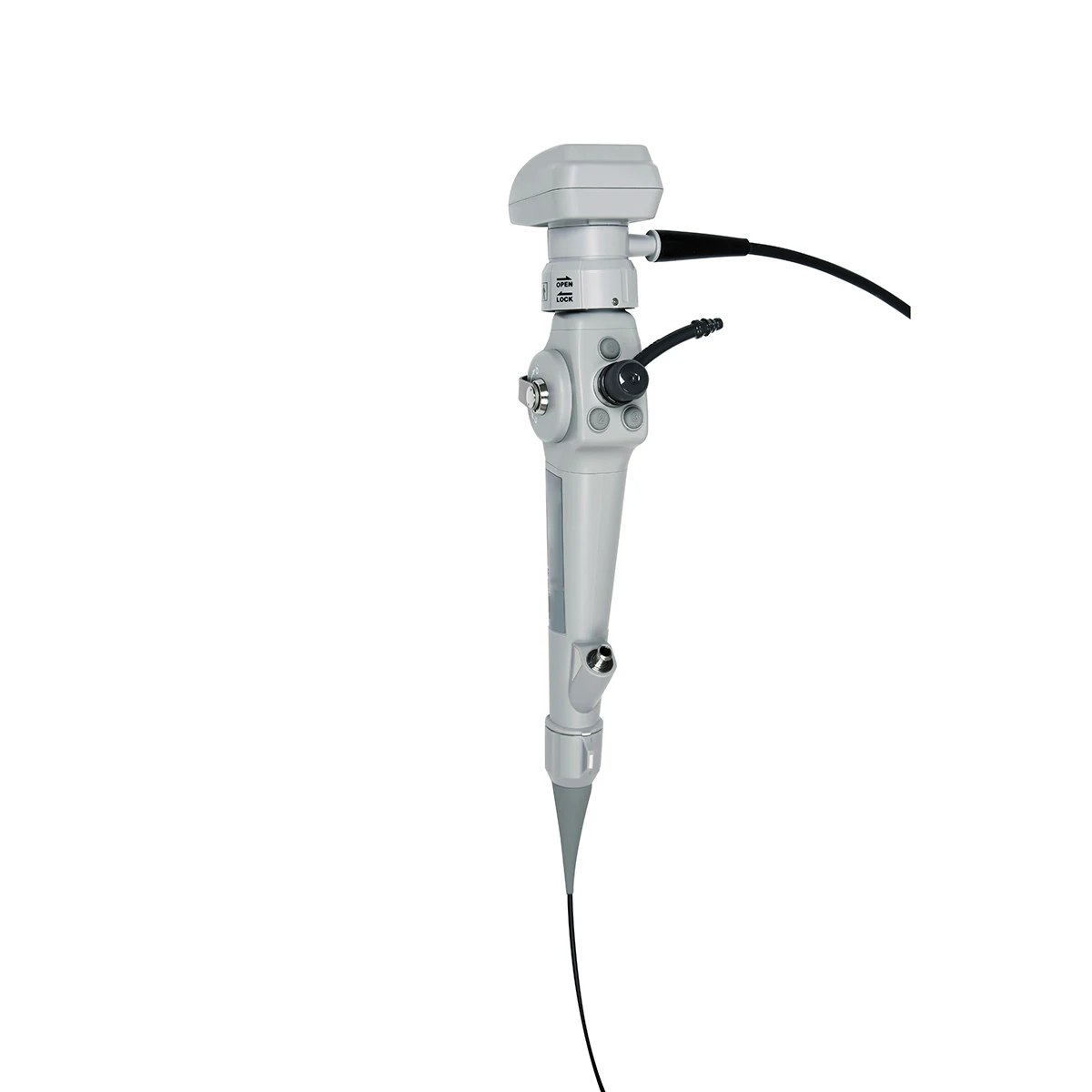

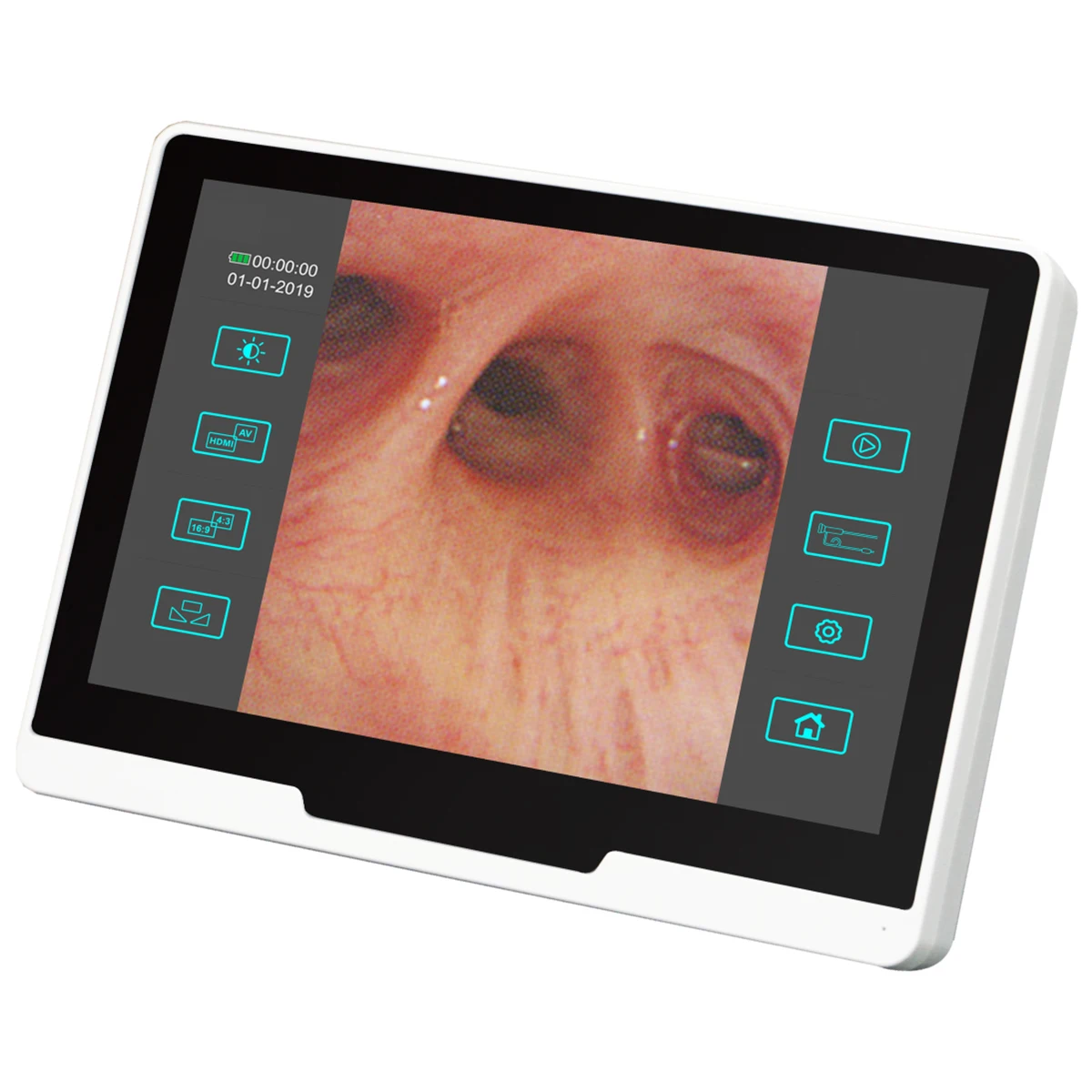

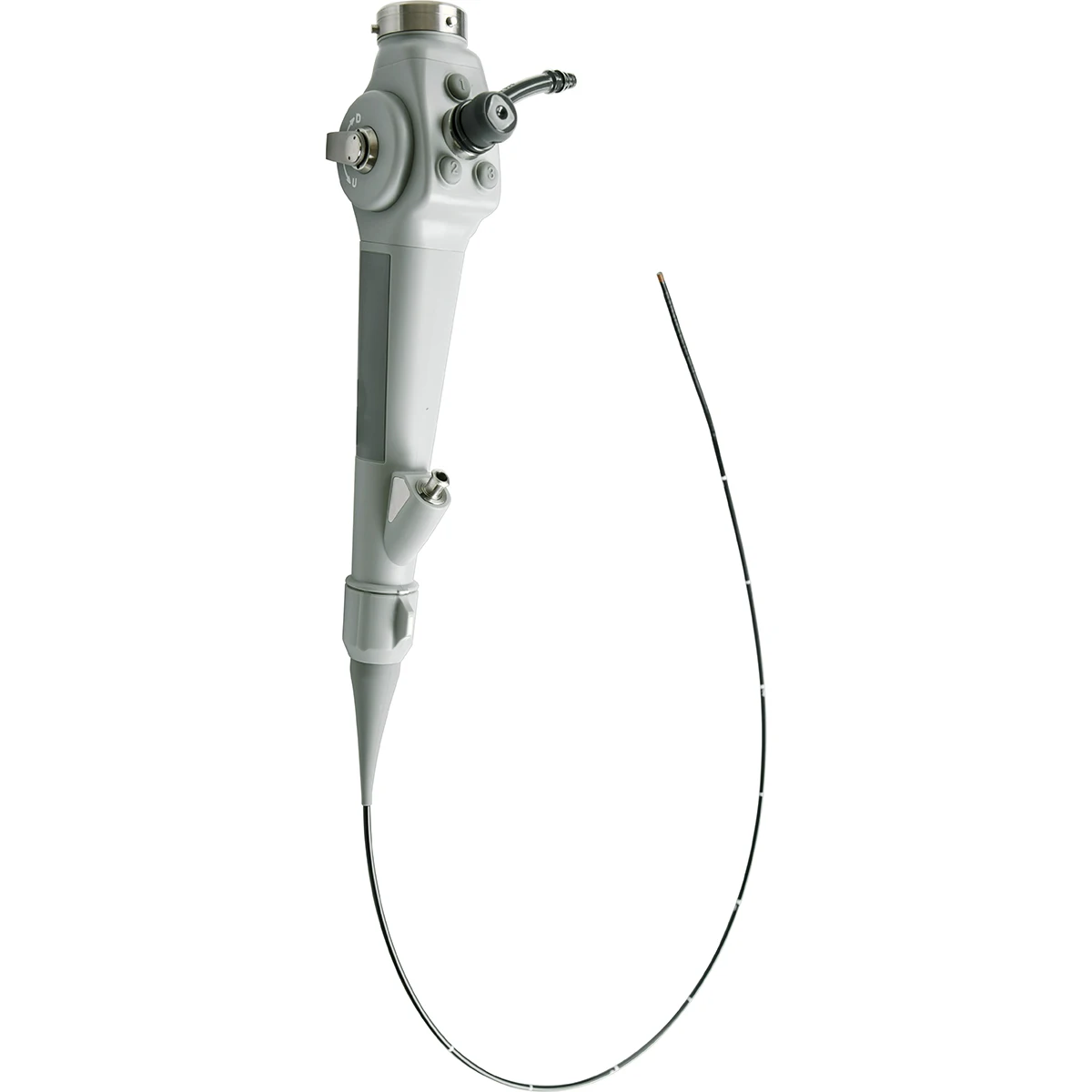

Endoscopy veterinary equipment 10 inch TFT touch screen portable Flexible Endoscope MSLGA285
Product Description
Type | Flexible | ||||||
Image Sensor | CMOS (Complementary Metal Oxide Semiconductor),Chip-on-tip | ||||||
System Resolution | 9 line pairs/mm | ||||||
View Angle | 120° | ||||||
Direction of View | 0° | ||||||
View Depth | 3-200° | ||||||
Insertion Tube OD | Ø 2.8mm | ||||||
Outer Diameter | Ø 2.8mm | Ø 3.1mm | Ø 3.8mm | Ø 5.2mm | |||
Channel ID | Ø 1.2mm | Ø 1.2mm | Ø 1.5mm | Ø 2.8mm | |||
Bending(up/down) | U210°/D130° | U210°/D130° | U180°/D130° | U180°/D130° | |||
Insertion Rotation | L120°/R130° | L120°/R130° | L120°/R130° | L120°/R130° | |||
Working Length | 610mm | 610mm | 1000mm | 1000mm | |||
Enlarge View of Tip | 1. Object lens 2. LED light source Working / Biopsy channel outlet | ||||||
Control Button | Three Buttons(Photograph recording ,freeze, image sizes) | ||||||
Water Proof Grade | Equals to IPX7 and complied to BS ISO 8600-7-2012 | ||||||
Operating Condition | Temperature:10℃-40℃,atmospheric pressure:700-1060hPa,Humidity:30%-85% | ||||||
Storage Condition | Temperature:-47℃-70℃,atmospheric pressure:700-1060hPa,Humidity:10%-95% | ||||||

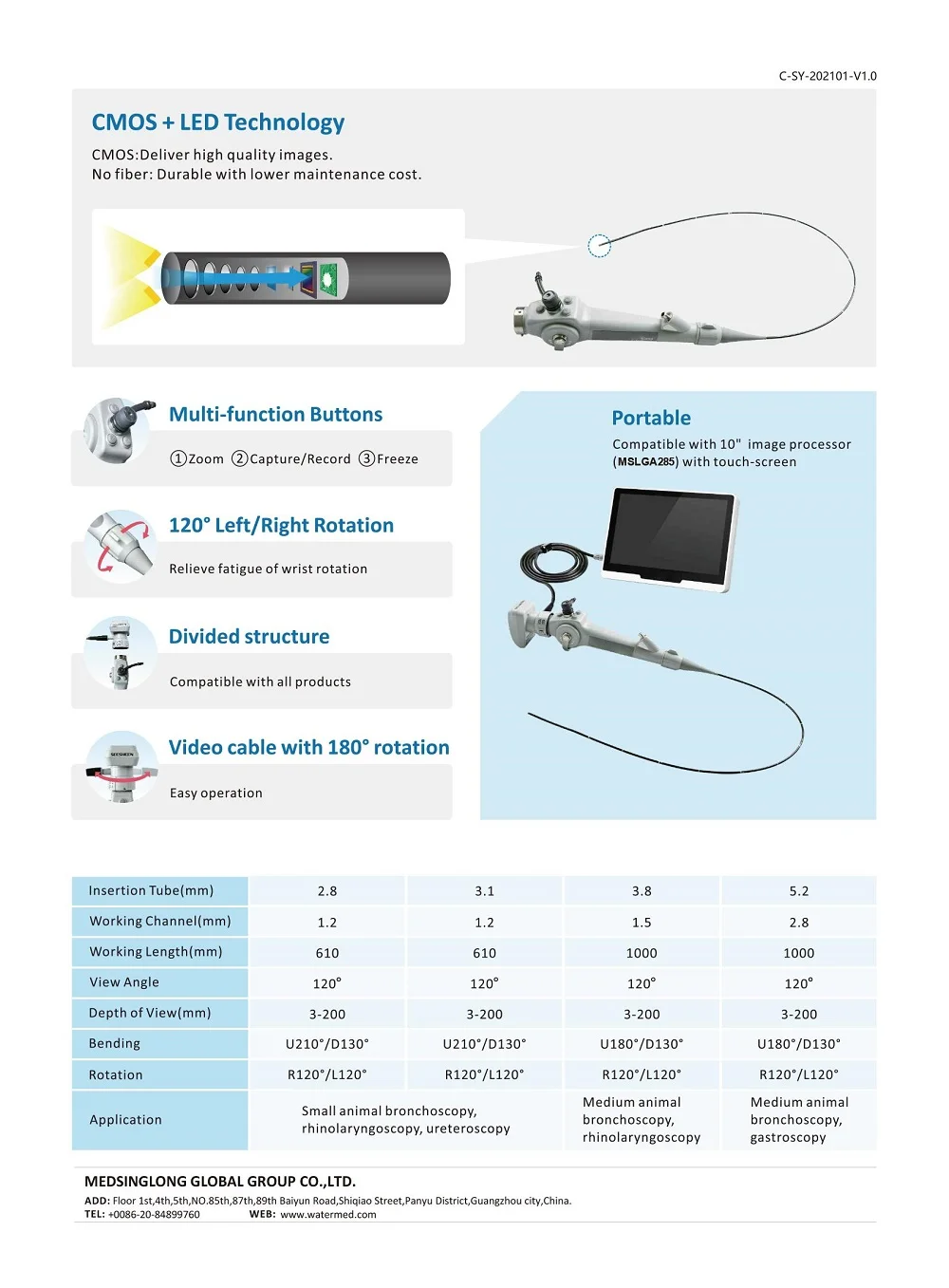

Detailed Images
Our Company
Certifications

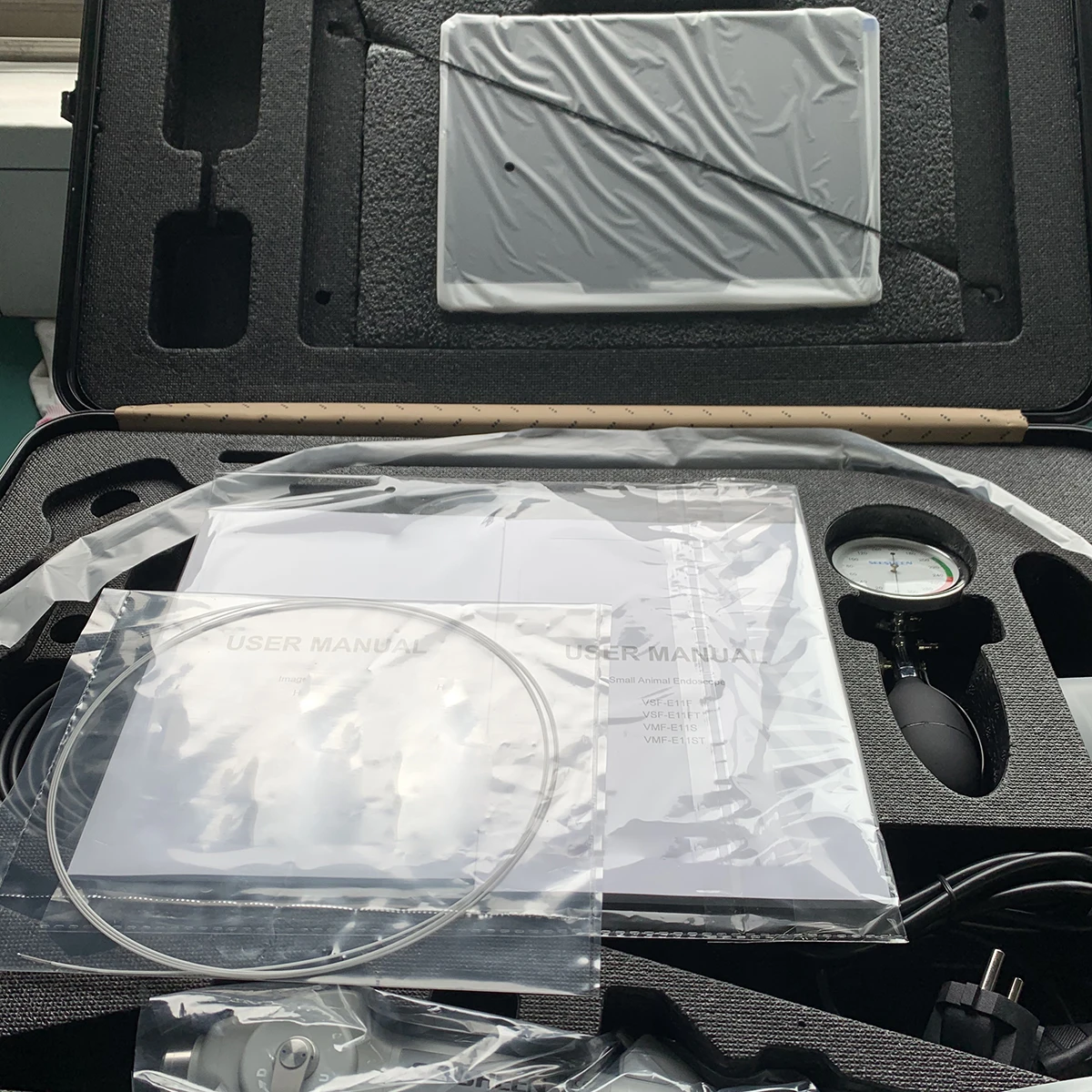

Packing & Delivery
