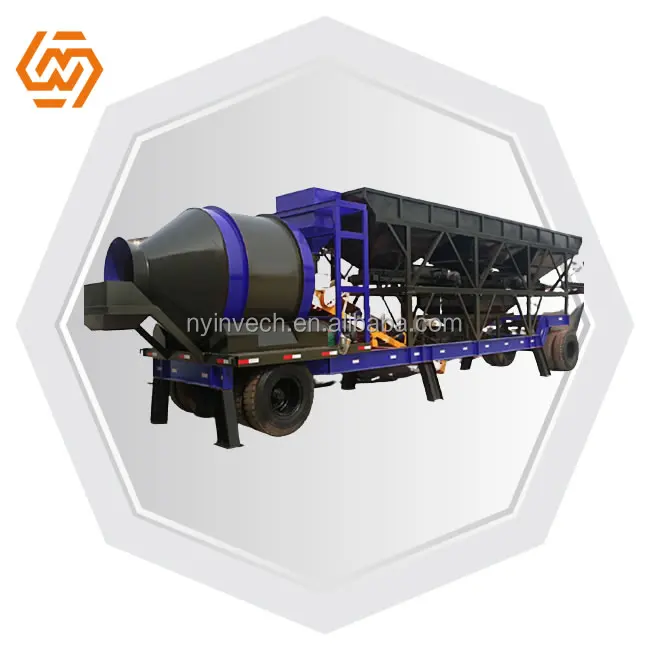

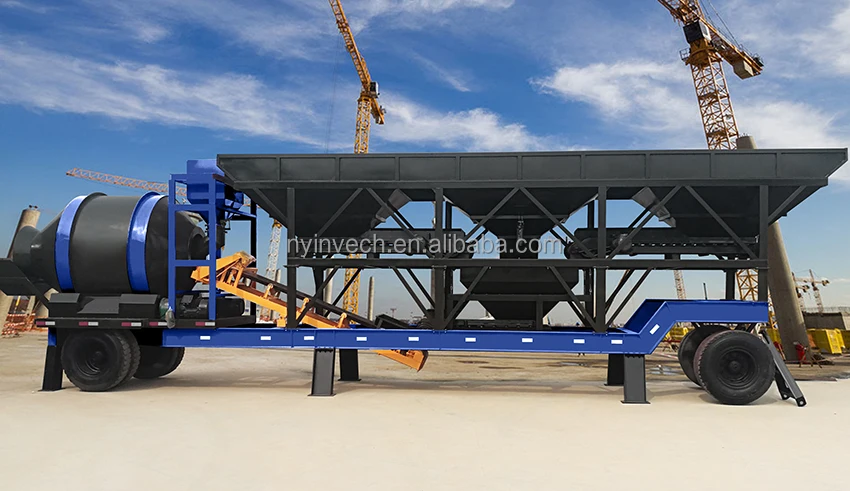

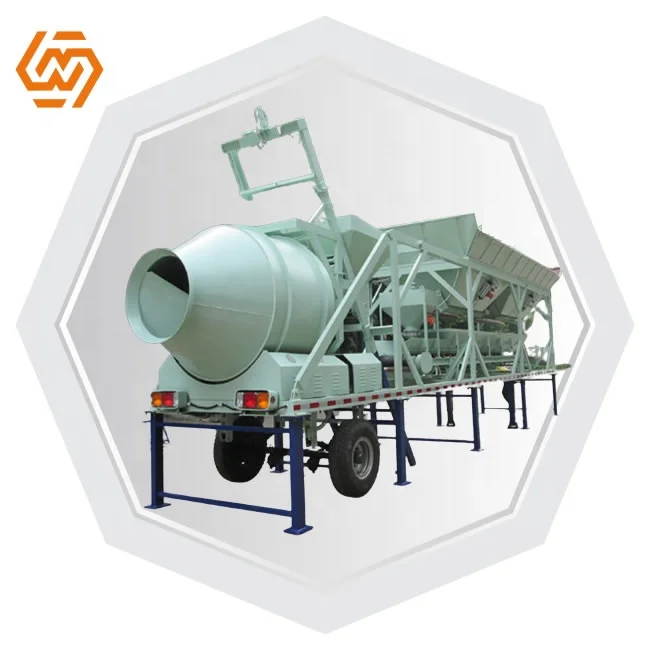

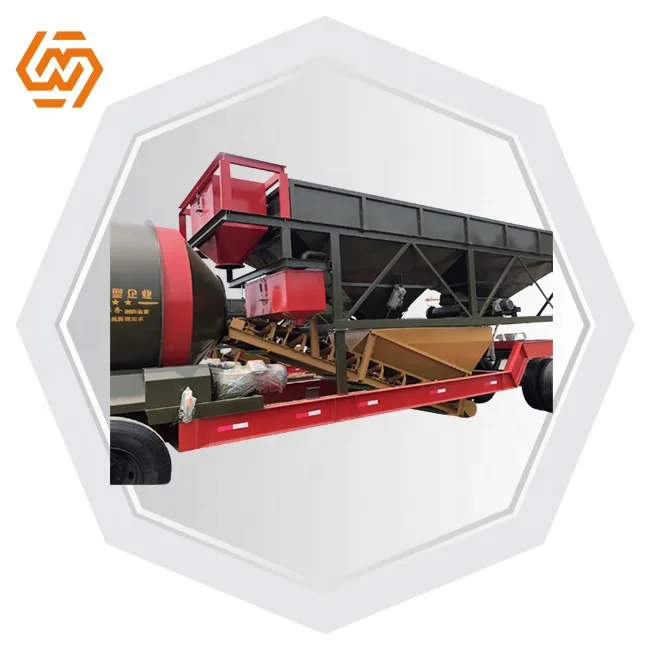

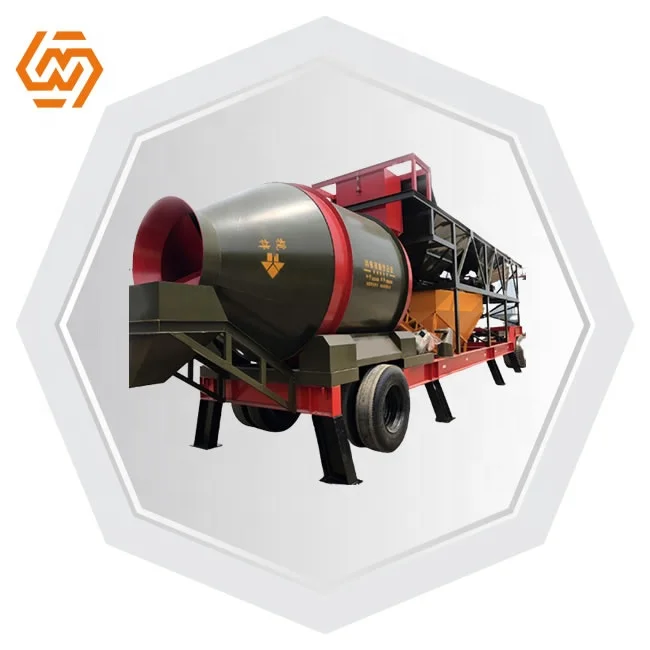

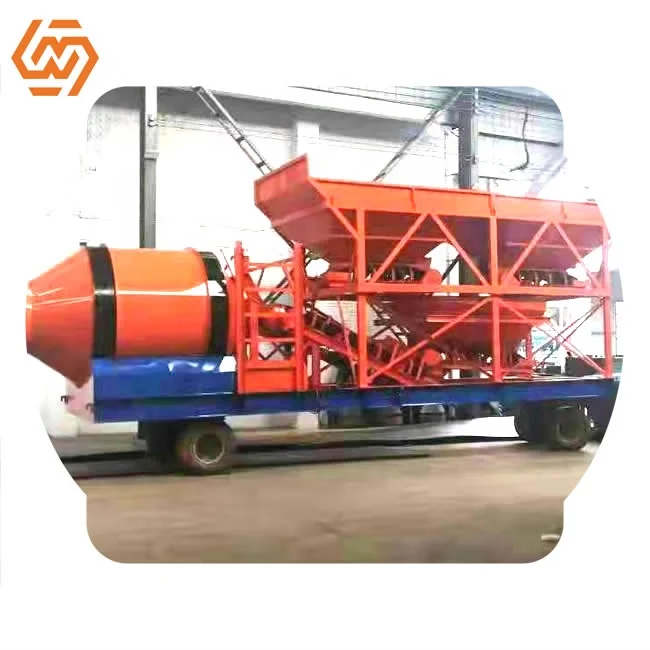

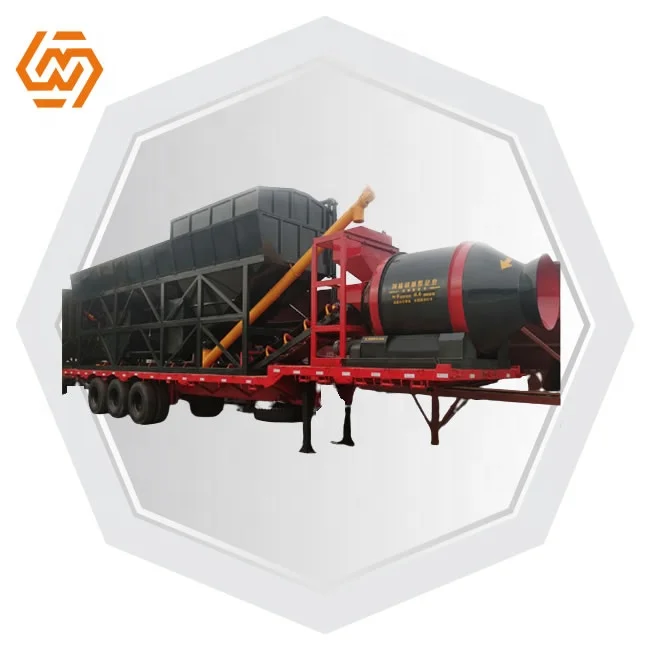

SC Concrete Mixing Plant/Mobile Concrete Batching Plant/Concrete Plant Mixing Machine IVJZM500

Product Overview

Description

SC Concrete Mixing Plant Mobile Concrete Batching Plant Concrete Plant Mixing Machine



1. Description:

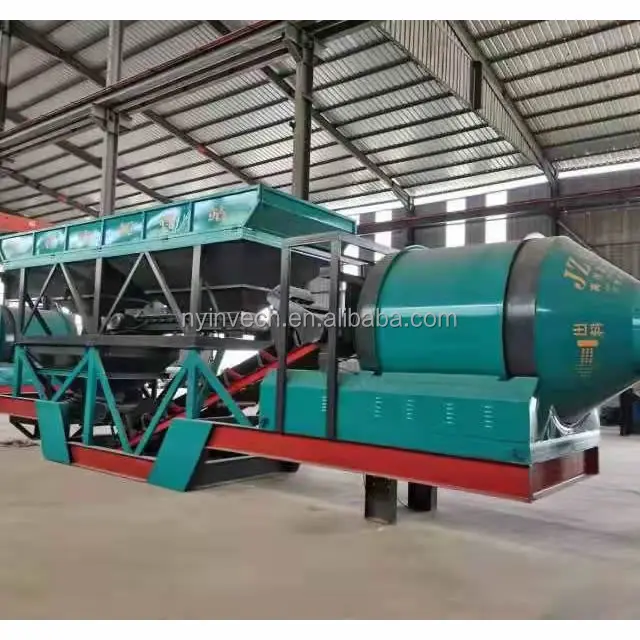

Mobile concrete batching plant with drum mixer/twin-shaft mixer, which is self-falling type bipyramid reversed discharging concrete mixing machine.

Aggregate batching and transferring are automatic and precise;

Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging;



The whole plant chassis can be moved easily, don't need to be separated and assembled;



This plant is designed to work without foundation, even cooperate working with horizontal cement silo;



2. Features of Mobile Concrete Batching Plant:

Rapid and easily to assemble and disassemble, conveniently to transport.

All of the cable connection doesn’t need to be unloaded, except the external equipment such as screw conveyor and cement silo, etc.

The performance of mixing is perfect. It adopts electric drum/twin-shaft concrete mixer to make the concrete mixing equally in shortest time.

For different mixture radios of dry concrete, semi-dry concrete, or plastic concrete, it can make the mixing well.

Top-quality configuration, high reliability, accurate measurement, easy operation.

The main electric components on concrete mixer reducers, scale load cells and control system are famous brands, which can reduce the failure rate and increase the scale accurate of the equipment.



Items		Units	JZM500
			Parameters
Whole performance of machine	Total Power	Kw	48
	Max. theory concrete output	m3/h	25
	Discharge height	m	1.5
	Mixing power	Kw	2*5KW
	Max. aggregate size	mm	80
	Material		Steel structure
	kinds of aggregates		2
	Max. cement capacity	Kg	200
	Max. water capacity	Kg	250
	Max. additives capacity	Kg	20
	Max. aggregate capacity	Kg	1500
Other parameters	Mixing drum dimension	mm	1800*1820

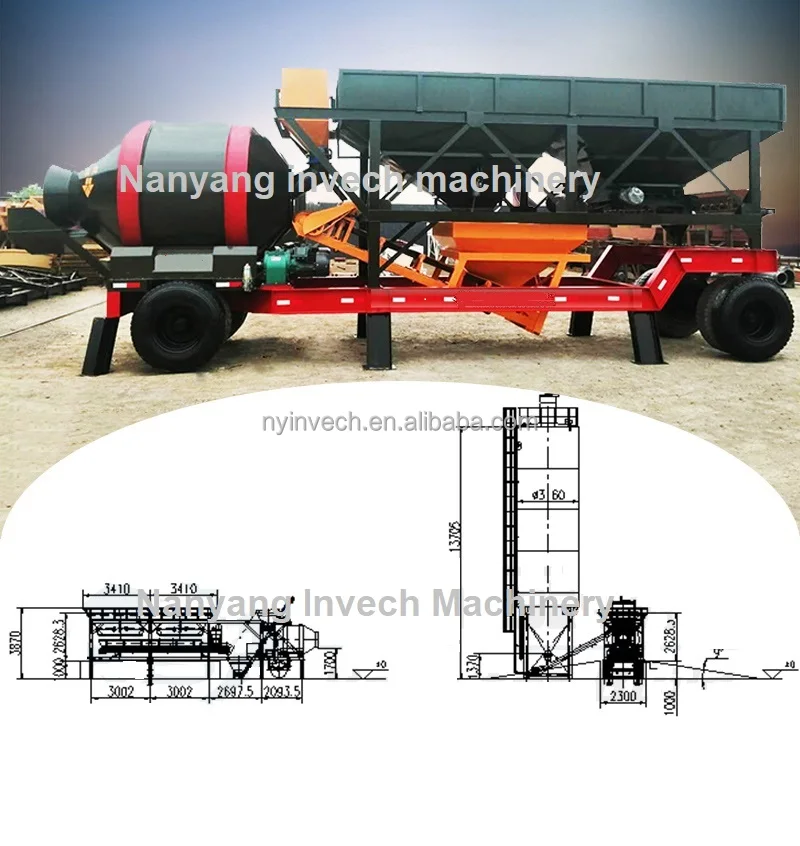

	Dimension: length*width*height	mm	10000*1800*4400
	Total weight	kg	4800
