HUAHUA NP280 woodworking cnc automatic wood plywood mdf computer panel saw cutting beam saw machine price
- Category: Wood Saw Machines >>>
- Supplier: Guangdong,Shunde,Changsheng,Machinery,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
products details
20'' PC control system
1. Easy operation, safety & reliable.
2. Which has complete operating hints and troubleshooting guide functions.
3. It’s cutting plan can edit manually; can simulate or execute cutting plans.
4.Can compatible with bar code manage software or factory automation software.
2. Which has complete operating hints and troubleshooting guide functions.
3. It’s cutting plan can edit manually; can simulate or execute cutting plans.
4.Can compatible with bar code manage software or factory automation software.
Cutting optimization software and laber Printer
Optimization software:
Automatically generate the optimazation sawing solution, can save personal calculation time and enhancing material utilization efficiency, which can save labor cost, material and inhance the efficiency.
Label printer:
one cutting board stick one label with all information on the label, such like customer name, board name, board thickness, width, length, easy for factory to control production.
Automatically generate the optimazation sawing solution, can save personal calculation time and enhancing material utilization efficiency, which can save labor cost, material and inhance the efficiency.
Label printer:
one cutting board stick one label with all information on the label, such like customer name, board name, board thickness, width, length, easy for factory to control production.
PLC
Japan Mitsubishi PLC control system.
Side aligning device
Fix cutting panel width side, control panels not move or shake when sawing, ensure width sawing precision.
Pressure can be adjusted according to difference thickness, weight and material, ensure the precision of sawing dimension.
Pressure can be adjusted according to difference thickness, weight and material, ensure the precision of sawing dimension.
Main steel frame
Main surface bending by 22mm thick steel, adopting advanced CO2 gas shielded arc welding technology, ensure frame non-deformation, high efficiency and stable quality.
Lubricating system
Auto lubricating for machine body, very convenient, can prolong the machine’s service life and keep good accuracy
Saw blades
1). Two saw blades ensure cutting precision.
2). Main saw blades 20HP, max cutting thickness: 100mm.
3). Saw blades gears: Germany SKF;
4). Sawing motor: TAIWAN SANYE;
2). Main saw blades 20HP, max cutting thickness: 100mm.
3). Saw blades gears: Germany SKF;
4). Sawing motor: TAIWAN SANYE;
Saw carrier
1). Driven by imported TAIWAN FENGMAO high-precision rack & pinion, stable movement, ensure cutting precision.
2). Saw carrier pull back position automatically controlled base on next cutting length, Which reduce unused moving time and greatly improve efficiency.
3). Max cutting speed reach to 100m/min.
2). Saw carrier pull back position automatically controlled base on next cutting length, Which reduce unused moving time and greatly improve efficiency.
3). Max cutting speed reach to 100m/min.
Loading system
Air floating loading table,avoiding board scratching and assuring smoother board movement, suit for heavy and big type wood panel.
Feeding gripper
Equip 7pcs pneumatic holding gripers, can gripe the panel steadily, highly reduce labor intensity, and greatly improve production efficiency, Min holding panel size 45mm.
Control system | PC with cutting optimization software | ||
Max. cutting size | 2800mm | ||
Max. cutting thickness | 100mm | ||
Max. cutting speed | 100m/min | ||
Max size: Φ400* Φ60mm | |||
Speed: 4000rpm | |||
Size: Φ180* Φ30mm | |||
Speed: 6900rpm | |||
Saw system | Saw carrier forward speed | 0-100m/min | |
Saw carrier backward speed | 0-150m/min | ||
Main saw motor power | 16kw | ||
Saw carrier driving motor power | 2.2kw | ||
Auto feeding system | Pneumatic holding gripers | 8 pcs | |
Feeding speed | 0-100m/min | ||
Driving motor power | 1kw ( Sevro motor ) | ||
Loading system | Air folating table | 3pcs | |
Table height | 960mm | ||
Floating fan power | 3kw | ||
Working pressure | 5-7kg/cm2 | ||
Total power | 22.2kw | ||
Nei weight | 4500kg | ||
Overall size | 5300*6300*2000mm | ||
Packing＆Delivery
Company Profile

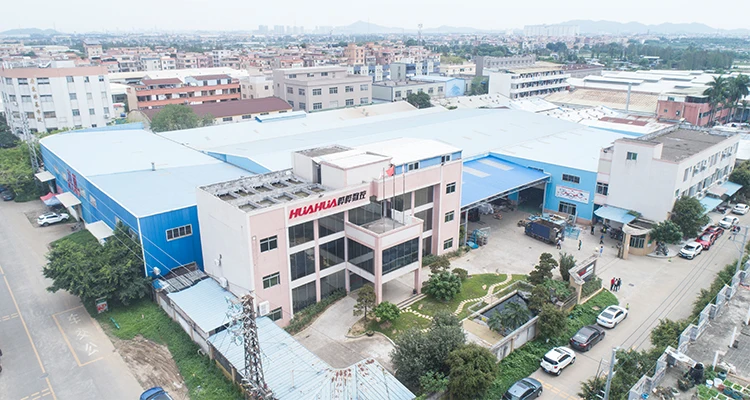

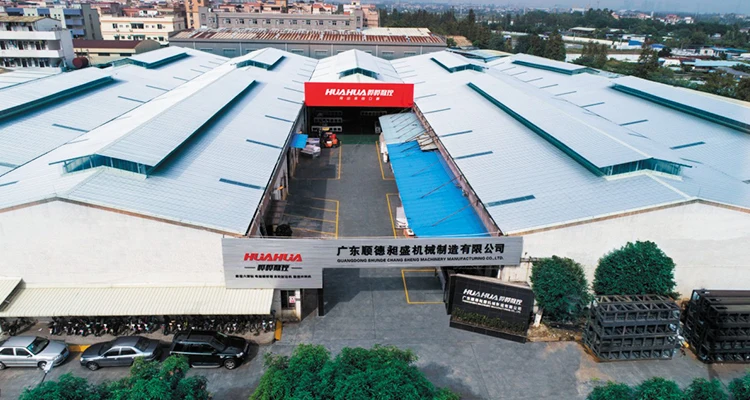

Guangdong Shunde Changsheng Machinery Manufacturing Co., Ltd. is founded in 2003, located in Lunjiao Shunde Foshan Guangdong,where is the biggest woodworking machine industry area in south of China. we have 400+ employees including 50+ research staffs, 45000 m2 workshop, can produce 500 sets machines per month.
Our brand name is HUAHUA, has been focusing on the innovation and research of the computer beam saw, cnc drilling machine, edge banding machine and cnc router machine as well as on the machines assembly and software integration, offering a solution to full range of CNC furniture equipment and automatic production line. With good innovation on technology, good management on the production and high quality in service, HUAHUA has been supplying its machines in more than 50 countries. In the future, HUAHUA will keep focusing on research, development, and manufacturing panel furniture machines, welcome more friends to know us and become partners to create a bright future with each other.
Our brand name is HUAHUA, has been focusing on the innovation and research of the computer beam saw, cnc drilling machine, edge banding machine and cnc router machine as well as on the machines assembly and software integration, offering a solution to full range of CNC furniture equipment and automatic production line. With good innovation on technology, good management on the production and high quality in service, HUAHUA has been supplying its machines in more than 50 countries. In the future, HUAHUA will keep focusing on research, development, and manufacturing panel furniture machines, welcome more friends to know us and become partners to create a bright future with each other.
CNC router machine workshop
Edge banding machine workshop
Computer beam saw machine workshop
CNC boring machine workshop
Exhibition
Our Customer
Customer Feedback

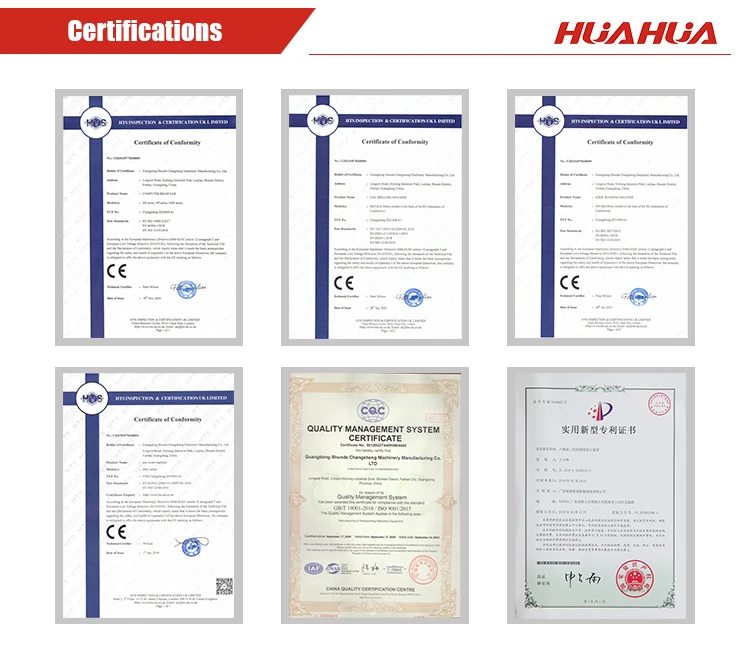

Certifications
FAQ
Q1. Are your trading company or factory?
A1. We are factory with more than 45000m2 workshop located in Longwei Road, Xichong Industrial Park, Lunjiao Town, Shunde Dist., Foshan, Guangdong, China.
Q2. What machine can you supply?
A2. Our main machines are computer beam saw, edge banding machine, cnc drilling machine, cnc router machine etc.widely used for panel furniture production.
Q3. What is the payment term?
Q3. T/T 30% in advance and balance before shipment, LC or by negotiation.
Q4. What is the delivery time?
A4. Normal 380V voltage is 15-30 days, other voltage is 30-45days.
Q5. What is the guarantee?
A5. 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.You will also get technical support and service all the lifetime.
Q6. Can you support the pre-sales service before confirm the order?
A6. Yes ,you will get experienced pre-sales engineer to support, not only including machine and auxiliary selection but also electrical ,air, machine layout in factory ,etc.
Q7. What is the after sales services?
A7. you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by online tools.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost
A1. We are factory with more than 45000m2 workshop located in Longwei Road, Xichong Industrial Park, Lunjiao Town, Shunde Dist., Foshan, Guangdong, China.
Q2. What machine can you supply?
A2. Our main machines are computer beam saw, edge banding machine, cnc drilling machine, cnc router machine etc.widely used for panel furniture production.
Q3. What is the payment term?
Q3. T/T 30% in advance and balance before shipment, LC or by negotiation.
Q4. What is the delivery time?
A4. Normal 380V voltage is 15-30 days, other voltage is 30-45days.
Q5. What is the guarantee?
A5. 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.You will also get technical support and service all the lifetime.
Q6. Can you support the pre-sales service before confirm the order?
A6. Yes ,you will get experienced pre-sales engineer to support, not only including machine and auxiliary selection but also electrical ,air, machine layout in factory ,etc.
Q7. What is the after sales services?
A7. you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by online tools.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost
