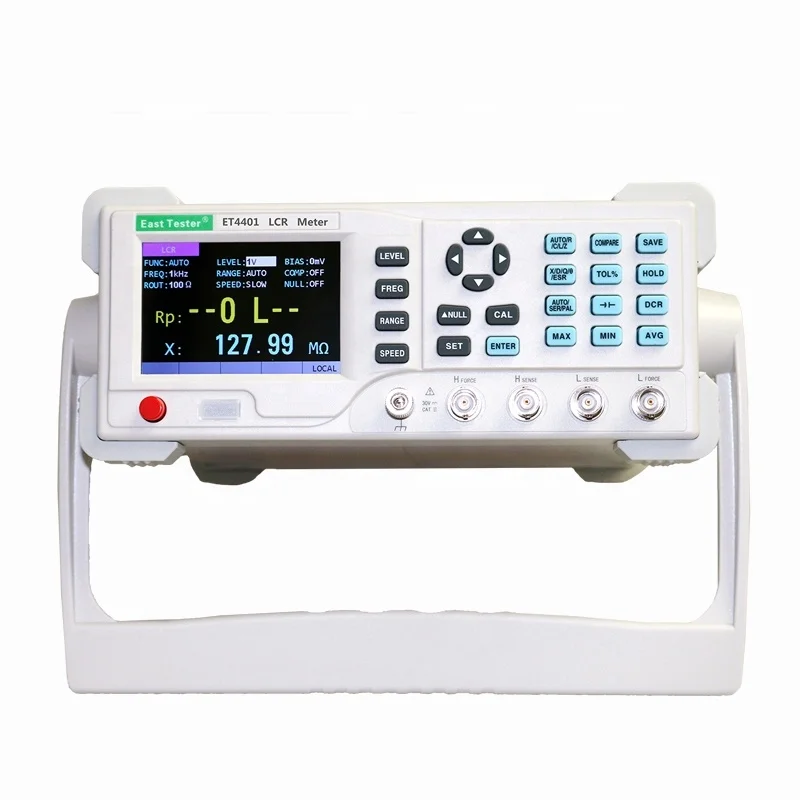

ET4401 3.5 inch TFT display LCR digital bridge 10Hz~100kHz bandwidth LCR Meter
ET4401 3.5-inch TFT display LCR digital bridge 10Hz~100kHz bandwidth LCR Meter
ET4401 3.5-inch TFT display LCR digital bridge 10Hz~100kHz bandwidth LCR Meter
ET4401 3.5-inch TFT display LCR digital bridge 10Hz~100kHz bandwidth LCR Meter
ET4401 3.5-inch TFT display LCR digital bridge 10Hz~100kHz bandwidth LCR Meter
ET4401 3.5-inch TFT display LCR digital bridge 10Hz~100kHz bandwidth LCR Meter
ET4401 3.5-inch TFT display LCR digital bridge 10Hz~100kHz bandwidth LCR Meter

ET4401 3.5 inch TFT display LCR digital bridge 10Hz~100kHz bandwidth LCR Meter

Share on (1600424518942):


Price:

Quantity:


Product Overview

Description



Product Description






Specification


Model
ET4401
ET4402
ET4410
ET4501
ET4502
ET4510
Digits
Main parameter: 5 digits; secondary parameter: 5 digits
Measurement Parameter
Main parameter: L/C/R/Z; secondary parameter: X/D/Q/θ/ESR
Measurement Range(L)
0.01μH - 9999H
Measurement Range(C)
0.01pF - 99999μF
Measurement Range(R)
0.0001Ω - 99.99MΩ
Basic Accuracy
0.2%
Test Frequency (Hz)
100~10kHz 10 point
100~20kHz 12point
100~100kHz 16 point
10~10kHz 1Hz Stepping
10~20kHz 1Hz Stepping
10~100kHz 1Hz Stepping
Measurement Display Speed
2 times/second (slow), 4 times/second (medium speed), 8 times/sec (fast)
Internal Bias
0-1500mV adjustable, 1mV stepping
Test Level
100mV,300mV,600mV,1000mV,1500mV,2000mV
0.1V~2V adjusted ,1mV Stepping
Correction Function
Open circuit correction, short circuit correction
Screening function
The screening limit can be set from -50% to + 50% with fixed points of 1%, 5%, 10% and 20%
Selection of comparator
Five gear sorting, third gear qualified, one gear failed, one ancillary gear

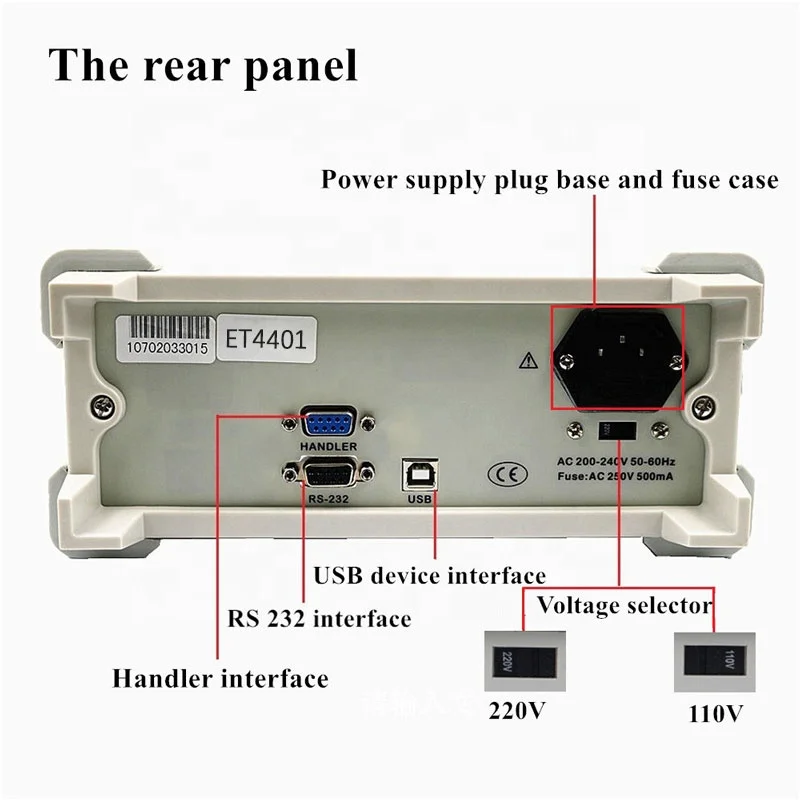

Communication Interface
Standard configuration: USB, RS232 (or 485), Handle interface; Optional: GPIB, USB Host
Others
Support DCR, electrolytic capacitor measurement mode, adjustable backlight brightness, optional in English and Chinese
