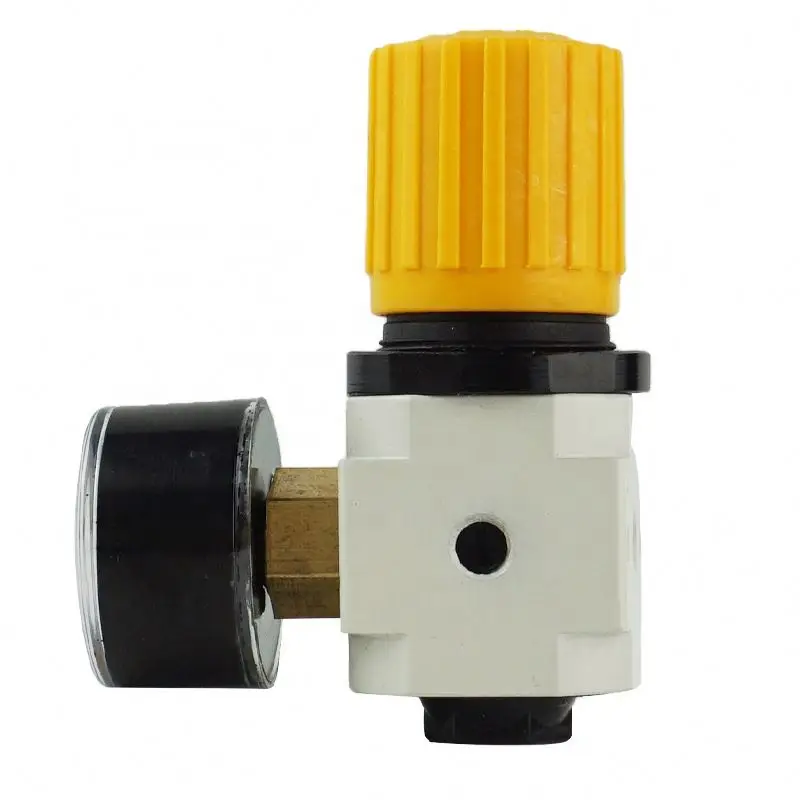

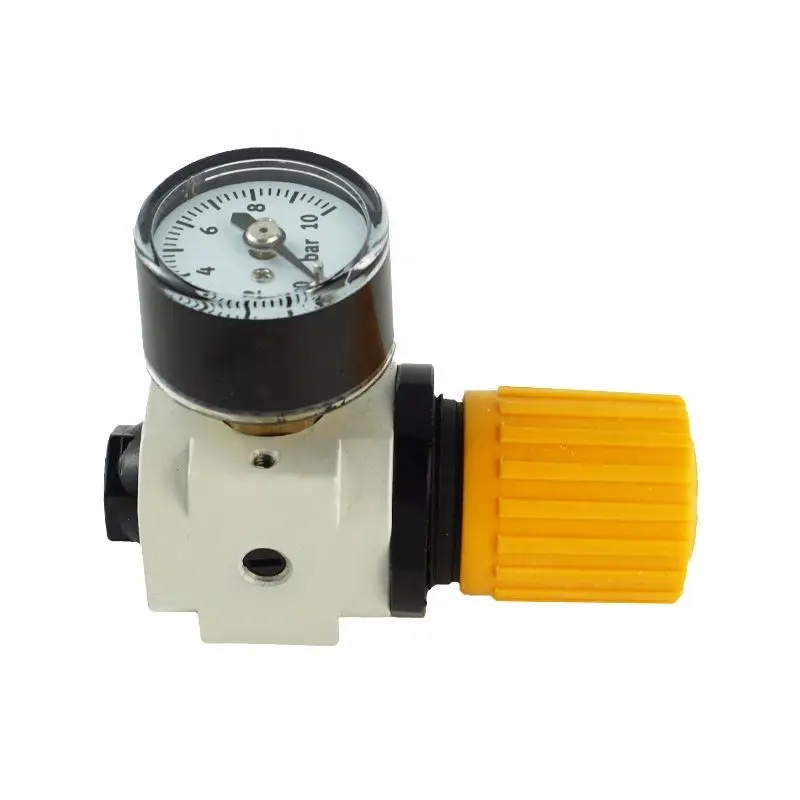

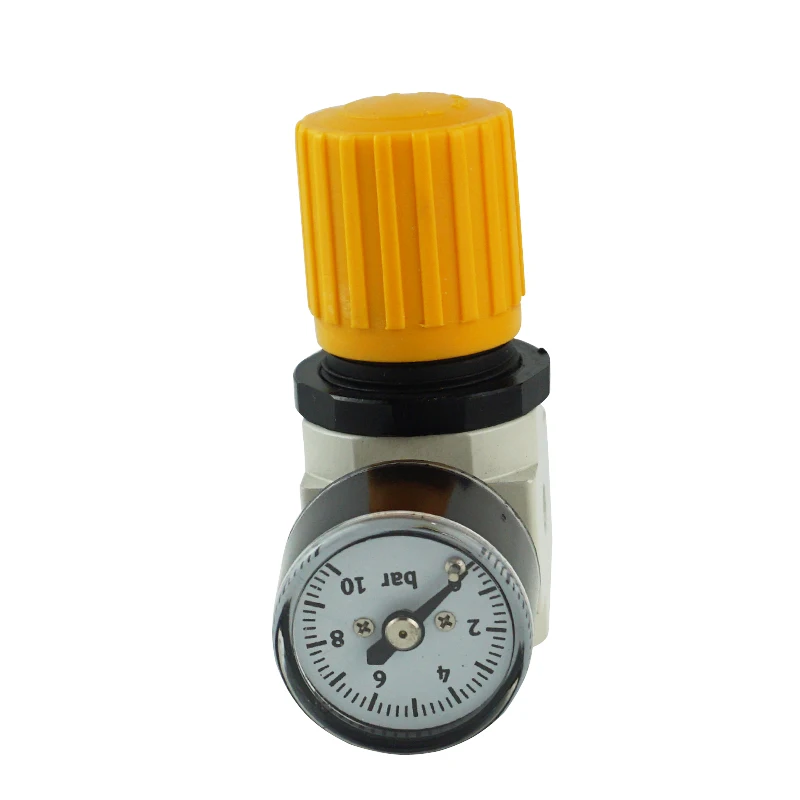

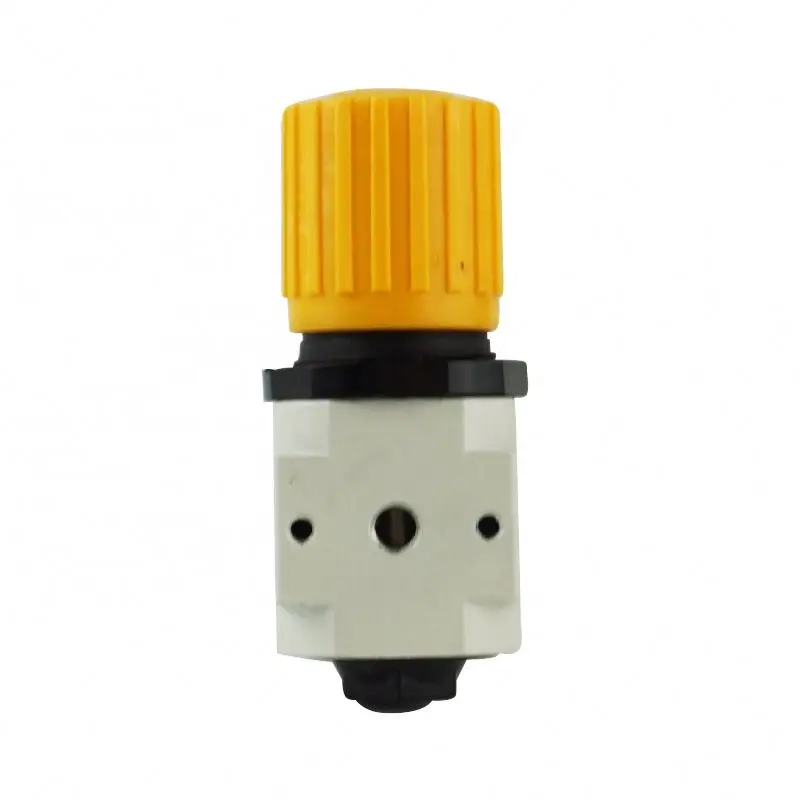

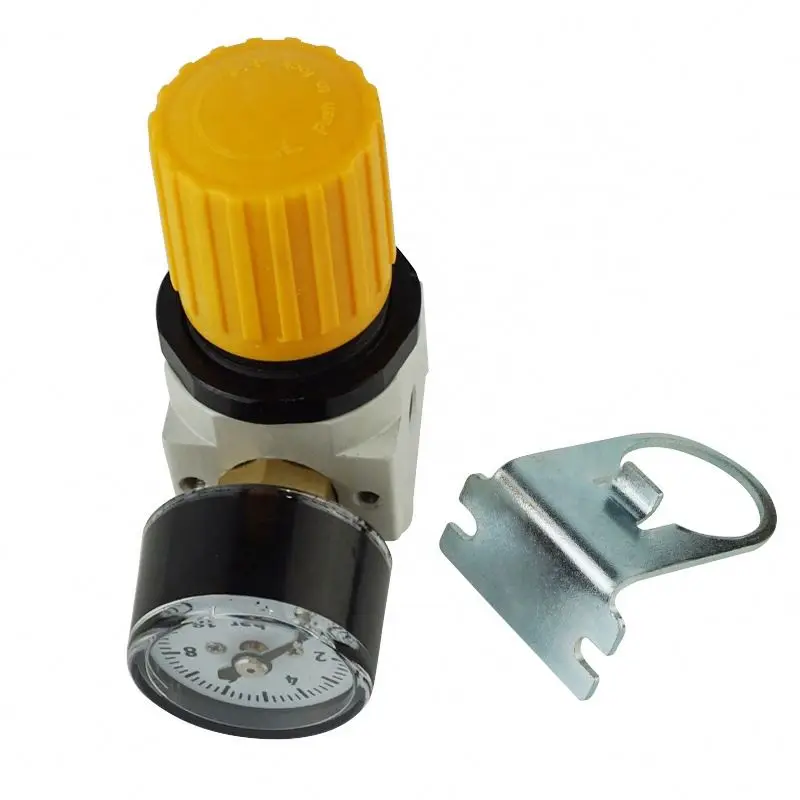

XMC HL Series OR Series Port Size M5 Pneumatic Parts Air Control Compressor Pressure Relief Regulator Valve with Gauge
XMC HL Series OR Series Port Size M5 Pneumatic Parts Air Control Compressor Pressure Relief Regulator Valve with Gauge
XMC HL Series OR Series Port Size M5 Pneumatic Parts Air Control Compressor Pressure Relief Regulator Valve with Gauge
XMC HL Series OR Series Port Size M5 Pneumatic Parts Air Control Compressor Pressure Relief Regulator Valve with Gauge
XMC HL Series OR Series Port Size M5 Pneumatic Parts Air Control Compressor Pressure Relief Regulator Valve with Gauge
XMC HL Series OR Series Port Size M5 Pneumatic Parts Air Control Compressor Pressure Relief Regulator Valve with Gauge
XMC HL Series OR Series Port Size M5 Pneumatic Parts Air Control Compressor Pressure Relief Regulator Valve with Gauge

XMC HL Series OR Series Port Size M5 Pneumatic Parts Air Control Compressor Pressure Relief Regulator Valve with Gauge

Share on (1600424548903):


Price:

Quantity:


Product Overview

Description







Product Name
Pneumatic Regulator Valve
Assembly
Regulator Valve
Model No
OR-M5-MIRO
Connection Port
M5
Medium
Compressed air
Operating Temperature Range
0-60℃
Features
Adjust the Pressure Value According to Your Needs; Effectively Filter the Moisture in the Air
Perm.primary pressure
                         P1 max.
                         P1 min.
16bar(manual condensate drain)
12bar(automatic condensate drain)
1.5bar; 1 bar(only OR-...)
Max. working pressure Range
                         P2
0.5...7bar(at OR-/OFR-...-7-...)
0.5...12bar(at OR-.../OFR-...)
Perm.temperature range
0-60℃
Fitting position
Standing upright(±5℃)
Manometer connection
G1/8(at OR-/OFR-...MINI-...)
G1/4(at OR-/OFR-...MIDI-/MAXI-...)
Filter fineness
40μm(at OF-/OFR-...-...);
5μm(at OF-/OFR-...-5M-...)


Body Material
Housing:Zinc die-casting;
Filter bowl and oil bowl:PC;
Metal bowl guard:Aluminium alloy;
Sealing:NBR;
Adjusting knob:POM


Pneumatic Regulator Valve
The class-adjustable valve can effectively control the size of the air flow, which is more convenient and efficient
Precision Pressure Gauge
XMC Pressure Gauge is More Accurate to the Pressure Induction






Product List:
* 1x Pneumatic Regulator Valve
* 1x Gauge
* 1x English Instruction
* 1x Packing Box




Product Feature
* High Strength, High Precision and Strong Compression Resistance

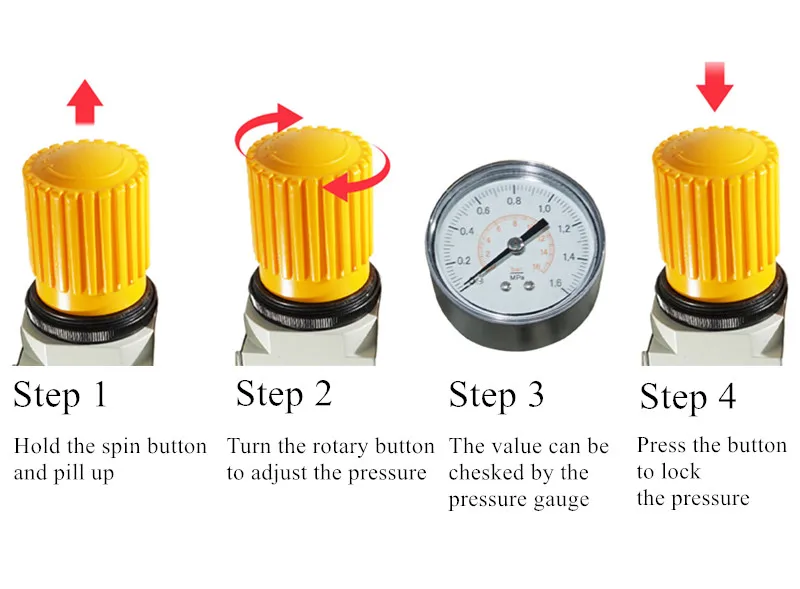

* Simple Pressure Adjustment Method, Accurate Pressure Regulation.
* The Overall Modular Design Can Be Arbitrarily Disassembled, Combined, Easy to Use, Easy to Load and Unload, meet the Various Requirements of Different Pneumatic Systems.
* Pressure Regulation:Adjust Different Levels of Pressure According to Demand.
