Automatic fabric cutting machine cnc leather cutter with oscillating cutting tool big Camera/CCD
- Category: >>>
- Supplier: Acctek Machinery Co. Ltd (shandong)
Share on (1600424580518):
Product Overview
Description
Product Overview

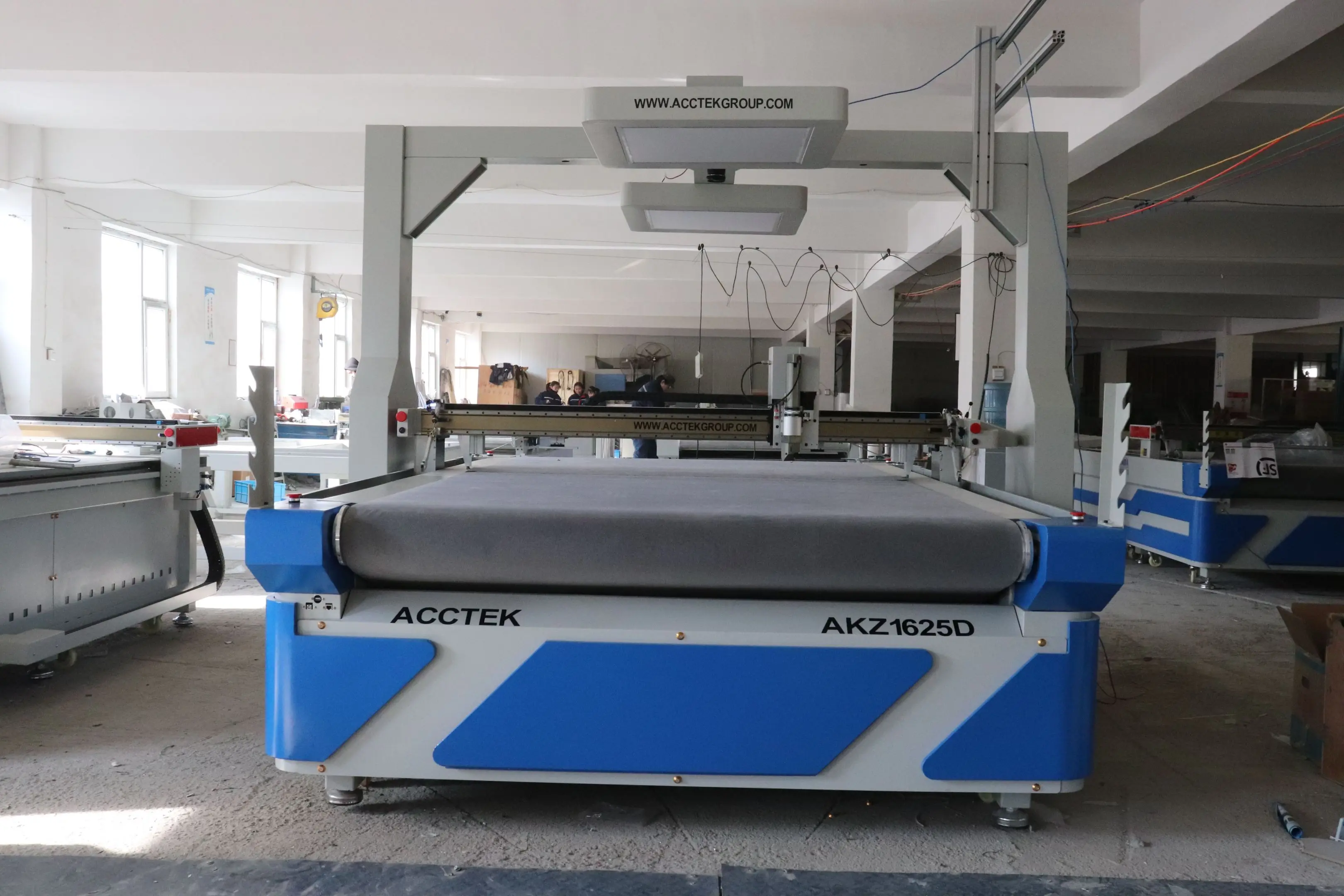

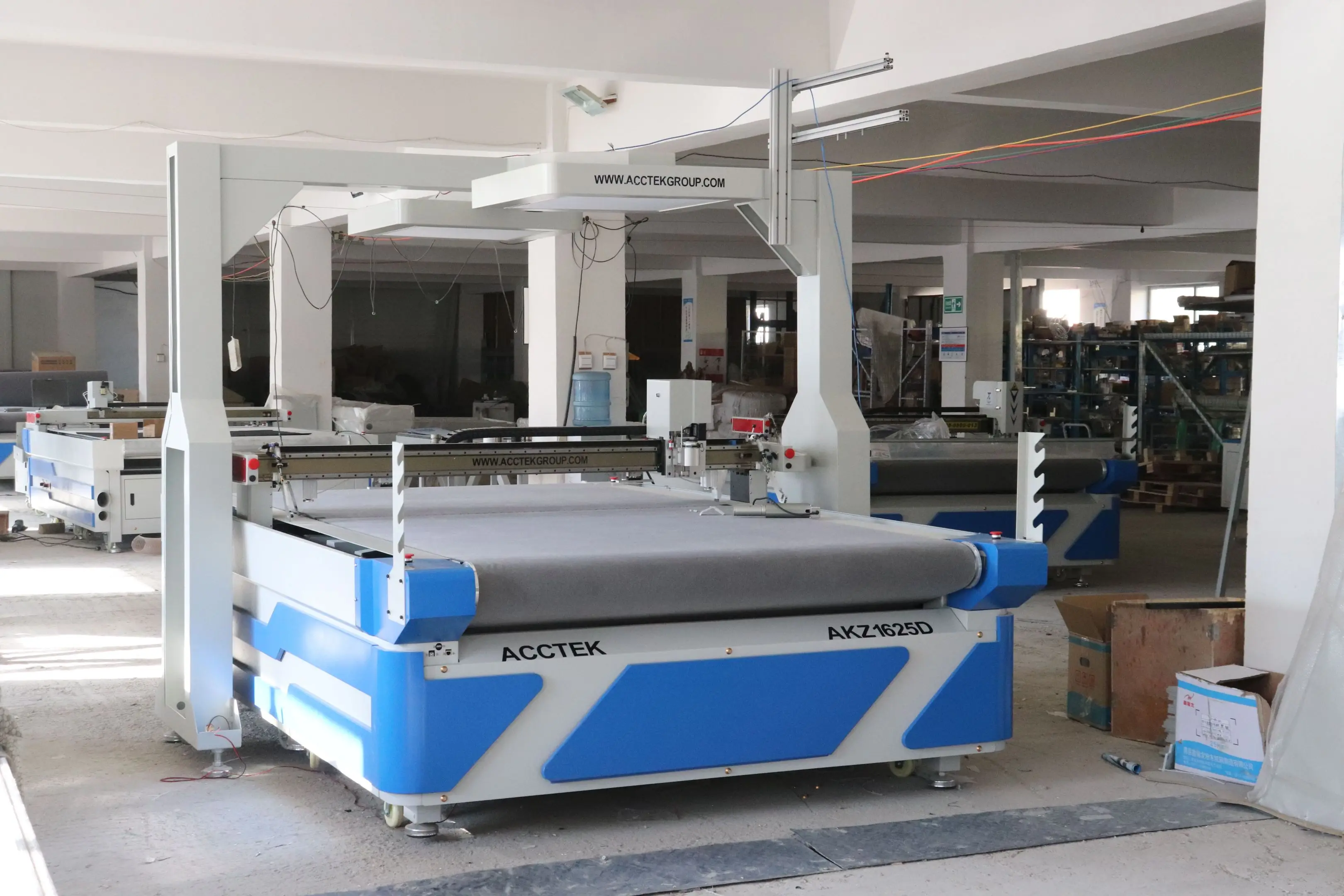

1625 CNC Oscillating Knife Cutting Machine With CCD
Model | AKZ1625 |
Max. Cutting size | 1600*2500mm |
Voltage | 380V,225V,415V |
multifunctional Tool Head | Thorough cutting/Kiss cutting/Creasing/Plotting/Laser Locating/Automatic Table-level measuring |
Security Device | High sensitive infrared induction |
Cutting speed | Max. 1200mm/s (can be set up according to different materials) |
Movement speed | Maximum 1500mm/s |
Cutting material | Corrugated paper, PVC expansion sheet, kt sheet, thick foam, gray board, paperboard, car sticker, adhesive Sticker, etc. |
Cutting thickness | Maximum 50mm (set according to different materials) |
Material fixing method | High power vacuum absorption with felt |
Repeated positioning accuracy | ±0.1mm |
Mechanical Precision | Maximum 0.1mm |
Drive system | Taiwan Delta servo motor, Taiwan PMI linear guide rails |
Control system | Trocen control system |
Data transmission method | USB port &Ethernet |
Suport file | DXF,PLT,BMP,GIF,JPGE,CDR,DMG,PWJ etc. |
1. The cnc vibrating knife cutting machine used for cutting sunscreen fabrics and other fabrics for blinds.
2. Using the Swiss cutting system, the cut section is straight and tidy, no fray, no scorch, no fluffy and no color fading off.
3. The cutting tool can be cut in different ways by adjusting the type of the cutter according to the thickness of the fabric.
4. Simple selection of tooling via push button, or by remote control,With electricity and roller feeding system.
2. Using the Swiss cutting system, the cut section is straight and tidy, no fray, no scorch, no fluffy and no color fading off.
3. The cutting tool can be cut in different ways by adjusting the type of the cutter according to the thickness of the fabric.
4. Simple selection of tooling via push button, or by remote control,With electricity and roller feeding system.
Product details show

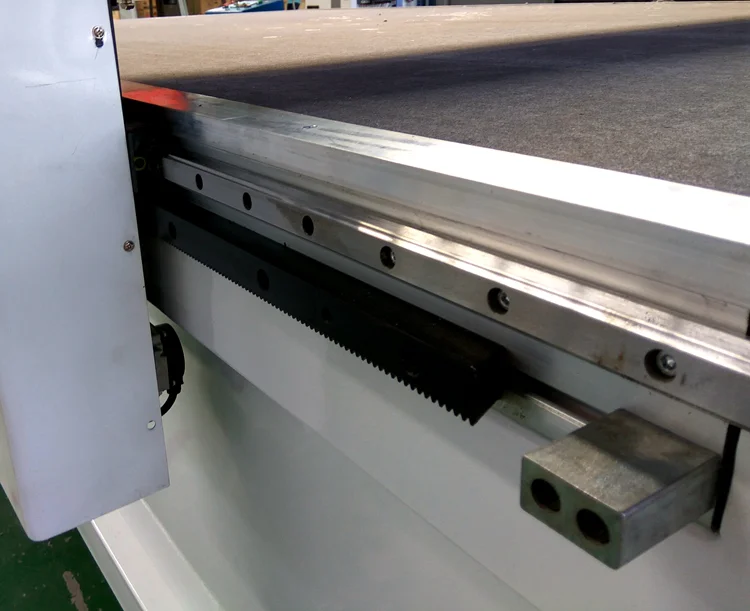

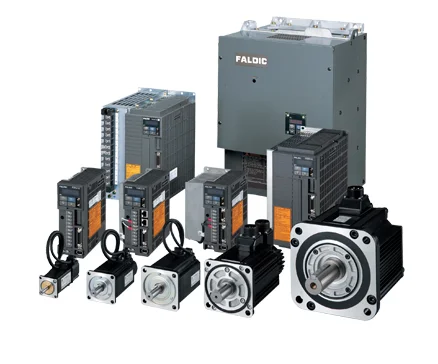

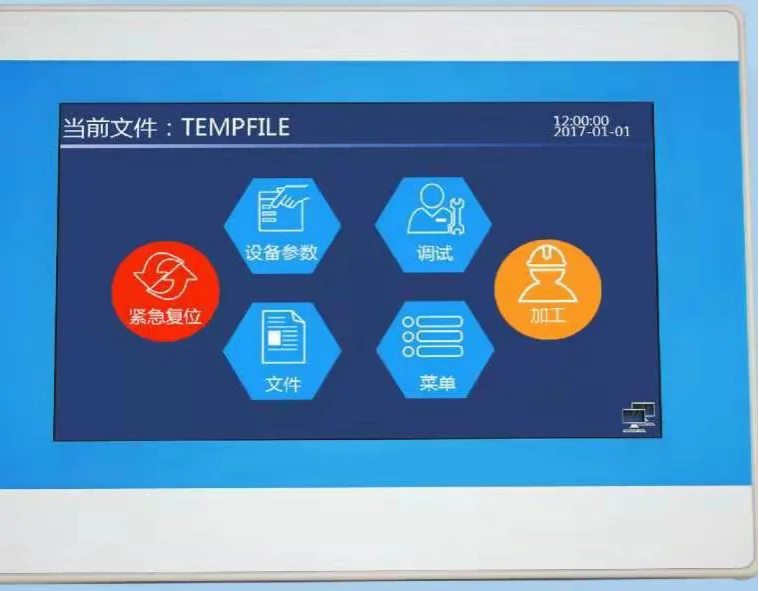

Taiwan Delta servo motor | RDD6584G controller | Taiwan PMI linear guide rail |

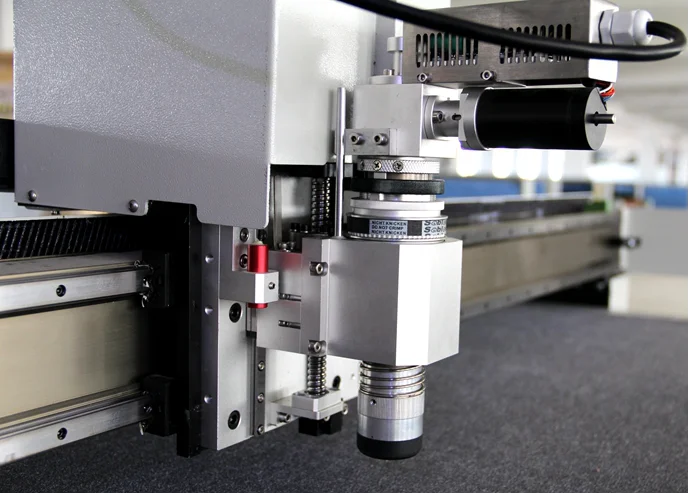

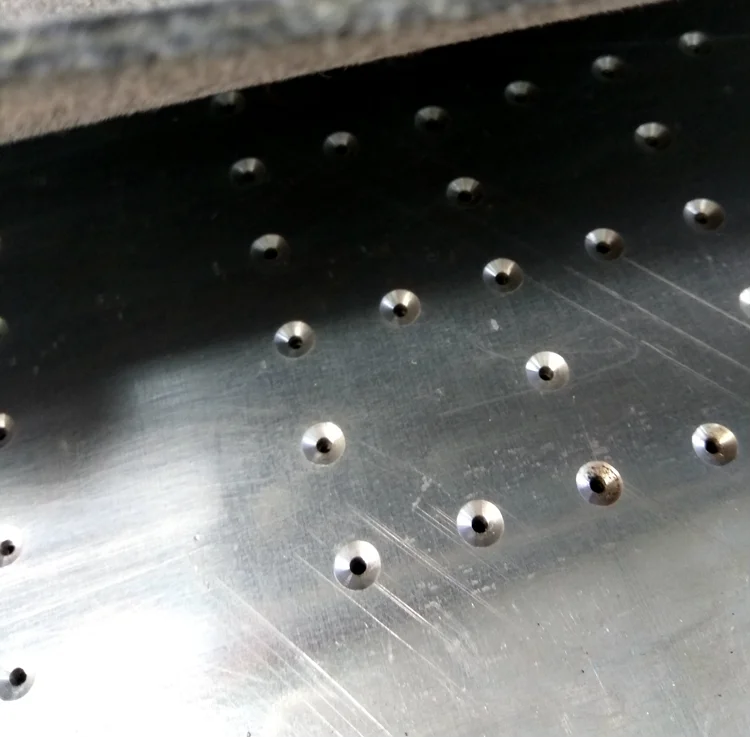

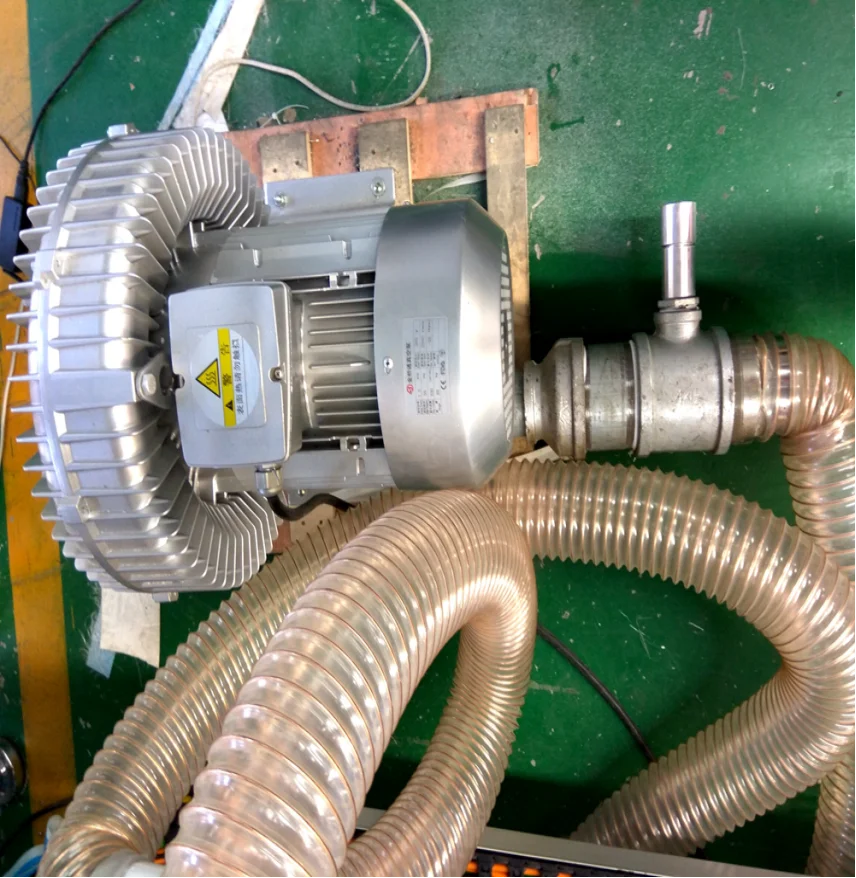

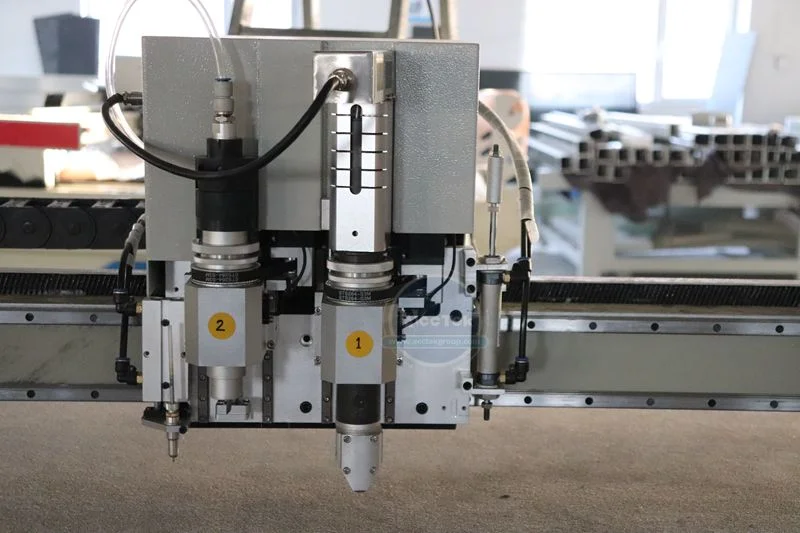

Whole cast aviation aluminum vacuum adsorption table & felt | 9kw air vacuum pump(with muffler) | cutting head |

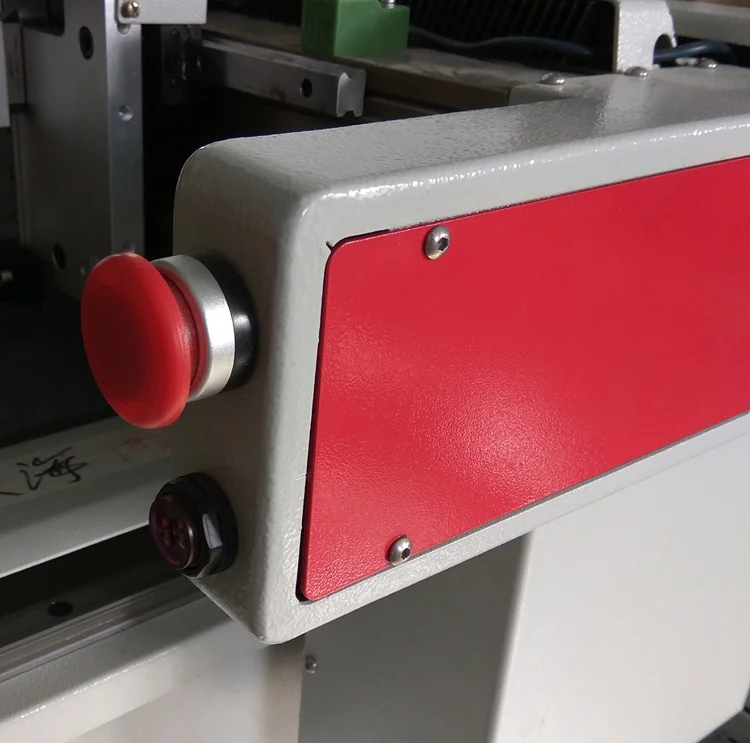

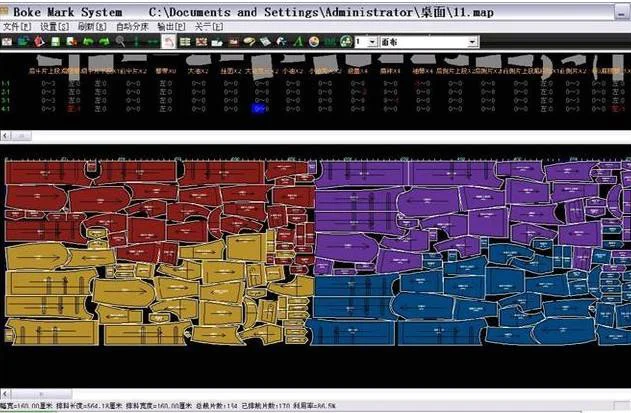

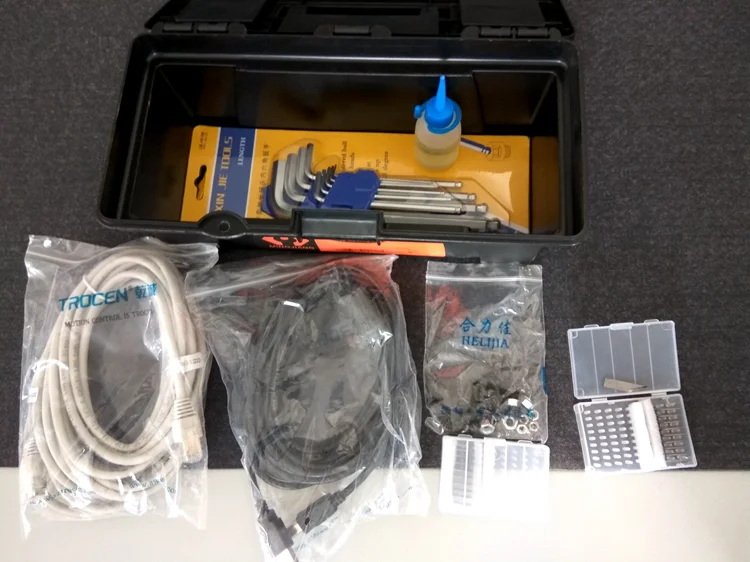

Boke intelligence auto-nesting software | High sensitive infrared induction security device | Tool box |
Round knife cutting head
The cirlce tools is designed for cutting challenging fibrous materials inexpensively and reliably, the circle knife is suitable for a wide range of challenging materials, including fiberglass and aramid,soft clothes,fabric with thin thickness
Identification roller
The Pressure roller is perfect for processing single-wall corrugated cardboard. this tools accommodates crease wheels with three
diameter of big,middle, small
diameter of big,middle, small
V-groove cut tool
The V-cut tool is the perfect tool for producing complex structural designs from foamcore or sandwich board materials, the tools can be set for cutting at 5 differnt angles(0°，15°， 22.5°， 30°， 45°), mainly for cutting corrugated sheet, honeycomb panels to be creased.

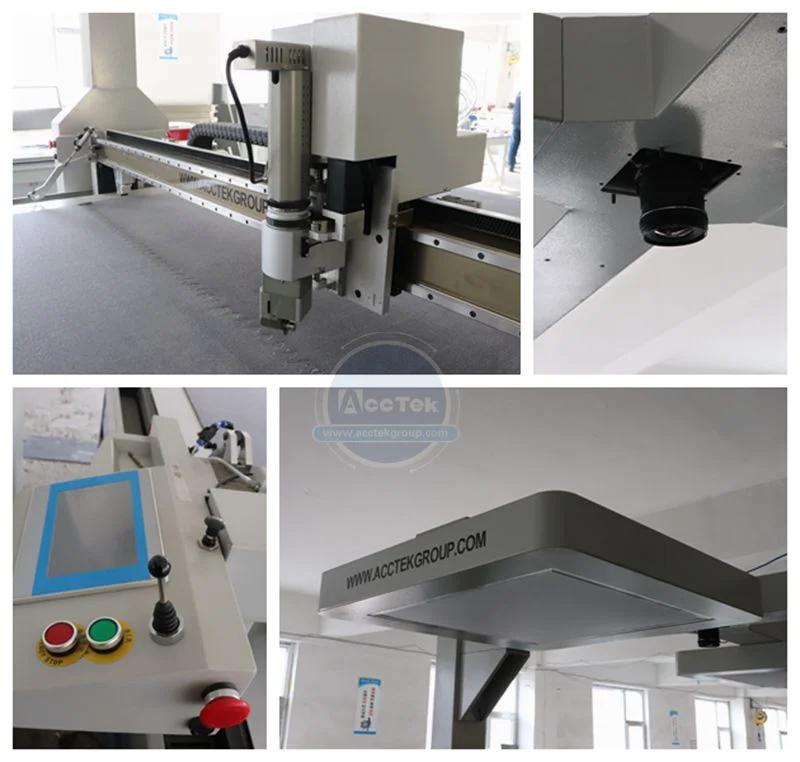

Big CCD industry camera
It is professionally used for the rapid information collection of irregular materials or materials with printed patterns to achieve fast and accurate cutting.
Projector
The projector is mainly used to project cutting graphics, which can adjust the cutting position according to the projection, and realize fast and accurate visual cutting.Recommended for use with industrial CCD
Standard fabric frame
The standard fabric frame is mainly for machine with auto feeding system, using for fabric in roll support.
Milling tool
The milling tool is mainly for hard material, can be used on acrylic, aluminum plate, MDF and other materials.
Punching hole tool
For punching holes with same diameter on soft materials (standard diameter 2mm/ 4mm/6mm optional)
Pneumatic oscillating Tools
The Pneumatic oscillating Tools is an air-driven tool particularly well suitable for cutting tough.dense materials but can also handle soft,thicker ones, for example foam.

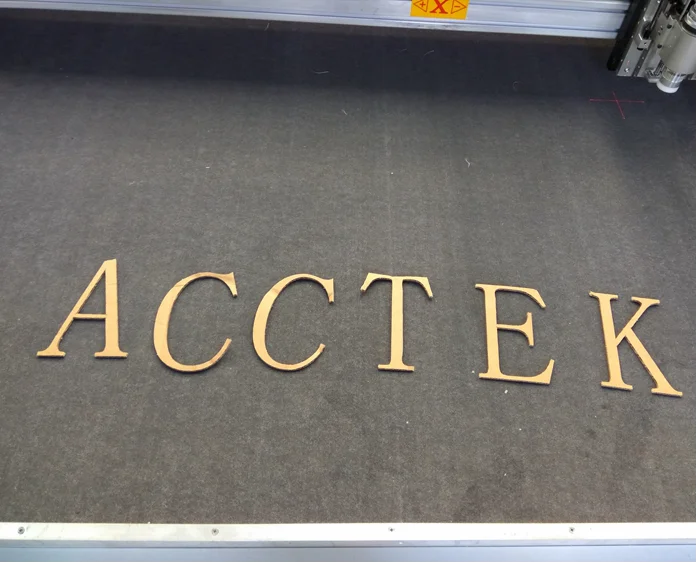

Product application
AccTek digital knife cutting machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard,sticker, film, foam boardrubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics,seat cover, carpets/rugs, sponge, PU, EVA,XPE, PVC, PP, PE, PTFE, ETFE and composites.

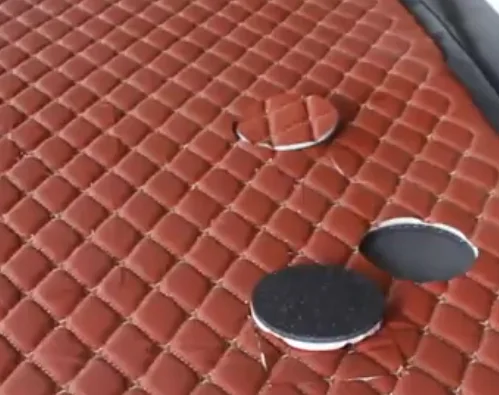

Carpet | Fur | Corrugate box |

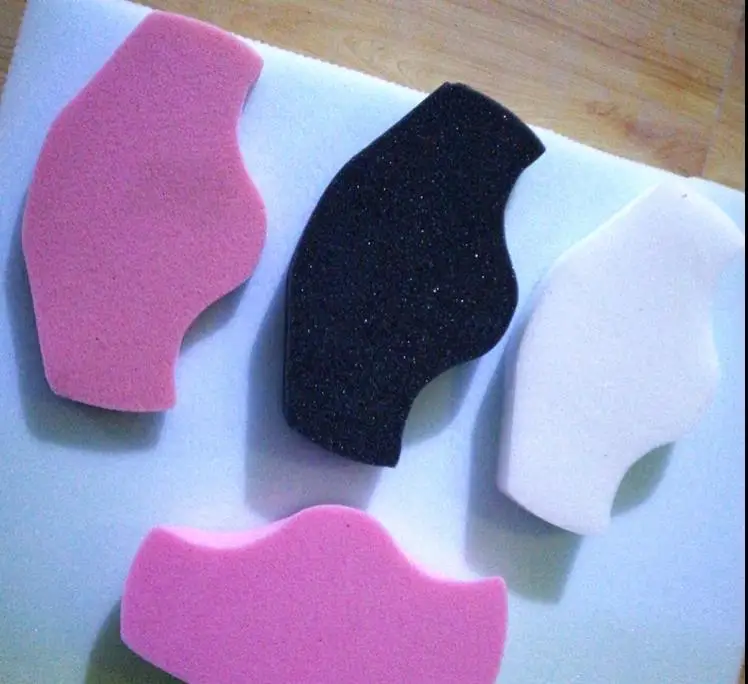

Plastic | Foam | Leather/ PU |

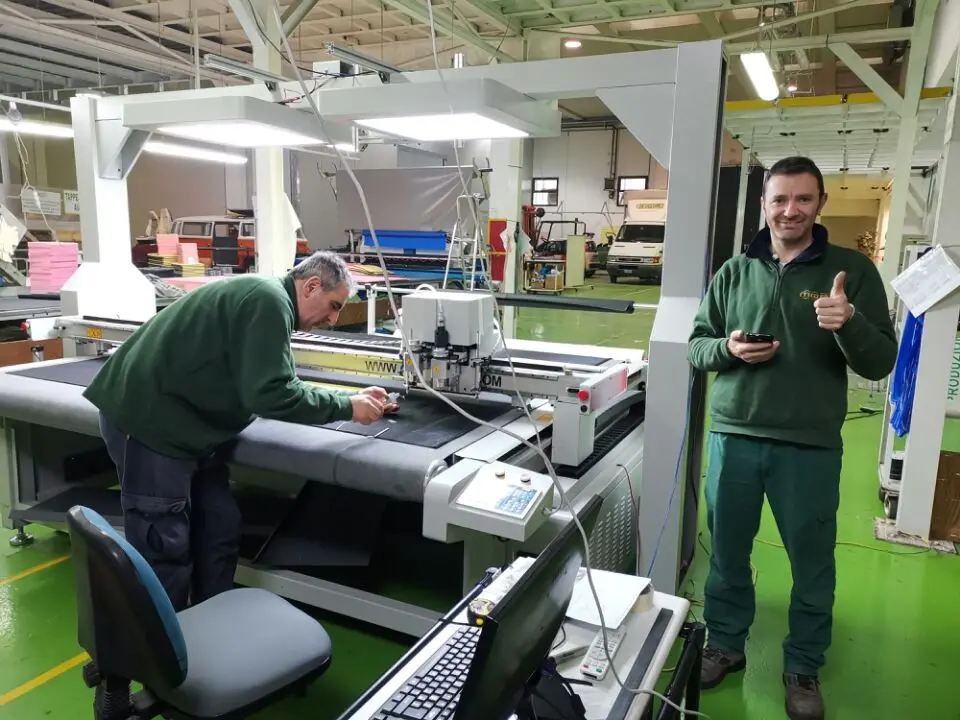

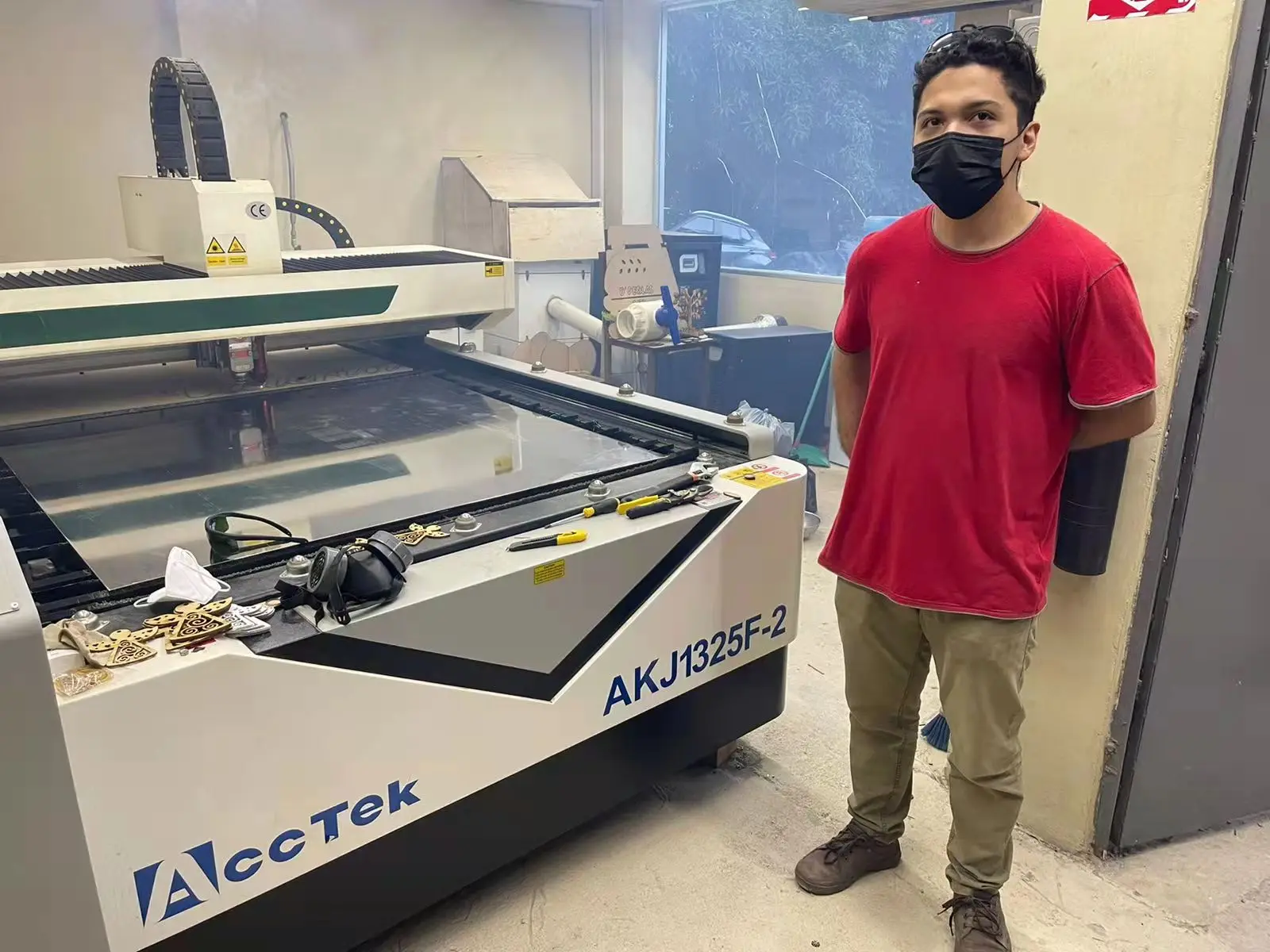

Customer feedback and our services
Guarantee | 12 months guarantee of the whole machine |
Software issue | Our technician is able to re-install or set up by remote for free |
Hardware issue | Main parts(excluding the consumables) shall be replaced/repaired free of charge if there is any problem during the warranty period. |
Support online | Our technician is able to teach you online to run the machine or eliminate the fault for free |
Training in AccTek factory | We are able to train your staff after placed order in our factory for free. |
On-site training (Recommended, the most effective way） | We are able to send technician to your workshop to do the installation and training. You will need bear the related costs（flight,visa,hotel,training costs, etc) |

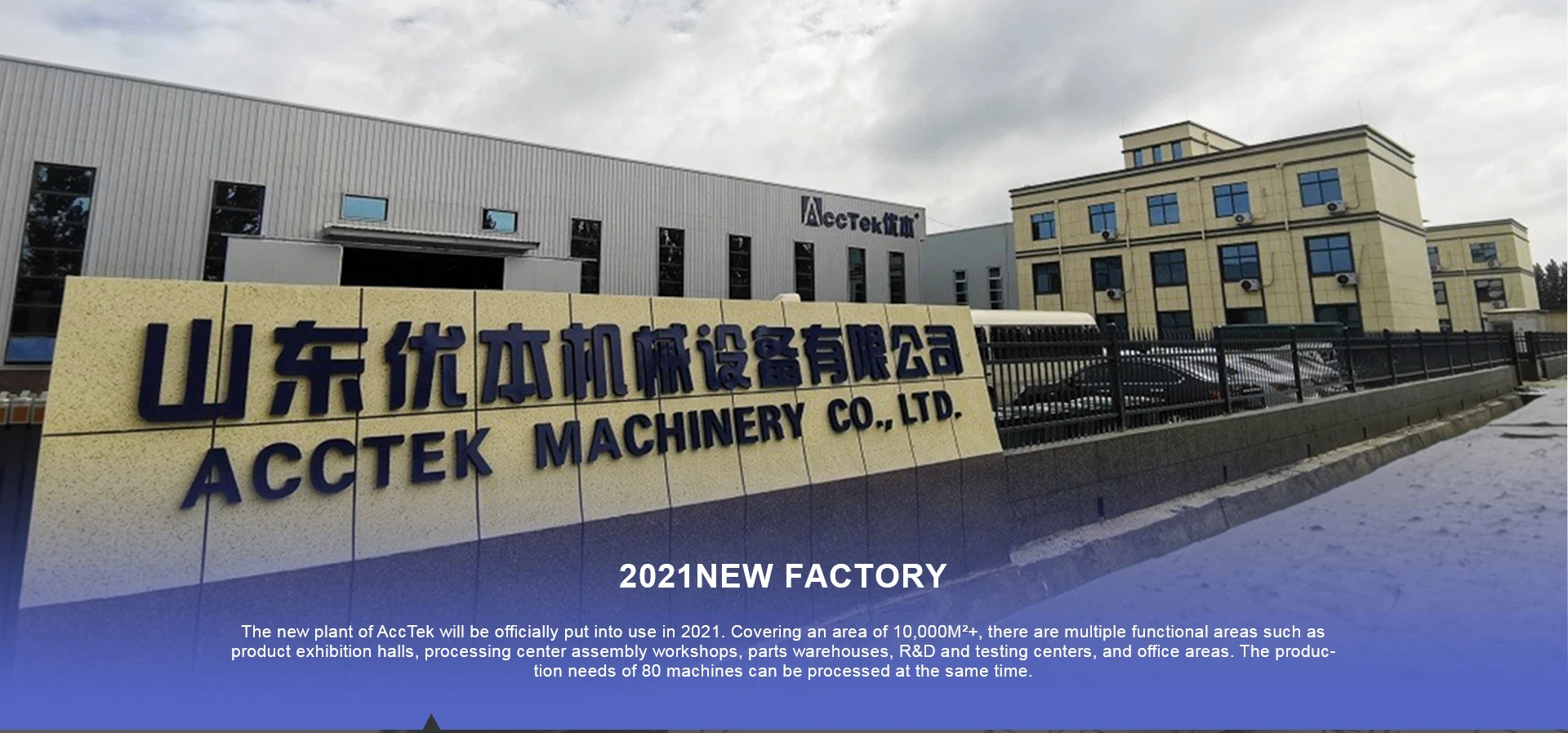

company introduction
Jinan AccTek Machinery Company specializes in manufacturing CNC Router and Laser machines.Since 2005 we have been based in the Industrial Zone of Jinan City, Shandong Province south of Beijing. Our main products are AccTek CNC Routers and Laser en-graving and cutting machines. Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control. These machines are used in many industries, crafts and arts businesses around the world. These include woodwork, metal and stone work, aluminum fabrication, boat building, shop ftting, mold making, to name a few. Our dedicated and highly skilled after sales service department, sales team, and thorough quality assur-ance procedures mean that you can buy with confidence. We wel-come customers and potential business associates from around "Our business is to improve your business"
PACKING&DELIVERY
Payment
1. We accept Western union, Moneygram, TT, Trade assurance of Alibaba, and you can pay 30% in advance, 70% before delivery.
2. The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and
the testing video.
3. After you agree, please finish the balance.Finally.we arrange the delivery.
4. All thing is tested well,then we arrange the delivery.
Delivery
1.Outside package: Standard marine export plywood case.
2.Inner package: Stretch film and plastic film for humidity.
3.We can package according to your requests.
4. Its need about 15-20 days to produce the machine after get your deposit.
1. We accept Western union, Moneygram, TT, Trade assurance of Alibaba, and you can pay 30% in advance, 70% before delivery.
2. The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and
the testing video.
3. After you agree, please finish the balance.Finally.we arrange the delivery.
4. All thing is tested well,then we arrange the delivery.
Delivery
1.Outside package: Standard marine export plywood case.
2.Inner package: Stretch film and plastic film for humidity.
3.We can package according to your requests.
4. Its need about 15-20 days to produce the machine after get your deposit.
