Share on (1600424582134):


Price:$1.17 - $1.20

Quantity:


Product Overview

Description



Products Description

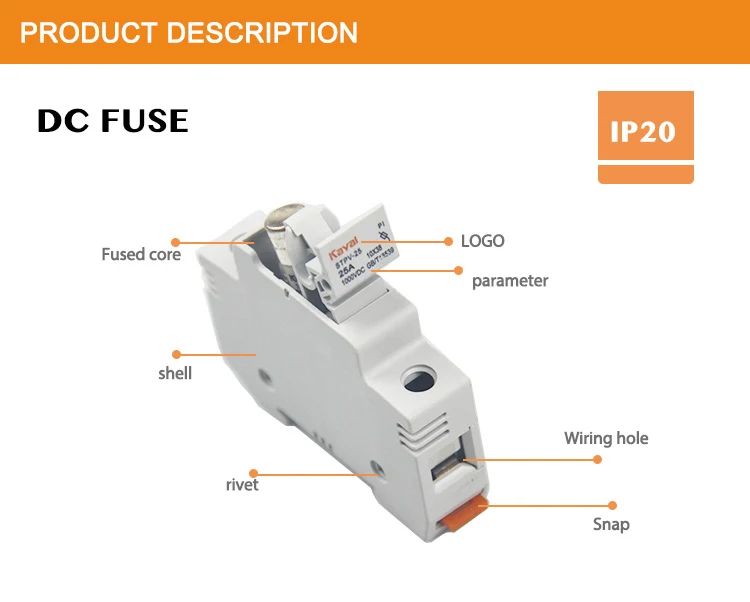

Description
PV fuses are applied in PV array combiner box,for protection against overload and short circuit between PV modules and inverter.PV fusess are tested to withstand cycling conditions associated with PV modules system operation and environmental influences.


Technical Data
PV Fuses
Size
10*38mm
Rated voltage
1000V DC max
Rated Current
2,4,6,8,10,16,20,25,30A
Time constant(L/R)
2 ms
Breaking capacity
20KA
Working temp
-25℃-+70℃
Conform
IEC60269 standards
Technical Data
PV Fuse Holder
Conform
IEC60947-3 standards
Rated voltage
1000V DC max,DC20B
Housing material
PA66,UL94-V0
Mounting
DIN rail EN50022
Rigid conductor
1 up to 16mm2
Flexible conductor
0.75 to 10mm
