JuLi Factory 40w 48w CE Diver 5 years warranty LED Backlight595x595 60x60 Panel
- Category: >>>
- Supplier: Jiaxing Juli Opto-Electronics Technology Co. Ltd.
Share on (1600424641850):
Product Overview
Description
Product Description

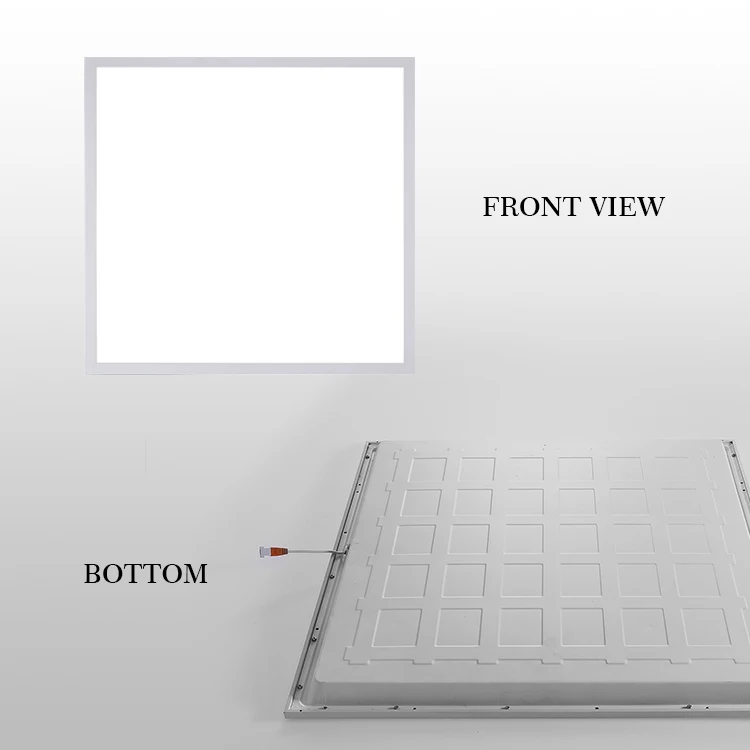

40w 48w CE Diver 5 years warranty LED Backlight595x595 60x60 Paneldirectly emitting led backlit panel
1. CRI 80, pretty good color index
1. CRI 80, pretty good color index
2.PS 1.0 as the diffuder plate
3.No yellow issue ,good for eye

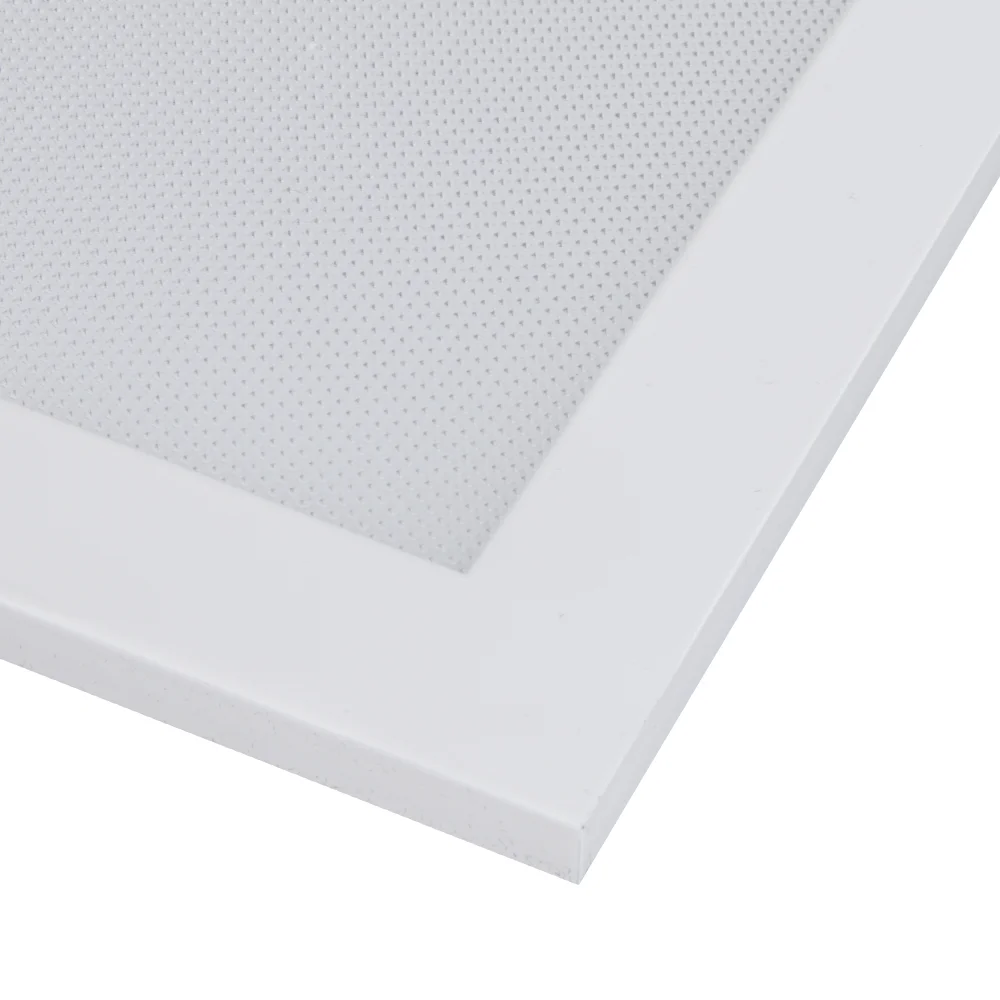

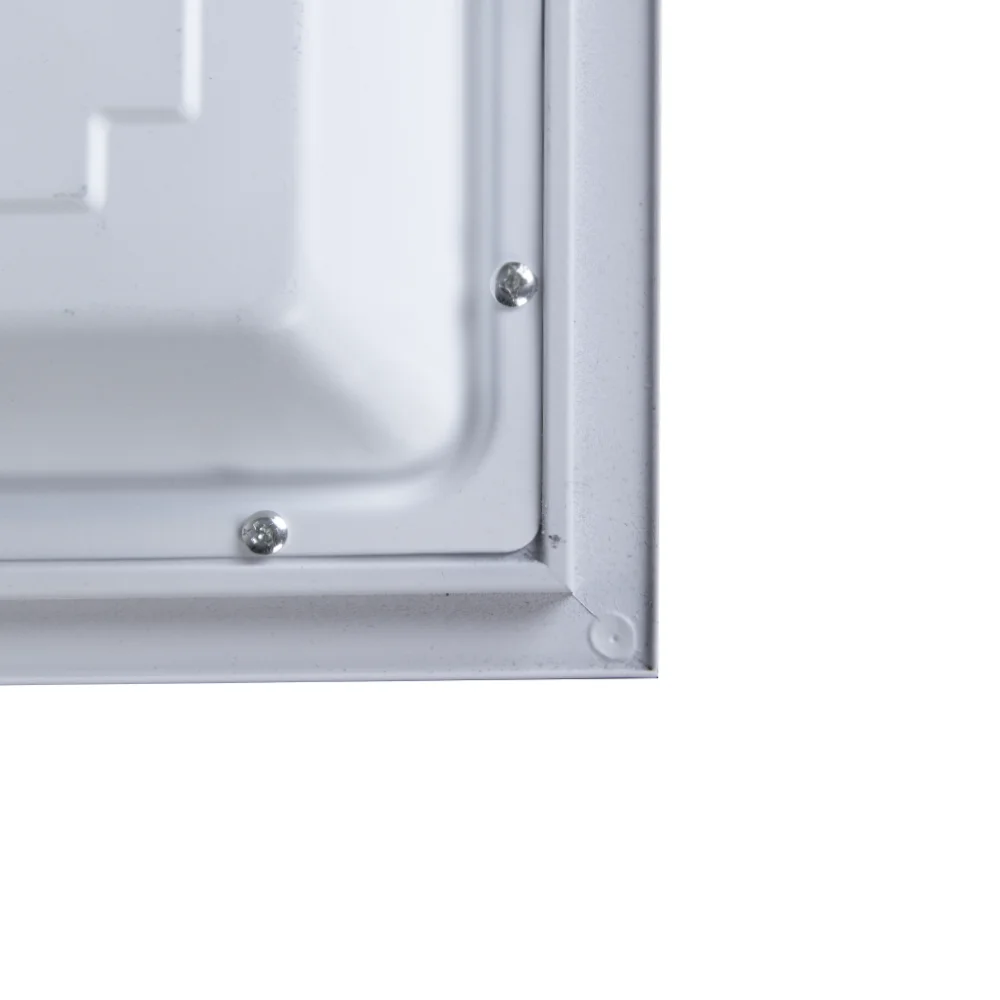

High Quality Flat Frame
-170 g white flat spray aluminum frame high weight and quality
-45° cut works
-Welded frame
-two welded points strength the frame better

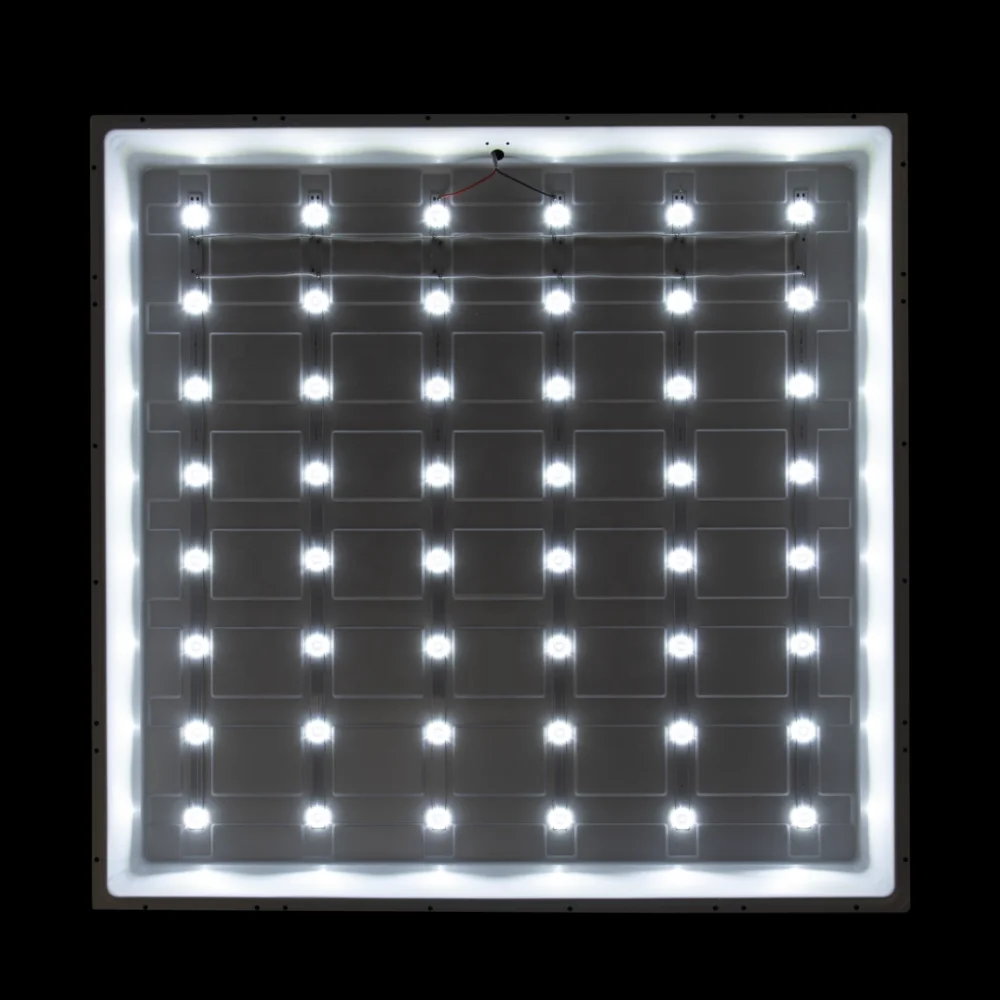

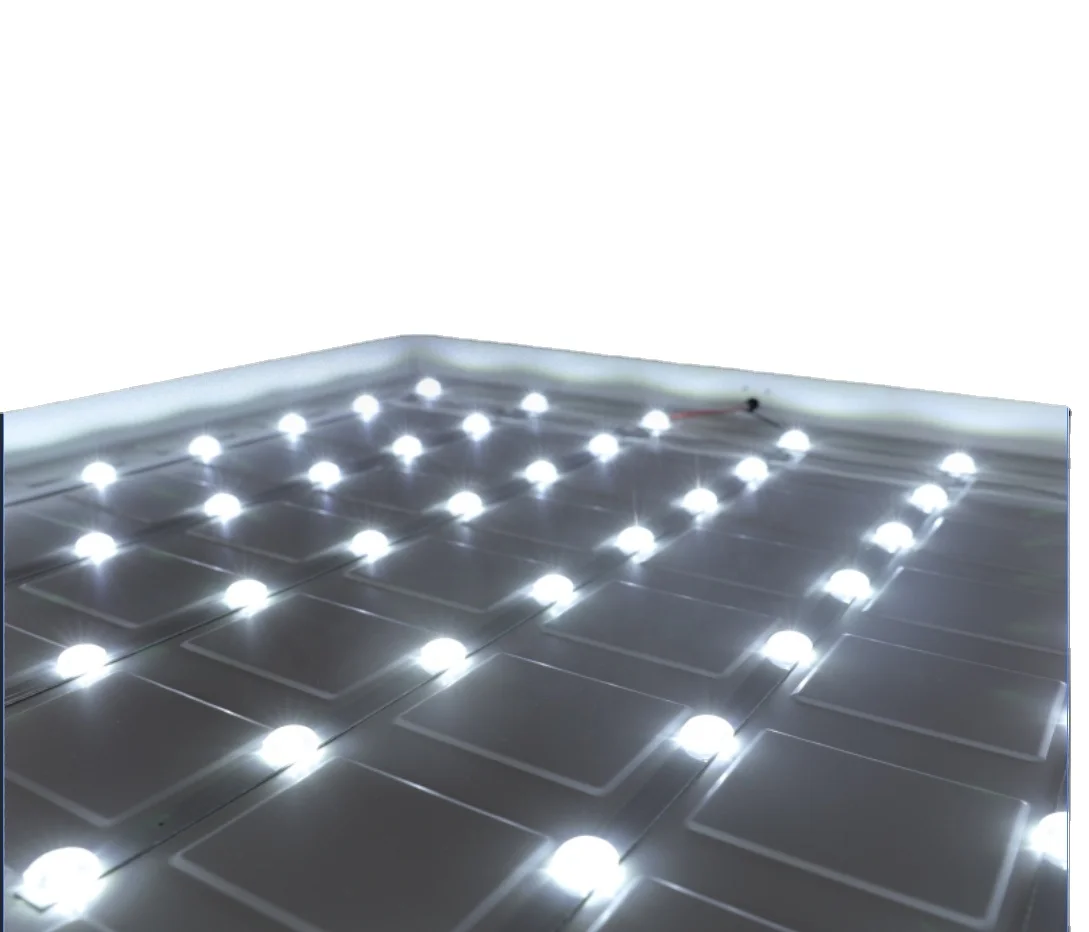

Super bright LED lens
-100lm/w super bright lumen efficiency

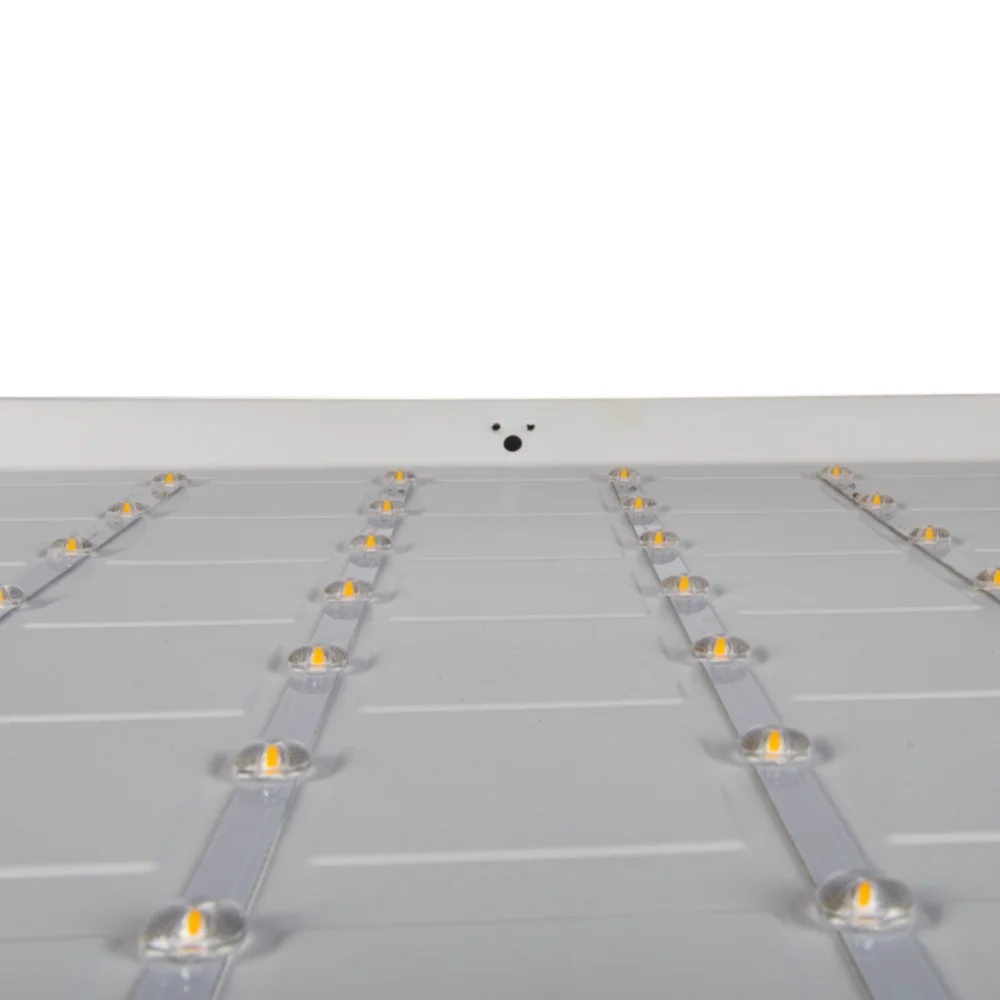

-PMMA Φ13.5 lens ,high efficiency
-Pass EMC

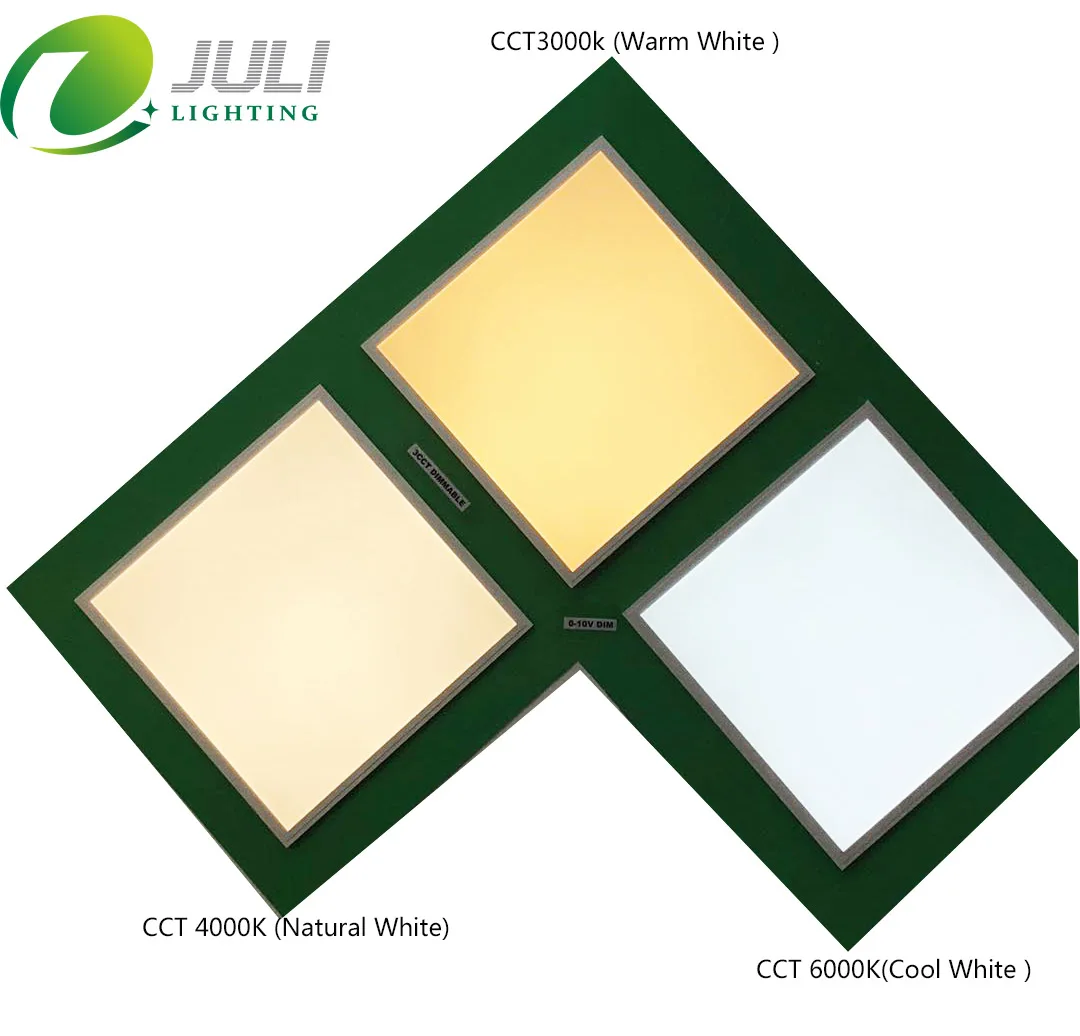

-3000k 4000K 6000K for option
Iron Back Cover
-95% above reflective
-Powder spray ，strength the reflective function
-0.3mm thickness ,strong enough to protect the lens

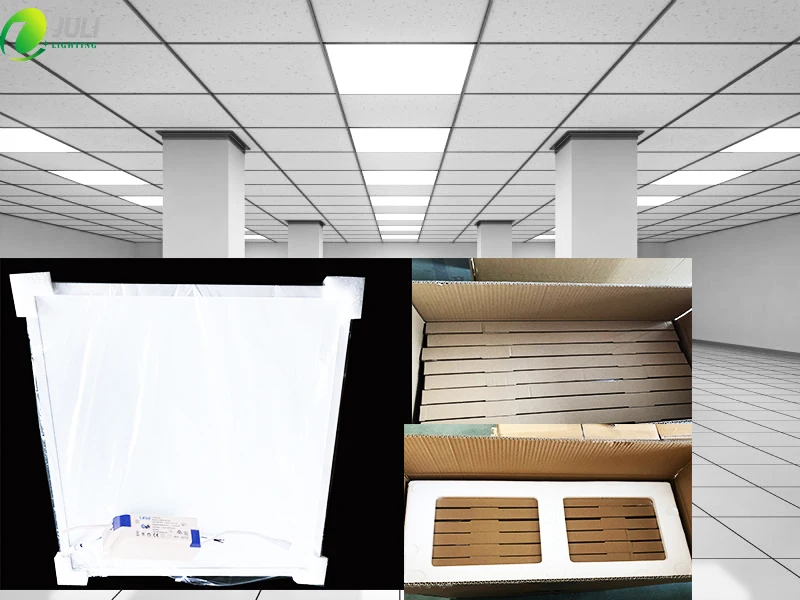

Individually Pack
-Four corners protect by the EPE cotton
-Bottom and the surface cover with the foam ,double protect ,which ensure good look during the transportation
-8pcs/6pcs in one carton
Specification
Model No. | JL-6060BLT | |||||||
Size (MM) | 595*595 | 605*605 | 620*620 | Customized | ||||
Power (W) | 40 | 48 | 60 | |||||
LED Source | SMD2835 | |||||||
Input Voltage | AC220-240V | AC85-265V | ||||||
Luminous Efficiency (Im/w) | 90 | 100 | 110 | 120 | ||||
Luminous Flux | 3600+ | |||||||
CRI | >80 | >90 | ||||||
Color Temperature | PW: 3000-3500K | WW:4000-4500K | CW: 5700-6500K | CCT tunable | ||||
UGR | 16 | 19 | 22 | |||||
PF | >0.6 | >0.9 | ||||||
Material | Aluminum +PS | |||||||
Driver | Isolated 2 years warranty | Isolated 3years warranty | Isolated 5years warranty | |||||
Installation | Reccessed | Surface Mounted | Suspension | |||||
Application | office, | school,hospital,hotel, | showroom | shoppingmall etc | ||||

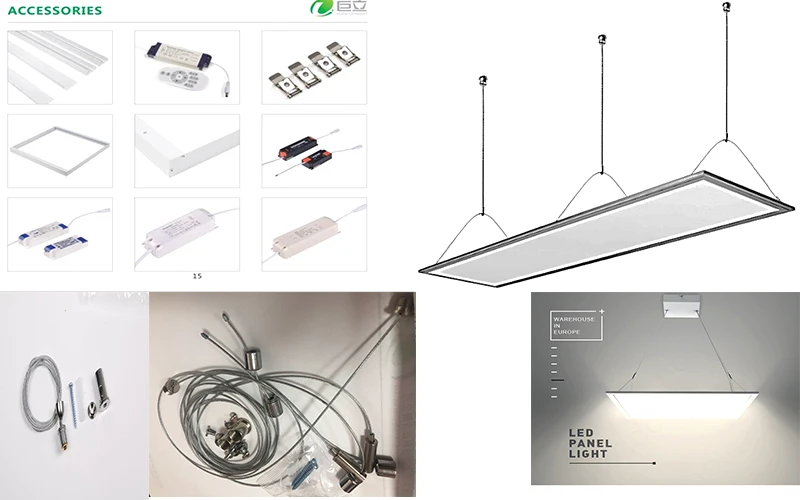

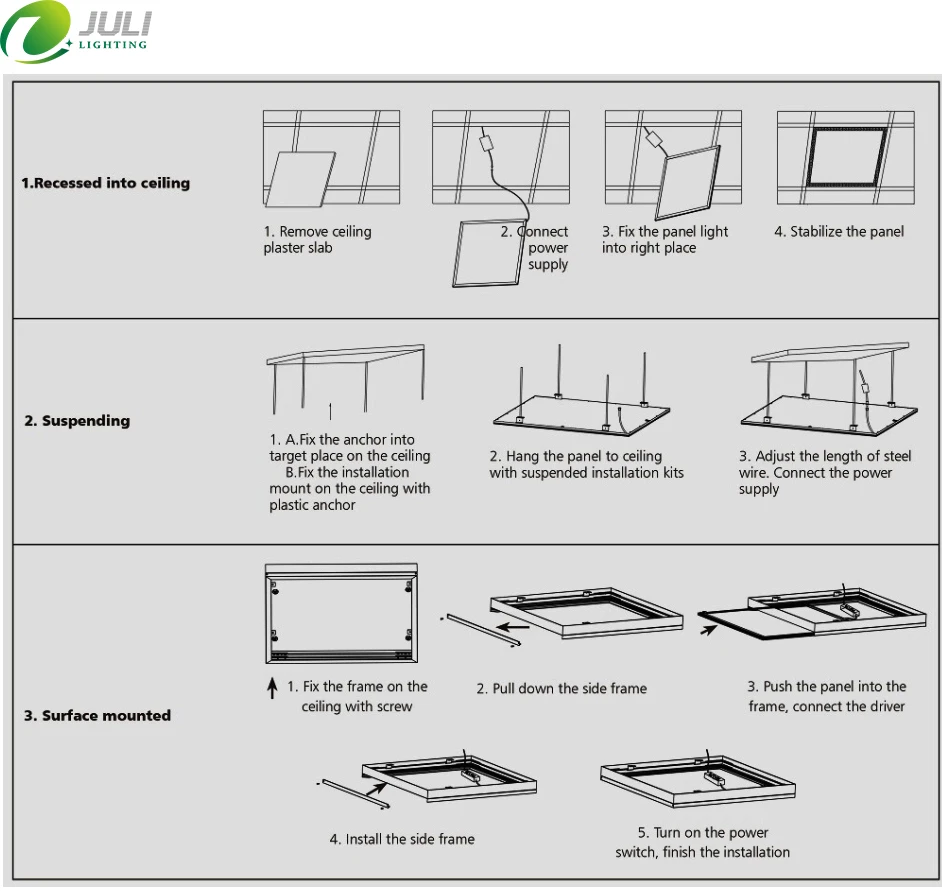

Installation Process
Why Choose Us

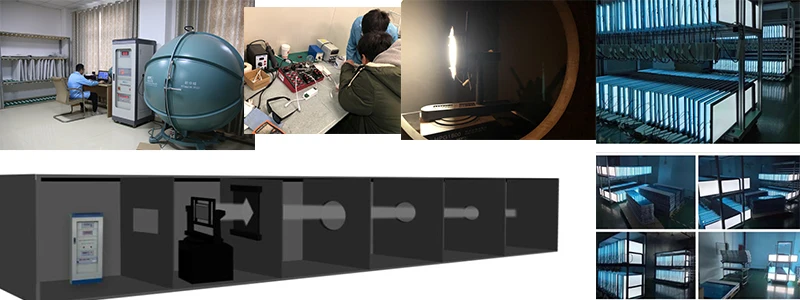

1.Strict management (raw material preparation -producing process-testing )
2.Professional exporting team , factory product,trading company service (all our sales are with 5 years experience in trading business for oversea customers ,24hrs online ,ensure your business and money )
3.We have R&D team ,always devoting into make progress in the led lighting technology , and share with our customers ,keep pace with the world .
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:As the general model, can offer in 7days ,the other according the production condition ,usually in 15days
Q3. Are you a factory or the trading company ?
A: we are directly factory sales ,although JULI has some agents in trading company
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer2/3/5years warranty .
