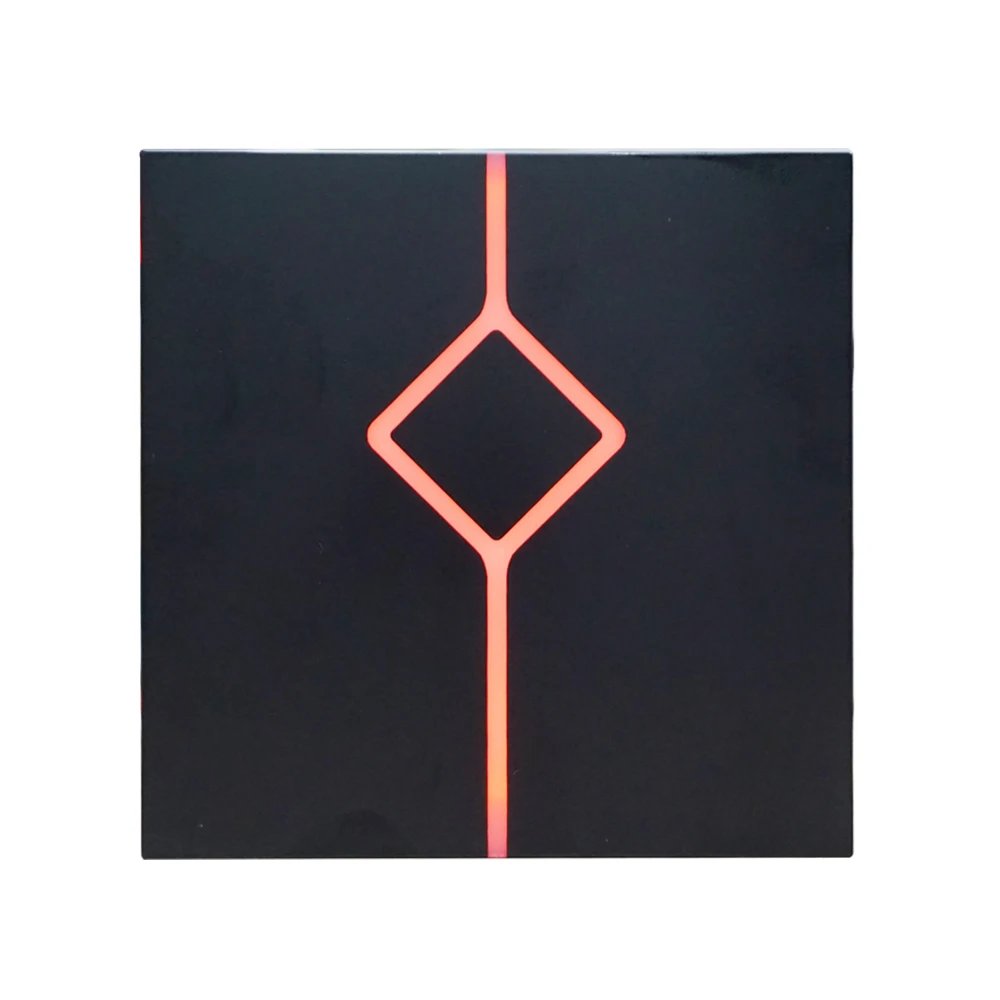

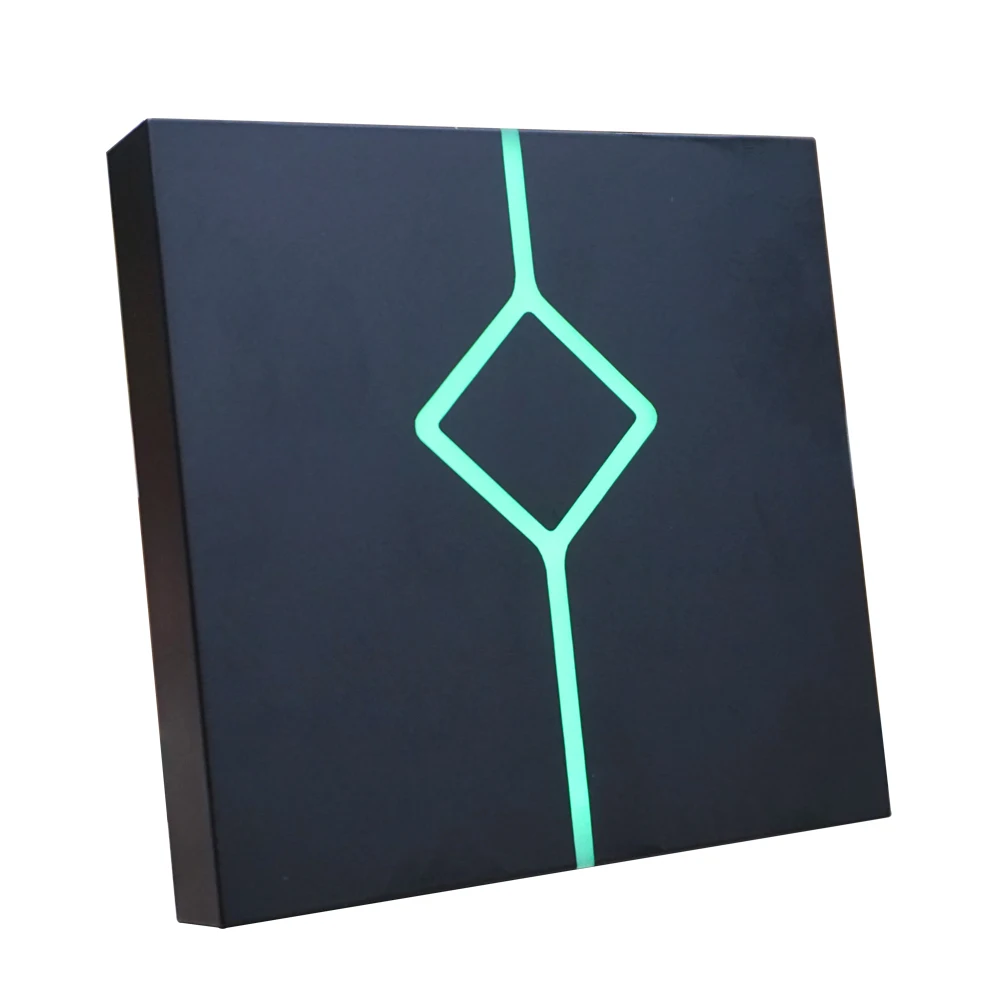

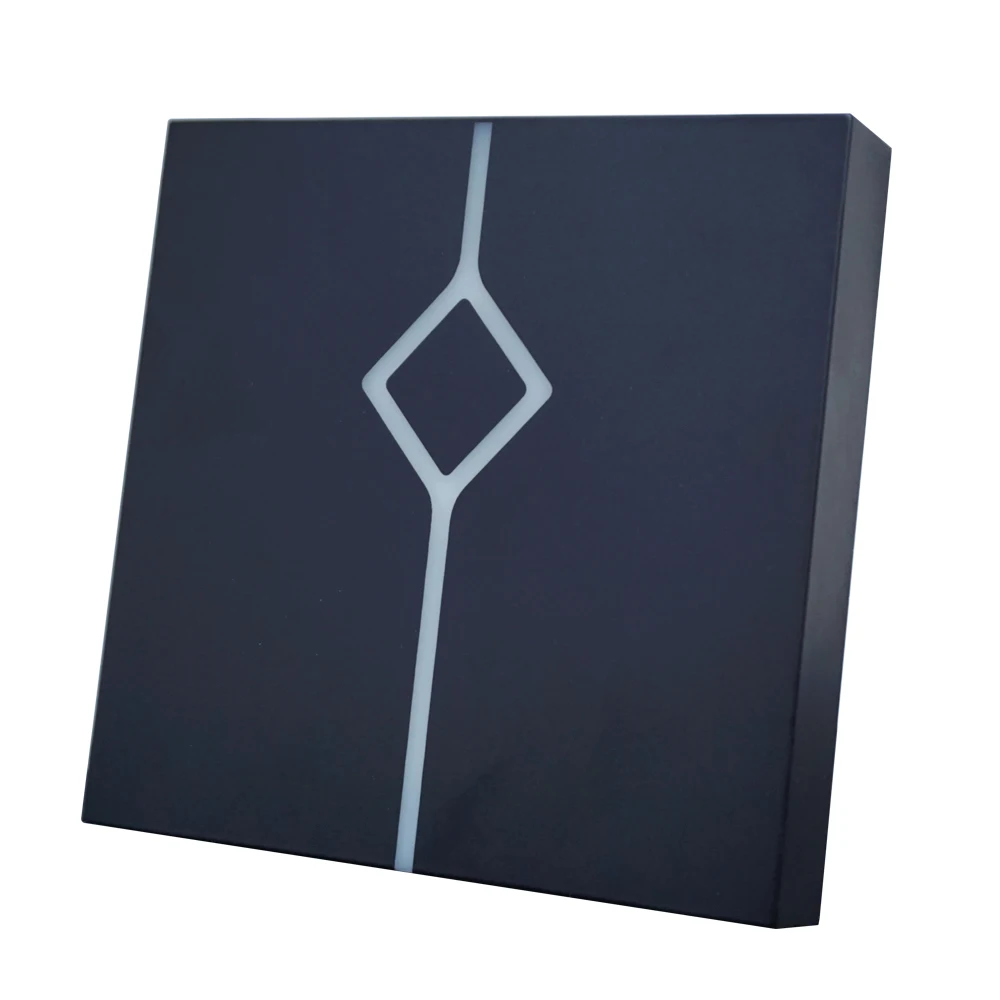

IP67 Waterproof Access Control RFID EM/MF Card Reader with Wiegand output
- Category: >>>
- Supplier: Shenzhen Mingqian Technology Co. Ltd.
Share on (1600424650937):
Product Overview
Description
IP67 Waterproof Access Control RFID EM/MF Card Reader with Wiegand output
EA-74's main parameter
| Product Name: | IP67 Waterproof Access Control RFID EM/MF Card Reader with Wiegand output | |
| Model number: | EA-74C | EA-74D |
| Card type: | IC card(13.56MHz) | ID(125KHz ) |
| Power supply: | DC12V | |
| Working current: | 30~180mA | |
| WG output format: | WG34/WG26(Adjustable) | |

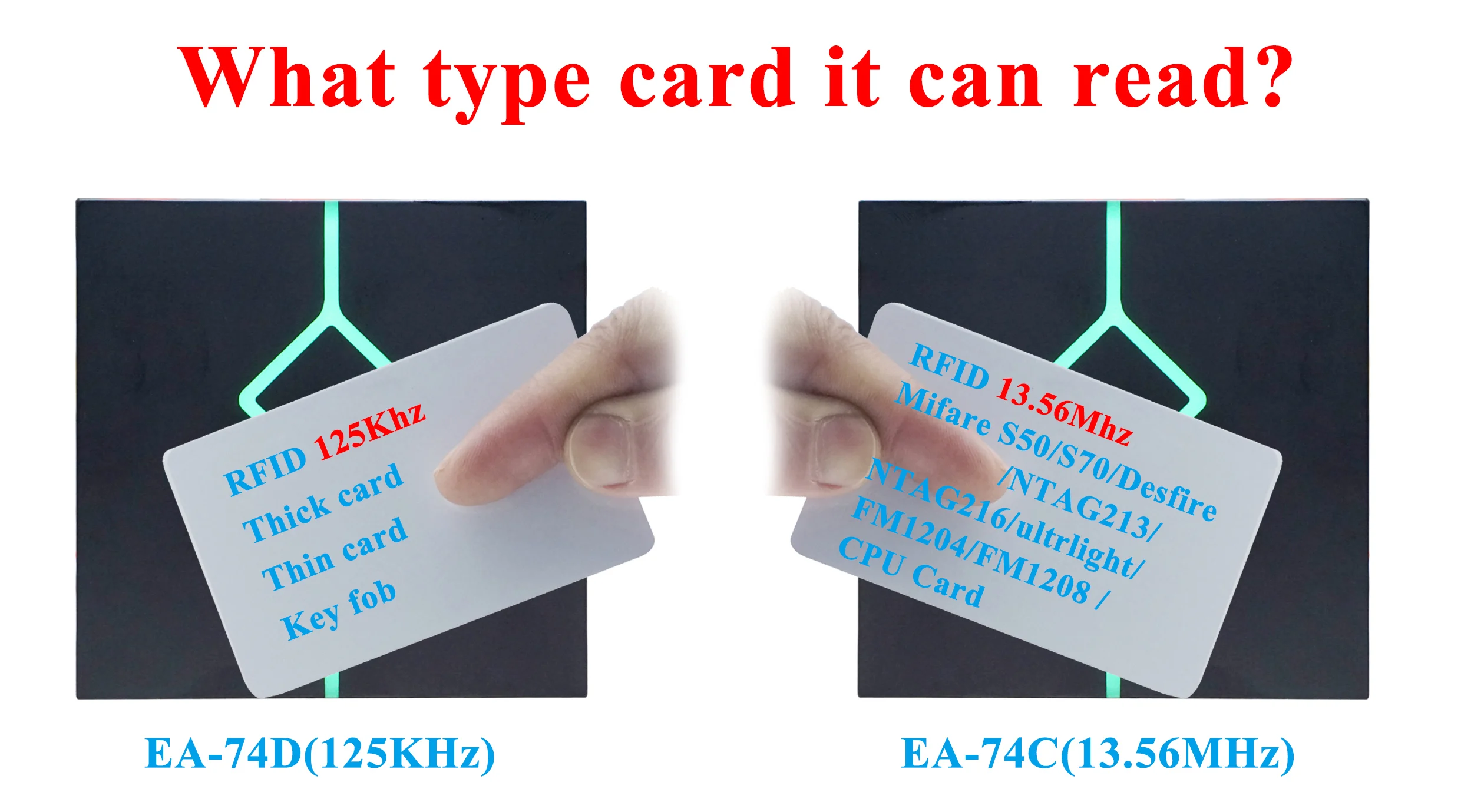

| Support card: | S50/S70/Desfire/NTAG213/NTAG216/ ultrlight/FM1204/FM1208/CPU Card | EM 125KHz Thick card Thin card, Key fob |
| Reading distance: | 0~3CM | |
| Communication distance: | <80m(between card reader and controller) | |

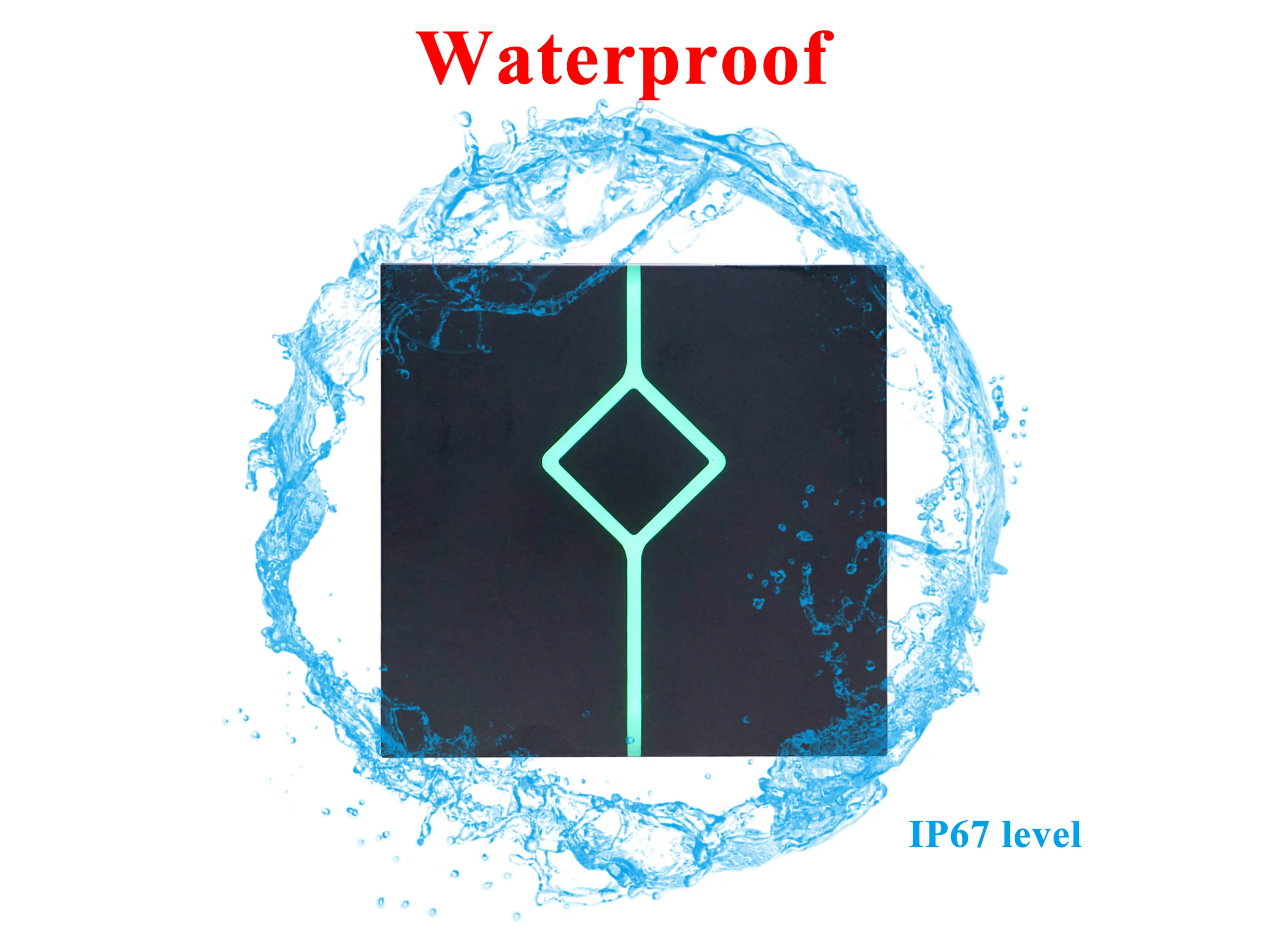

| Waterproof: | IP67 | |

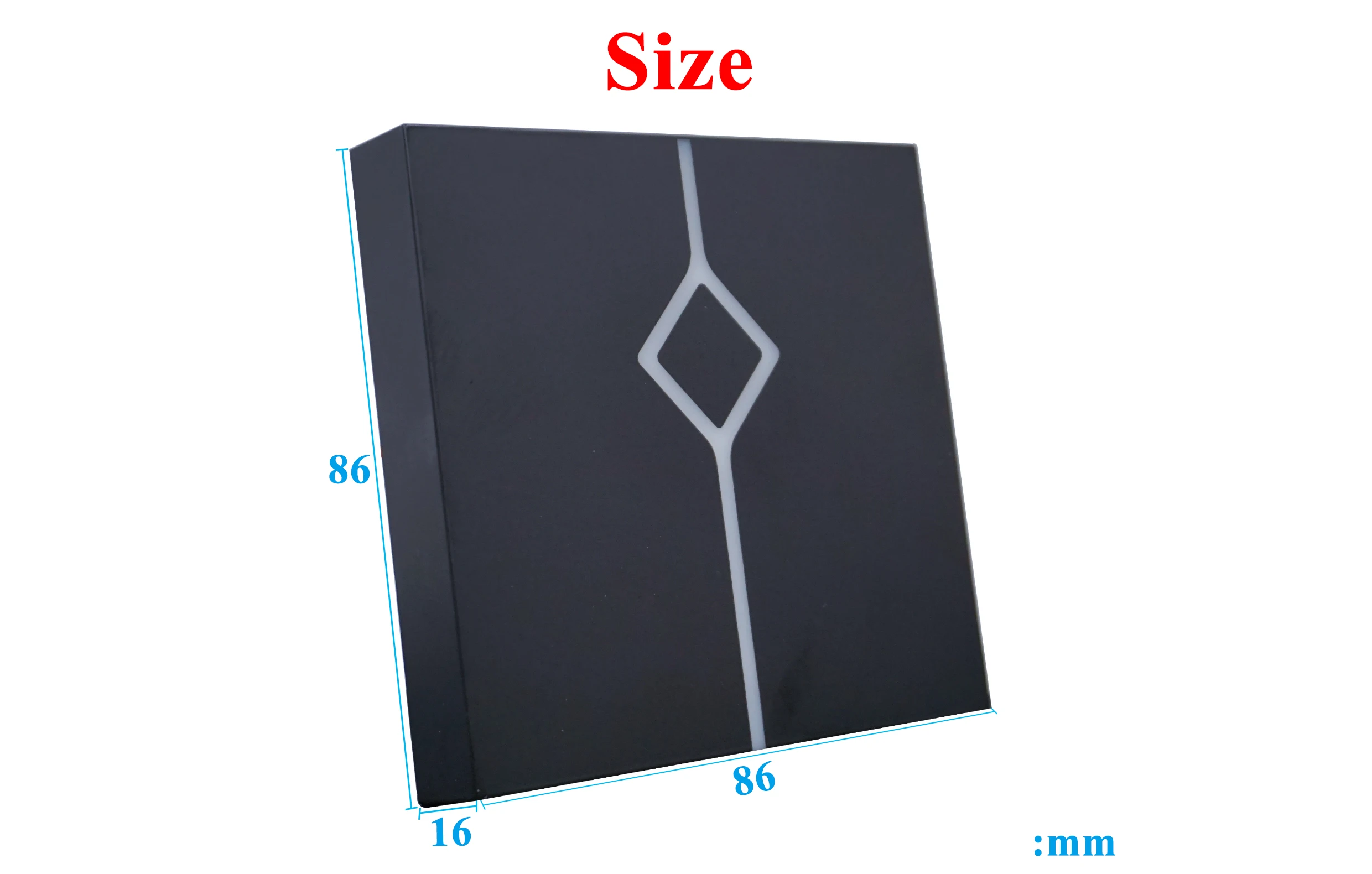

| Dimension: | 86*86*16(mm) | |

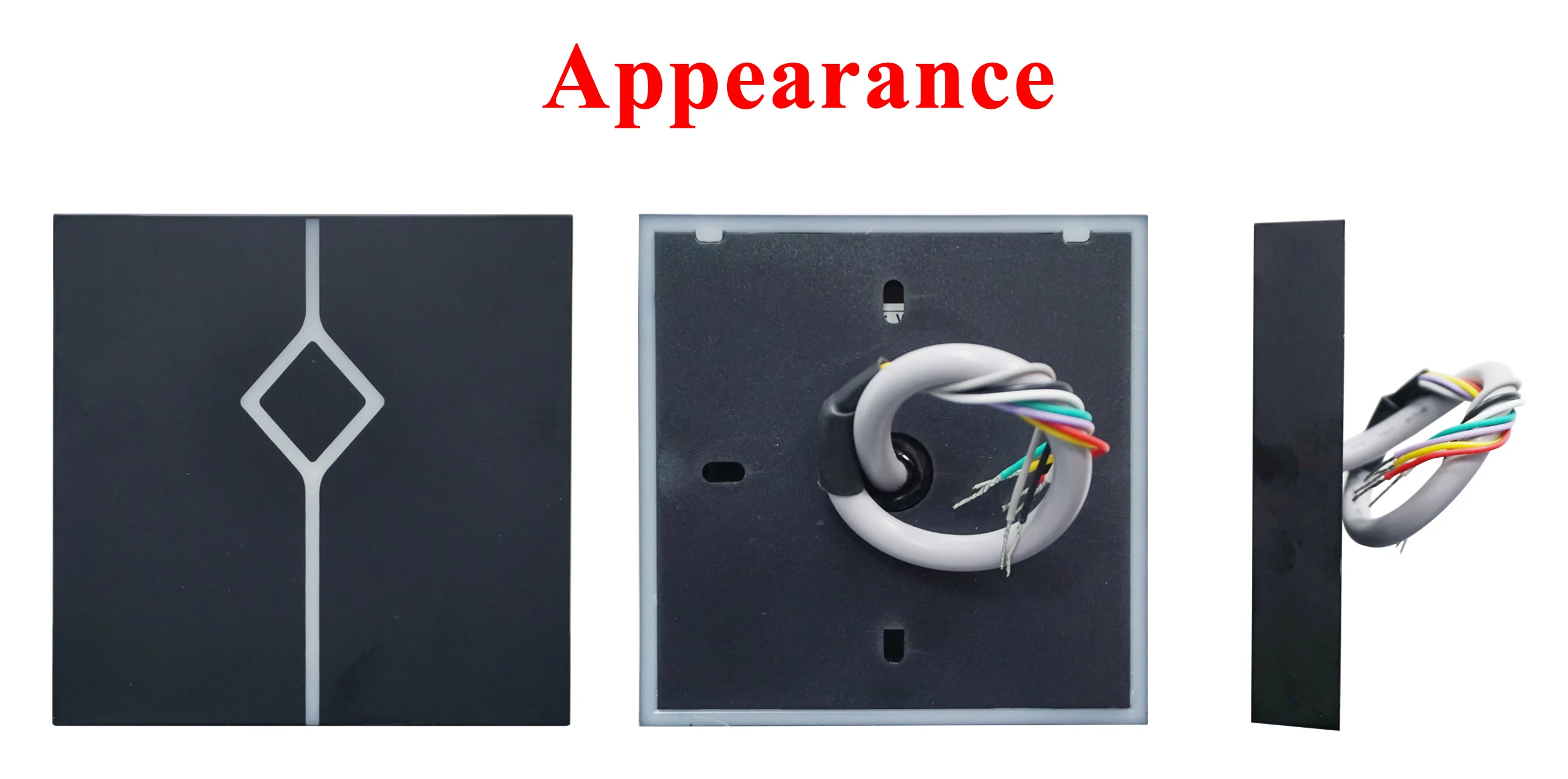

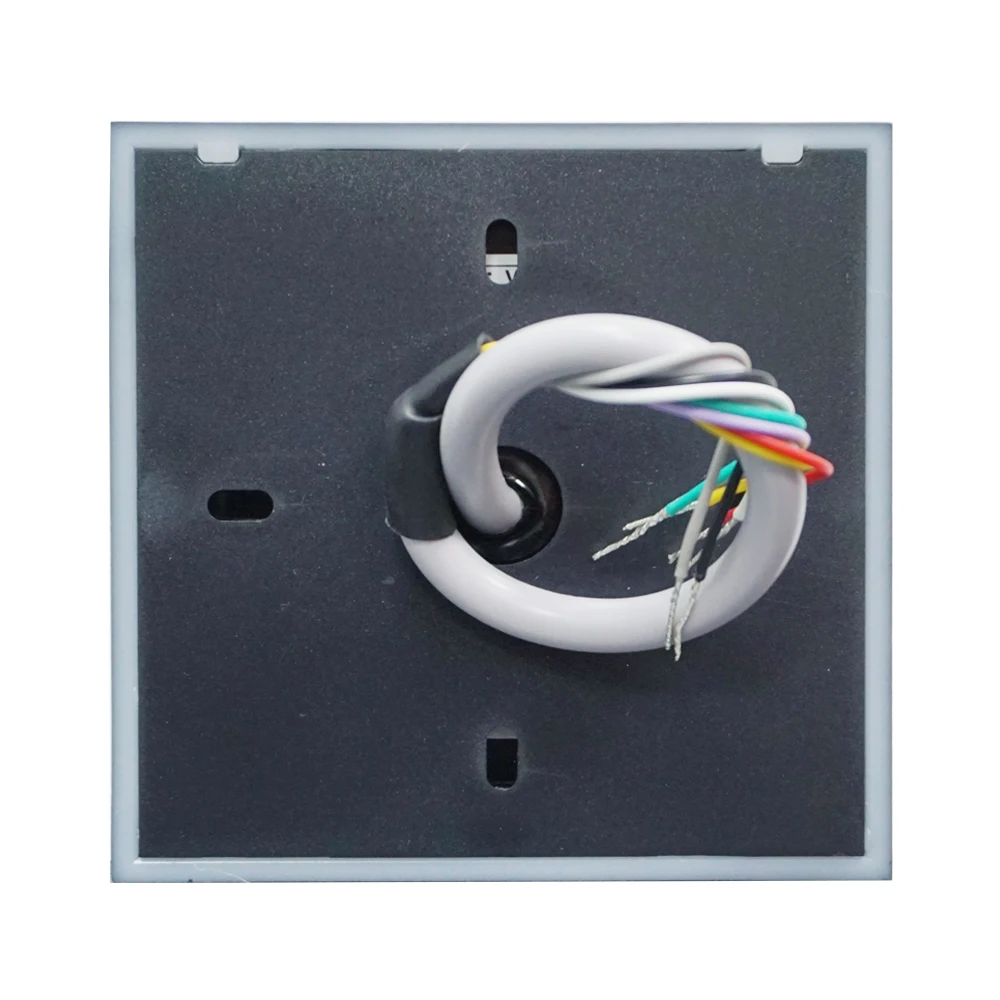

| Wires ports: | 7 wires | |

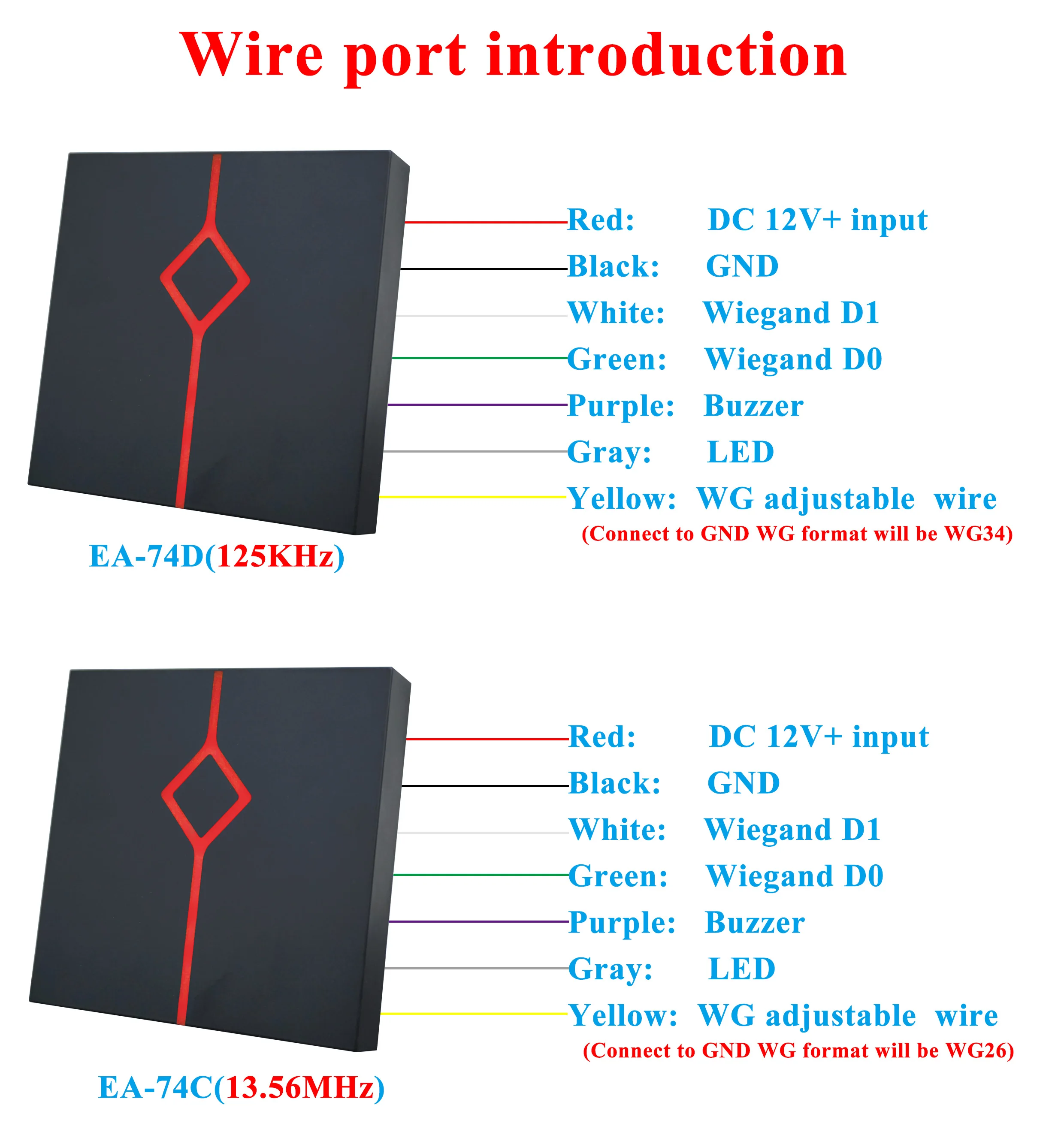

| Contact output: | 12V+(Red wire)/GND(Black wire)/D0(Green)/D1(White) /Beeper(Purple)/LED(Grey) /WG adjustable wire(Yellow) | |
| Suitable for: | Door access control system | |
| Material: | PC+ PCB board | |
| Housing color | Black | |
| Weight: | 0.12kg | |
| Warranty: | 1 years warranty | |
| OEM: | Welcome OEM | |
What features EA-74 have?
