Brief introduction herbal essential oil equipment:

This equipment is suitable for the extraction of essential oils (volatile oils) from herbs such as fresh or dried geranium geranium. The equipment adopts a steam distillation device for water-proof distillation, which can effectively extract plant volatile oil components and collect the volatile aroma of geranium plants. More significant. This equipment is suitable for enterprises to set up factories near the origin of plants for production. The equipment adopts steam distilling and refining method. The branches and leaves of Geranium are placed in a special distillation extraction container, and then saturated steam is passed into it (or herbaceous plants such as Geranium and water are boiled together). The essential oil containing aromatic components diffuses into the water vapor to form an azeotrope of oil and water; afterwards, the azeotrope is cooled, and the essential oil of Geranium Geranium is insoluble in water. The high-purity Geranium essential oil is separated out through a special oil-water separator. . The equipment can be distilled with water or with water. This equipment is our new, multi-functional and multi-purpose patented product special distillation and extraction equipment for geranium essential oil. This equipment can efficiently collect the essential oil of geranium and the aroma of geranium. Effective ingredients such as plant fragrance.

Equipment Application:

This equipment is suitable for the extraction and collection of plant volatile oil in Chinese medicine, health care products, biological pharmacy, cosmetics, food and other industries.

1) Laboratory equipment: The volume of the distillation tank is 20~200 liters. This type of equipment is very suitable for the laboratory research and development departments of universities, research institutes and enterprises and institutions and personal use;

2) Production equipment: The volume of the distillation tank is 500~6000 liters. This type of equipment is suitable for mass production and use by perfume companies, biopharmaceutical companies, and daily chemical companies.

Other herbal plants can be processed in similar system are:

This equipment efficiently extracts plant essential oil types:

1. Conventional plant flowers and leaves: bitter rose, damask rose, rosemary, basil, thyme, osmanthus, wild mountain chrysanthemum, geranium, primrose, rat's tail, oregano, dill, lemon balm, verbena Grass, hyssopus, parsley, perilla, chamomile;

2. Plant rhizomes: cassia twig, cassia bark, citronella, odorifera, linden, long camphor, ginger, clove, atractylodes;

3. Plant fruits: lime, passion fruit, pepper, star anise, lemon, Litsea cubeba, pine nuts.

4. Plant/tree/peel (shell): pine cone, orange peel, green peel, bergamot, grapefruit peel.

Equipment technical parameters:

1) Distillation tank: effective volume 4000 liters;

2) Condenser: Condenser for essential oils, with a heat exchange area of 4.55 square meters;

3) Water-proof distillation basket: flange frame structure, stainless steel fasteners;

4) Temporary storage tank for distillate: 100 liters;

5) Steam control: steam temperature control valve group;

6) Oil-water separator: stainless steel oil guide with boron glass separator;

7) Central electronic control system: digital temperature display control system;

8) Operating platform: carbon steel bracket with stainless steel steps and stainless steel guardrail;

9) The contact part between the equipment and the material: SUS304L;

10) Equipment size: 6280mm*4850mm*6300mm (length * width * height);

11) Equipment weight: 3900KG;

12) The raw materials can be fed by a lifting device, and the materials are not squeezed through the water-proof distillation basket to achieve full extraction of the materials, so that the effective ingredients in the plants are fully volatilized;

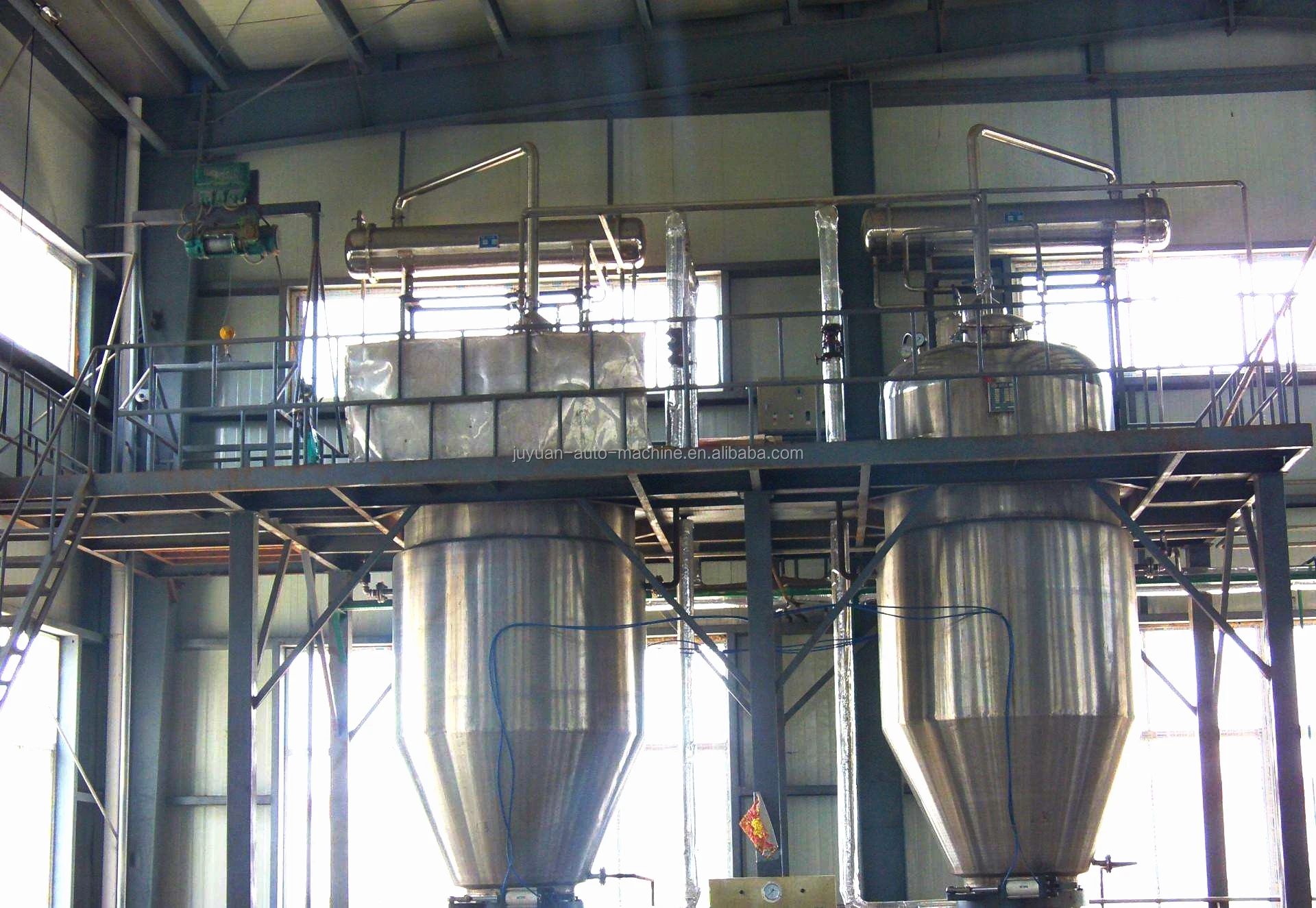

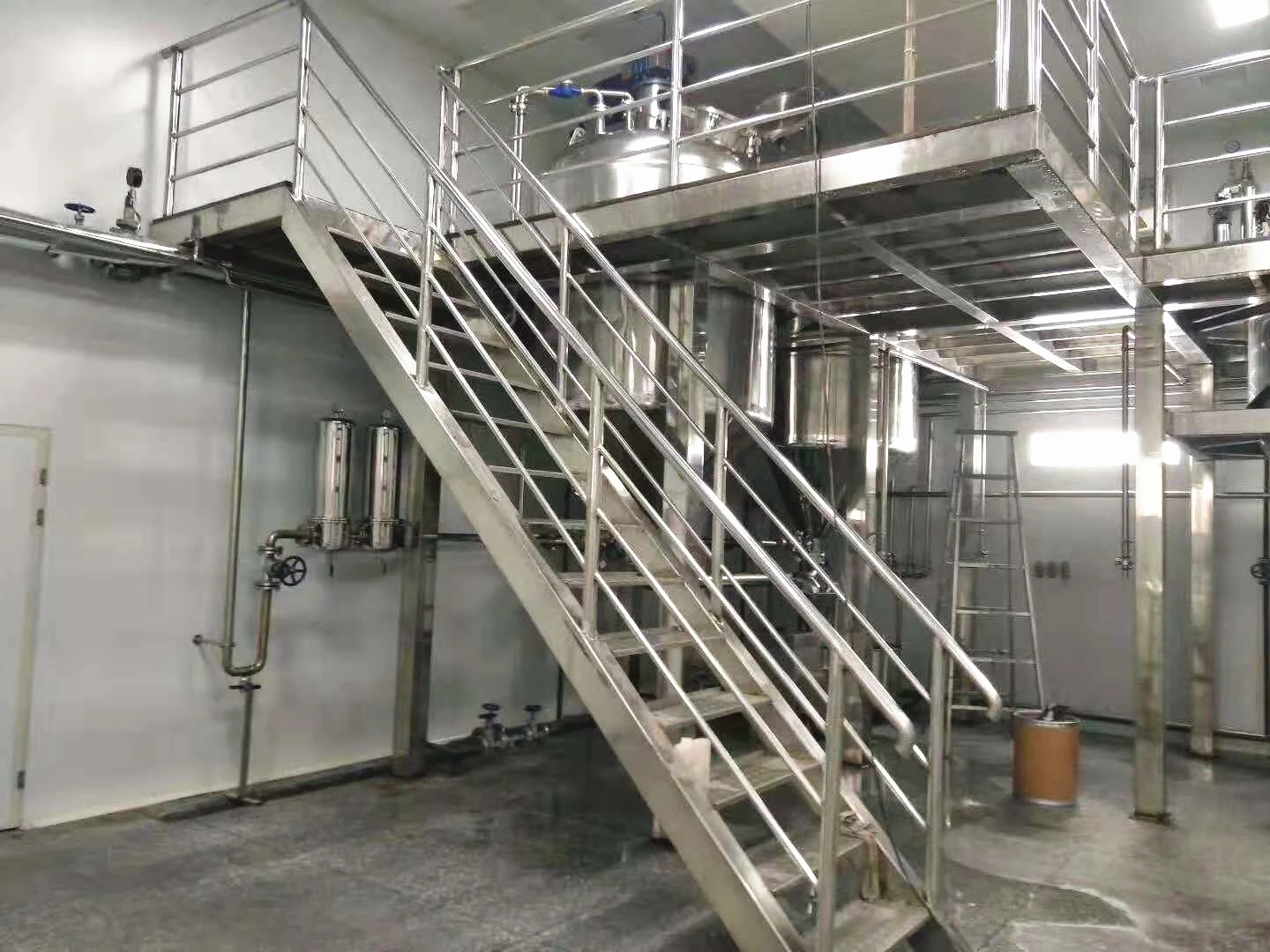

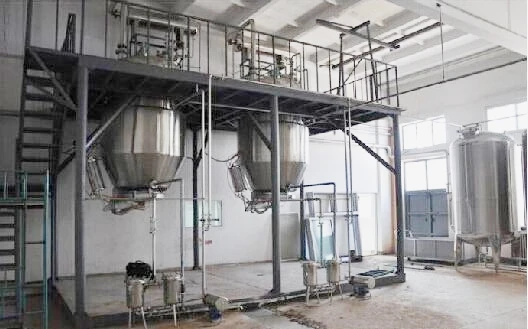

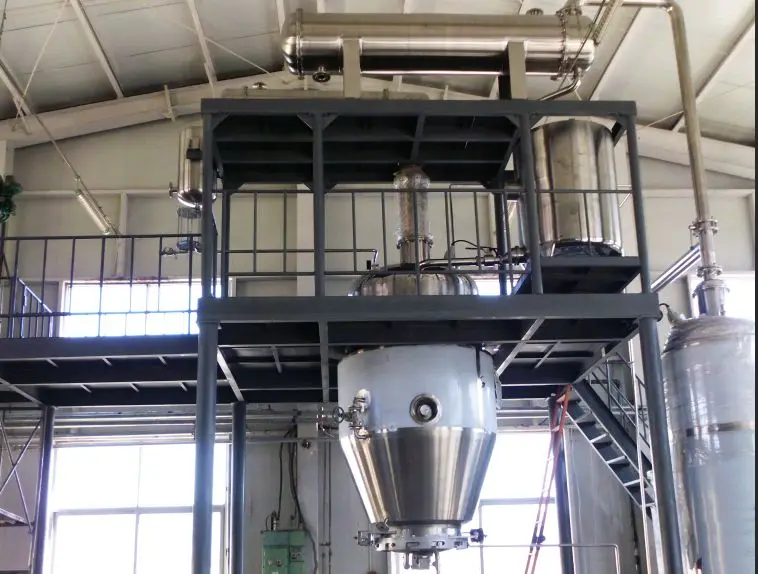

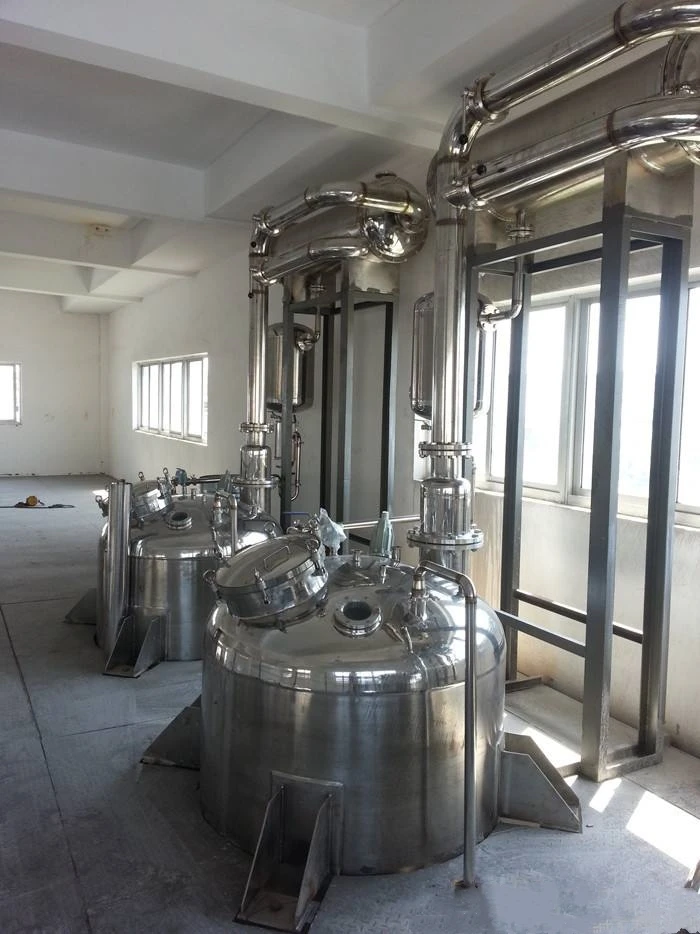

Project samples:
