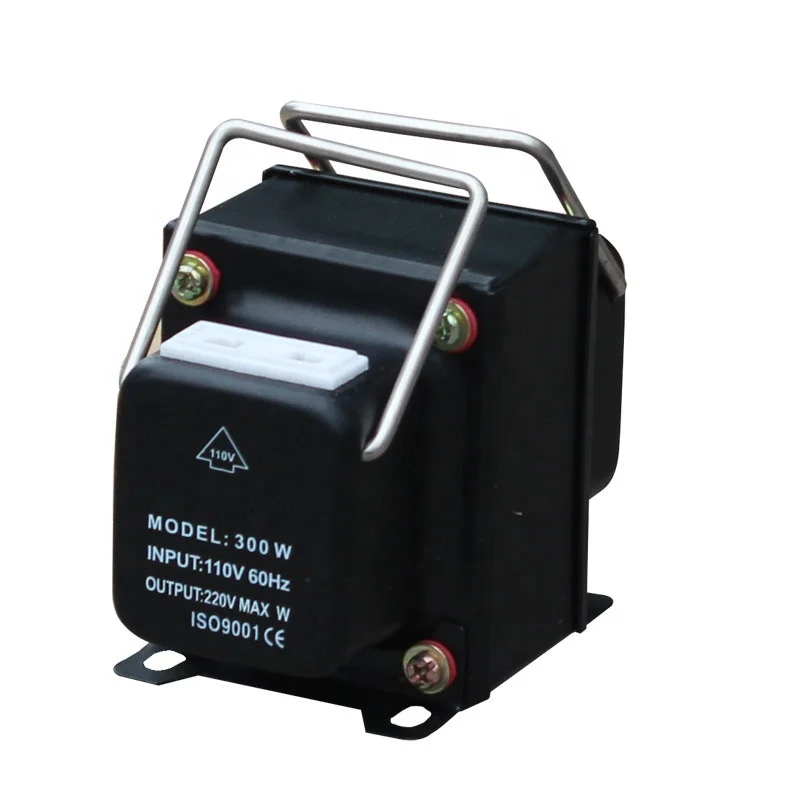

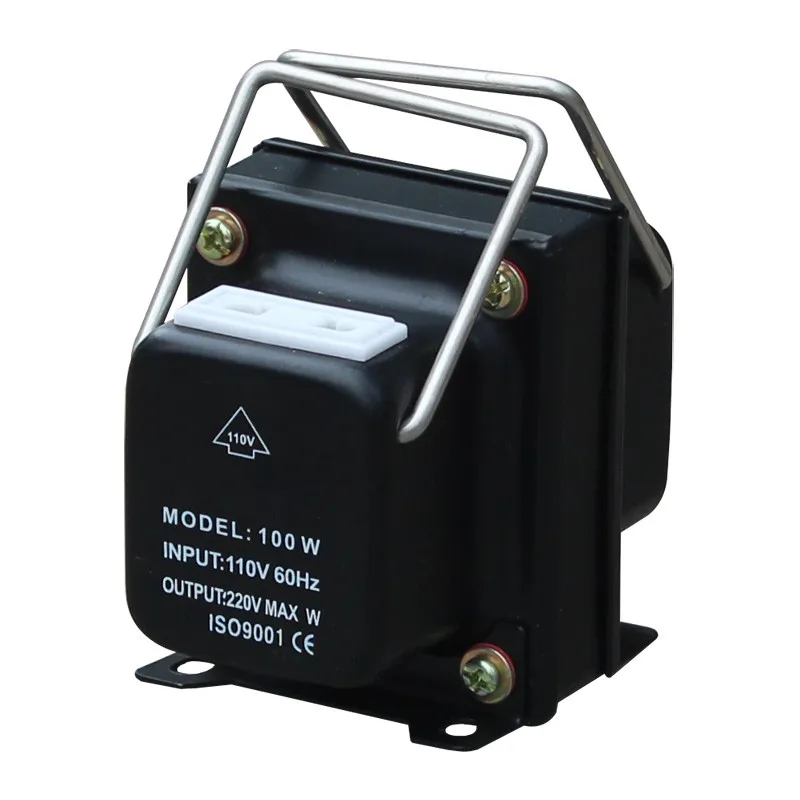

Voltage Converter 220 110V 240 120V Transformer Delivered Timely
ST /TC type
Voltage converter 220 110/convertidor de voltaje/transformador is specially designed for such electronic equipment whose rated AC voltage different from that of the local net voltage. They are safe for use within the rated voltage range.
voltage converter 220 110/convertidor de voltaje/transformador
1. Feature voltage converter 220 110 convertidor de voltaje transformadormini
This series step-up & step-down transformer is an AC voltage converting device.
Using it is to convert the multi-kind net voltages into a general output voltage
under which all the electronic units are
safe for use within the rated power range.
2. Main Technical Data transformer transformer price up & down transformer
Phase no.: Single-phase
Input voltage: AC110V or 200V or 220V or 240V
Output voltage: AC110V & 220V.
voltage converter 220 110 convertidor de voltaje transformador
With fuse protector or with over current protector
Main features:
1. Heavy duty suitable for continuous use.
2. Terminal connection or plug & socket connection.
3. Various types of plug & socket, US, European, Schuko, VDE, UK, Asian, Australian, or as request.
4. Output up to 3 sockets.
5. Input voltage range: 110V/117V/120V/220V/230V/240V
6. Output voltage range: 220V/230V/240V/110V/117V/120V
7. Typical capacity: 100/200/300/500/800/1000/1500/2000/3000/5000/8000/10000VA, or customized
8. Frequency: 50/60HZ voltage converter 220 110 convertidor de voltaje transformador
9. Protection : fuse protector or over current protector.
Technical parameters:
| Type | Product size(cm) | Product szie(cm) | G.W(kg) | QTY |
| TC-100VA | 10*6.9*8.2 | 27*27*19 | 14.6 | 12 |
| TC-200VA | 11*6.9*8.2 | 27*27*19 | 16.6 | 12 |
| TC-300VA | 12.3*6.9*8.2 | 27*27*19 | 20.1 | 12 |
| TC-500VA | 12.7*8.5*10.1 | 30.5*22.5*23 | 22.6 | 8 |
| TC-800VA | 13.7*8.5*10.1 | 30.5*22.5*23 | 26.25 | 8 |
| TC-1000VA | 14.7*8.5*10.1 | 30.5*22.5*23 | 30.6 | 8 |
| TC-1500VA | 15*13*15.5 | 31.5*17.5*18 | 27.2 | 4 |
| TC-2000VA | 16.5*13*15.5 | 31.5*17.5*18 | 35.7 | 4 |
| TC-3000VA | 19*13*15.5 | 29.8*24*20.5 | 24.2 | 2 |
| TC-5000VA | 22*13*15.5 | 29.8*24*20.5 | 32.6 | 2 |
