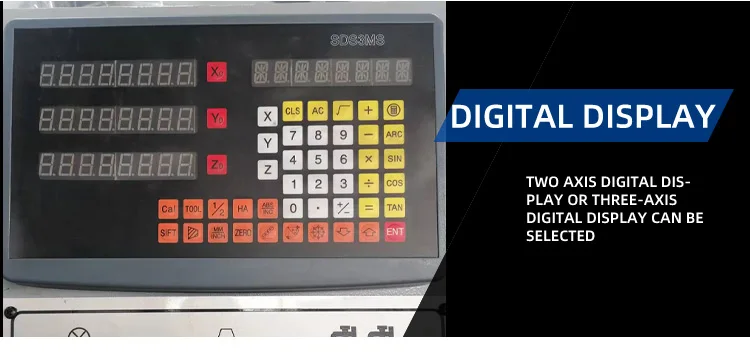

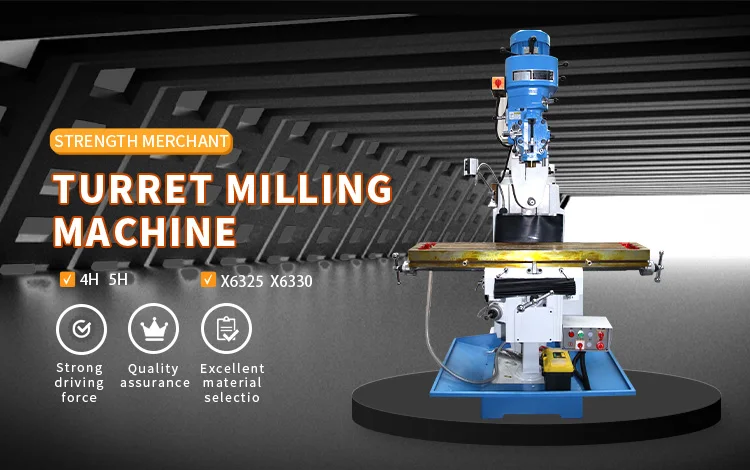

X6325 with 3 axis DRO digital readout bridgeport precision chinese taiwan universal manual vertical turret milling machine price
- Category: >>>
- Supplier: Shandong ACR Machine Tool Co. Ltd.
Share on (1600424664929):
Product Overview
Description
SPECIFICATIONS | Units | 4H（X6325） | 5H(X6330) |
Table size | mm | 1270x254(10”x50”) | 1370X254 1370X305 |
Table travel X | mm | 780-850 | 880-980 780-850 |
Table travel Y | mm | 380-420 | 380-420 360-380 |
Table travel Z | mm | 350-380 | 330-360 330-360 |
T slot(number-width-pitch) | mm | 3-16-76 | 3-16-76 |
Spindle taper | mm | standard:R8 optional:NT30/NT40 | standard:R8 optional:NT30/NT40 |
Spindle speed range | RPM | standard:16 steps, 66-4540 | standard:16 steps, 66-4540 |
Spindle travel | mm | 127 | 127 |

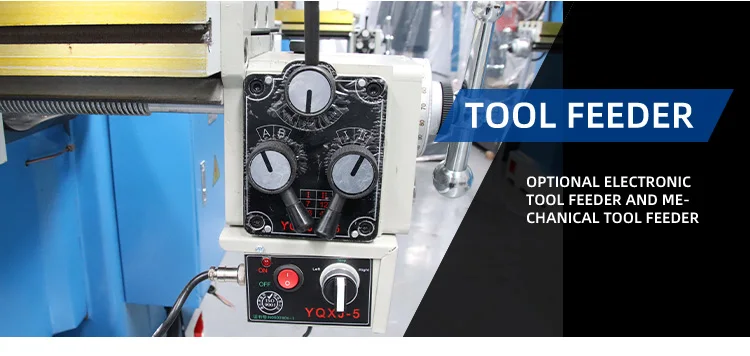

Spindle feed range | mm | 0.076/0.003 0.038/0.0015 0.203/0.008 | 0.076/0.003 0.038/0.0015 0.203/0.008 |
Distance between spindle nose and table surface | mm | 10-450 | 10-450 |
Main motor power | KW | 3HP/2.2KW 5HP/3.7KW | 3HP/2.2KW 5HP/3.7KW |
Head rotation (left - right ) | ° | ±90° | ±90° |
Head rotation (front - rear) | ° | ±45° | ±45° |
Weight | KG | 1200 | 1450 |

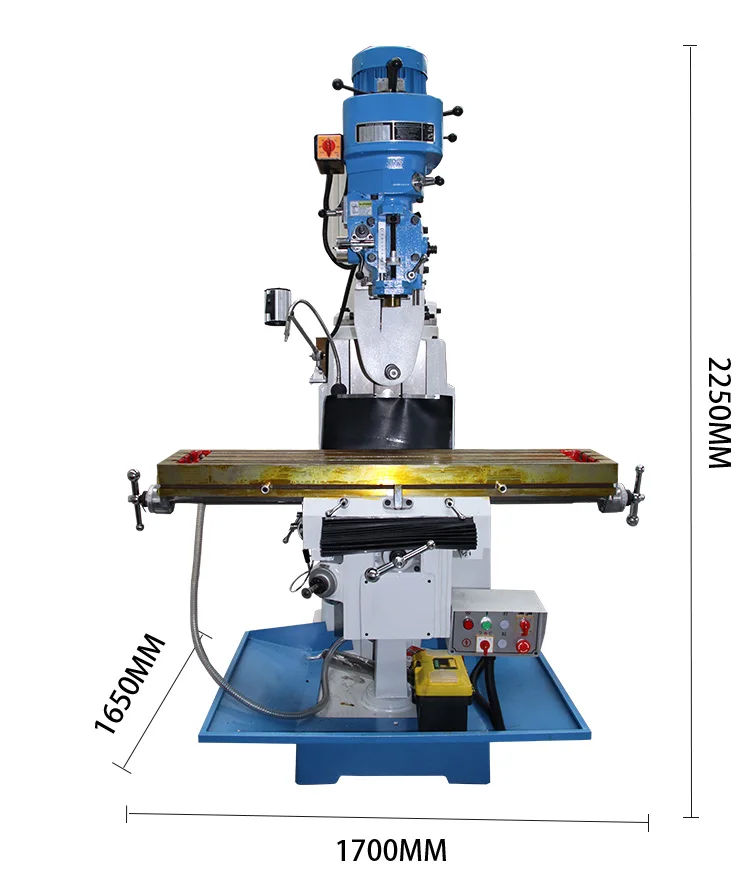

Overall dimension | mm | 1780x1780x2350 | 1800X1800X2350 |
FAQ
1:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7.If the above products do not meet your requirements, we can customize them according to customer requirements!
