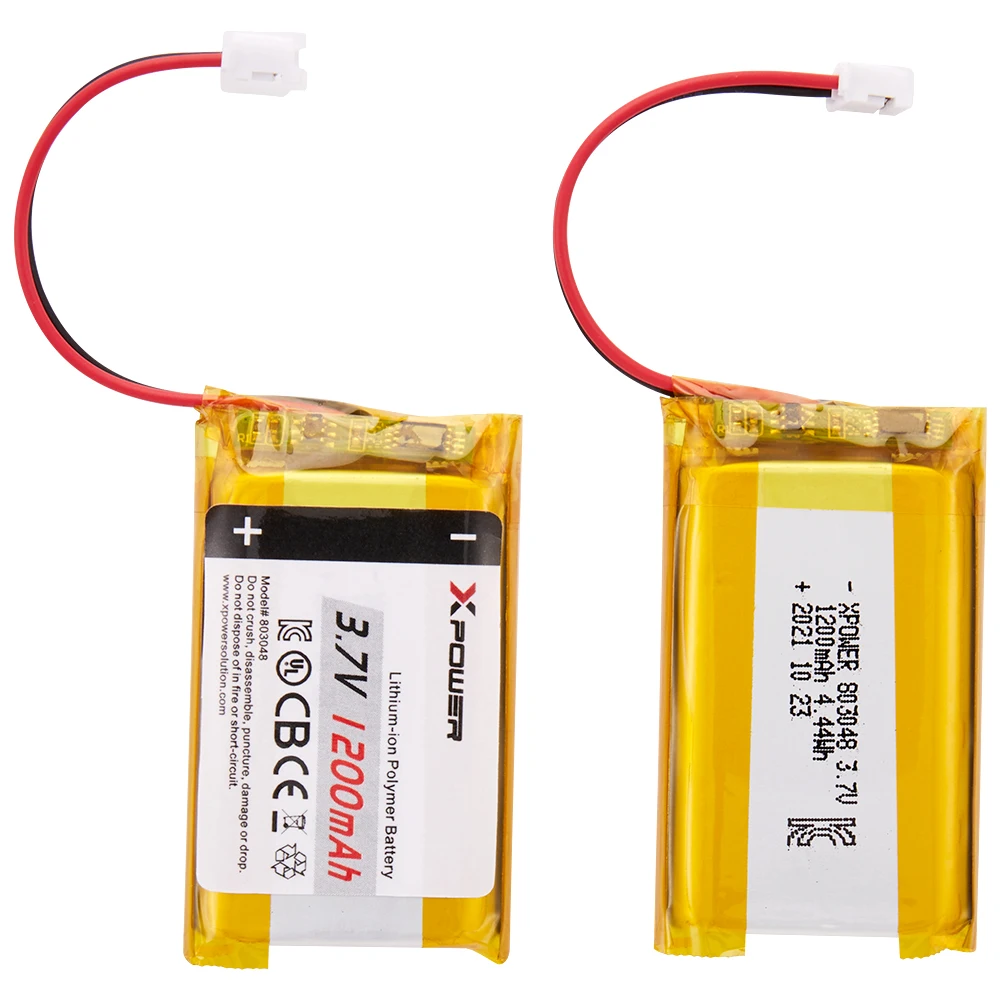

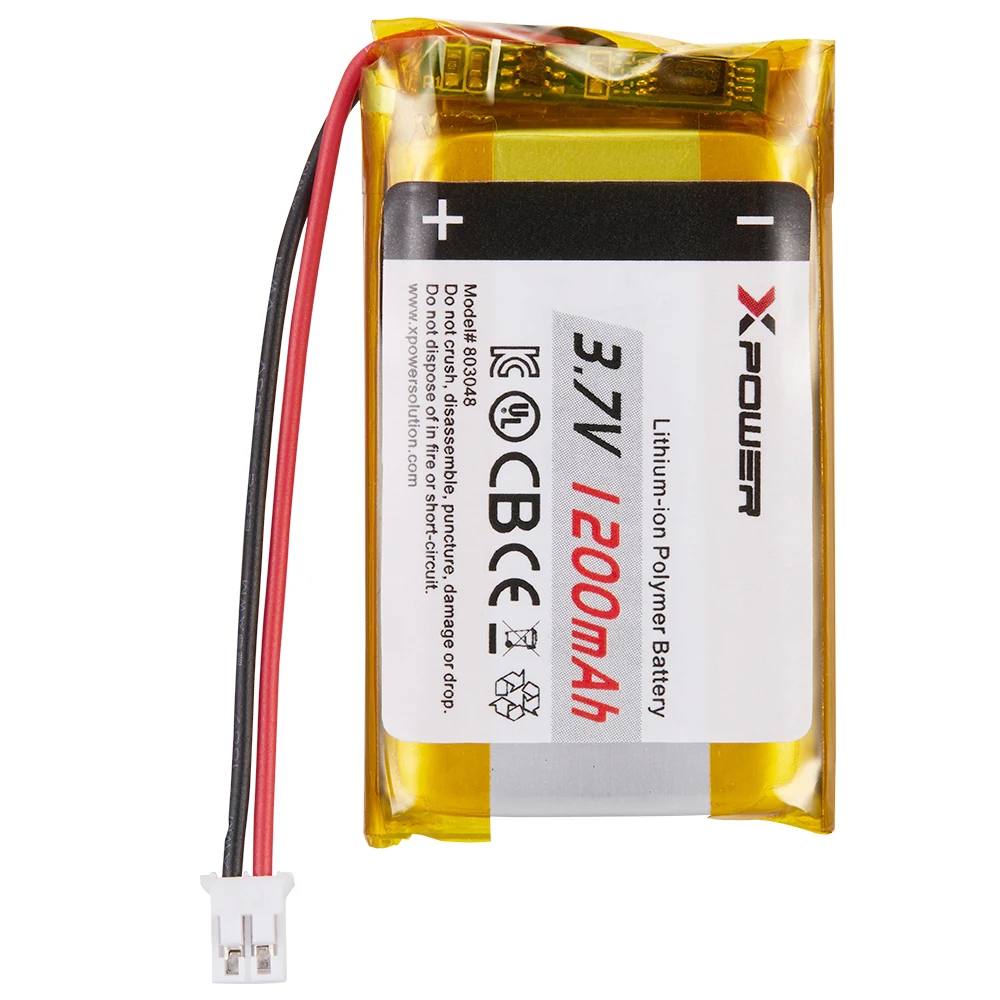

Xpower 1200mAh 3.7V High Density Lithium Battery 803048 UL CB KC CE Certification Rechargeable Lithium Ion Batteries

Specification

Lithium Polymer Battery Pack 803048 1200mAh 3.7V with Protection Circuit Module (PCM)

This data sheet describes the requirements and properties of lithium polymer rechargeable

battery pack manufactured by XPOWER.

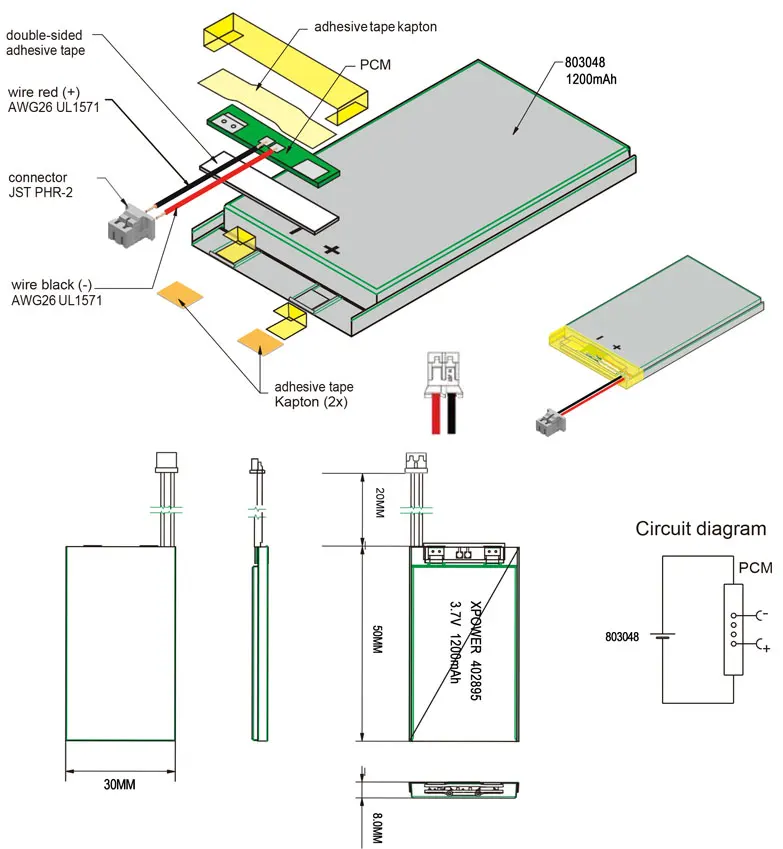

Mechanical Characteristics

Cell : 803048

PCM :Yes

NTC : No

Configuration : 1S1P

Weight : appr 20g

Connector :JST PHR-2

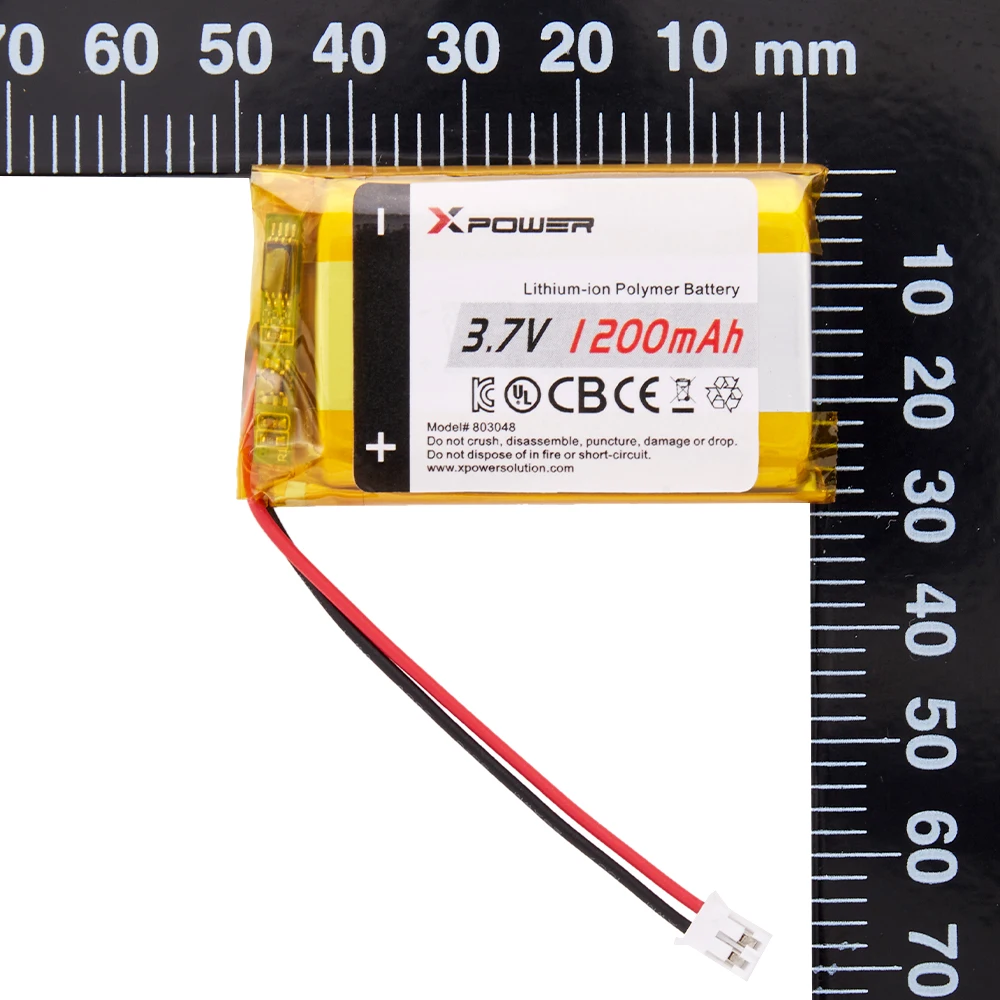

Dimension:Thickness 8.0 * Width 30 * Length 50mm (Including PCB)

Electrical Specification

Rated Capacity: 1200mAh

Nominal Voltage :3.7V

Watt Hour : 4.44Wh

Max Operating Voltage Range : 2.75V~4.2V

Max Charge Voltage: 4.2V±50mV

Max Charge Current : 600mA (0.5C)

Standard Charge Current: 240mA (0.2C)

Max Continuous Discharge Current: 1200mA (1C)

Standard Discharge Current: 240mA(0.2C)

Discharge Cut-off Voltage: 2.75V

Initial Cell Impedance: ≤ 80mΩ

Expected Cycle Life (0.5C|0.5C, 23±5℃):300 cycles ≥ 80% Capacity

Cell Protection

Over Charge Detection: 4.280±50mV (0.08~0.2sec delay, release 4.08±50mV)

Over Discharge Detection: 2.4V±100mV (0.04~0.12sec delay, release 3V±100mV)

Over Current Detection: 3.2A to 4.5A

Short Circuit Protection: Available (Delay time: 500µs)

Working and Storage Condition

Charge Temperature Range:10 to +45℃

Discharge Temperature Range: -20 to +60℃

Storage Temperature Range: <1 month: -20℃~+45℃, >3 months: -10℃~+45℃

Recommend Storage Temperature: 15℃~35℃

Humidity: 85%~90% RH Max.
