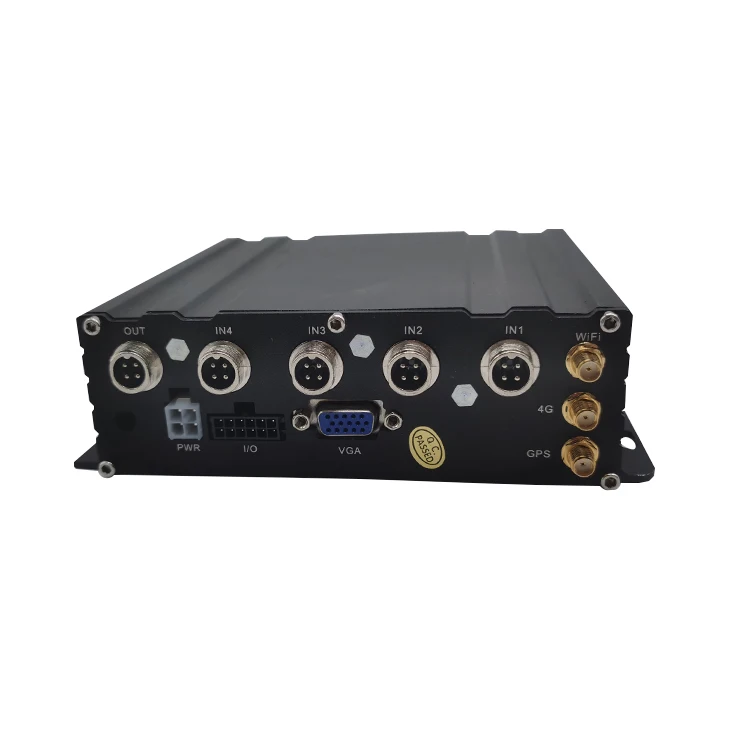

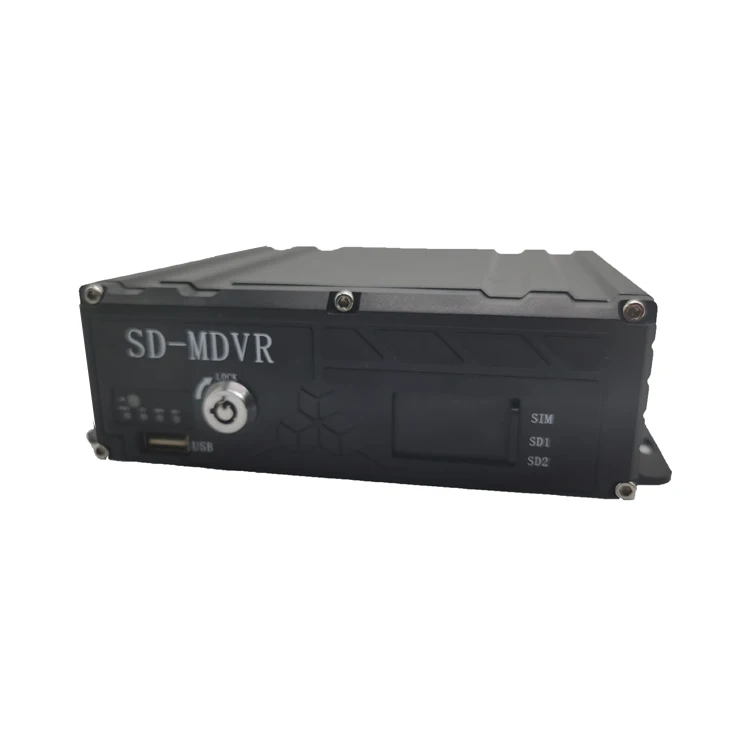

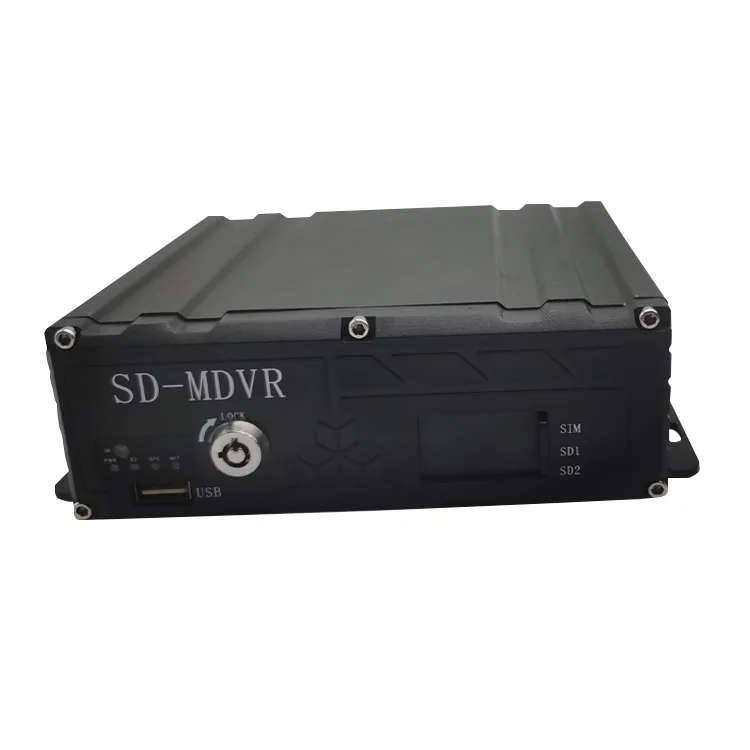

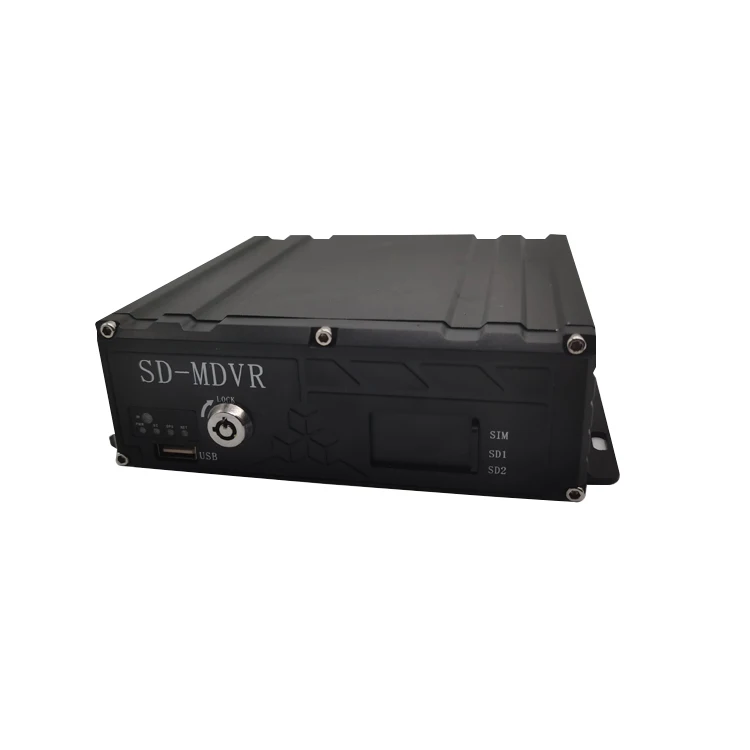

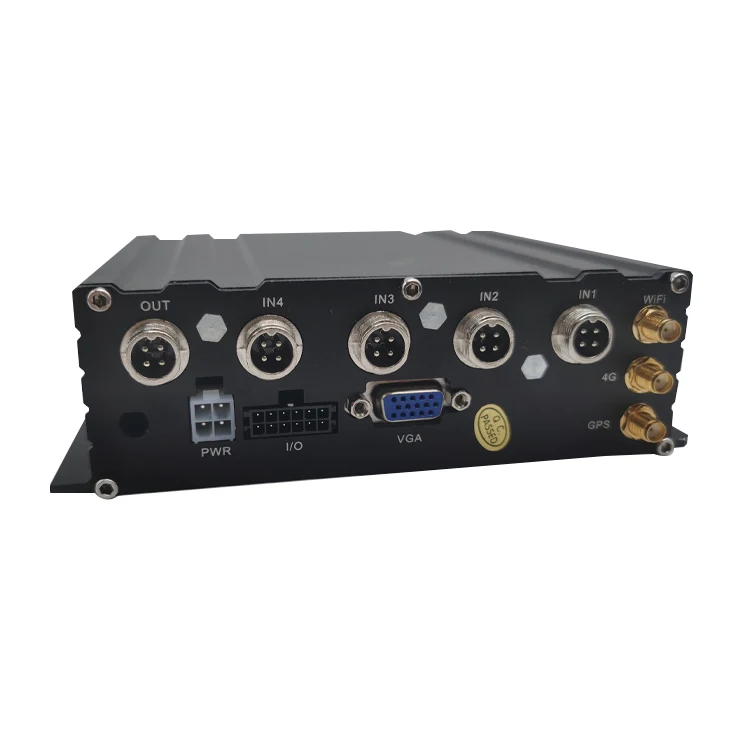

MDVR AHD 1080P 4CH 3G 4G GPS WIFI SD Card Vehicle Mobile DVR for Taxi Car Truck Bus
- Category: >>>
- Supplier: Shenzhen QOHO Electronics Co. Ltd.
Share on (1600424689895):
Product Overview
Description
Product Description
Feature:
4 channel 1080P Dual SD card mobile DVR;
H.264/H.265 high profile.Industrial good vibration absorber and heat-dissipated level design.
High extendibility mobile digital video recorder (MDVR);
Developed especially for vehicle monitoring and remote video surveillance.
It adopts high speed processor MC6630 and embedded Linux system,
3G/4G network, GPS/BD and WIFI.
It supports 1080p,720p,D1,resolution video recording,vehicle driving record and video remote uploading.
With the central software can do central remote monitoring based on alarm linkage.
vehicle intelligent dispatch management and playback analysis based on central database.
This device is competitive in anti-vibration, more rich function,
high reliability, concise appearance and simple to deploy.
Product size:138x135.5x36.5mm.
4 channel 1080P Dual SD card mobile DVR;
H.264/H.265 high profile.Industrial good vibration absorber and heat-dissipated level design.
High extendibility mobile digital video recorder (MDVR);
Developed especially for vehicle monitoring and remote video surveillance.
It adopts high speed processor MC6630 and embedded Linux system,
3G/4G network, GPS/BD and WIFI.
It supports 1080p,720p,D1,resolution video recording,vehicle driving record and video remote uploading.
With the central software can do central remote monitoring based on alarm linkage.
vehicle intelligent dispatch management and playback analysis based on central database.
This device is competitive in anti-vibration, more rich function,
high reliability, concise appearance and simple to deploy.
Product size:138x135.5x36.5mm.
Specification
Model | QH-MDVR7104Z | ||
System | Language | English / Chinese/others customized | |
Operation Interface | Graphical menu operation interface(OSD menu) | ||
Password security | Permissions setting of administrator & user | ||
OS | Linux3.18 | ||
Operating | UI, Cell phone APP, PC client, Remote controller | ||
Functions Summary | Preview, recording, playback, network transmission, positioning, AI analysis, multiple sensor data acquisition. | ||
Audio | Audio Input, Output | 3ch audio input; 1ch audio output. 2.0Vp-p, 4.7kΩ | |
Compression Format | G.711, G.726 | ||
Recording | Storage Medium | Supporting dual SD card for storage, each one max support 256gb | |
Video Strategies | Recording at start up by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | ||
Alarm pre-recording | 0-60min | ||
Alarm recording delay | 0-30min | ||
Playback Channel | Support local 1/4 channel playback | ||
Browse mode | Time, channel, event. | ||
Video and Preview | Video Input, Output,Signal standard | AHD input:4ch 1080p/15fps,4ch 720p/30fps,4ch D1/30fps. | |
IPC input:1ch default ; | |||
Output: 1ch CVBS , VGA | |||
Signal standard:1.0Vp-p, 75Ω, NTSC/PAL optional | |||
OSD | Character superposition function, information superposition of time and date, device ID and GPS, alarm,etc. | ||
Video Compression Format | Compression coding. Applying H264/H.265 hi-performance processor. | ||
Image quality | Code stream, frame rate optional | ||
Preview | 1/4channel preview | ||
Resolution | AHD: 1080P:15fps/1M/2M/4M/6M | ||
AHD 1080P:15fps 1024KBPS 20480KBPS 4096KBPS 6144KBPS | |||
720P: 30fps/1M/2M/4M/6M | |||
D1:30fps/512K/1M/2M | |||
IPC: 1080P: 30fps/1M/2M/4M/6M | |||
720P: 30fps/1M/2M/4M/6M | |||
Communication Ports | RS232, RS485 | ||
ADAS | Built-in (Optional) | ||
Wireless Transmission | 3/4G wireless transmission module, EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE etc. | ||
Wi-Fi module, 802.11b/g/n,2.4G/5.8G optional. Wifi Ethernet: Network aviation head(100M) | |||
Position | GPS/BD: Positioning, speed detection, time synchronization | ||
Power Supply and Power Consumption | Power Supply | 1ACC on/off | |
Input Voltage | DC:+8V ~ +36V (please to ensure of safe voltage of vehicle before use; operation over 36V for long time will cause damage to the MDVR) | ||
Output Voltage | +12V@1A; +5V@1A | ||
Power Consumption | Max 25W consumption, about 0W in standby mode | ||
Operating Environment | Temperature | preheating: -20℃ ~ +70℃ | |
Humidity | 8% to 90% | ||
Software | PC playback | Video files playback in PC with analysis of the vehicle status | |
CMSV6 | Wireless real-time video & audio monitoring, GPS, alarms, etc. | ||
Software Upgrade | Upgrade through the front USB2.0 & SD card or remote | ||
