Product Overview

Description

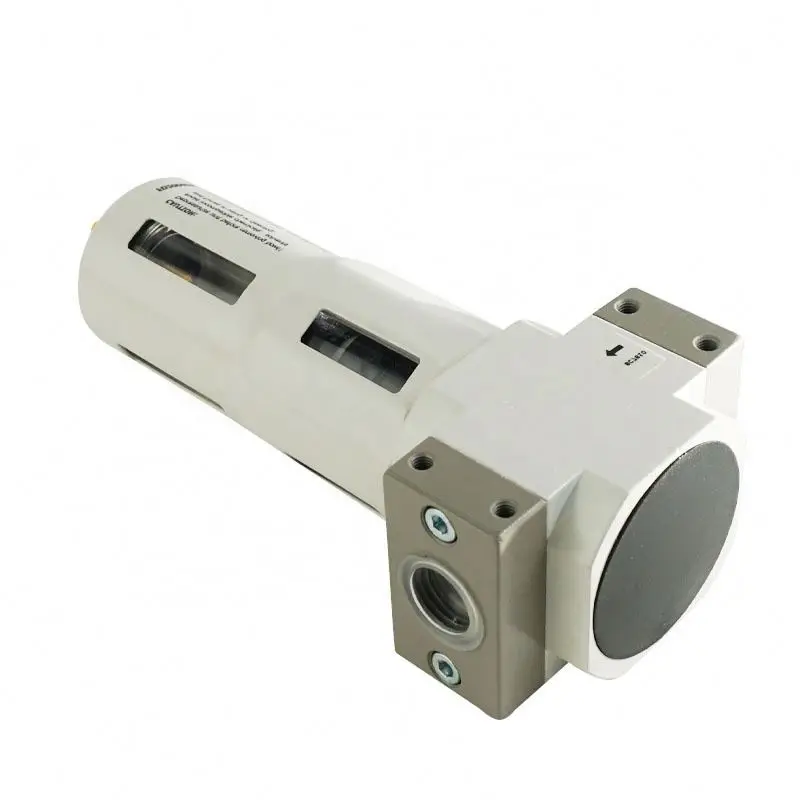

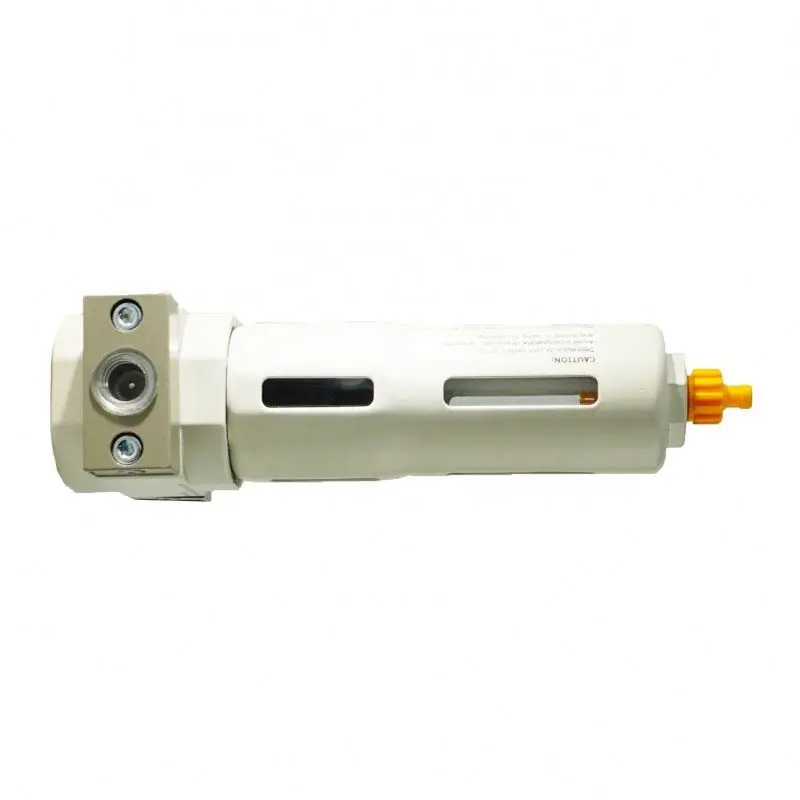

Product Name
Air Filter Pressure Regulator
Assembly
Filter,Regulator,Lubricator
Model No
OF-1-MIXI
Connection Port
1
Medium
Compressed air
Operating Temperature Range
0-60℃
Features
Adjust the Pressure Value According to Your Needs; Effectively Filter the Moisture in the Air
Perm.primary pressure
                         P1 max.
                         P1 min.
16bar(manual condensate drain)
12bar(automatic condensate drain)
1.5bar; 1 bar(only OR-...)
Max. working pressure Range
                         P2
0.5...7bar(at OR-/OFR-...-7-...)
0.5...12bar(at OR-.../OFR-...)
Perm.temperature range
0-60℃
Fitting position
Standing upright(±5℃)
Manometer connection
G1/8(at OR-/OFR-...MINI-...)
G1/4(at OR-/OFR-...MIDI-/MAXI-...)
Filter fineness
40μm(at OF-/OFR-...-...);
5μm(at OF-/OFR-...-5M-...)


Body Material
Housing:Zinc die-casting;
Filter bowl and oil bowl:PC;
Metal bowl guard:Aluminium alloy;
Sealing:NBR;
Adjusting knob:POM

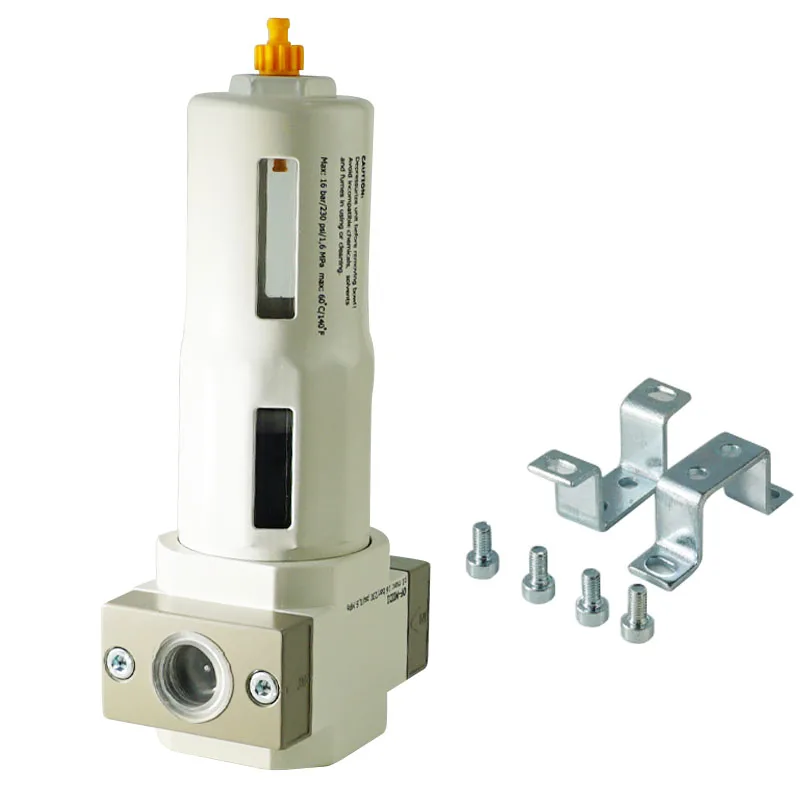

Product List:
* 1x Air Filter Pressure Regulator
* 2x Metal Bracket with Screw
* 1x English Instruction
* 1x Packing Box


Product Feature
* High Strength, High Precision and Strong Compression Resistance
* Simple Pressure Adjustment Method, Accurate Pressure Regulation.
* The Overall Modular Design Can Be Arbitrarily Disassembled, Combined, Easy to Use, Easy to Load and Unload, meet the Various Requirements of Different Pneumatic Systems.
* Pressure Regulation:Adjust Different Levels of Pressure According to Demand.
