Automatic Ice Lolly Tube Calippo Filling Sealing Machine 70ml Paper Cone Squeeze Cup Ice Cream Packing Machine With Paper Lid
- Category: >>>
- Supplier: Wenzhou Inteltek Import & Export Co. Ltd.
Share on (1600424756733):
Product Overview
Description
Product Description

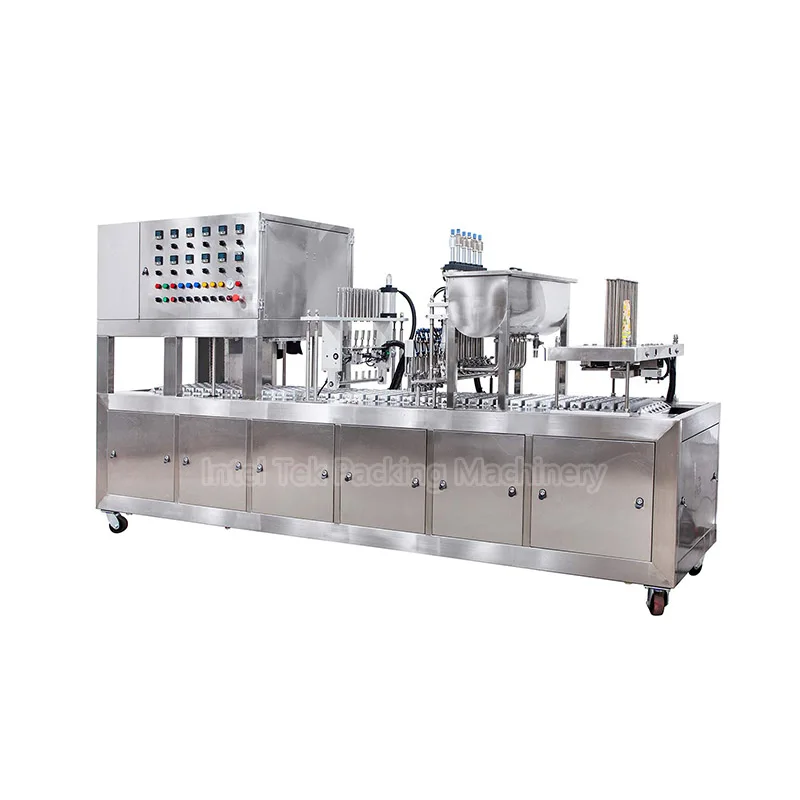

BG60A Automatic Type Calippo Tube Filling and Sealing Machine
Can be customized according to customer's demand
Cup material available: PS, PP, PE, PET, paper and so on
Sealing film: roll film or pre-cut foil
Filling: liquid, paste, powder, granule
Features
BG60 Line Type Calippo Tube Filling Sealing Machine (Intermittent Motion) can be customized for packaging a wide range of liquid, paste, granulated and powdered products into pre-formed containers of various size and shapes. The machine can be used in a variety of applications for the food industry, such as sour cream, yogurt, cheese, butter, guacamole, salsa, mayonnaise, margarine, hummus,
dipping, salad dressings, seasoning, soup, chocolate, jelly, honey, jam, ketchup, chili sauce, coffee, dry products, cosmetic cream and more.
Depending on the output required, the BG60 series Linear Type Cup Filling and Sealing Machine can be designed for 2 cups, 4 cups,6 cups, 8 cups, 10 cups per time or more. The filling units which can be combined different type fillers on a same machine.
Machine basic function include cup dispenser, filling, heat sealing, automatic outfeed
Optional Configuration
Operation panel: Touch Screen
Servo motor driving
Empty cup dispensing function: according to different cups, some can be designed with vacuum sucker which can guide the cup enter
into mold accurately.
Empty cup detecting function: no cup no filling or no cup machine stops
Filling: cup lifting function
Filling tank: mixing, level control, double jacket, CIP washing ball
Roll Film Storage Device
Blank Film Fixer: to calculate the film length of cup for saving the film cost
Eye Mark Auto Correction: Collocating with a photocell sensor of film pattern mark
Color ribbon date printer for roll film
Automatic Capping System: put plastic cap after sealing
Safety protection: it is optional function, it make up by plexi glass plates, aluminium and stainless steel, has safety switches
which protect the operator.
Laminar flow-HEPA filter unit
Out-feed conveyor
Technical Data
Model | BG60A-4C | BG60A-6C | BG60A-8C | BG60A-10C | |||
Production capacity | 3000-4000 cups/h | 5000-6000 cups/h | 7000-8000 cups/h | 9000-10000 cups/h | |||
Filling range | 50~300ml(can be customized) | ||||||
Filling accuracy | <±1.5% | ||||||
Vessel | Cup, tray, bottle, box, can, container, tub, bucket, pot, etc. | ||||||
Power | 3N-50Hz 380V | ||||||
Power | 3.5Kw | 5 Kw | 6 Kw | 7.5 Kw | |||
Air consumption | 0.8 m 3 /min | 1 m 3 /min | 1.2 m3 /min | 1.6 m 3 /min | |||
Dimension | 3000×650×1700 mm | 3000×700×1700mm | 3000×750×1700mm | 4000×800×1700mm | |||
Weight | 700Kg | 800Kg | 1000Kg | 1200Kg | |||

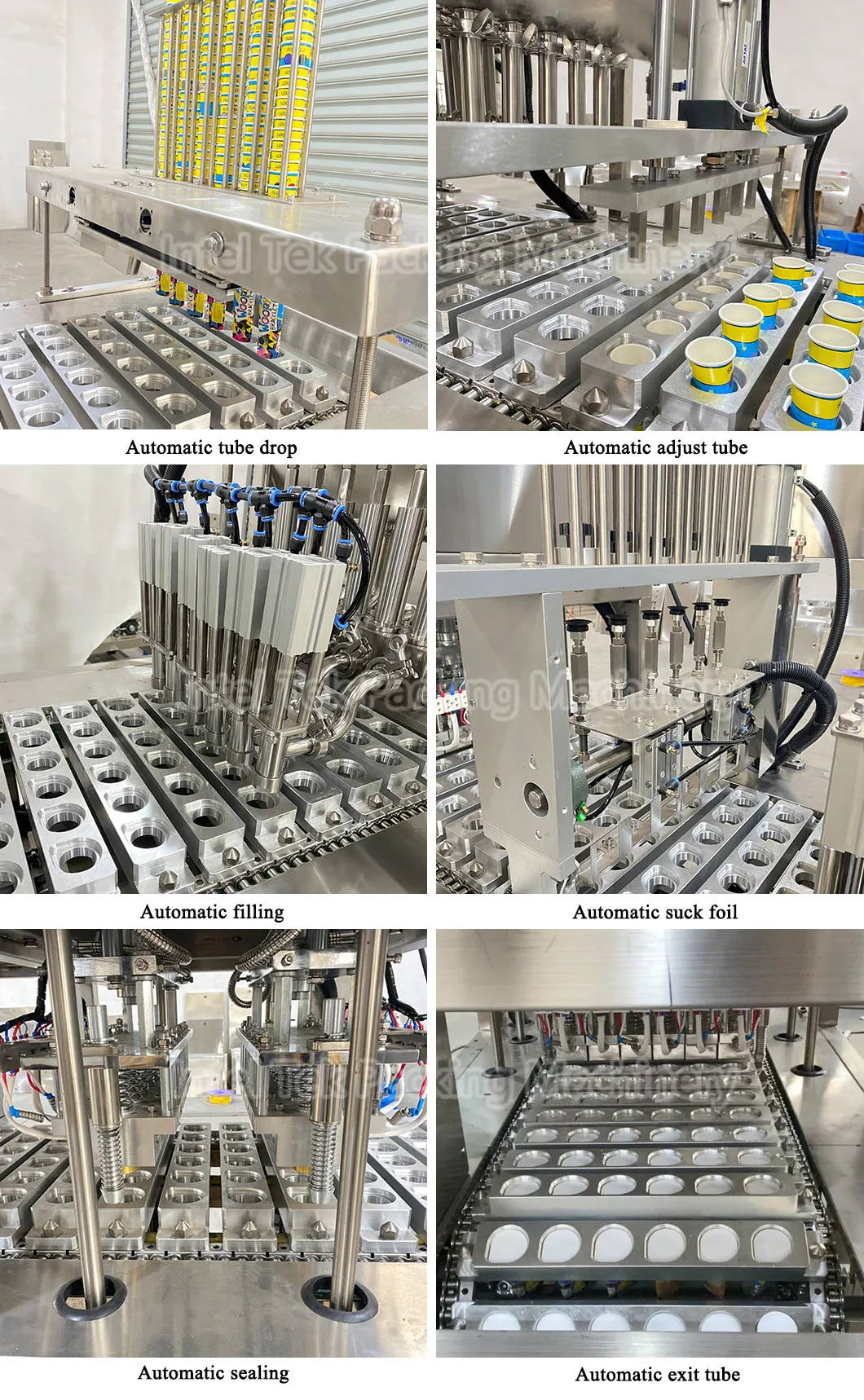

Other Linear Type Machine Functions
pre-cut foil sealing
1.automatic cup dropping (cups can be stacked, but can’t stick together) 2.automatic filling liquid, paste/cream, powder,granule
3.automatic foil suck
4.automatic sealing
5.automatic cup exiting
roll film sealing
1. automatic cup dropping (cups can be stacked, but can’t stick together) 2. automatic filling liquid, paste/cream, powder, granule
3.automatic sealing
4. automatic film cutting
5. wasted film recycling
6. automatic cup exiting
Cup Pre-cut Aluminum Foil Sealing Machine
Cup Roll Film Sealing Machine
control panel(can be customized)

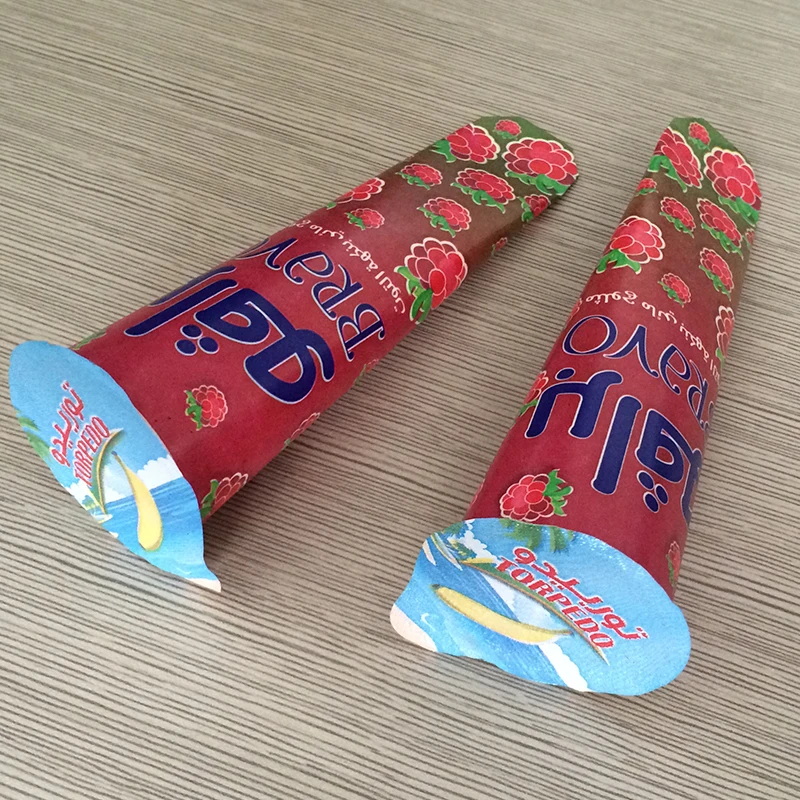

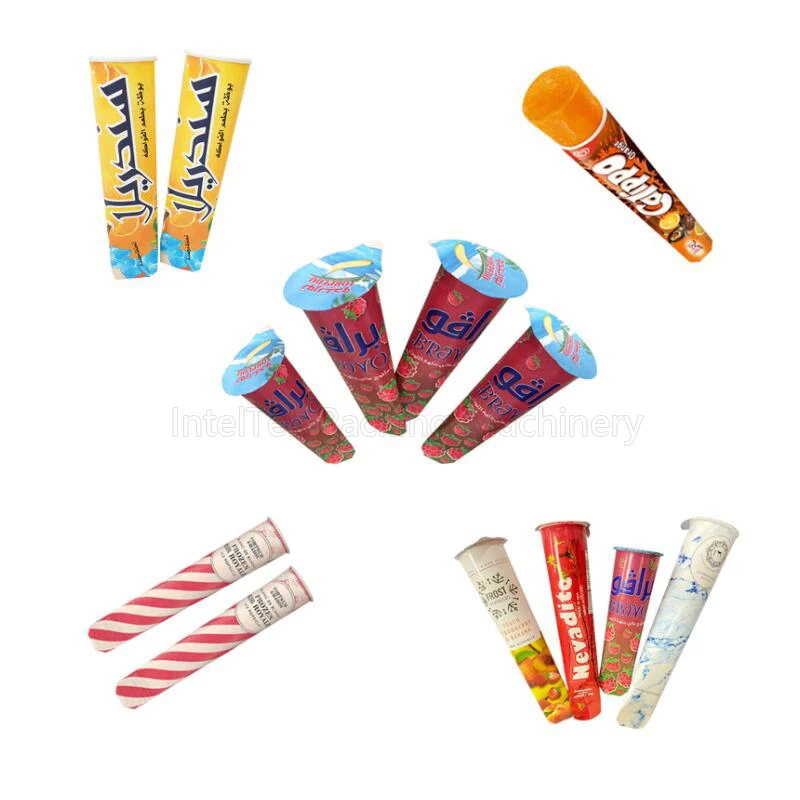

Samples
Optional Machine Configuration
Output round table
Conveyor belt
Scope Of Application
Filling for liquid ,paste,granule,powder,and so on. Sealing for cup,bottle,bowl,tray,can,jar,bucket etc... | ||||
Yogurt /Milk/Chocolate Filling Sealing Machine | Water Filling Sealing Machine | Juice Filling Sealing Machine | ||
Jelly/Pudding Filling Sealing Machine | Jam Filling Sealing Machine | Sauce Filling Sealing Machine | ||
Instant Noodles Sealing Machine | Tofu/Beancurd Sealing Machine | Coffee Filling Sealing Machine | ||
Lunch box Sealing Machine | Frozen Food/MAP Packaging Machine | Potato Chips Canister Sealing Machine | ||
Porridge Filling Sealing Machine | Plastic Jar Sealing Machine | Plastic Bucket Sealing Machine | ||
Wet Wipe Can Sealing Machine | Dehumidifier Box Filling Sealing Machine | Cosmetic/Detergent Filling Sealing Machine | ||
Recommended For You
Company Information
Wenzhou IntelTek Import & Export Co., Ltd. is a professional supplier of all kinds packaging machines, integrating development,production and trading together. We mainly supply filling sealing machine, filling machine, MAP packaging machine, capping machine, labeling machine, water treatment, and other packing related machines.
Our company have many years of history in the packing machinery. Through the efforts of our entire staff, we have become a famous proffessional packing machine supplier. IntelTek people have continuously tried to improve product quality.
Currently, IntelTek machines are already exported to America, Canada, Switzerland, Australia, Germany, Italy, UK, Egypt, Brazil and 30 other countries and regions. Our company has always focused on research, development and innovation, and has recently developed new continous filling sealing machine. IntelTek also have their own factory. We have CE certification.
Our company offers 'reasonable prices, efficient production time and good after-sales service'. We hope to cooperate with more customers for mutual development and benefits. Buyers are welcome to contact us.
Our company have many years of history in the packing machinery. Through the efforts of our entire staff, we have become a famous proffessional packing machine supplier. IntelTek people have continuously tried to improve product quality.
Currently, IntelTek machines are already exported to America, Canada, Switzerland, Australia, Germany, Italy, UK, Egypt, Brazil and 30 other countries and regions. Our company has always focused on research, development and innovation, and has recently developed new continous filling sealing machine. IntelTek also have their own factory. We have CE certification.
Our company offers 'reasonable prices, efficient production time and good after-sales service'. We hope to cooperate with more customers for mutual development and benefits. Buyers are welcome to contact us.
Workspace
Production Workshop
Exhibition
Our Certificate
Packaging & Shipping
Packaging | Shipping |
First Rust inhibitor | First contact you the machine is ok |
Second Wrap film | Second put the freight come and take the machine |
Third Plywood cases | Third Plywood cases |
Last in container | Last in container |
Our Services
1. Best Service: Product manager for your service.Always FREE.
2. 12H Skypee( chunlaipack1 ) on line.
3. Welcome visit factory.
4. After sale service:we have professional technical service for you.
5. Mail be reply in 12 Hours.(except not working days )
6. Photos ing in trade line.
2. 12H Skypee( chunlaipack1 ) on line.
3. Welcome visit factory.
4. After sale service:we have professional technical service for you.
5. Mail be reply in 12 Hours.(except not working days )
6. Photos ing in trade line.
7. Technology Training:we can arrange professional technician to install and adjust the machine if customers require, as well as train the operator to operate, adjust and maintain the machine.
