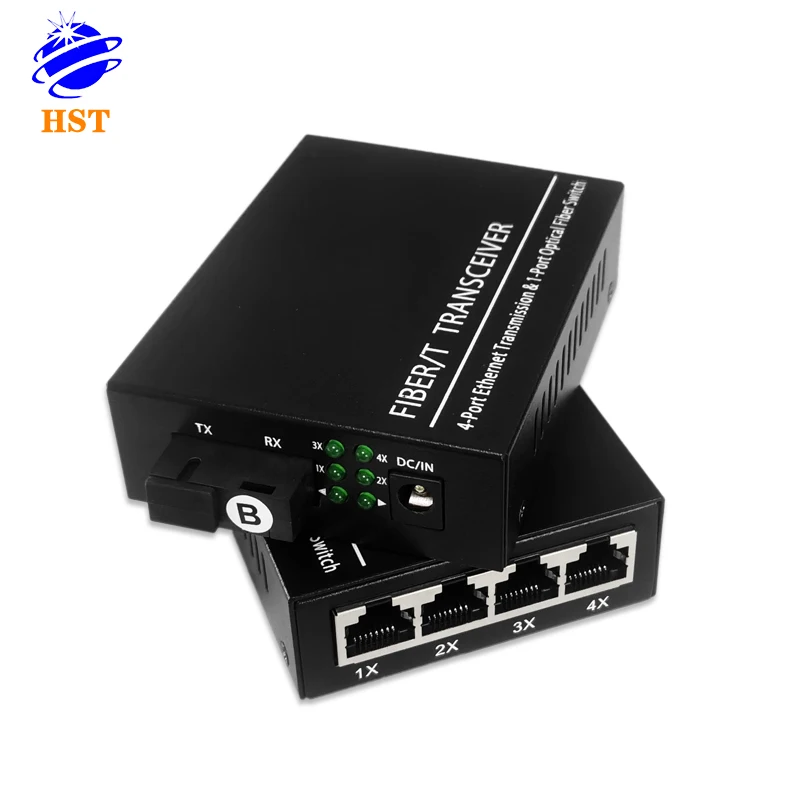

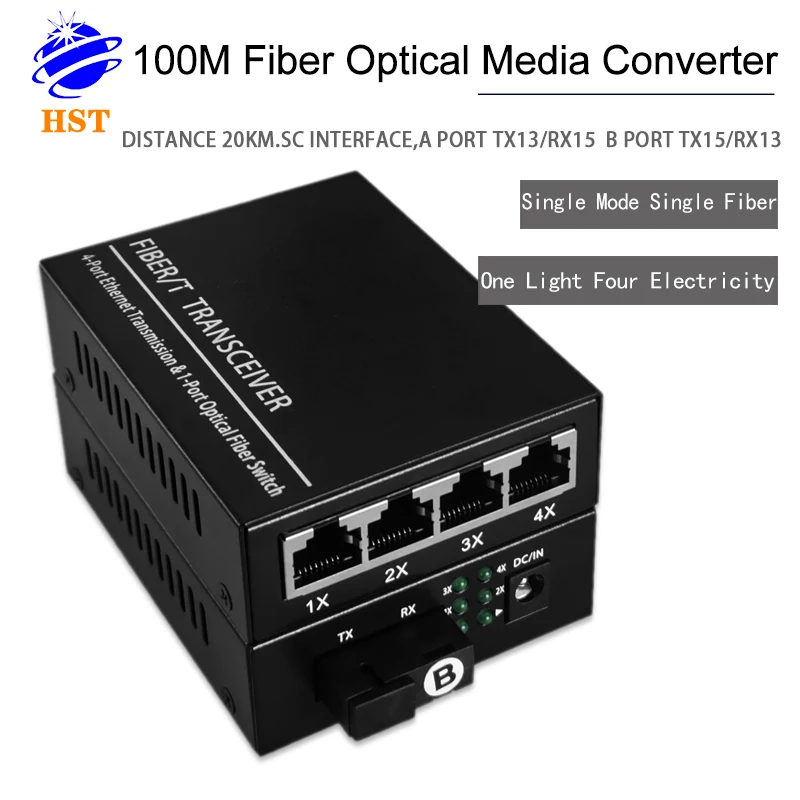

Promotion 100M Ethernet Fiber Media Converter HST 100M 20KM A/B TX1310/RX1550nm 1 fiber 4RJ45 ports SC fibre Optic Equipment
- Category: >>>
- Supplier: Shenzhen Hongshengtong Technology Co. Ltd.
Share on (1600424764341):
Product Overview
Description
Specification
I/O Interface | ||
Product Name | HST-Fiber Optical Media Converter | |
Power | DC 5V | |
Ethernet | 4-Port 10/100M RJ45 1-Port 100M fiber ports | |
Performance | ||
Switching Capacity | 0.4Gbps | |
Throughput | 0.2976Mpps | |
Packet Buffer | 448K | |
MAC Address | 1K | |
Jumbo Frame | 1552bytes | |
Transfer Mode | Store and forward | |
MTBF | 100000 hour | |
Standard | ||
Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX/FX) IEEE802.3x (Flow control) | |
Optical Characteristics | multi mode: 850/1310nm (0-2KM) Single mode: 1310/1550/1490nm(0-120KM) | |
Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD),EN61000-4-4 (EFT) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 | |
Network Medium | 10Base-T: Cat3, 4, 5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m) | |
Optical Media | Multimode fiber : 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm | |
Certification | ||
Safety Certificate | CE,FCC,RoHS | |
Environment | ||
Working Environment | Working Temperature:-20~50°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~90%,non-condensing Working Height:Maximum10,000 feet Storage heigh:Maximum 10,000 feet | |
Power Voltage | Adapter input voltage : AC 100-240 V Media Converter input voltage:DC 5V | |
Indication | ||

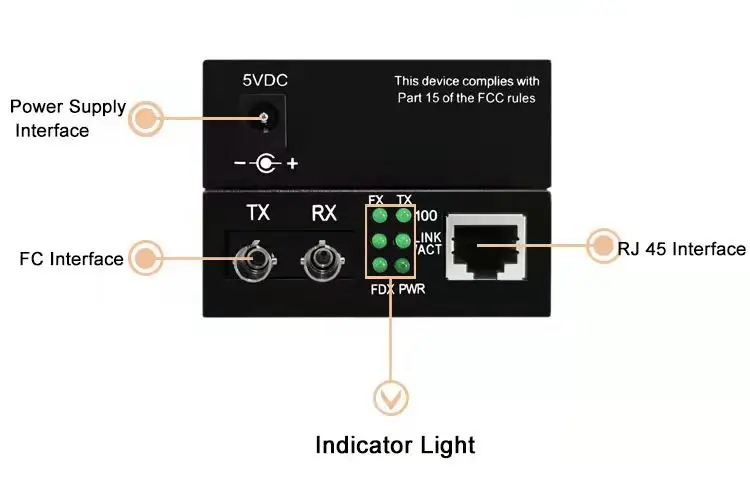

LED Indicators | PWR(Power indicator) FDX(Network mode) FX Link(Optical data) TX Link(Network data) FX 100M(Optical Link) TX 100M(Network Link) | |
Ordering Info | ||
HST-100M-20KM | 100M Fiber Media Converter Single-mode Dual Fiber 1310m 20KM FC | |
HST-100M-20KM-A/B | 100M Fiber Optical Media Converter Single-mode Single Fiber 1310nm,20km SC | |
HST-100M-20KM-A/B（HTB-3100) | 100M HTB-3100 Fiber Optical Media ConverterBiDi Single-mode Single fiber TX1310/RX1550nm 20KM SC | |
HST-100M-20KM-A/B（One Optical Four Electricity） | 100M Fiber Optical Media ConverterSingle-mode Single Fiber TX1310/RX1550nm 20KM SC | |
HST-100M-20KM-A/B（Eight Optical Two Electricity） | 100MFiber Optical Media Converter Single-mode Single Fiber TX1310/RX1550nm 20KM SC | |
Products Description

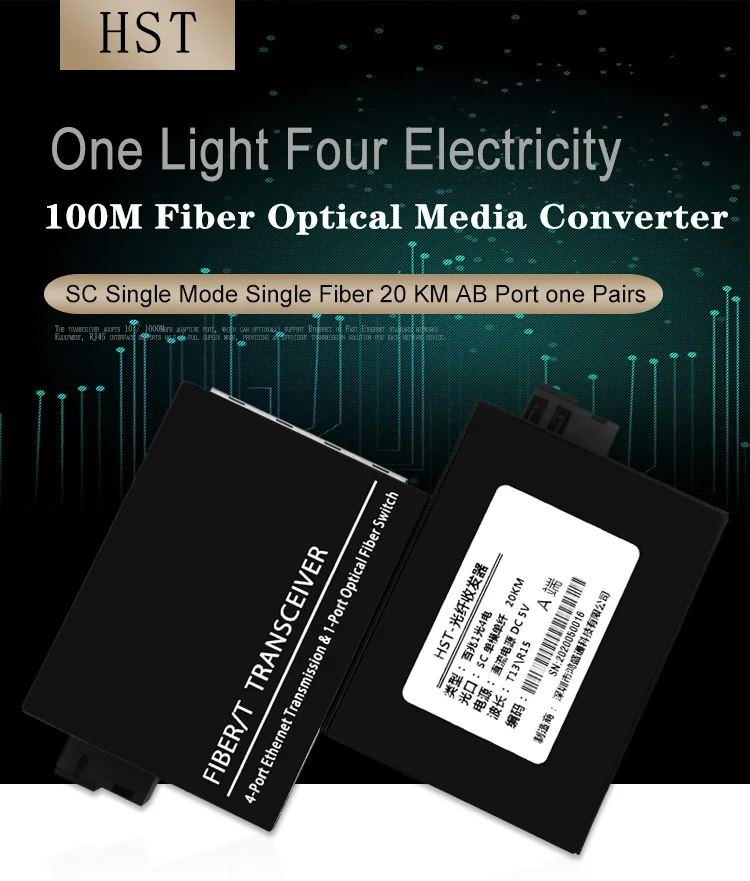

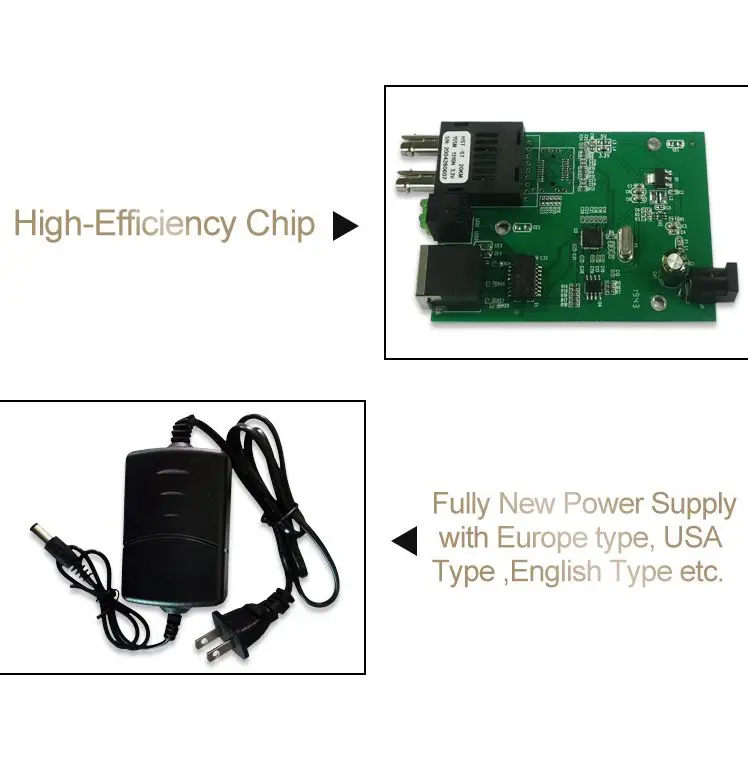

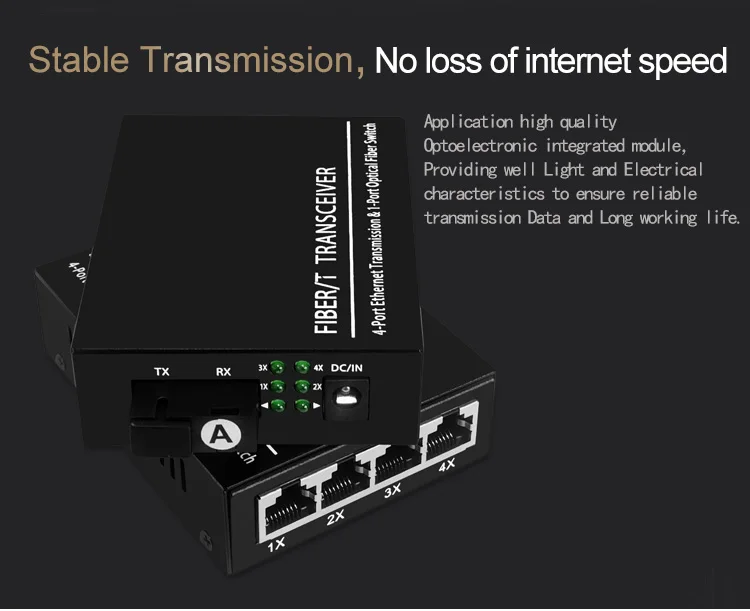

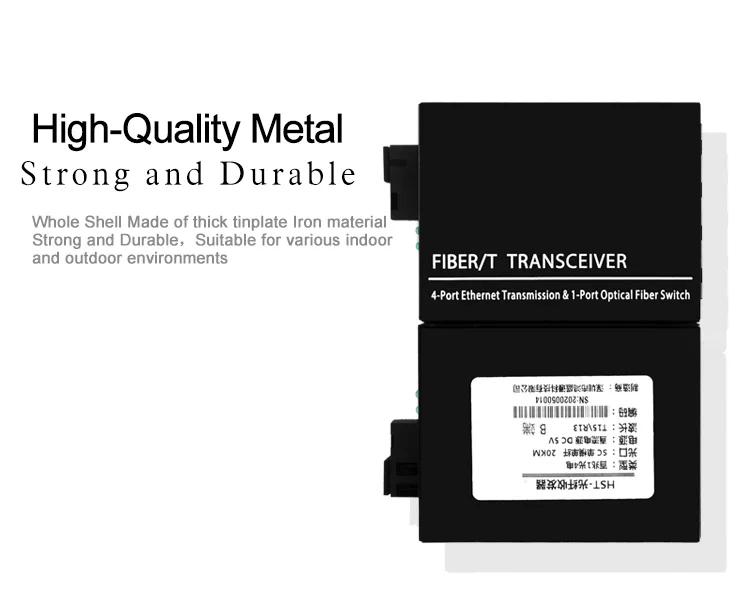

Product Details

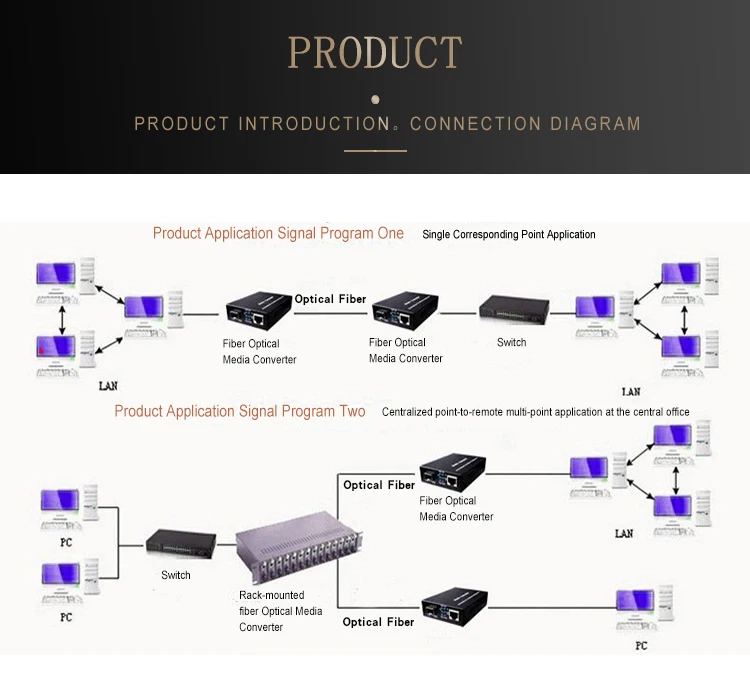

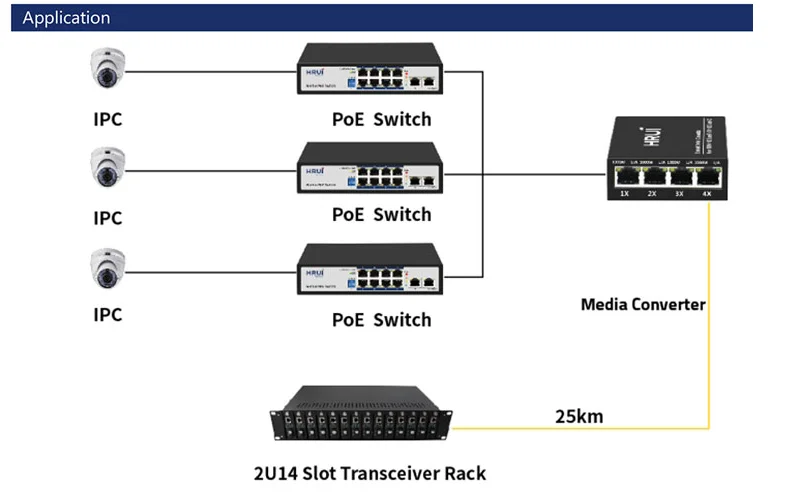

Application scenarios
Company Profile
Certifications

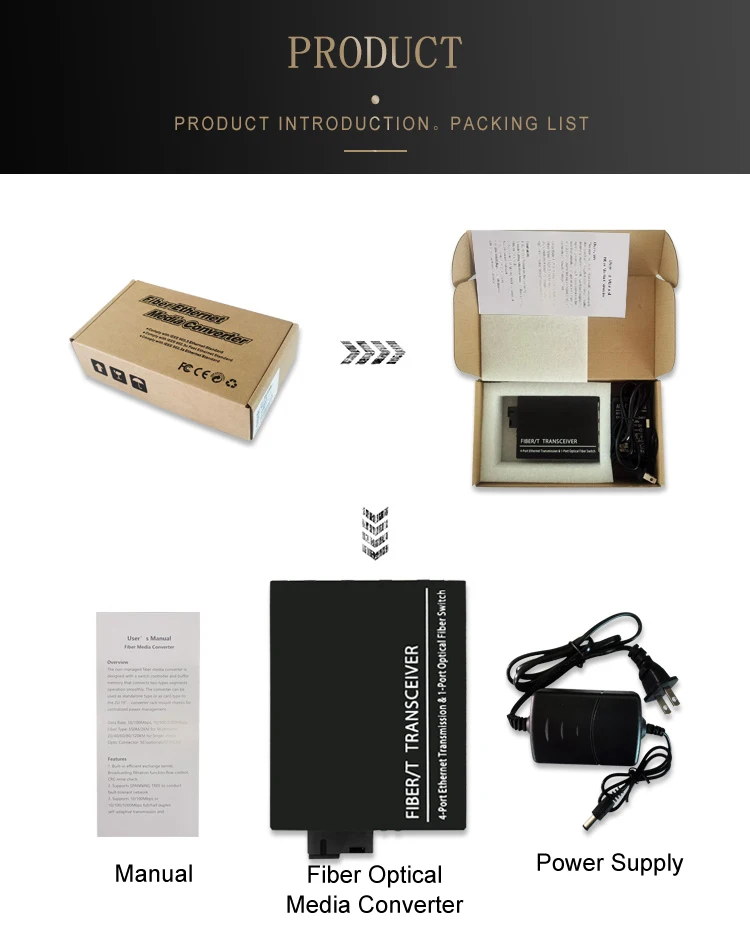

Packaging Logistics
FAQ
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands
of network equipment.
Q3. What are the trade terms?
A3: Lead Time: most popular optics in stock ,ready to ship. some of higher-value and specialize optics have a short lead time.
Payment term: Western union, T/T, Aliexpress escow, money gram ,cash payment.
Warranty: 3 year .
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
Q5.Could I use our own logo, label and package?
A5: Yes,we could provide a OEM service and according to your requirements, design products label, logo, PN, SN, package.
